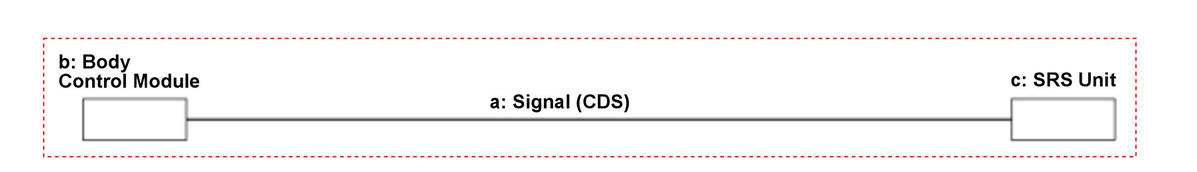

Inspection Outline

GHH574876Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a External Circuit CDS Circuit Inspection
b Body Control Module Body Control Module Inspection
c SRS unit SRS Unit Inspection
