DTC B12D2 (Keyless Access Power Control Unit): Inspection

IG2_SIG, IG2_COIL+ Circuit Inspection

Test Procedure

• Preparation

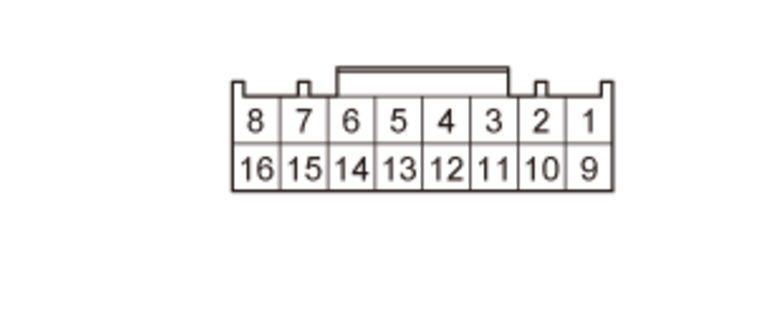

  • Under-dash fuse/relay box connector D (16P): disconnected

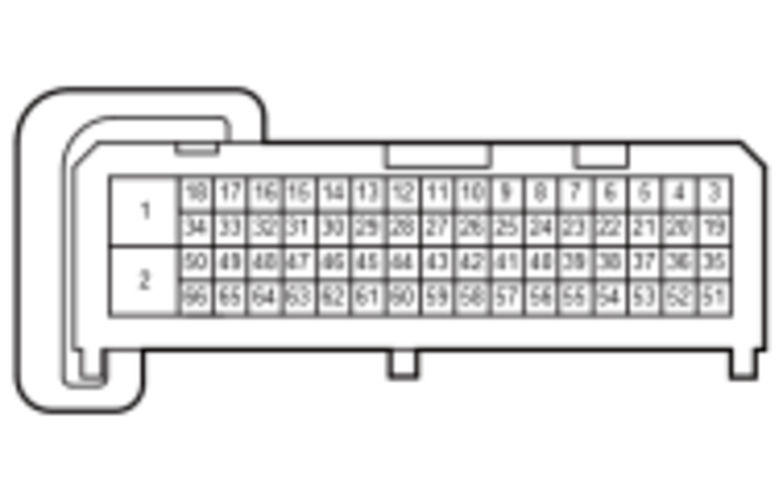

  • Body control module connector C (66P): disconnected
• Procedure
  • Perform the inspection according to the following table.

			(Disconnected) Under-dash fuse/relay box connector D (16P) female terminals	(Disconnected) Body control module connector C (66P) female terminals
		IG Mode	Courtesy of HONDA, U.S.A., INC.	Courtesy of HONDA, U.S.A., INC.	Normal Conditions
	IG2_COIL+ open wire inspection	OFF			There is less than 1 Ohms
	IG2_SIG open wire inspection	OFF			There is less than 1 Ohms
	Refer to the Open/Shorted Wire Inspection Description for the method to inspect the shorted circuit below, then start to inspect according to circumstances.
	IG2_SIG shorted to ground inspection	OFF			There is more than 1 MOhms

Results

• If abnormal, there is a problem in the circuit.
• If it is normal, there is a problem with the under-dash fuse/relay box.
