Repair Procedure

How to use this manual .

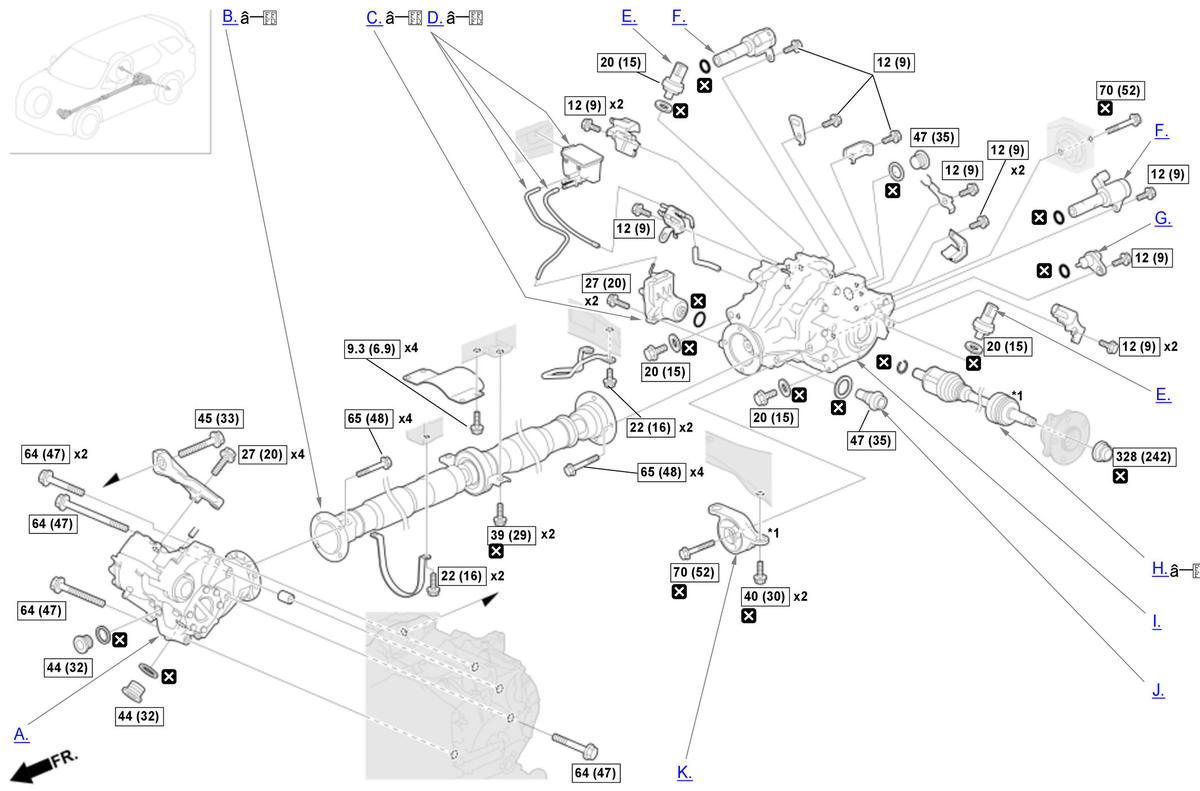

Fig 1: Transfer/Rear Differential Area Replacement Components With Torque Specifications

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Preconditions

   • Vehicle Lifted
   • Transfer Assembly Fluid Drained
   • Park Lock Released - Refer to: A/T Road Test () or How to Release Park Lock ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Catalytic Converter Area Parts
     • Under-Floor Three Way Catalytic Converter (Under-Floor TWC)
     • Rear Warm Up Three Way Catalytic Converter (WU-TWC) (Bank 1)
   • Engine Oil Pressure Sensor Heat Insulator
   • Intermediate Shaft
   • Propeller Shaft

   Disconnect:

   • Lower Arm Ball Joint
   • Right Tie-Rod End Ball Joint
   • Transfer Breather Tube

   Courtesy of HONDA, U.S.A., INC.

   Removal

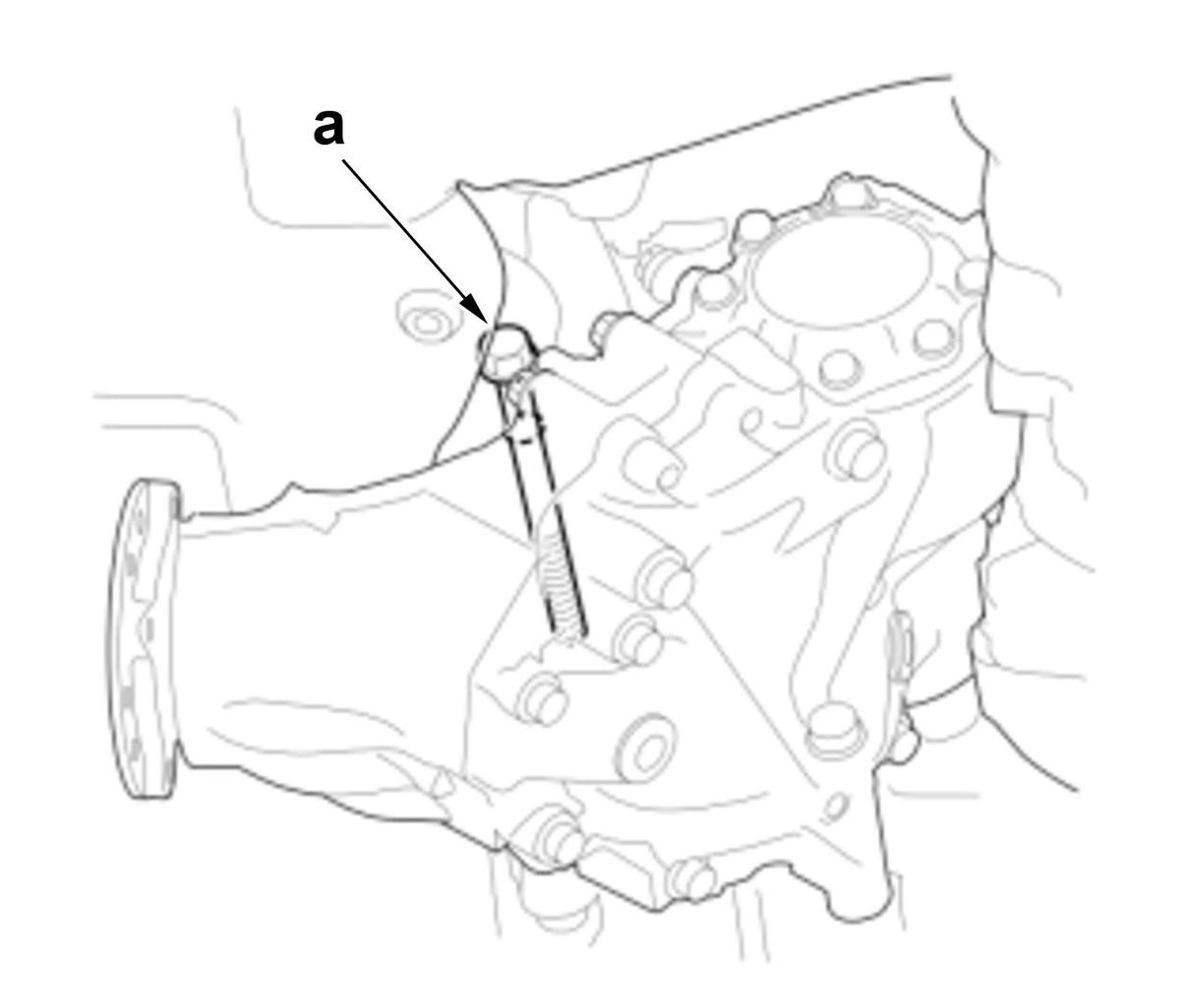

   NOTE:  The bolt (a) cannot be completely removed due to interference with surrounding parts. Leave the bolt in the position shown.

   After Installation

   • Transfer Assembly Fluid Refill
   • Shift the transmission to P position/mode - Refer to: A/T Road Test () or How to Release Park Lock () .
2. B.-

   Preconditions

   • Vehicle Lifted
   • Park Lock Released - Refer to: A/T Road Test () or How to Release Park Lock ()

   Key Information

   Do the following before starting your work.

   Remove:

   • Engine Undercover
   • Propeller Shaft Protector N0.1

   Sub-Procedure

   Removal

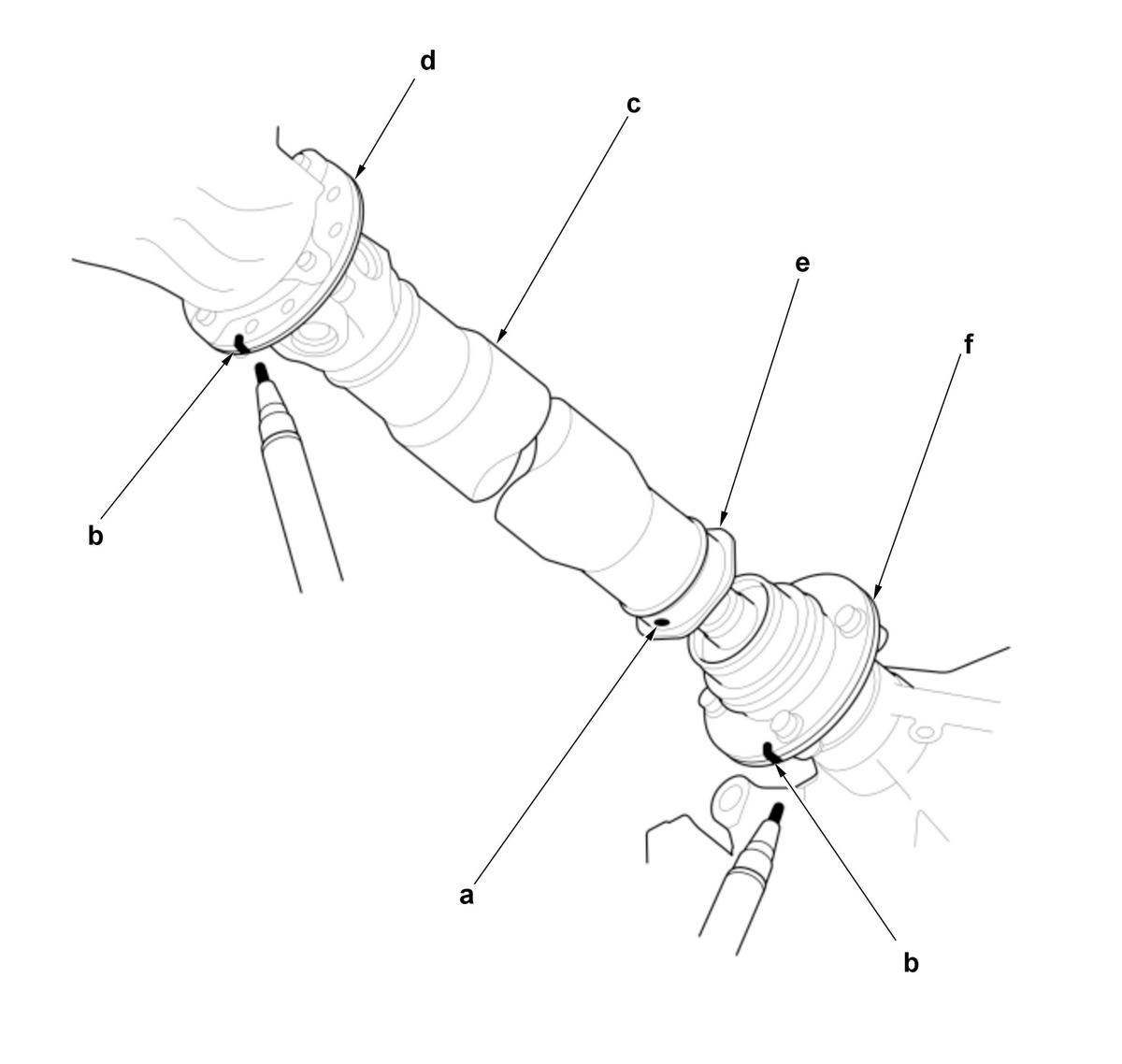

   1. Turn the propeller shaft so that the yellow mark (a) is facing down. (Figure 1)

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   2. Make reference marks (b) across the No. 1 propeller shaft (c) and the companion flange shaft (d), and across the No. 2 propeller shaft (e) and the rear differential companion flange (f). (Figure 1)NOTICE:

   When replacing the following parts, align the reference marks (b). (Figure 1)

   • Propeller Shaft
   • Rear Differential Assembly
   • Sub Carrier Assembly

   Installation

   NOTICE:

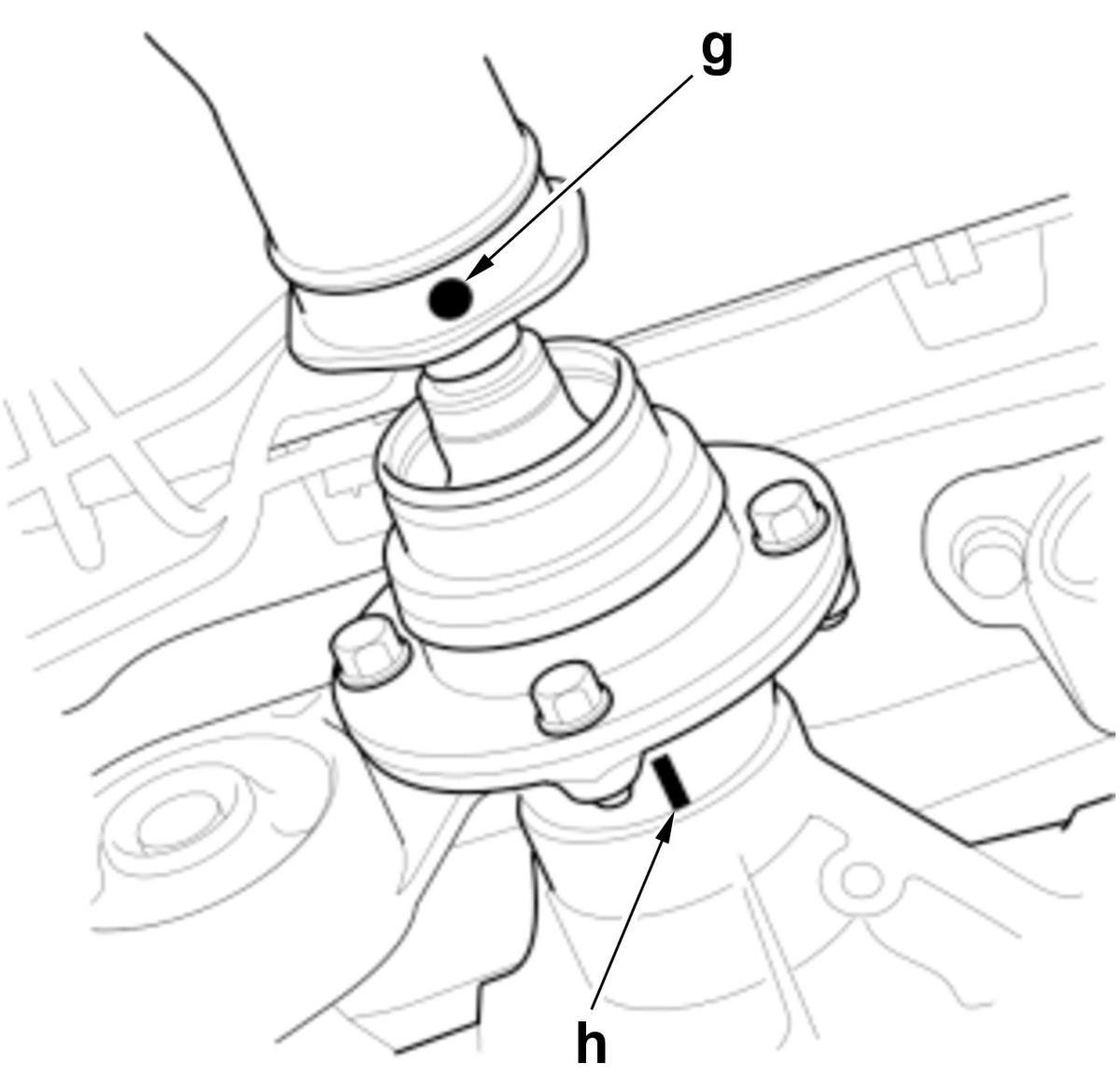

   When replacing the following parts, make sure the factory reference yellow marks (g and h) are aligned. (Figure 2)

   • Propeller Shaft
   • Rear Differential Assembly
   • Sub Carrier Assembly

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   1. Temporarily install all the bolts.

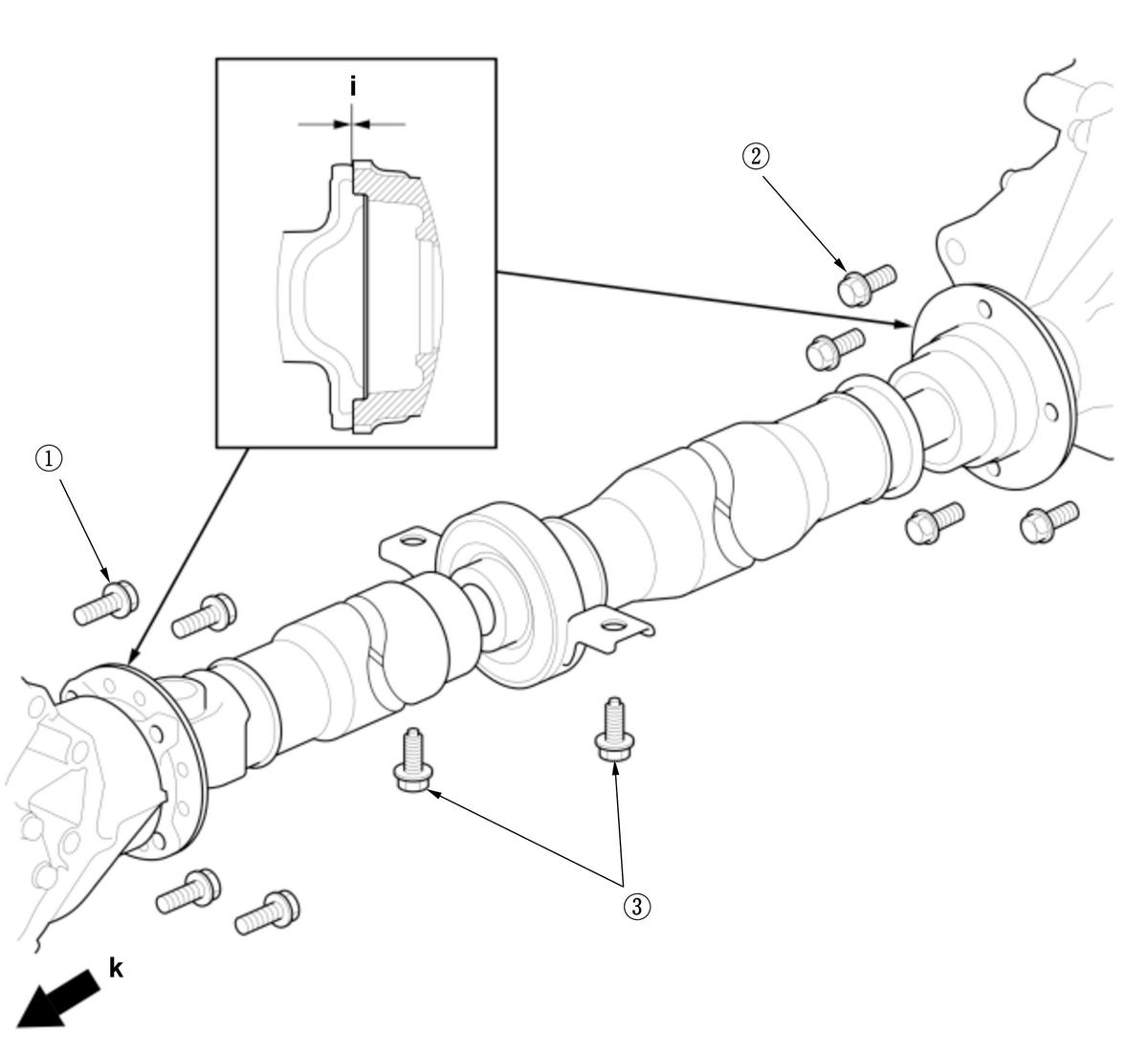

   Specifications (Figure 3)

   Specification
   i	No Clearance

   Installation Directions

   Mark	Direction
   k	Front

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

   2. Tighten the bolts to specifications in the following procedures.

   Tightening Procedure (Figure 3)

   Step	Operation	Object	Specification
   1	Temporarily Tighten	All Bolts	-
   2	Tighten	All Bolts	→ →

   After Installation

   • Shift the transmission to P position/mode - Refer to: A/T Road Test () or How to Release Park Lock () .
3. C.-

   Preconditions

   • Vehicle Lifted
   • Rear Differential Fluid Drained

   Sub-Procedure

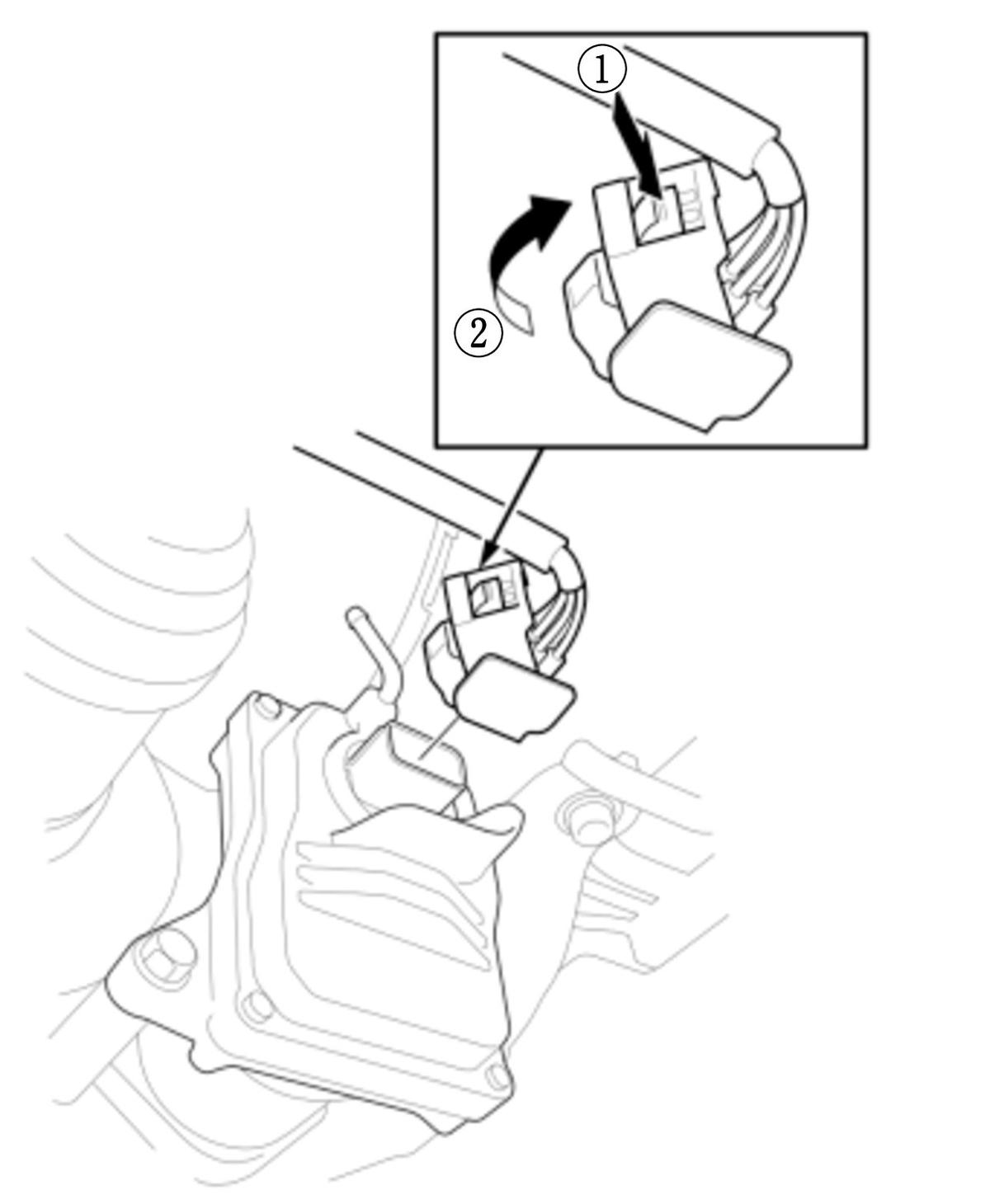

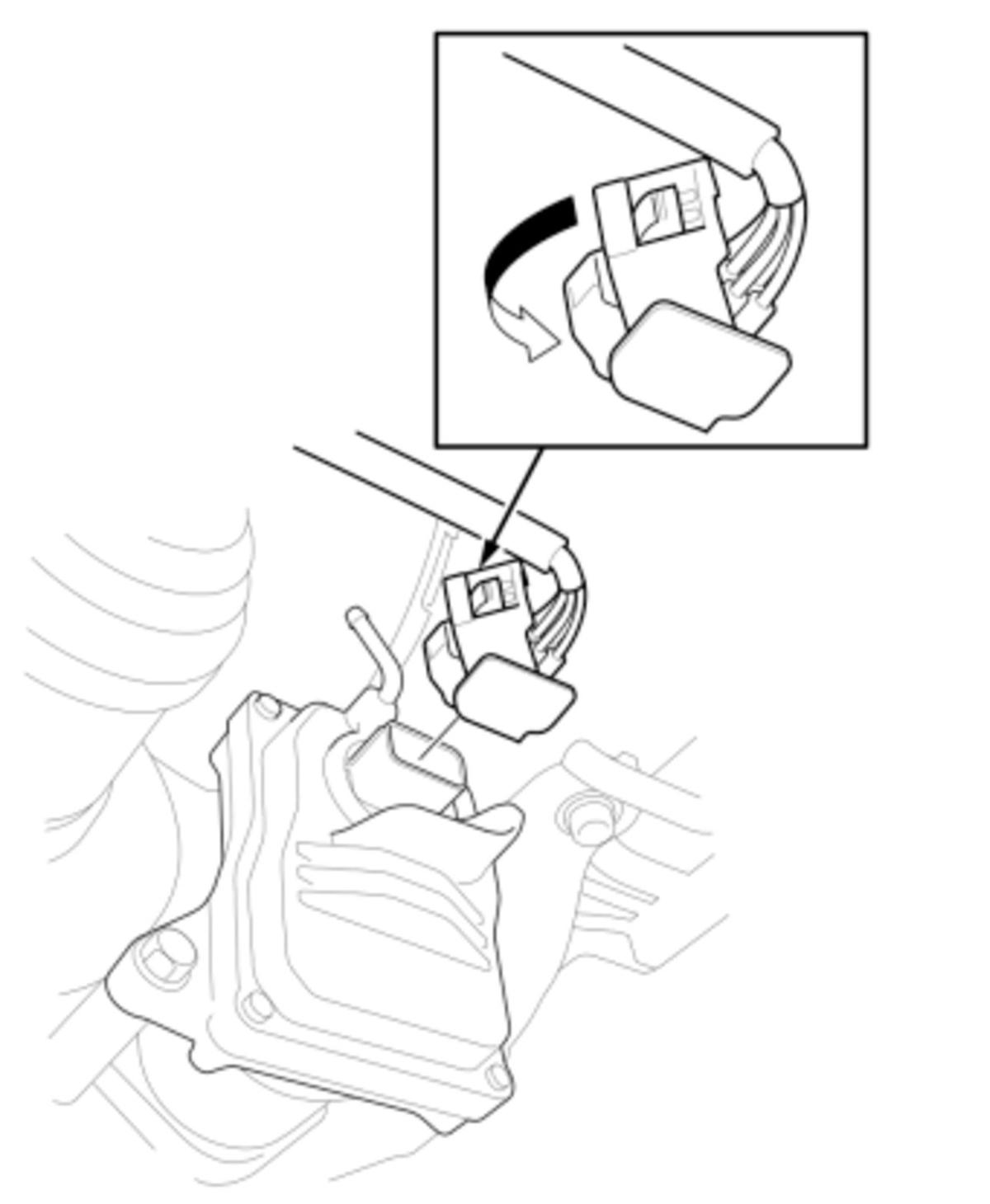

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

   • Refer to the figure 1.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

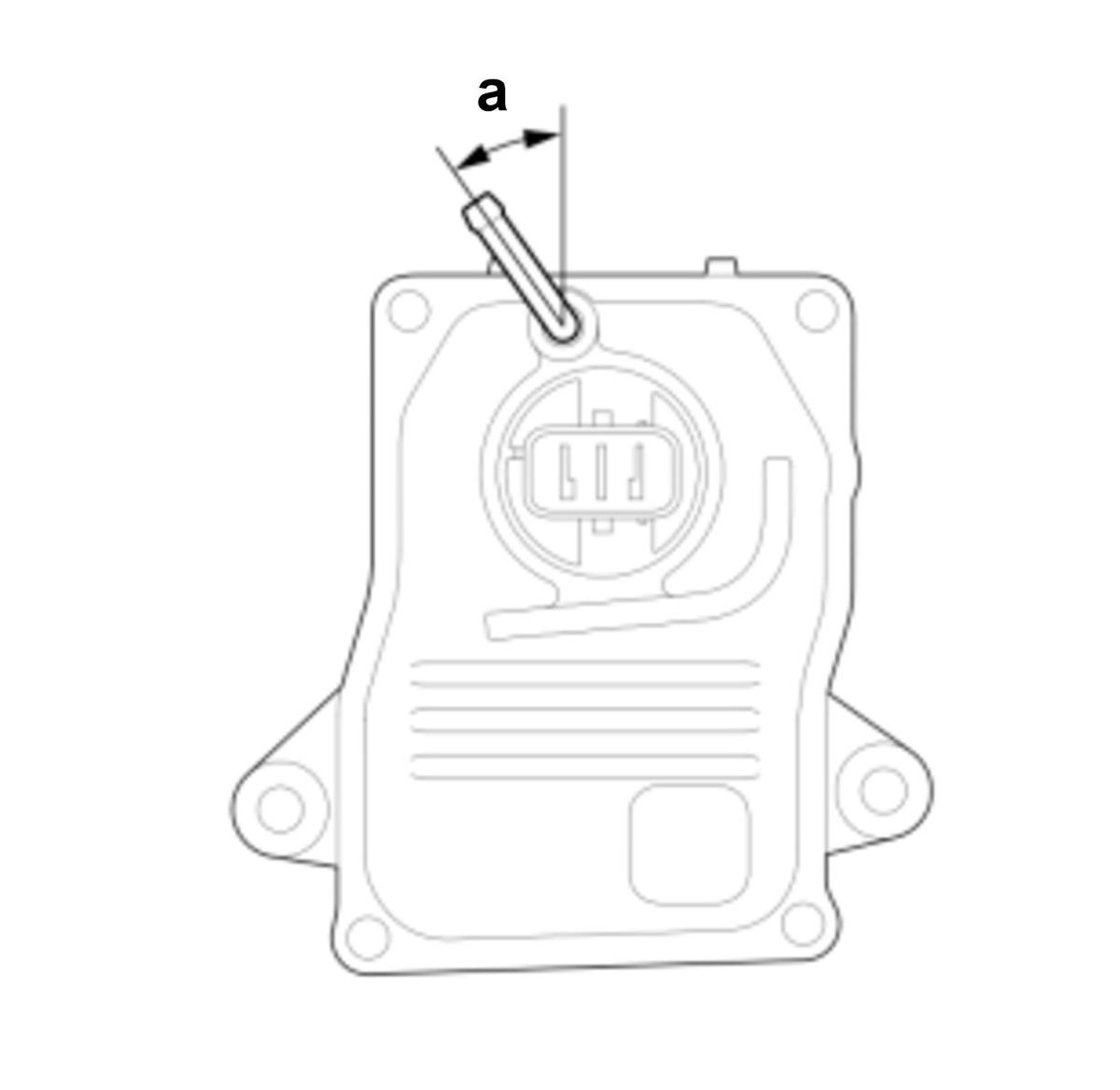

   Specifications (Figure 2)

   Standard Value
   a	32° - 38°

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

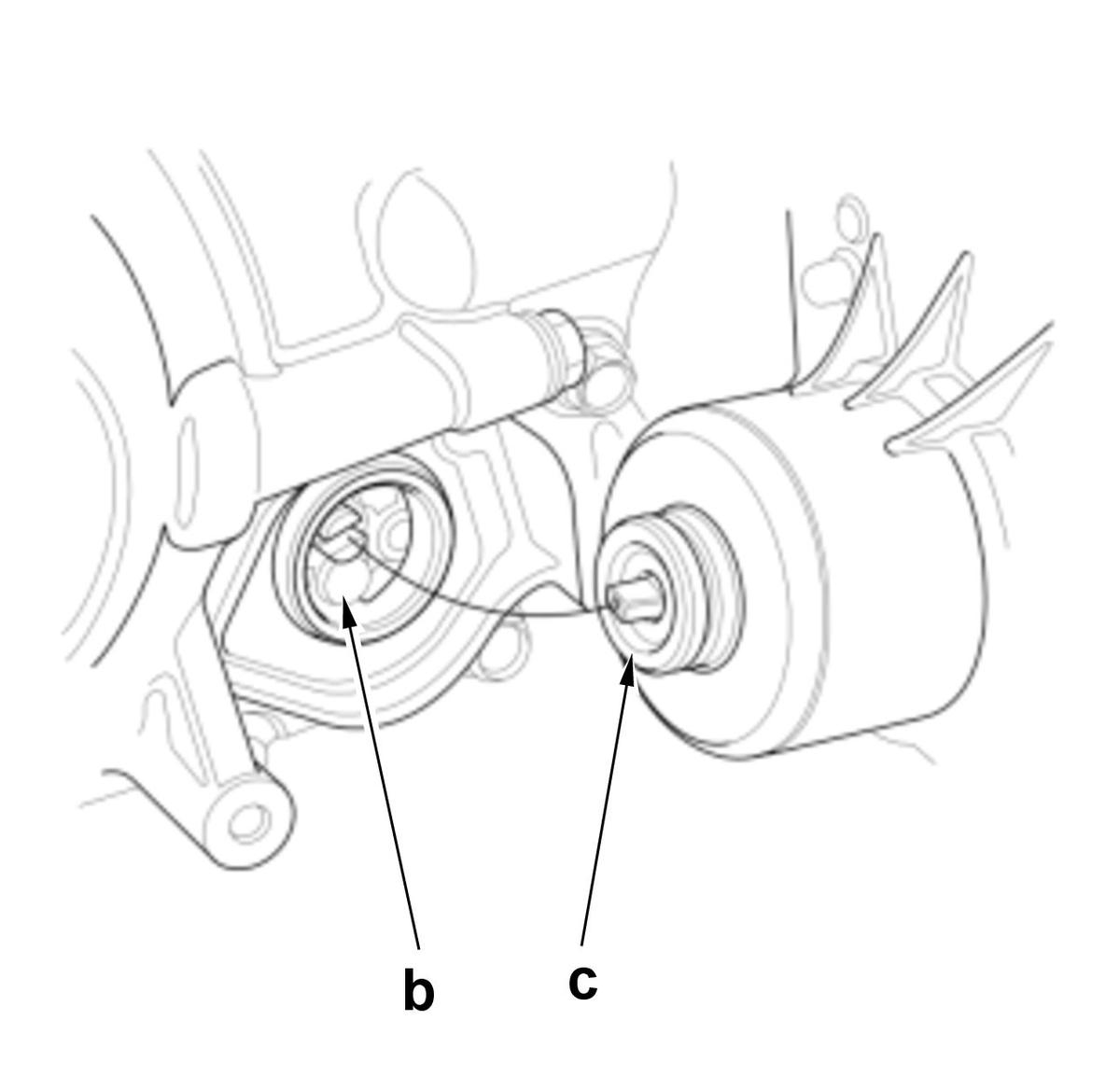

   Specifications (Figure 3)

   Standard Value
   b	Oil Pump Shaft (Groove)
   c	Pump Motor Shaft (Bulge)

   Lubricant Specifications (Figure 3)

   Object	Type
   O-Ring	Rear Differential Fluid

   Figure 4

   Courtesy of HONDA, U.S.A., INC.

   • Refer to the figure 4.

   After Installation

   • Rear Differential Fluid Refill
4. D.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

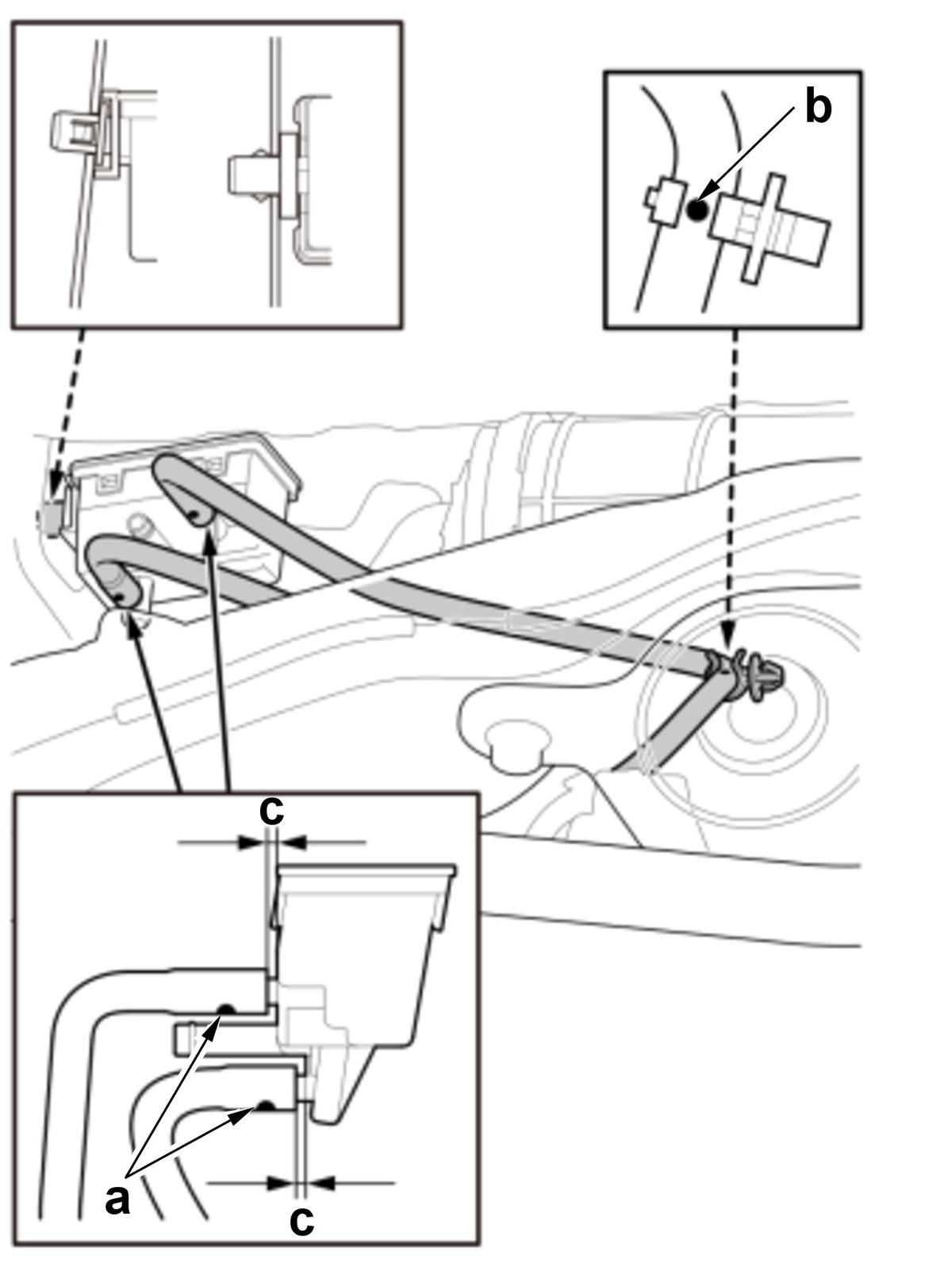

   Removal/Installation

   Installation Directions

   Mark	Direction
   a	Bottom
   b	Up

   Specifications

   Standard Value
   c	2.0 mm (0.079 in) max.

5. E.-

   Preconditions

   • Vehicle Lifted
   • Rear Differential Fluid Drained

   After Installation

   • Rear Differential Fluid Refill
6. F.-

   Preconditions

   • Vehicle Lifted

   Sub-Procedure

   NOTICE:

   Keep sand, dust and debris from entering the rear differential assembly.

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Rear Differential Fluid

7. G.-

   Preconditions

   • Vehicle Lifted
   • Rear Differential Fluid Drained

   Sub-Procedure

   Installation

   Lubricant Specifications

   Object	Type
   O-Ring	Rear Differential Fluid

   After Installation

   • Rear Differential Fluid Refill
8. H.-

   Preconditions

   • Vehicle Lifted
   • Rear Differential Fluid Drained

   Key Information

   Do the following before starting your work.

   Remove:

   • Rear Wheel
   • Rear Differential Assembly

   Disconnect:

   • Propeller Shaft (Rear Differential Side)

   NOTE:  For the removal and installation procedure, refer to Service Precautions .

   After Installation

   • Rear Differential Fluid Refill
   • Turn the wheel by hand and make sure there is no interference between the driveshaft and surrounding parts.
   • Wheel Alignment Check
   • Test drive and check that there are no abnormal noise and vibration.
9. I.-

   Preconditions

   • Vehicle Lifted
   • Rear Differential Fluid Drained

   Key Information

   Do the following before starting your work.

   Remove:

   • Muffler
   • Propeller Shaft Protector No. 2

   Disconnect:

   • Rear Driveshaft Inboard Joint
   • Propeller Shaft (Rear Differential Side)

   NOTE:  For the removal and installation procedure, refer to Service Precautions .

   Sub-Procedure

   NOTICE:

   To support the rear differential assembly, use a jack or other means of support.

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

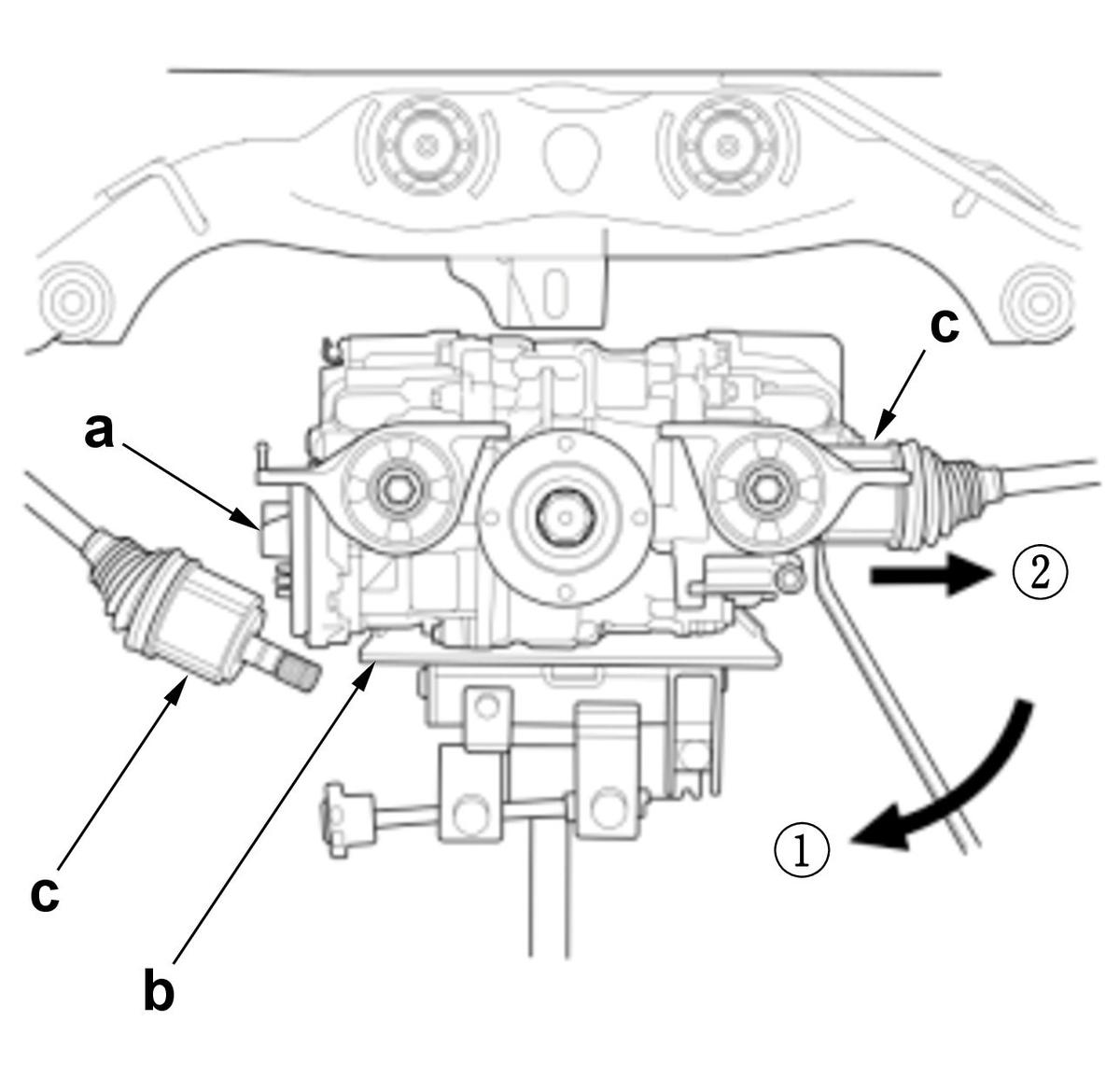

   1. Support the rear differential assembly (a) with a transmission jack (b). (Figure 1)

   Tool Details (Figure 1)

   Name
   b	Transmission Jack (Commercially Available)

   2. Disconnect the inboard joints (c) while lowering the rear differential assembly. (Figure 1)

   NOTE:

   • Be careful not to damage the oil seal or the end of the inboard joint with the pry bar.
   • Do not pull on the driveshaft, or the inboard joint may come apart. Pull the inboard joint straight out to avoid damaging the oil seals.

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Installation

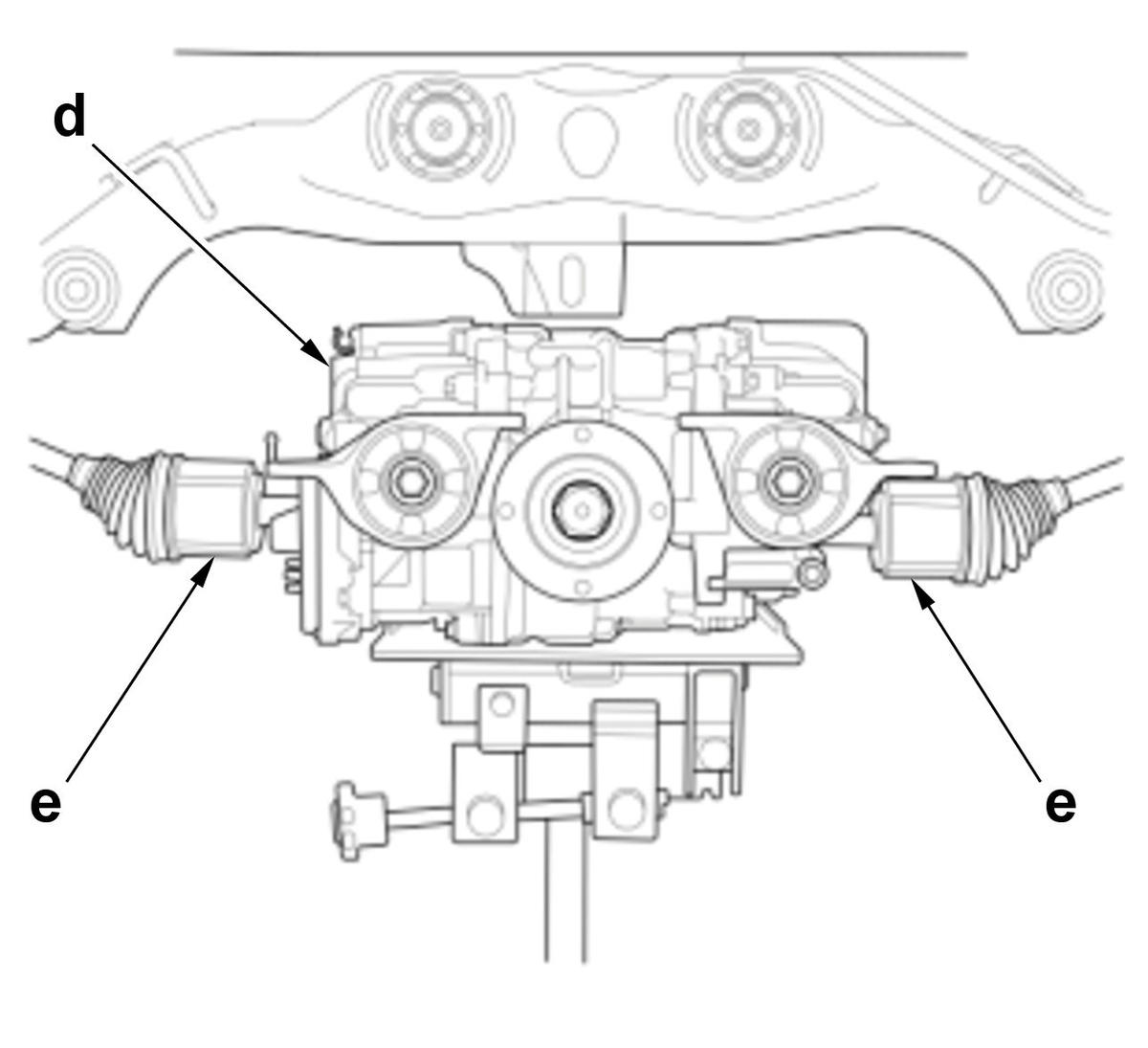

   1. Raise the rear differential assembly (d) to the inboard joints (e) installation position. (Figure 2)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

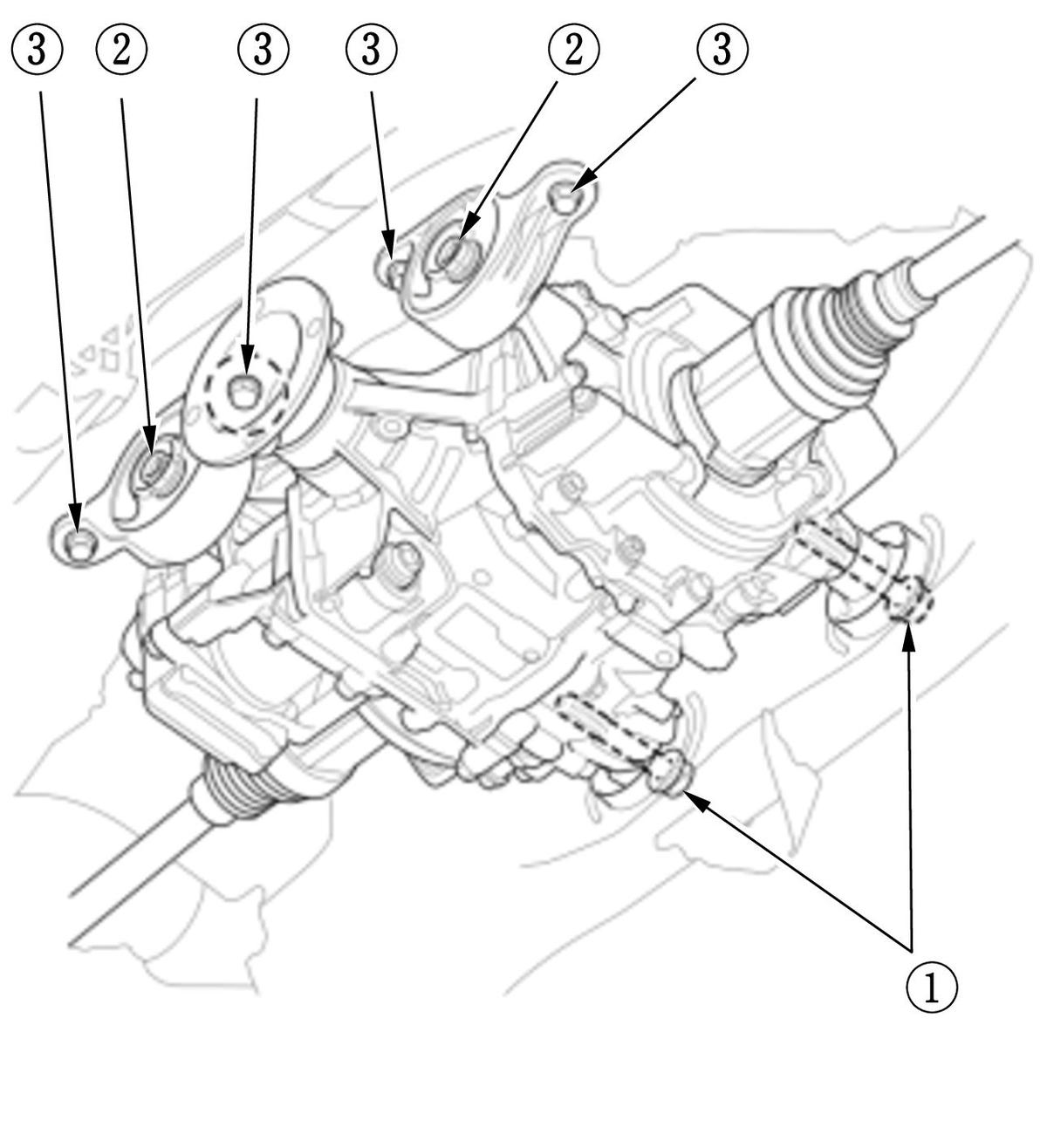

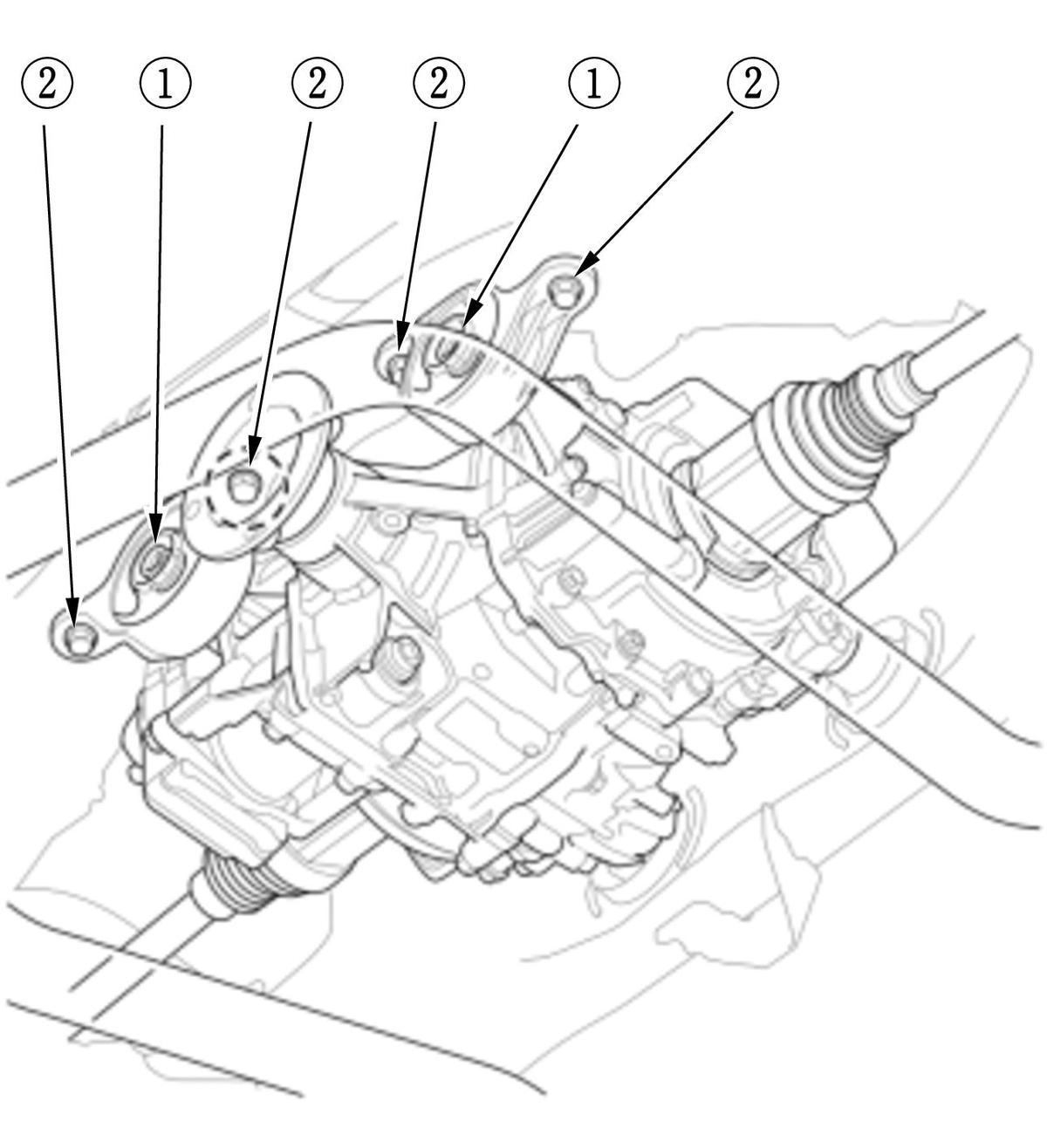

   2. Tighten the bolts, in sequence.

   Tightening Procedure (Figure 3)

   Step	Operation	Object	Specification
   1	Temporarily Tighten	All Bolts and Nuts	-
   2	Tighten	All Bolts and Nuts	→ →

   After Installation

   • Rear Differential Fluid Refill
10. J.-

    Sub-Procedure

    Installation

    • Remove the metal particles from the magnetic surface of the drain plug.
11. K.-

    Sub-Procedure

    NOTICE:

    To support the rear differential assembly, use a jack or other means of support.

    Courtesy of HONDA, U.S.A., INC.

    Installation

    Tightening Procedure

    Step	Operation	Object	Specification
    1	Temporarily Tighten	All Bolts	-
    2	Tighten	All Bolts	→
