Inspection Outline

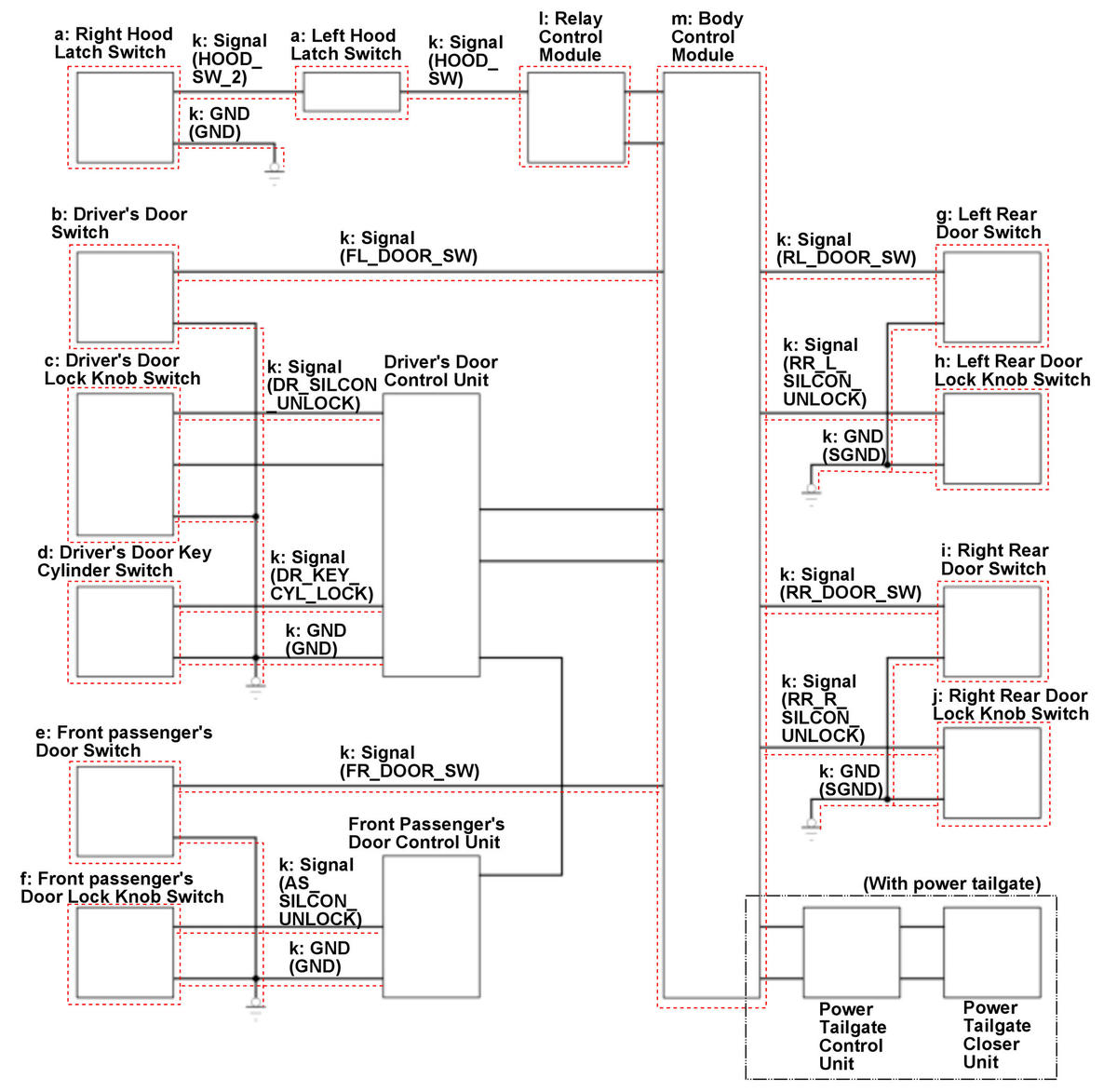

- The components to be tested are indicated by a dotted line.
- Troubleshoot any DTCs listed or indicated systems below first.
- Keyless Access System [Body Control Module]: Go to the indicated DTC's troubleshooting
NOTICE:
For more efficient troubleshooting, you may be able to eliminate some inspection items as potential failures based on the conditions of the failure and vehicle.
- Do the HDS [Parameter Check].
- HDS [Security Hood Switch] is abnormal:
- HDS [Driver's Door Switch] is abnormal:
- HDS [Driver's Door Lock Knob Switch(UNLOCK)] is abnormal:
- HDS [Driver's Door Key Cylinder Switch(LOCK)] is abnormal:
- HDS [Passenger's Door Switch] is abnormal:
- HDS [Passenger's Door Lock Knob Switch(UNLOCK)] is abnormal:
- HDS [Driver's Rear Door Switch] is abnormal:
- HDS [Driver's Rear Door Lock Knob Switch(UNLOCK)] is abnormal:
- HDS [Passenger's Rear Door Switch] is abnormal:
- HDS [Passenger's Rear Door Lock Knob Sw. (UNLOCK)] is abnormal:
- HDS [Security Hood Switch] is abnormal:
| Inspection Items | Work Items | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| a | Left/Right Hood Latch Switch | Do the Hood Latch Switch Test | ◦ | |||||||||
| b | Driver's Door Switch | Do the Driver's Door Switch Test | ◦ | |||||||||
| c | Driver's Door Lock Knob Switch | Do the Driver's Door Lock Knob Switch Test | ◦ | |||||||||
| d | Driver's Door Key Cylinder Switch | Do the Door Key Cylinder Switch Test | ◦ | |||||||||
| e | Front Passenger's Door Switch | Do the Front Passenger's Door Switch Test | ◦ | |||||||||
| f | Front Passenger's Door Lock Knob Switch | Do the Passenger's Door Lock Knob Switch Test | ◦ | |||||||||
| g | Left Rear Door Switch | Do the Left Rear Door Switch Test | ◦ | |||||||||
| h | Left Rear Door Lock Knob Switch | Do the Left Rear Door Lock Knob Switch Test | ◦ | |||||||||
| i | Right Rear Door Switch | Do the Right Rear Door Switch Test | ◦ | |||||||||
| j | Right Rear Door Lock Knob Switch | Do the Right Rear Door Lock Knob Switch Test | ◦ | |||||||||
| k | External Circuit | HOOD_SW, HOOD_SW_2, GND Circuit Inspection | ◦ | |||||||||
| FL_DOOR_SW, GND Open Wire Inspection | ◦ | |||||||||||
| DR_SILCON_UNLOCK, GND Circuit Inspection | ◦ | |||||||||||
| DR_KEY_CYL_LOCK, GND Circuit Inspection | ◦ | |||||||||||
| FR_DOOR_SW, GND Open Wire Inspection | ◦ | |||||||||||
| AS_SILCON_UNLOCK, GND Circuit Inspection | ◦ | |||||||||||
| RL_DOOR_SW, SGND Open Wire Inspection | ◦ | |||||||||||
| RR_L_SILCON_UNLOCK, SGND Circuit Inspection | ◦ | |||||||||||
| RR_DOOR_SW, SGND Open Wire Inspection | ◦ | |||||||||||
| RR_R_SILCON_UNLOCK, SGND Circuit Inspection | ◦ | |||||||||||
| l | Relay Control Module | Relay Control Module Inspection | ◦ | |||||||||
| m | Body Control Module | Body Control Module Inspection | ◦ | ◦ | ◦ | ◦ | ◦ | ◦ | ◦ | ◦ | ◦ | ◦ |
