Front Passenger's Door Control Unit Connector for Inputs and Outputs
| Connector Index |
|---|

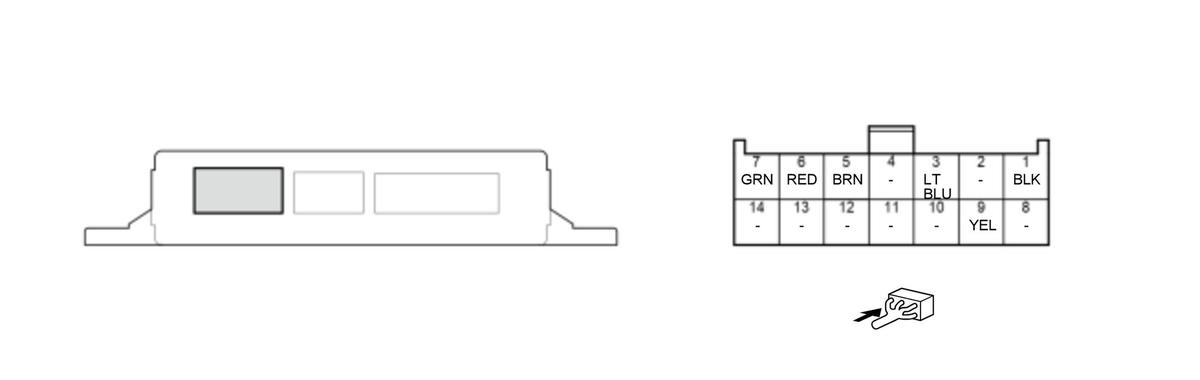

| Front Passenger's Door Control Unit Connector A (14P) |

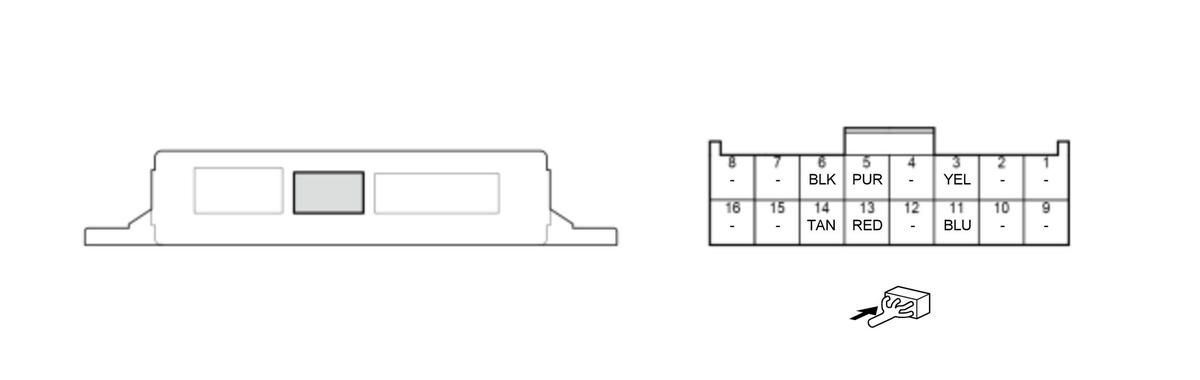

| Front Passenger's Door Control Unit Connector B (16P) |

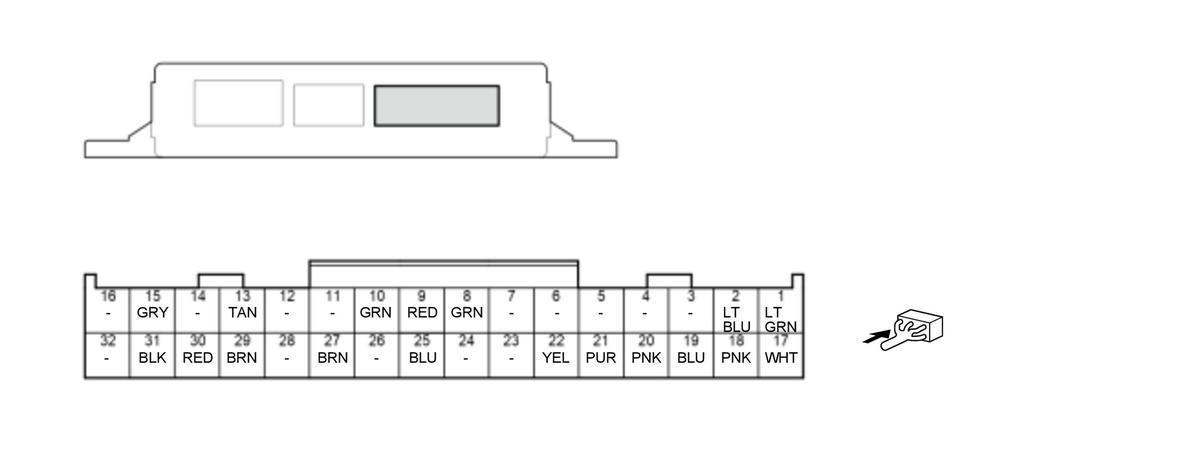

| Front Passenger's Door Control Unit Connector C (32P) |
Front Passenger's Door Control Unit Connector A (14P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | PGND | Front passenger's door control unit ground |
| 2 | - - - | Not used |
| 3 | P/W_AS_MTR_UP | Drives front passenger's power window motor |
| 4 | - - - | Not used |
| 5 | P/W_AS_MTR_DOWN | Drives front passenger's power window motor |
| 6* | H/MIRROR_AS | Outputs mirror defogger signal |
| 7 | +B_P/W_AS | +B power source |
| 8 | - - - | Not used |
| 9 | P/W_H-BRIDGE_DET | Detects water submergence signal |
| 10 | - - - | Not used |
| 11 | - - - | Not used |
| 12 | - - - | Not used |
| 13 | - - - | Not used |
| 14 | - - - | Not used |
*: With mirror defogger
Front Passenger's Door Control Unit Connector B (16P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | - - - | Not used |
| 2 | - - - | Not used |
| 3 | LIN(P/W) | Communication line |
| 4 | - - - | Not used |
| 5 | P/W_AS_MTR_VCC | Drives front passenger's power window motor hall IC (pulser) unit |
| 6 | P/W_AS_SW_SGND | Ground for front passenger's power window switch |
| 7 | - - - | Not used |
| 8 | - - - | Not used |
| 9 | - - - | Not used |
| 10 | - - - | Not used |
| 11 | P/W_AS_MTR_PLSB | Detects front passenger's power window motor hall IC (pulser) unit signal |
| 12 | - - - | Not used |
| 13 | P/W_AS_MTR_PLSA | Detects front passenger's power window motor hall IC (pulser) unit signal |
| 14 | P/W_AS_MTR_SGND | Ground for front passenger's power window motor hall IC (pulser) unit |
| 15 | - - - | Not used |
| 16 | - - - | Not used |
Front Passenger's Door Control Unit Connector C (32P) (female terminals)
| Terminal number | Terminal name | Description |
|---|---|---|
| 1 | AS_MIRROR_UD | Drives right power mirror actuator (UP) |
| 2 | AS_REMOTE_SW_LOCK | Detects front passenger's power window switch (DOOR LOCK) signal |
| 3 | - - - | Not used |
| 4 | - - - | Not used |
| 5 | - - - | Not used |
| 6 | - - - | Not used |
| 7 | - - - | Not used |
| 8*1 | AS_PUDDLE_LT | Outputs front passenger's door puddle light signal |
| 9 | P/W_AS_SW_DOWN | Detects front passenger's power window switch (front passenger's power window DOWN) signal |
| 10 | P/W_AS_SW_AUTO | Detects front passenger's power window switch (front passenger's power window AUTO UP/DOWN) signal |
*1: With door puddle light
*2: With DPMS
*3: With door courtesy light
*4: With power retract mirror
| Terminal number | Terminal name | Description |
|---|---|---|
| 11 | - - - | Not used |
| 12 | - - - | Not used |
| 13*2 | AS_MIRROR_HLSE | Detects right power mirror position sensor (horizontal) signal |
| 14 | - - - | Not used |
| 15*2 | AS_MIRROR_AGND | Ground for right power mirror position sensor |
| 16 | - - - | Not used |
| 17*2 | AS_MIRROR_VREF | Drives right power mirror position sensor |
| 18 | AS_MIRROR_LR | Drives right power mirror actuator (RIGHT) |
| 19*2 | AS_MIRROR_VLSE | Detects right power mirror position sensor (vertical) signal |
| 20 | P/W_AS_SW_ILL | Outputs front passenger's power window switch illumination signal |
| 21 | AS_REMOTE_SW_UNLOCK | Detects front passenger's power window switch (DOOR UNLOCK) signal |
| 22 | AS_MIRROR_COM | Drives right power mirror actuator (DOWN/LEFT) |
| 23 | - - - | Not used |
| 24 | - - - | Not used |
| 25*3 | AS_COURTESY_LT+ | Outputs front passenger's door courtesy light signal |
| 26 | - - - | Not used |
| 27 | P/W_AS_SW_UP | Detects front passenger's power window switch (front passenger's power window UP) signal |
| 28 | - - - | Not used |
| 29*4 | AS_RETRA_OPEN | Drives retract actuator |
| 30 | AS_SILCON_UNLOCK | Detects front passenger's door lock knob switch (UNLOCK) signal |
| 31*4 | AS_RETRA_CLOSE | Drives retract actuator |
| 32 | - - - | Not used |
*1: With door puddle light
*2: With DPMS
*3: With door courtesy light
*4: With power retract mirror
