Front Brake Area

For Replacement of components listed below, see Repair Procedure

Special Tools Required

Image	Description/Tool Number

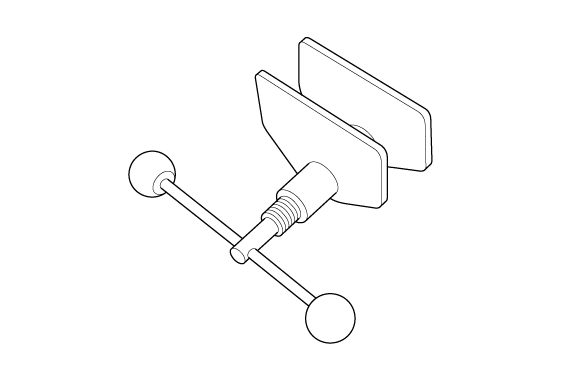

Courtesy of HONDA, U.S.A., INC.	Brake Caliper Piston Compressor 07AAE-SEPA101

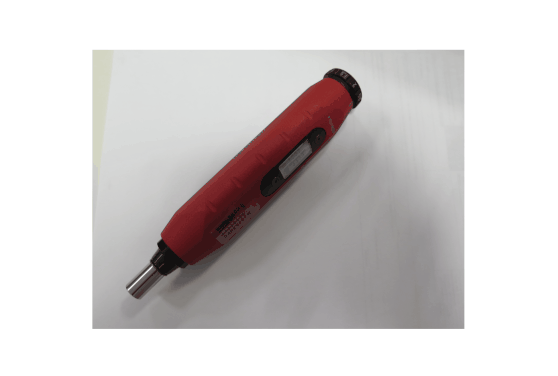

Courtesy of HONDA, U.S.A., INC.	Screwdriver, Torque, Adjustable Snap-On QDRIVER4*

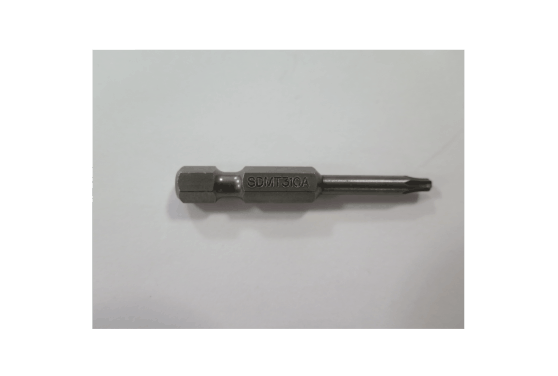

Courtesy of HONDA, U.S.A., INC.	Bit, Power, TORX, T10 Snap-On SDMT310A*

*Available through the Honda Tool and Equipment Program 888-424-6857

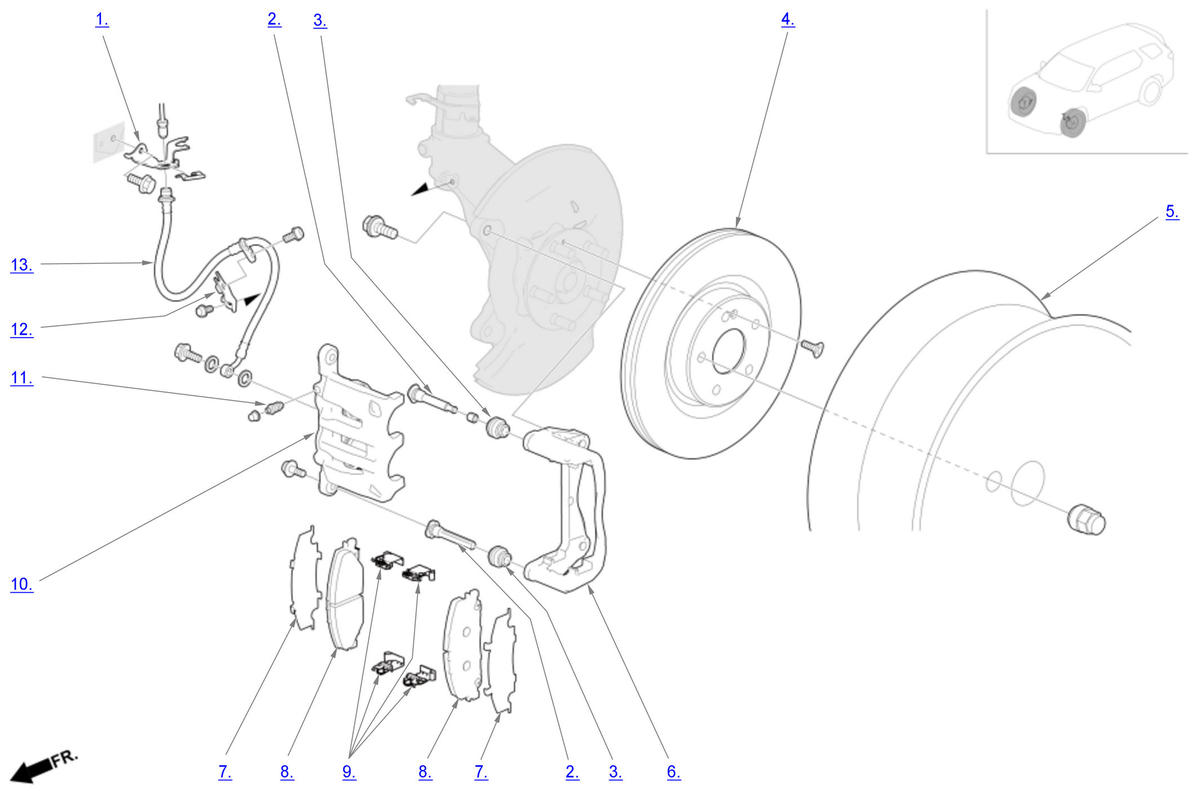

Exploded View Of Front Brake Area (Items 1 thru 13) (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

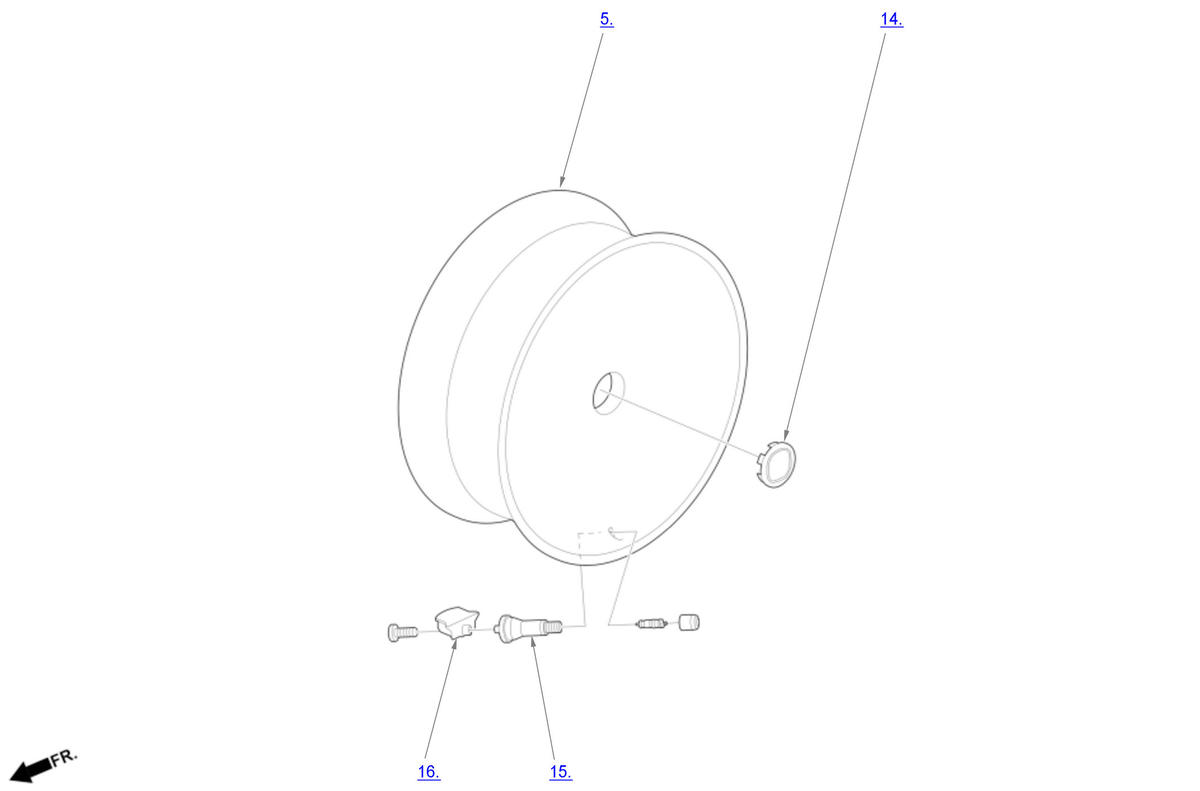

Exploded View Of Front Brake Area (Items 14 thru 16) (2 Of 2)

Courtesy of HONDA, U.S.A., INC.
