DTC Advanced Diagnostics: P0571 (2023 2024): General Description

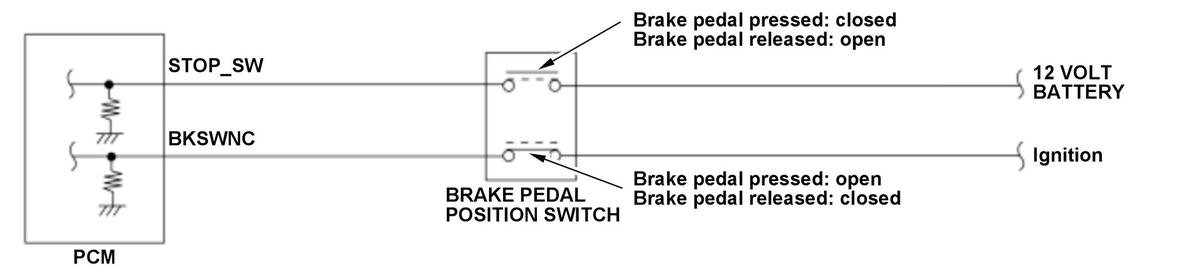

If the vehicle is stopped without pressing the brake pedal from a certain vehicle speed for a specified time (stuck released), or if the brake pedal is pressed while the accelerator pedal is pressed and there is a certain vehicle speed for a specified duration (stuck pressed), the PCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | Depending on driving conditions*, 5 minutes or more** |
| DTC Type | Two drive cycles, MIL off |
* : Stuck released
** : Stuck pressed
