DTC Advanced Diagnostics: P0A94 (2023 2024): General Description

Courtesy of HONDA, U.S.A., INC.

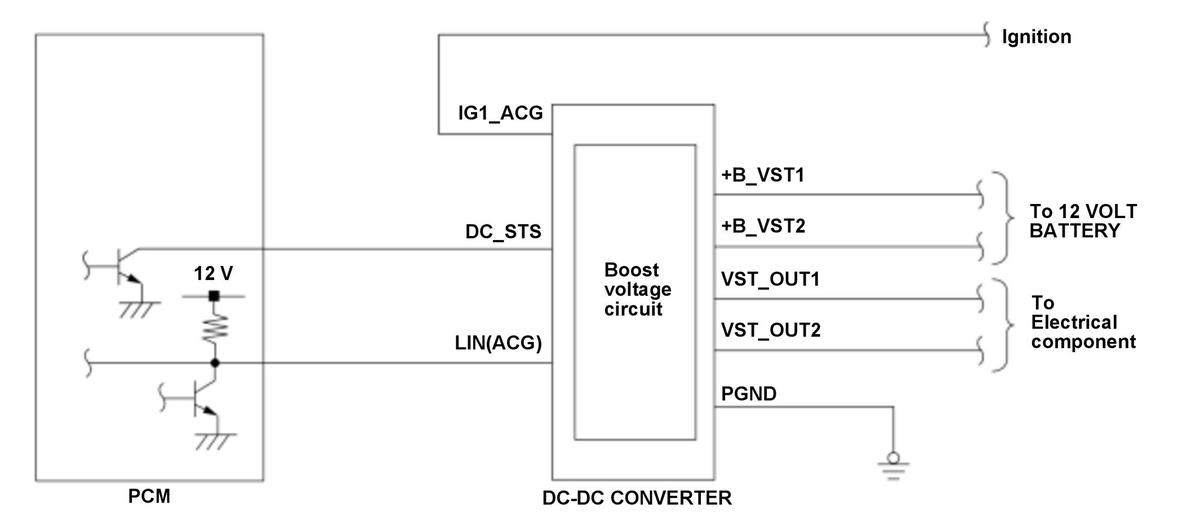

The auto idle stop system equipped vehicle uses the DC-DC converter to prevent electronic accessory reset due to the 12 volt battery voltage lowering when recovering (starter motor running) from auto idle stop condition. The DC-DC converter is connected with DC_STS line for the powertrain control module (PCM) to send a voltage boost request and the local interconnect network (LIN) line for sending a diagnostic result to the PCM. When the self-diagnostic circuit in the DC-DC converter detects a failure, it is noticed to the PCM via the LIN line. If the PCM receives a DC-DC converter failure information for a set time, the PCM detects a DC-DC converter performance problem and stores a DTC.

Monitor Execution, Sequence, Duration, DTC Type
