Exploded View: Notes

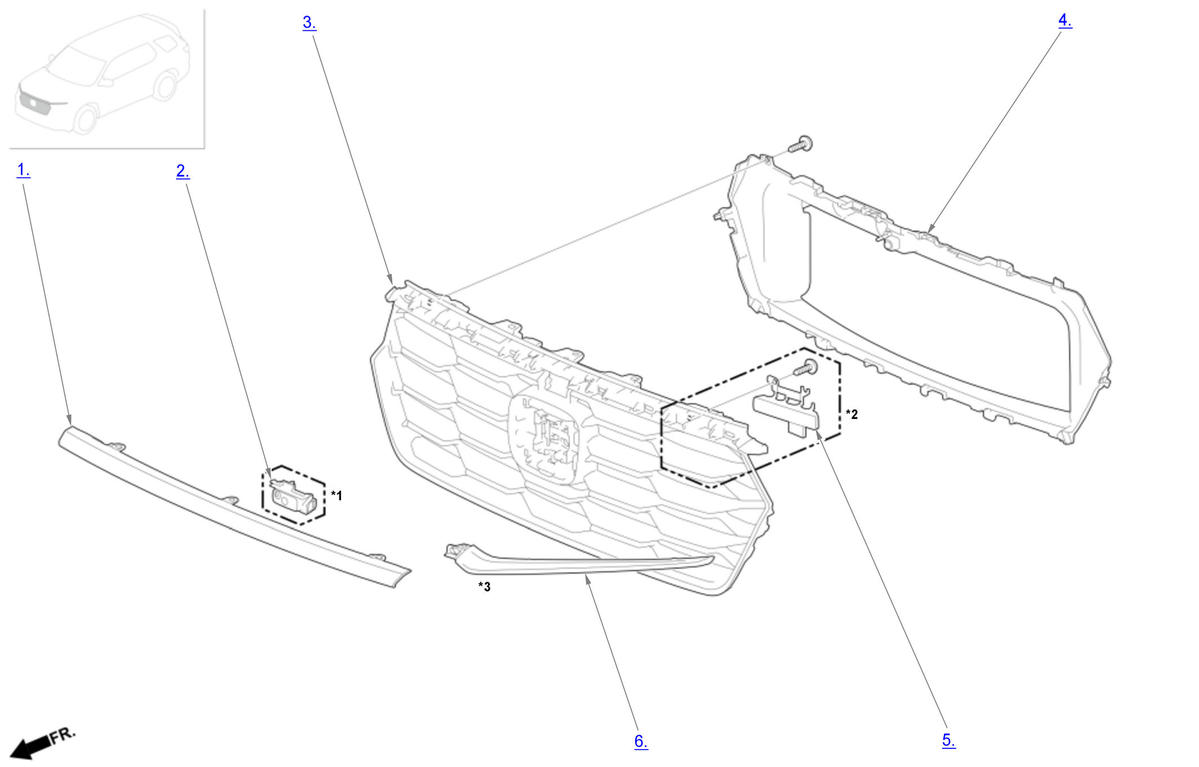

Fig 1: Exploded View Of Front Grille Components (Items 1 thru 6)

Courtesy of HONDA, U.S.A., INC.

*1: With multi view camera system
*2: For some models
*3: Part(s) are shown for one side only as the procedure is the same for both sides.

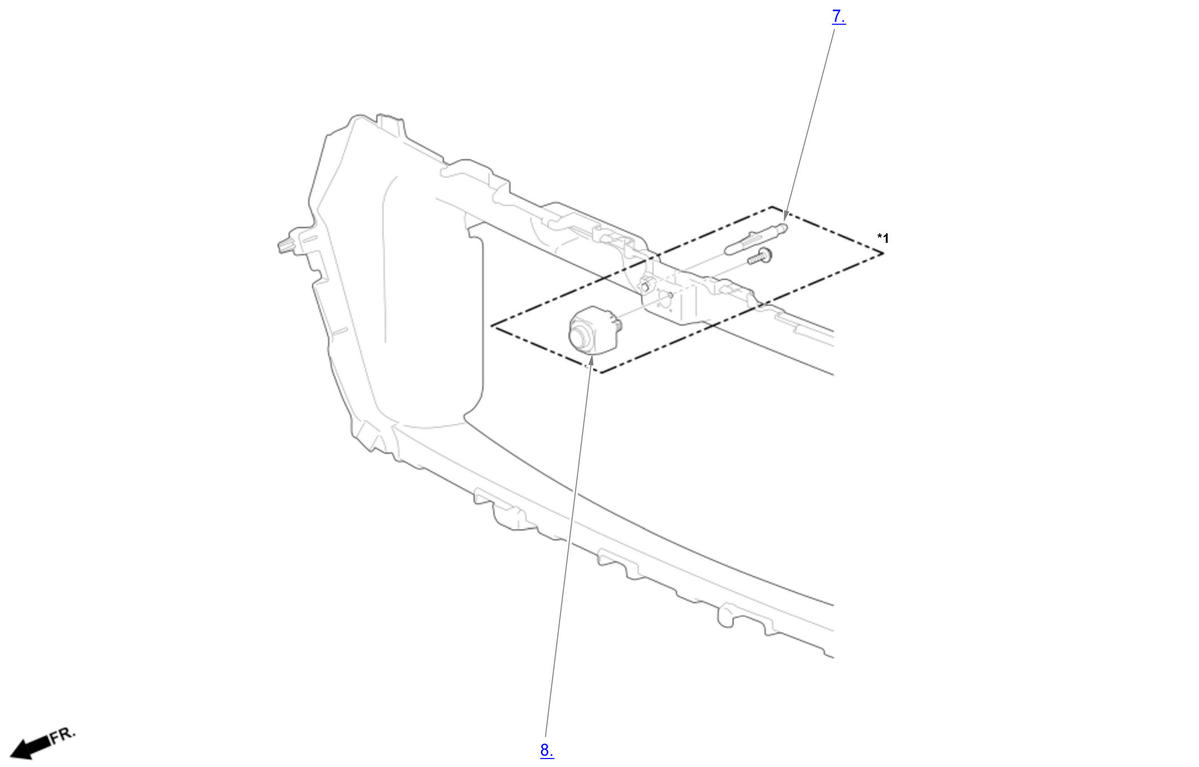

Fig 2: Exploded View Of Front Grille Components (Items 7 thru 8)

Courtesy of HONDA, U.S.A., INC.

*1: With multi view camera system
