Keyless Access Control Unit - Diagnostics
>>
Troubleshooting
>>
DTC B1660 (Keyless Access Control Unit)
>>
Inspection Outline
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Inspection Outline

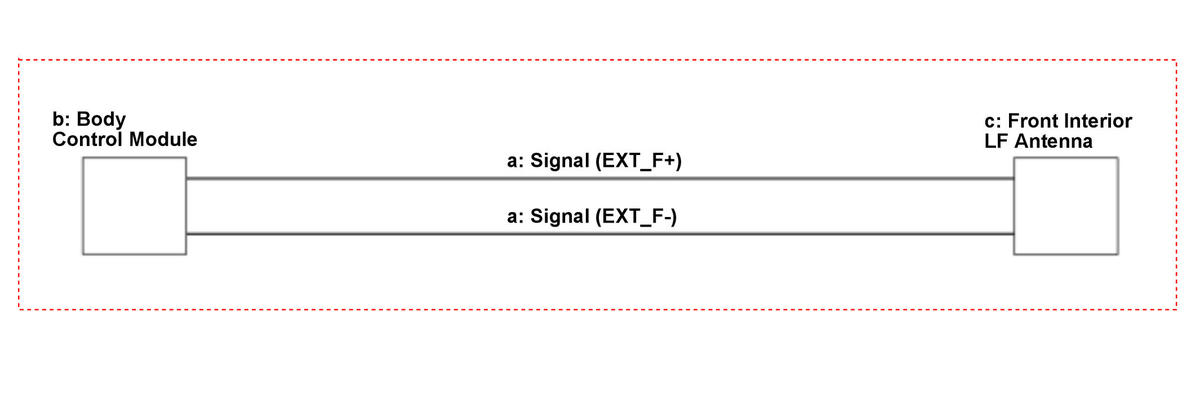

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
EXT_F+, EXT_F- Open Wire Inspection
EXT_F+, EXT_F- Shorted Wire Inspection
b
Body Control Module
Body Control Module Inspection
c
Front Interior LF Antenna
Front Interior LF Antenna Inspection
