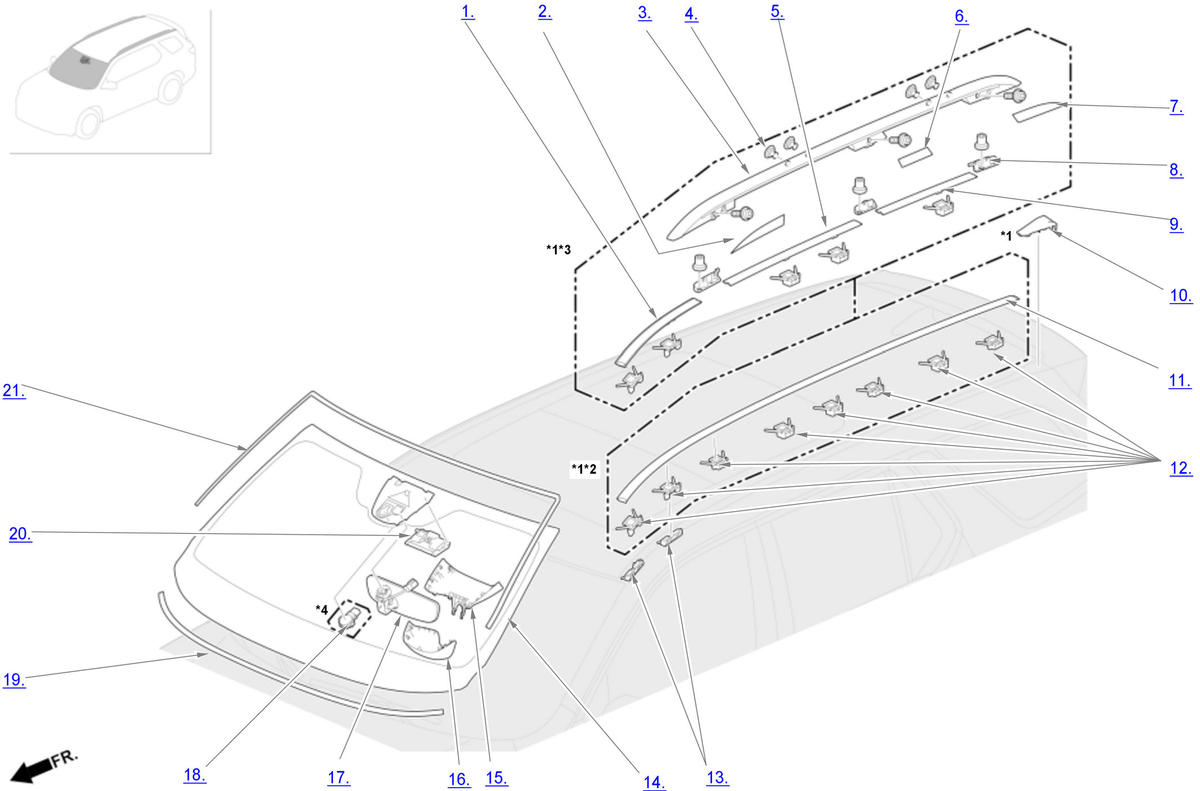

Exploded View
| *1: Part(s) are shown for one side only as the procedure is the same for both sides *2: Without roof rail *3: With roof rail *4: With automatic lighting/rain sensor |
Windshield Area Legend
| Component Name | Callout |
|---|---|
| Front Roof Molding | 1 |
| Front Cap | 2 |
| Roof Rail | 3 |
| Plug | 4 |
| Middle Roof Molding | 5 |
| Center Cap | 6 |
| Rear Cap | 7 |
| Adapter Bracket | 8 |
| Rear Roof Molding | 9 |
| Tailgate Hinge Cover | 10 |
| Roof Molding | 11 |
| Roof Molding Clip | 12 |
| Roof Molding Retainer | 13 |
| Windshield | 14 |
| Camera Cover | 15 |
| Camera Cover Lid | 16 |

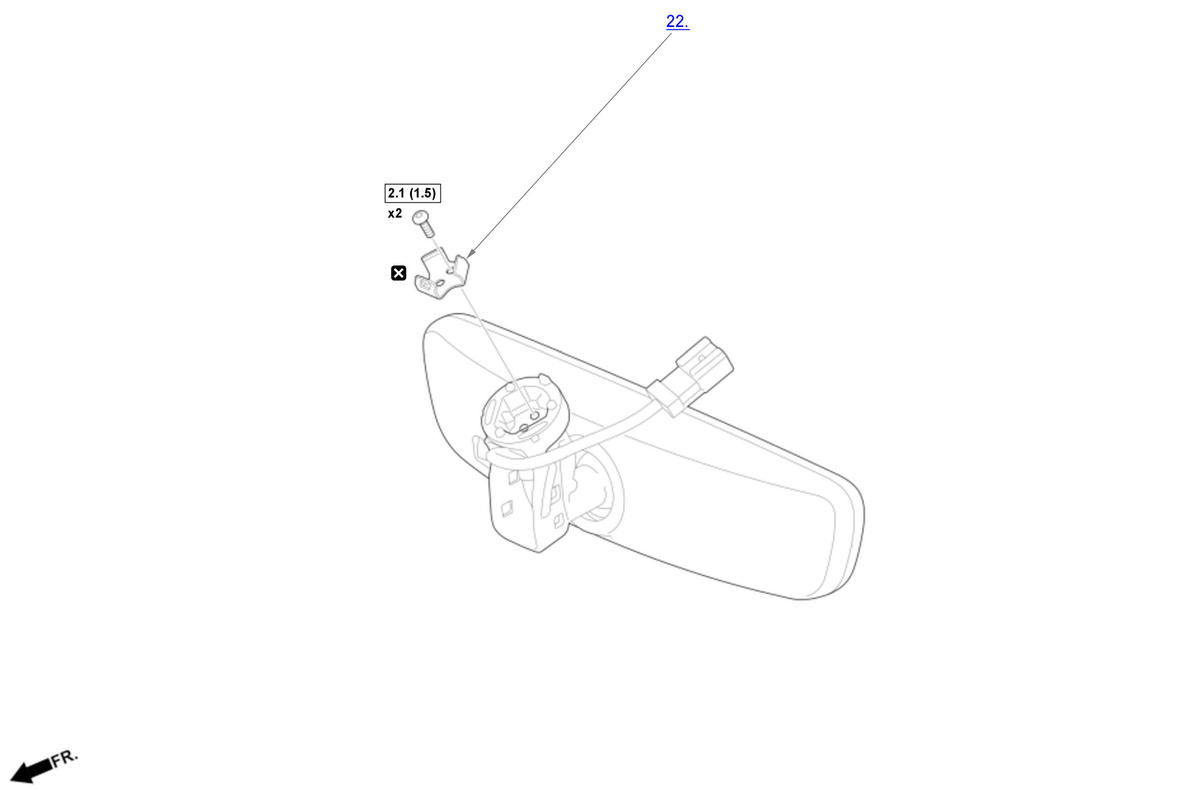

| Rearview Mirror | 17 |
| Automatic Lighting/Rain Sensor | 18 |
| Windshield Lower Molding | 19 |
| Multipurpose Camera Unit | 20 |
| Windshield Molding | 21 |
| Mount Spring | 22 |
