Exploded View

For Replacement of components listed below, see Repair Procedure

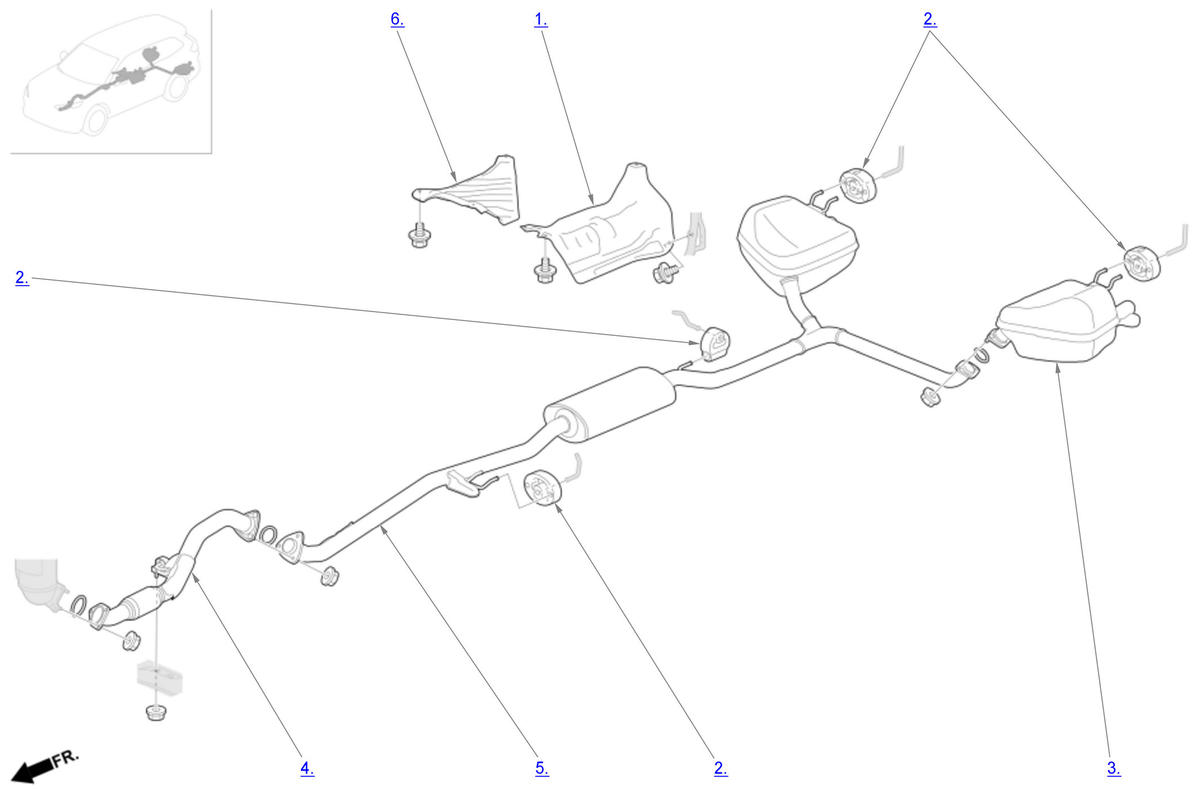

2WD (USA and Canada Models)

Courtesy of HONDA, U.S.A., INC.

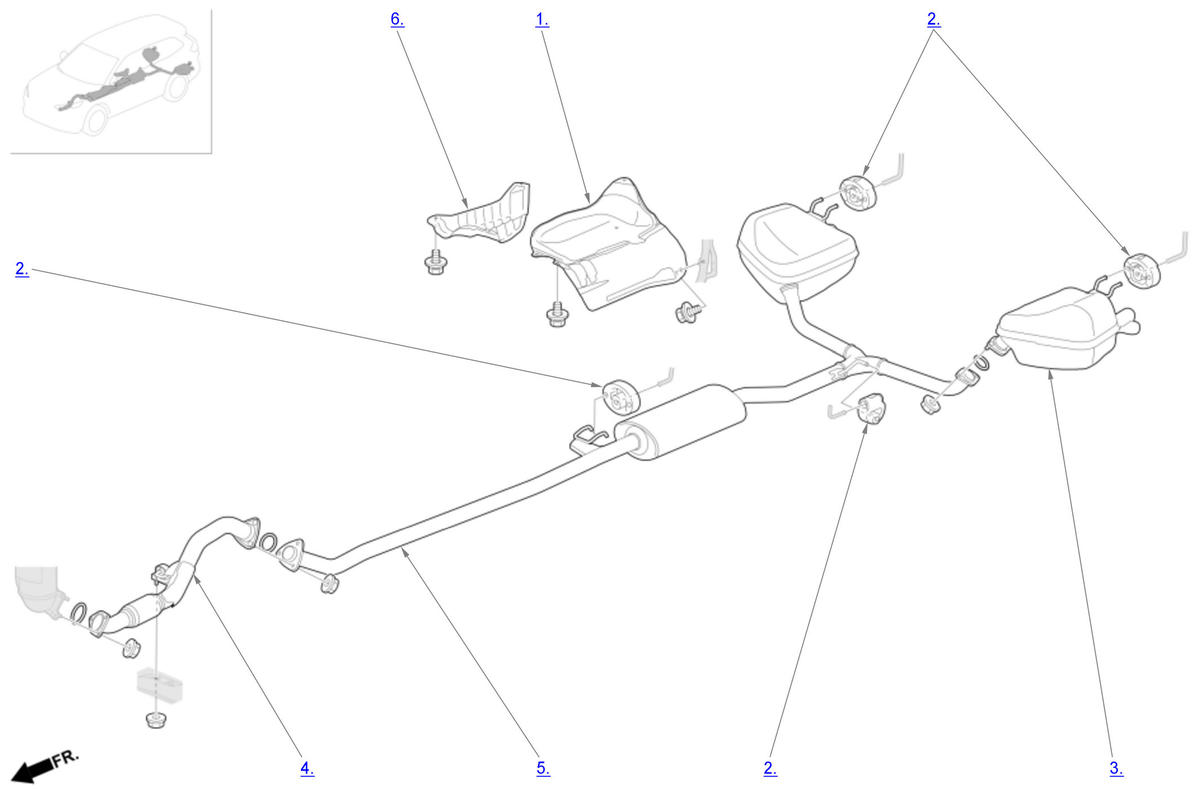

2WD (Mexico Models)

Courtesy of HONDA, U.S.A., INC.

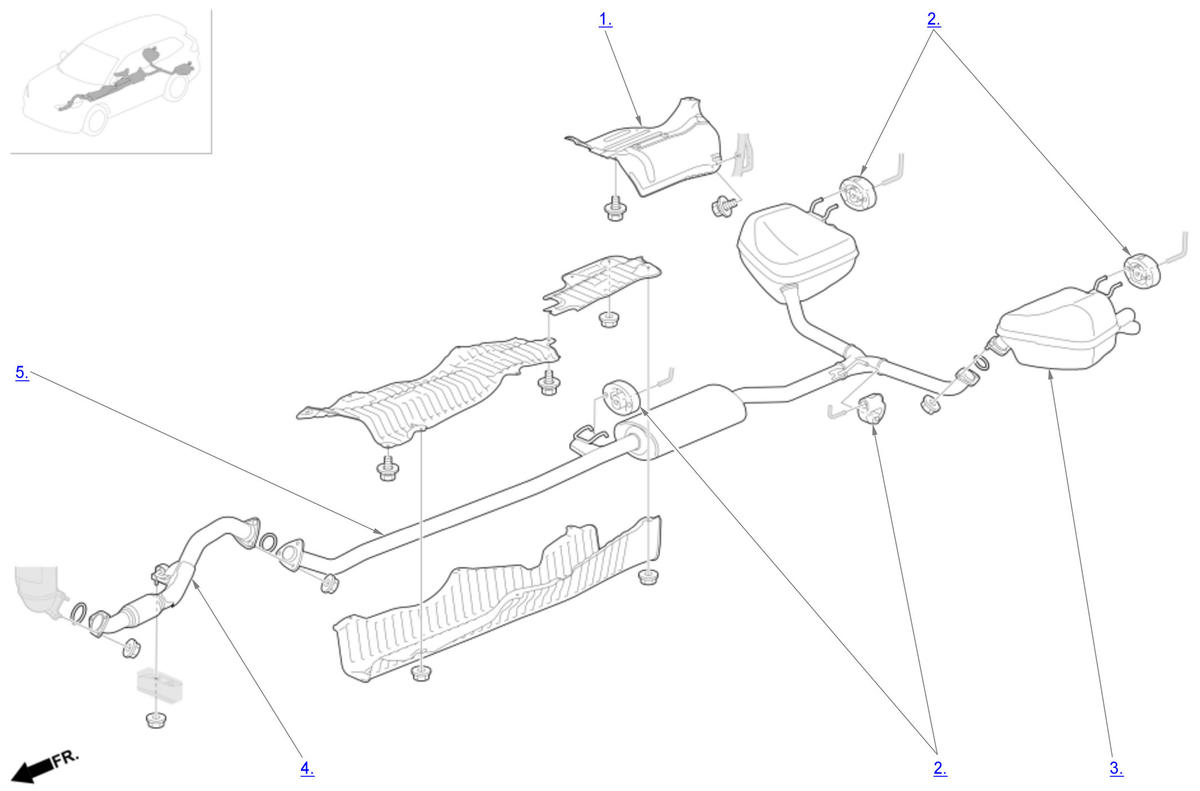

AWD

Courtesy of HONDA, U.S.A., INC.

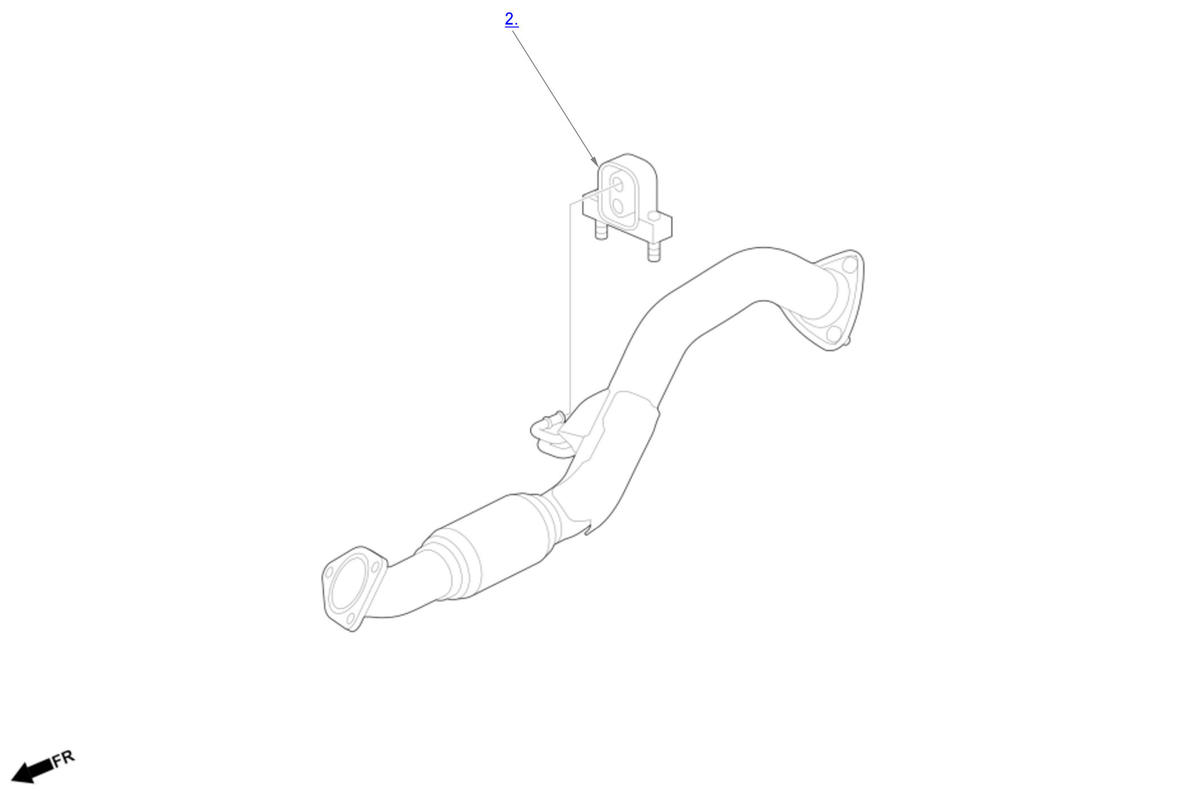

Courtesy of HONDA, U.S.A., INC.

Exhaust Pipe / Muffler Area

Component Name	Callout
Fuel Tank Protector (Rear Side)	1
Rubber Mount	2
Left Muffler	3
Exhaust Pipe A	4
Muffler	5
Canister Heat Baffle	6
