Park Pin Switch Test: Test

How to use this service information .

1. Park Pin Switch - Test

   Preconditions

   • Center Console Trim Assembly Removed

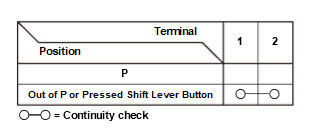

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

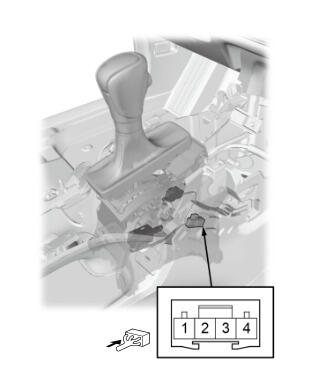

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

   • Check the switch according to the table. (Figure 1 and 2)
   • If the continuity is not as specified, check the shift cable adjustment , then recheck.

   Result

   • If the result is not as specified, replace the shift lock solenoid/park pin switch .
