Body Control Module Connector for Inputs and Outputs

Connector Index
Body Control Module Connector A (66P)
Body Control Module Connector B (66P)
Body Control Module Connector C (66P)

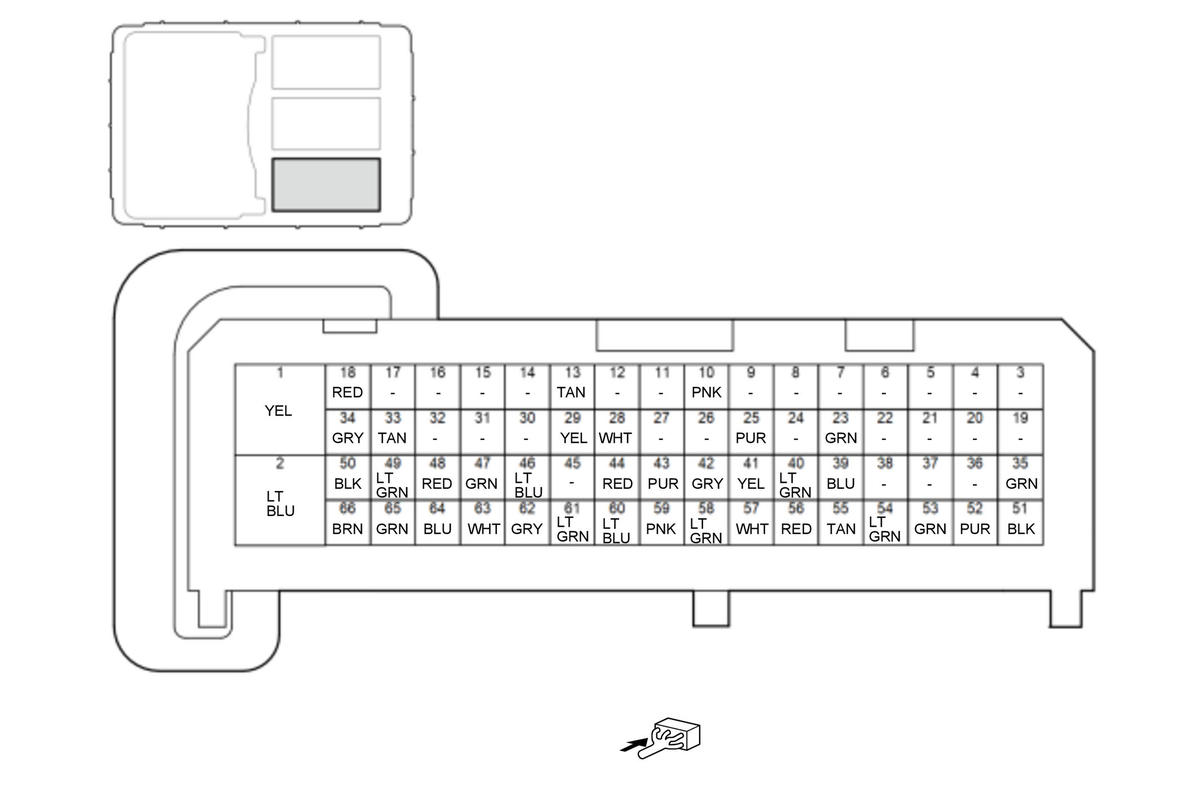

Body Control Module Connector A (66P) (female terminals)

GHH540702Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description
1 +B_BACK_UP Power source for body control module
2 IG1_METER IG1 power source
3 Not used ---
4 Not used ---
5 Not used ---
6 Not used ---
7 Not used ---
8 Not used ---
9 Not used ---
10* FR_DEICER_SW Detects FR_DEICER_SW signal
11 Not used ---
12 Not used ---
13 INTR_LIGHT- Outputs INTR_LIGHT- signal
14 Not used ---
15 Not used ---
16 Not used ---
17 Not used ---

*: With front deicer

Terminal number Terminal name Description
18 +B_SMART Power source for body control module
19 Not used ---
20 Not used ---
21 Not used ---
22 Not used ---
23 ATP-P Detects ATP-P signal
24 Not used ---
25 SRM_BACK_UP Detects SRM_BACK_UP signal
26 Not used ---
27 Not used ---
28 BACK_UP(WIPER) Detects BACK_UP(WIPER) line
29 LIN(FR_WIPER) Communication line
30 Not used ---
31 Not used ---
32 Not used ---
33 S-NET Communication line
34 STOP_SW Detects STOP SW signal
35 HAZARD_SW Detects HAZARD_SW signal
36 Not used ---
37 Not used ---
38 Not used ---
39 P-PIN_SW Detects P-PIN_SW signal
40 AUTO_LIGHT_BACKUP Detects AUTO_LIGHT_BACKUP signal
41 H/L_ON_SW Detects H/L_ON_SW signal
42 SMALL_LT_SW Detects SMALL_LT_SW signal
43 H/L_OFF_SW Detects H/L_OFF_SW signal
44 Not used ---
45 Not used ---
46 H/L_HI_SW Detects H/L_HI_SW signal
47 PASSING_SW Detects PASSING_SW signal
48 R_TURN_SW Detects R_TURN_SW signal
49 L_TURN_SW Detects L_TURN_SW signal
50 COMBI_SW_GND(LT) Ground for combination light switch
51 GND Ground for body control module
52 K-LINE Communication line
53 L-LINE Communication line
54 BF-CAN_L Communication line
55 BF-CAN_H Communication line
56 BB-CAN_L Communication line
57 BB-CAN_H Communication line
58 RR_WASHER_SW Detects RR_WASHER_SW signal
59 RR_WIPER_SW Detects RR_WIPER_SW signal
60 RR_WIPER_INT_SW Detects RR_WIPER_INT_SW signal
61 FR_WASHER_SW Detects FR_WASHER_SW signal
62 FR_WIPER_INT_VOL Detects FR_WIPER_INT_VOL signal
63 FR_WIPER_HI_SW Detects FR_WIPER_HI_SW signal
64 FR_WIPER_INT_SW Detects FR_WIPER_INT_SW signal

*: With front deicer

Terminalnumber Terminal name Description
65 FR_WIPER_MIST_SW Detects FR_WIPER_MIST_SW signal
66 COMBI_SW_GND(WIP) Ground for wiper/washer switch

*: With front deicer

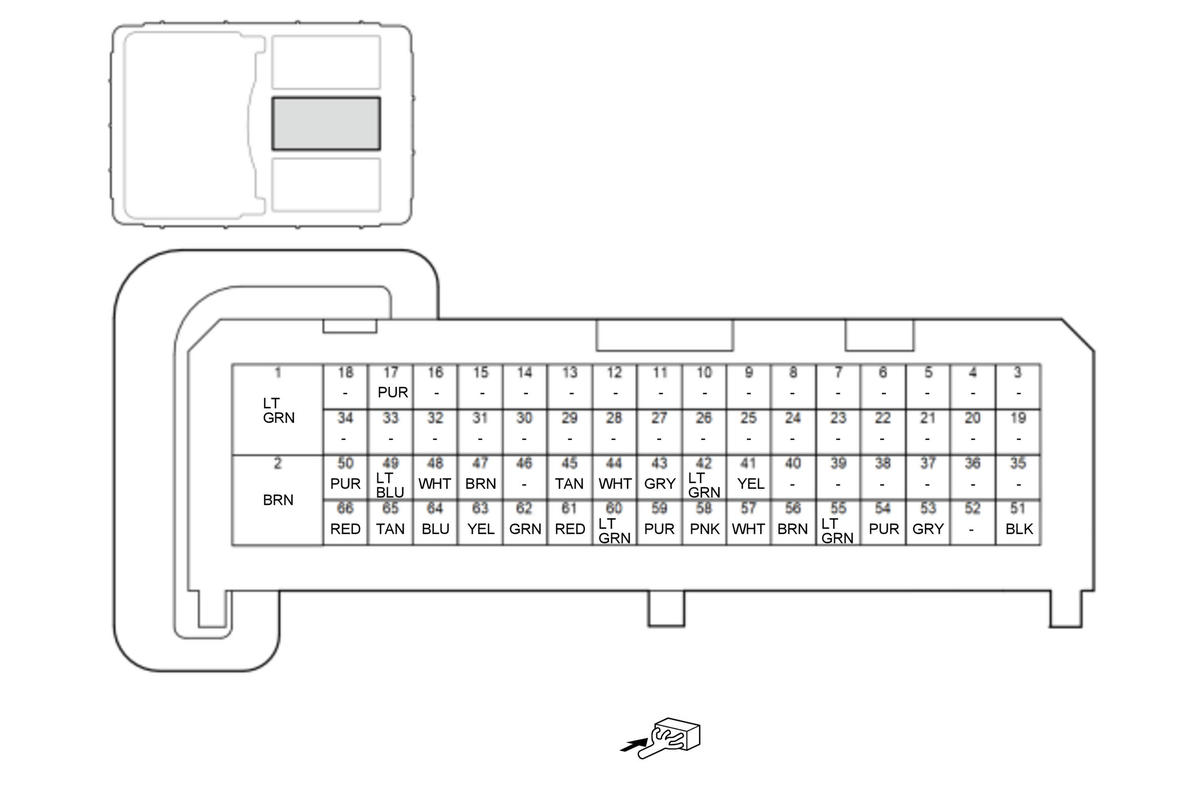

Body Control Module Connector B (66P) (female terminals)

GHH540703Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description
1 +B_HAZARD Power source for body control module
2 GND Ground for body control module
3 Not used ---
4 Not used ---
5 Not used ---
6 Not used ---
7 Not used ---
8 Not used ---
9 Not used ---
10 Not used ---
11 Not used ---
12 Not used ---
13 Not used ---
14 Not used ---
15 Not used ---
16 Not used ---
17 CDS Detects CDS signal
18 Not used ---
19 Not used ---
Terminal number Terminal name Description
20 Not used ---
21 Not used ---
22 Not used ---
23 Not used ---
24 Not used ---
25 Not used ---
26 Not used ---
27 Not used ---
28 Not used ---
29 Not used ---
30 Not used ---
31 Not used ---
32 Not used ---
33 Not used ---
34 Not used ---
35 Not used ---
36 Not used ---
37 Not used ---
38 Not used ---
39 Not used ---
40 Not used ---
41 SMART_BUZZER Outputs SMART_BUZZER signal
42 CARGO_LT Outputs CARGO_LT signal
43 TAIL_GATE_OPEN_SW Detects TAIL_GATE_OPEN_SW signal
44 TAIL_GATE_SW Detects TAIL_GATE_SW signal
45 RR_L_SILCON_UNLOCK Detects RR_L_SILCON_UNLOCK signal
46 Not used ---
47 RL_DOOR_SW Detects RL_DOOR_SW signal
48 RR_R_TURN Outputs RR_R_TURN signal
49 RR_L_TURN Outputs RR_L_TURN signal
50 RR_WIPER_MTR Outputs RR_WIPER_MTR signal
51 GND Ground for body control module
52 Not used ---
53 RR_R_SILCON_UNLOCK Detects RR_R_SILCON_UNLOCK signal
54 RR_DOOR_SW Detects RR_DOOR_SW signal
55 FR_DOOR_SW Detects FR_DOOR_SW signal
56 FL_DOOR_SW Detects FL_DOOR_SW signal
57 P/W_TIMER Detects P/W_TIMER signal
58 ACC_KEYLOCK ACC power source
59 IG2_DRL Detects IG2_DRL signal
60 BACK_LT Detects BACK_LT signal
61 TRUNK_ACT_RLY_CL- Outputs TRUNK_ACT_RLY_CL- signal
62 DR_DOOR_UNLOCK_RELAY_CL- Outputs DR_DOOR_UNLOCK_RELAY_CL- signal
63 DOOR_UNLOCK_RELAY_CL- Outputs DOOR_UNLOCK_RELAY_CL- signal
64 DOOR_LOCK_RELAY_CL- Outputs DOOR_LOCK_RELAY_CL- signal
65 R_TURN Outputs R_TURN signal
66 L_TURN Outputs L_TURN signal

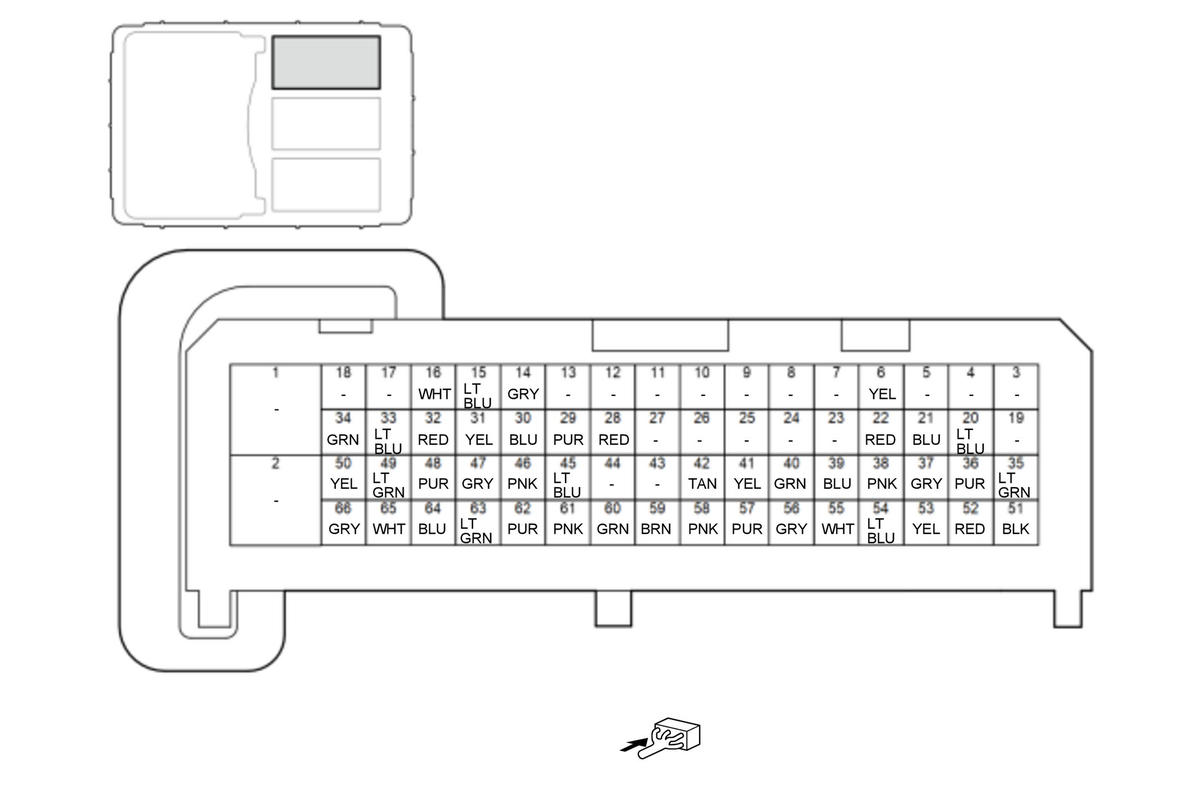

Body Control Module Connector C (66P) (female terminals)

GHH540704Courtesy of HONDA, U.S.A., INC.
Terminal number Terminal name Description
1 Not used ---
2 Not used ---
3 Not used ---
4 Not used ---
5 Not used ---
6 Not used ---
7 Not used ---
8 Not used ---
9 Not used ---
10 Not used ---
11 Not used ---
12 Not used ---
13 Not used ---
14 EXT_TR- Outputs EXT_TR- signal
15 EXT_TR+ Outputs EXT_TR+ signal
16 T/G_LOCK_SW Detects T/G_LOCK_SW signal
17 Not used ---
18 Not used ---
19 Not used ---
20 Not used ---
21 EXT_M- Outputs EXT_M- signal
22 EXT_M+ Outputs EXT_M+ signal
23 Not used ---

*: With smart entry function

Terminal number Terminal name Description
24 Not used ---
25 Not used ---
26 Not used ---
27 Not used ---
28* EXT_R- Outputs EXT_R- signal
29* EXT_R+ Outputs EXT_R+ signal
30* TS_FR_DR Detects TS_FR_DR signal
31* DL_FR_DR Detects DL_FR_DR signal
32* VOUT_FR_DR Outputs VOUT_FR_DR signal
33* EXT_FR_DR- Outputs EXT_DR- signal
34* EXT_FR_DR+ Outputs EXT_DR+ signal
35 MTR_CONT Outputs MTR_CONT signal
36 ESL_SW_B Detects ESL_SW_B signal
37 ESL_SW_C Detects ESL_SW_C signal
38 ESL_SW_D Detects ESL_SW_D signal
39 MTR_CUT1(CONT) Detects MTR_CUT1(CONT) signal
40 MTR_CUT2(IG1) Detects MTR_CUT2(IG1) signal
41 ESL_PWR Outputs ESL_PWR signal
42 IGN_TRX Communication line
43 Not used ---
44 Not used ---
45 STS Outputs STS signal
46* EXT_FR_AS- Outputs EXT_FR_AS- signal
47* EXT_FR_AS+ Outputs EXT_FR_AS+ signal
48* TS_FR_AS Detects TS_FR_AS signal
49* DL_FR_AS Detects DL_FR_AS signal
50* VOUT_FR_AS Outputs VOUT_FR_AS signal
51 RLY_GND Ground for IG1A/IG1B/IG2/ACC relay circuits
52 IG1-A_SIG Detects IG1-A_SIG signal
53 IG1-B_SIG Detects IG1-B_SIG signal
54 IG2_SIG Detects IG2_SIG signal
55 ACC_RLY_CL+ Outputs ACC_RLY_CL+ signal
56 IG2_COIL+ Outputs IG2_COIL+ signal
57 IG1_COIL+ Outputs IG1_COIL+ signal
58 H-BRAKE_SW(EPB) Detects H-BRAKE_SW(EPB) signal
59 EXT_F- Outputs EXT_F- signal
60 EXT_F+ Outputs EXT_F+ signal
61 START_SW_IND2 Outputs START_SW_IND2 signal
62 START_SW_IND1 Outputs START_SW_IND1 signal
63 SSSW_LF_ANT- Outputs SSSW_LF_ANT- signal
64 SSSW_LF_ANT+ Outputs SSSW_LF_ANT+ signal
65 SS1(+) Detects SS1(+) signal
66 SS2(-) Detects SS2(-) signal

*: With smart entry function
