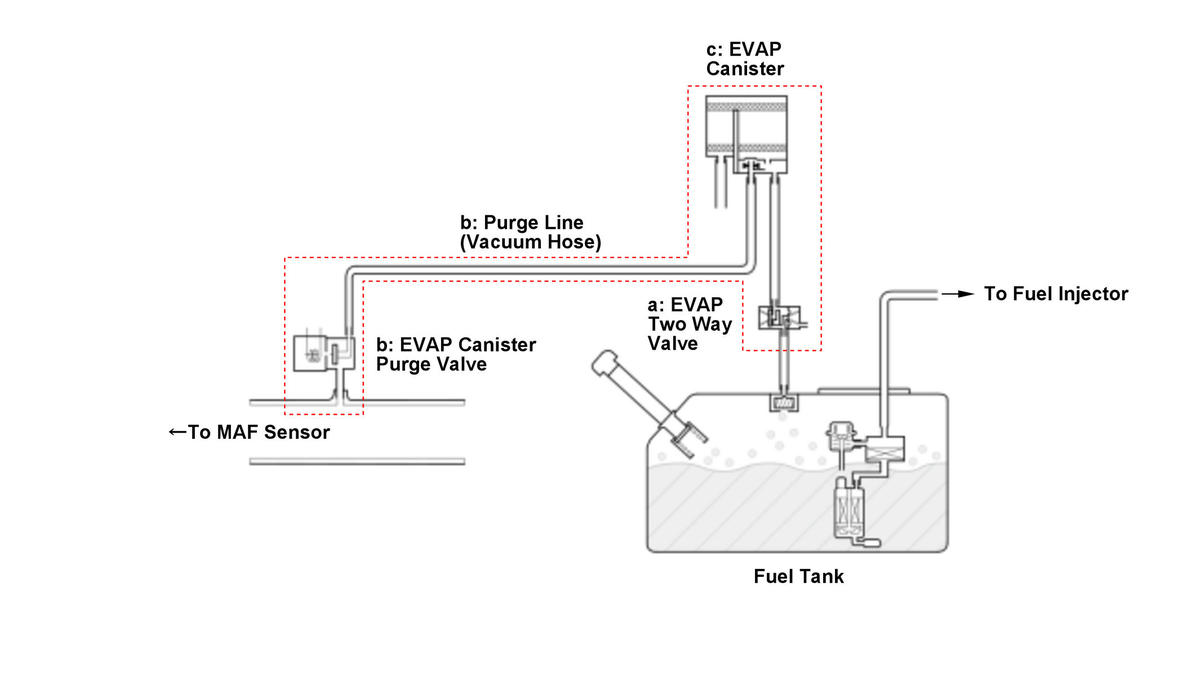

Inspection Outline
- The components to be tested are indicated by a dotted line.
- The illustration does not show all of the areas to be inspected.
| Inspection Items | Work Items | |
|---|---|---|
| a | EVAP Two Way Valve | Do the EVAP Two Way Valve Test |
| b | EVAP Purge System Components | EVAP Canister Purge Valve, Purge Line Inspection (Valve Open Stuck) |
| EVAP Canister Purge Valve, Purge Line Inspection (Valve Closed Stuck) | ||
| c | EVAP Canister | EVAP Canister Inspection |
