Exploded View
| *1: With door pocket light |
| *1: Driver's side *2: Front passenger's side |
| *1: With driving position memory system (DPMS) *2: For some models *3: With door courtesy light |
| *1: With door inner handle light |

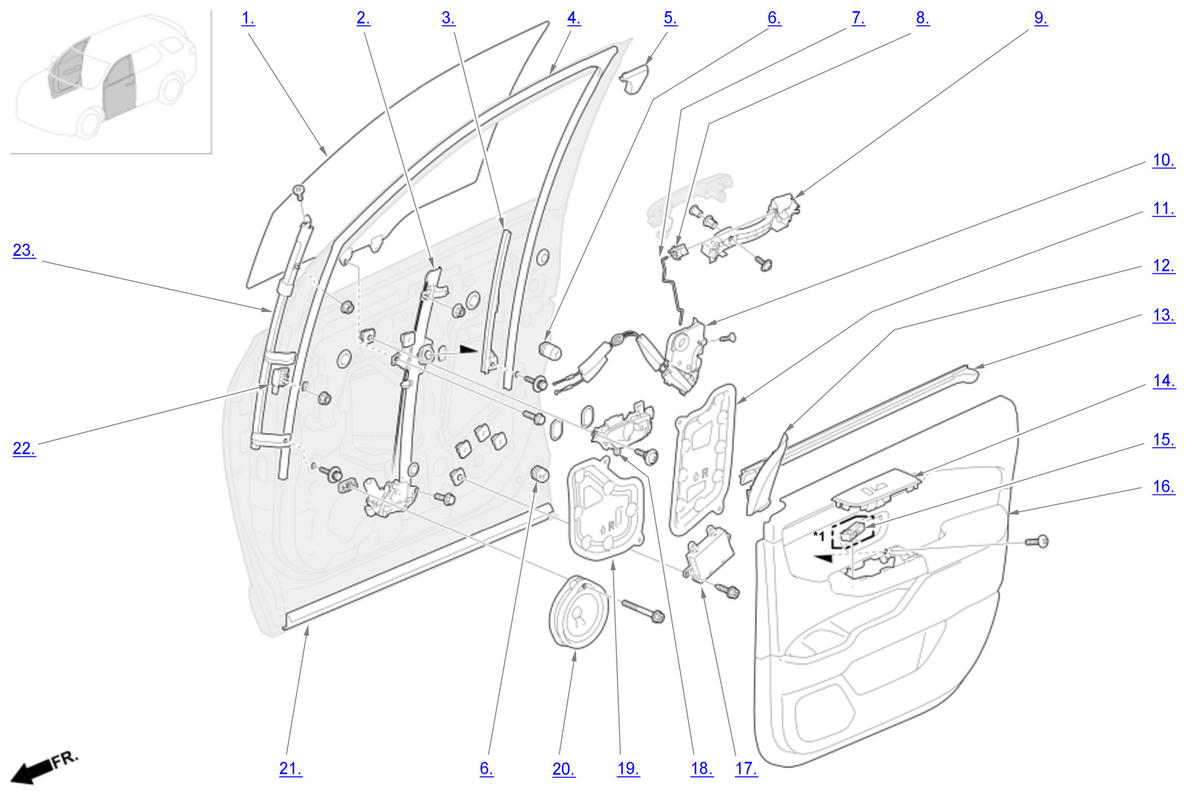

Front Door - Inner Side Area Legend
| Component Name | Callout |
|---|---|
| Front Door Glass | 1 |
| Front Door Regulator | 2 |
| Front Door Center Lower Channel | 3 |
| Front Door Glass Run Channel | 4 |
| Front Door Center Corner Trim | 5 |
| Door Cushion | 6 |
| Front Door Outer Handle Rod | 7 |
| Front Door Outer Handle Rod Bush | 8 |
| Front Door Outer Handle Base | 9 |
| Front Door Latch/Front Door Latch Cable | 10 |
| Front Door Panel Barrier B | 11 |
| Front Door Mirror Trim | 12 |
| Front Door Glass Inner Weatherstrip | 13 |
| Front Door Power Window Switch Panel/Front Passenger's Power Window Switch | 14 |
| Front Door Pocket Light | 15 |
| Front Door Panel | 16 |
| Front Door Control Unit | 17 |
| Front Door Inner Handle/Front Door Inner Handle Light | 18 |
| Front Door Panel Barrier A | 19 |
| Front Speaker | 20 |
| Front Door Lower Seal | 21 |
| Side Impact Pressure Sensor | 22 |
| Front Door Lower Channel | 23 |

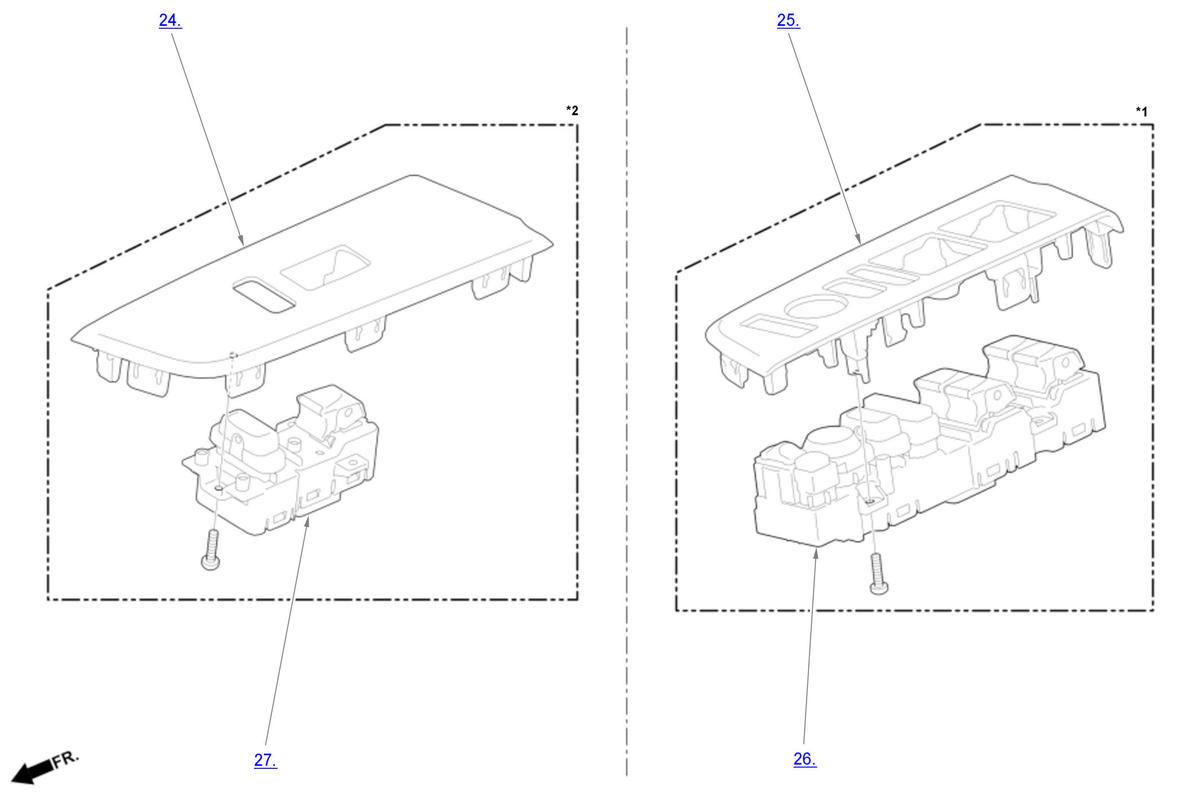

| Front Passenger's Power Window Switch Panel | 24 |
| Driver's Power Window Switch Panel | 25 |
| Power Window Master Switch/Power Mirror Switch | 26 |
| Front Passenger's Power Window Switch | 27 |

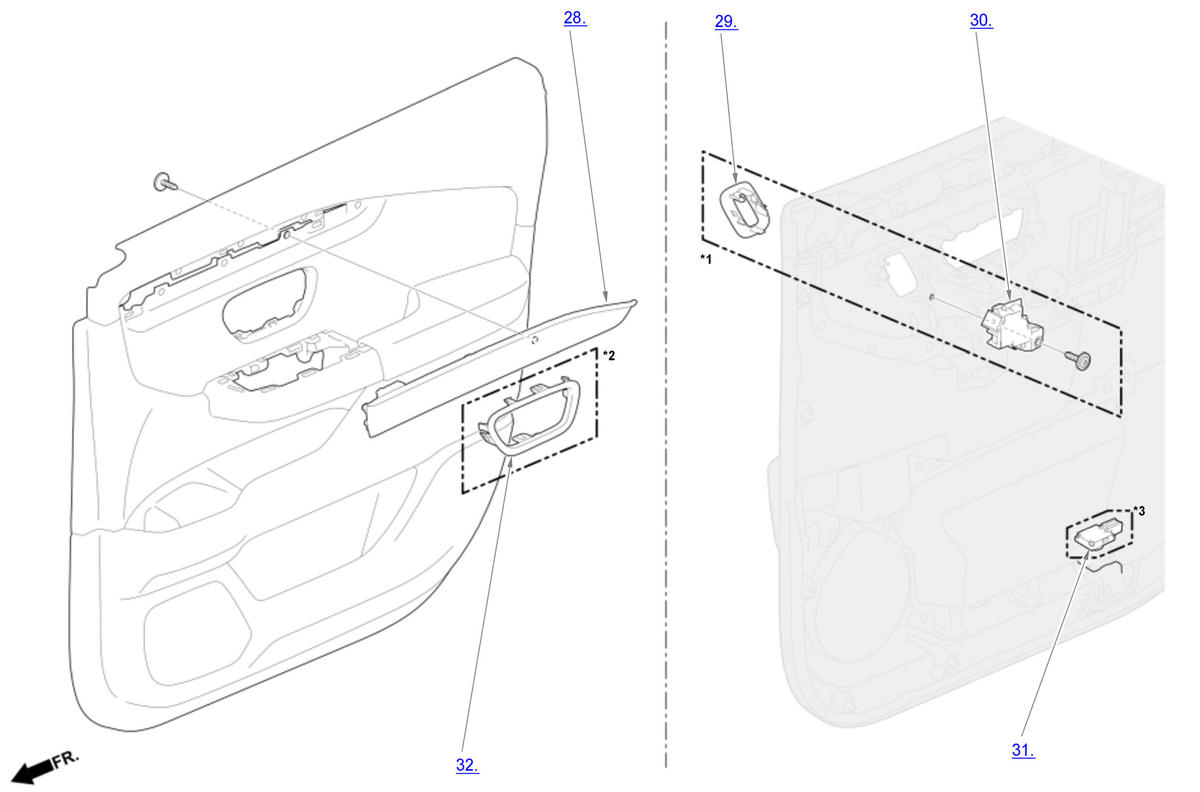

| Front Door Trim Panel Assembly | 28 |
| Driving Position Memory Switch Trim | 29 |
| Driving Position Memory Switch/Seat Position Memory Switch | 30 |
| Front Door Courtesy Light | 31 |
| Front Door Inner Handle Trim | 32 |

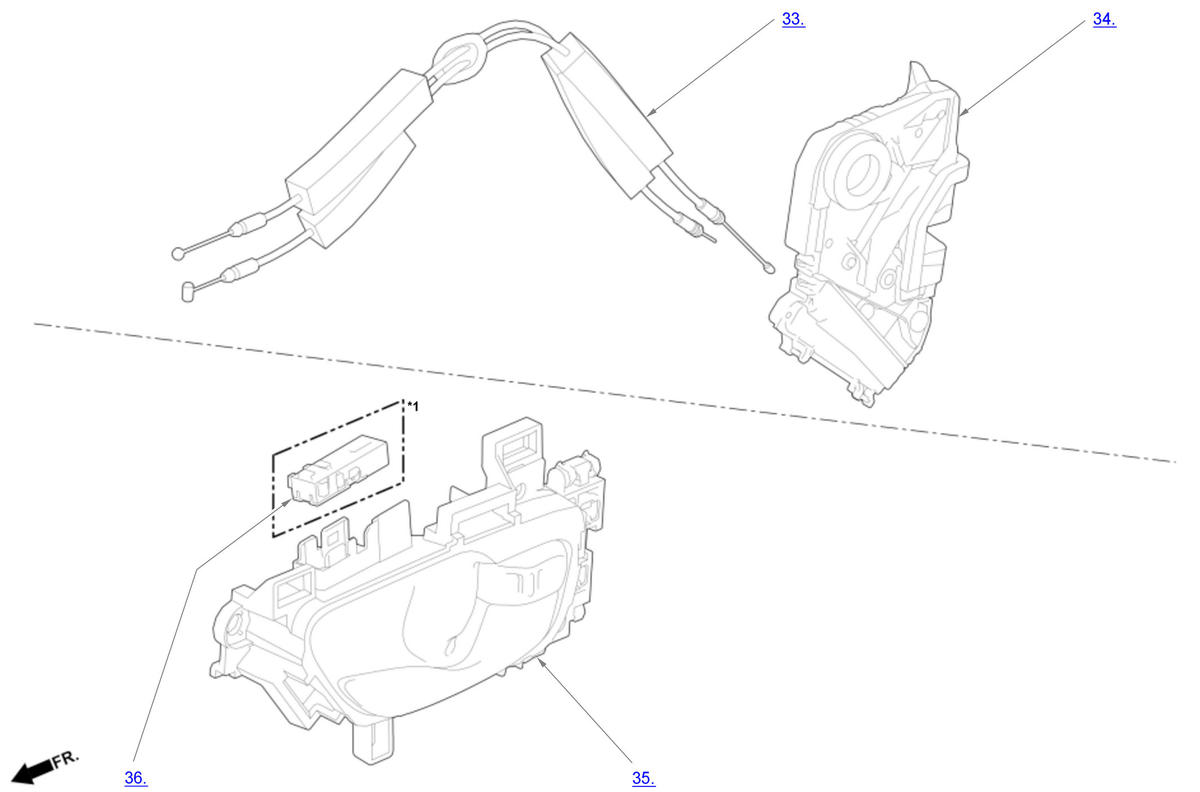

| Front Door Latch Cable | 33 |
| Front Door Latch | 34 |
| Front Door Inner Handle | 35 |
| Front Door Inner Handle Light | 36 |
