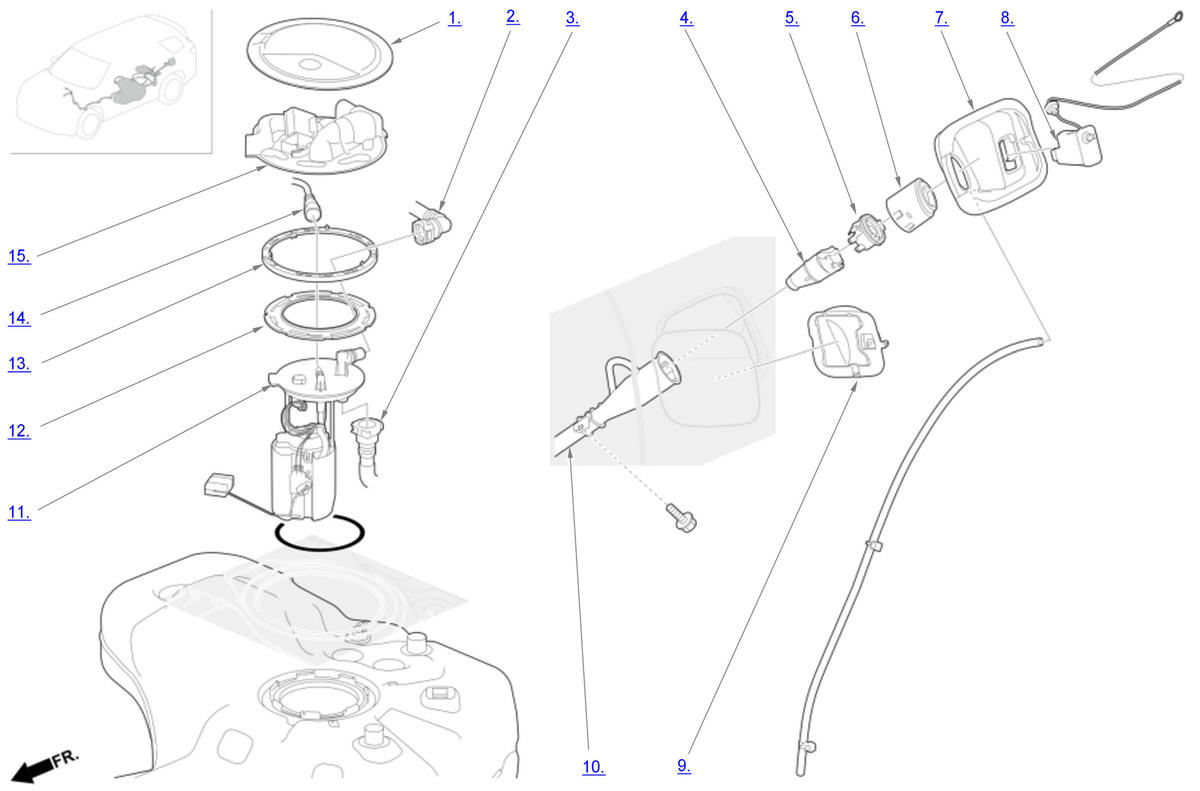

| Access Panel |
1 |
| Fuel Vent Tube A |
2 |
| Fuel Vent Tube B |
3 |
| Fuel Fill Flow Guide |
4 |
| Fuel Main Flap Unit |
5 |
| Fuel Subshutter Unit |
6 |
| Fuel Fill Door Adapter |
7 |
| Fuel Fill Door Lock Actuator |
8 |
| Fuel Lid Cover |
9 |

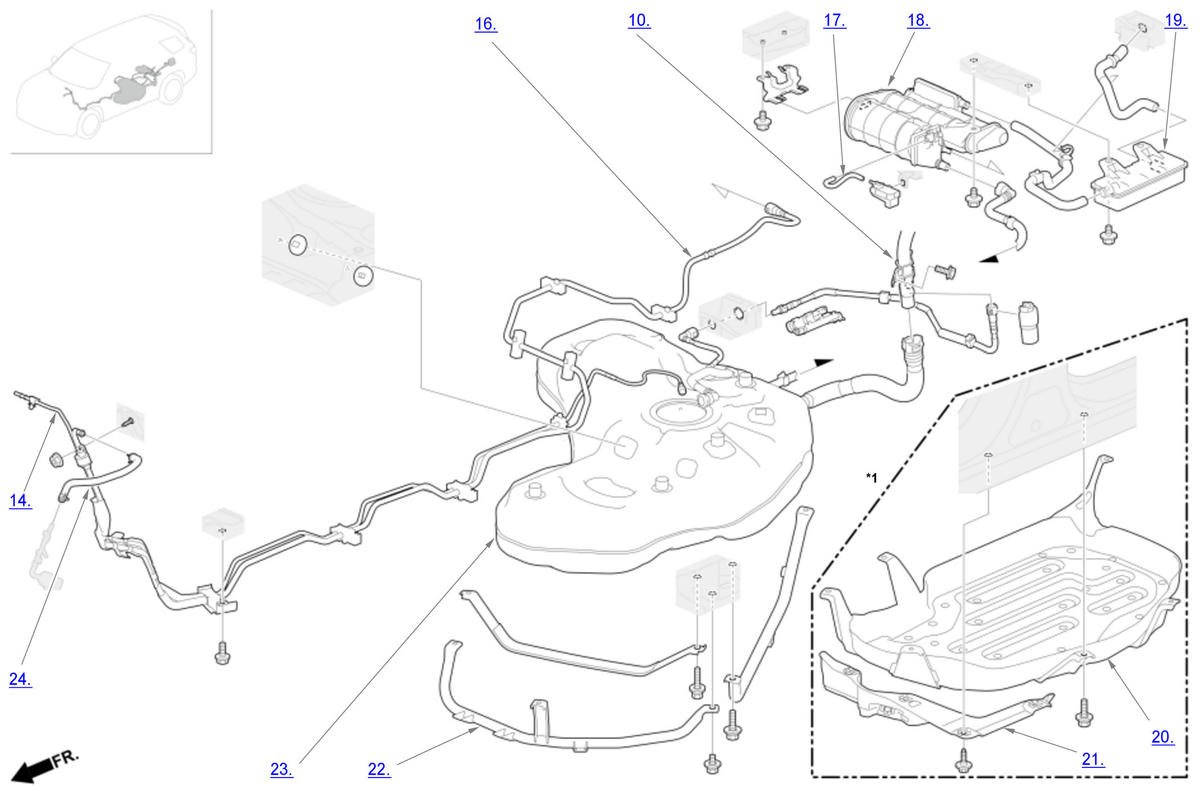

| Fuel Fill Pipe |
10 |
| Fuel Tank Unit |
11 |
| Fuel Tank Unit Cam Lock Ring |
12 |
| Fuel Pump Module Cover Ring |
13 |
| Fuel Feed Pipe |
14 |
| Fuel Pump Module Cover |
15 |
| Fuel Purge Pipe |
16 |
| Fuel Tank Pressure (FTP) Sensor Vent Hose |
17 |
| Evaporative Emission (EVAP) Canister Assembly |
18 |
| Evaporative Emission (EVAP) Canister Filter |
19 |
| Fuel Tank Guard |
20 |
| Fuel Tank Guard Cover |
21 |
| Fuel Tank Guard |
22 |
| Fuel Tank Assembly |
23 |
| Fuel Purge Hose |
24 |

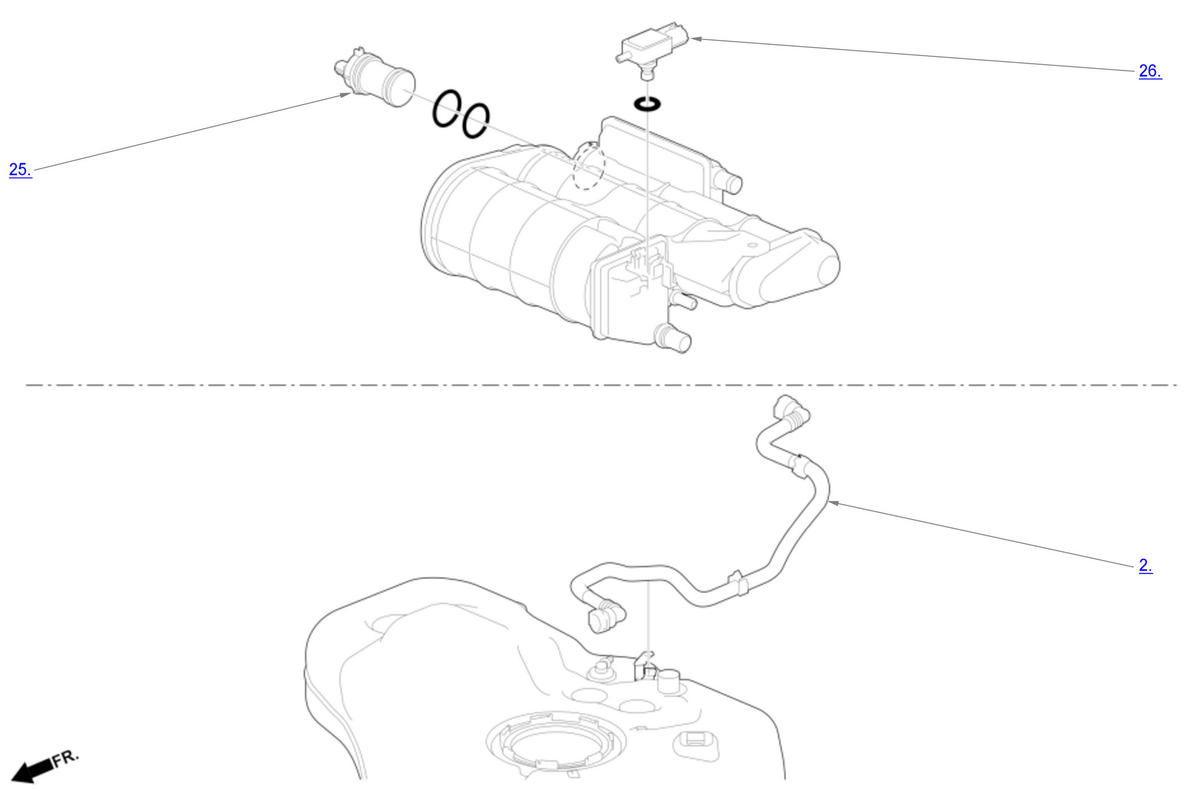

| Evaporative Emission (EVAP) Canister Vent Shut Valve |
25 |
| Fuel Tank Pressure (FTP) Sensor |
26 |
