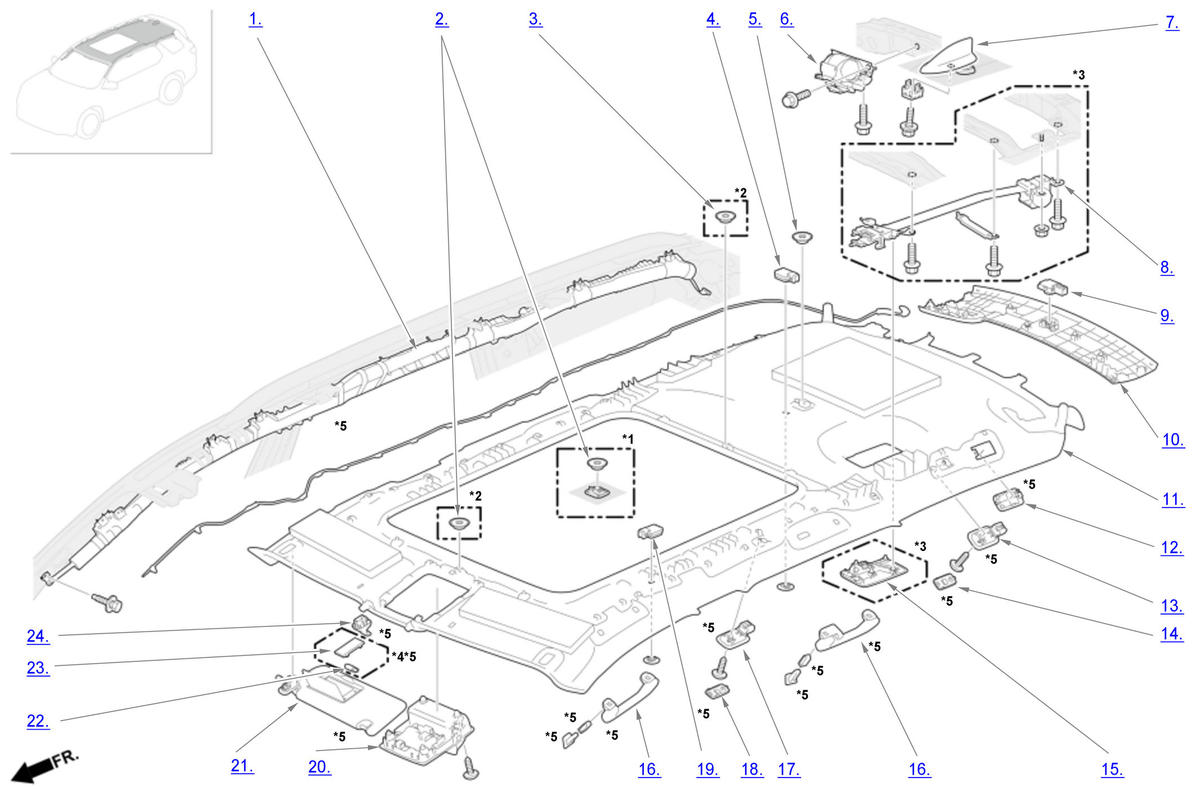

Exploded View
| *1: Without panoramic glass roof *2: With panoramic glass roof *3: With second row center seat *4: For some models *5: Part(s) are shown for one side only as the procedure is the same for both sides. |
Headliner Area
| Component Name | Callout |
|---|---|
| Side Curtain Airbag | 1 |
| Front Magnet | 2 |
| Middle Magnet | 3 |
| Rear ANC/Active Sound Control Microphone | 4 |
| Rear Magnet | 5 |
| Third Row Center Seat Belt | 6 |
| Roof Antenna | 7 |
| Second Row Center Seat Belt | 8 |
| Cargo Area Light | 9 |
| Rear Roof Trim | 10 |
| Headliner | 11 |
| Cargo Net Cap | 12 |
| Rear Individual Map Light (3rd) | 13 |
| Rear Individual Map Light Lens (3rd) | 14 |
| Second Row Center Seat Belt Cover | 15 |
| Grab Handle | 16 |
| Rear Individual Map Light | 17 |
| Rear Individual Map Light Lens | 18 |
| Middle ANC/Active Sound Control Microphone | 19 |

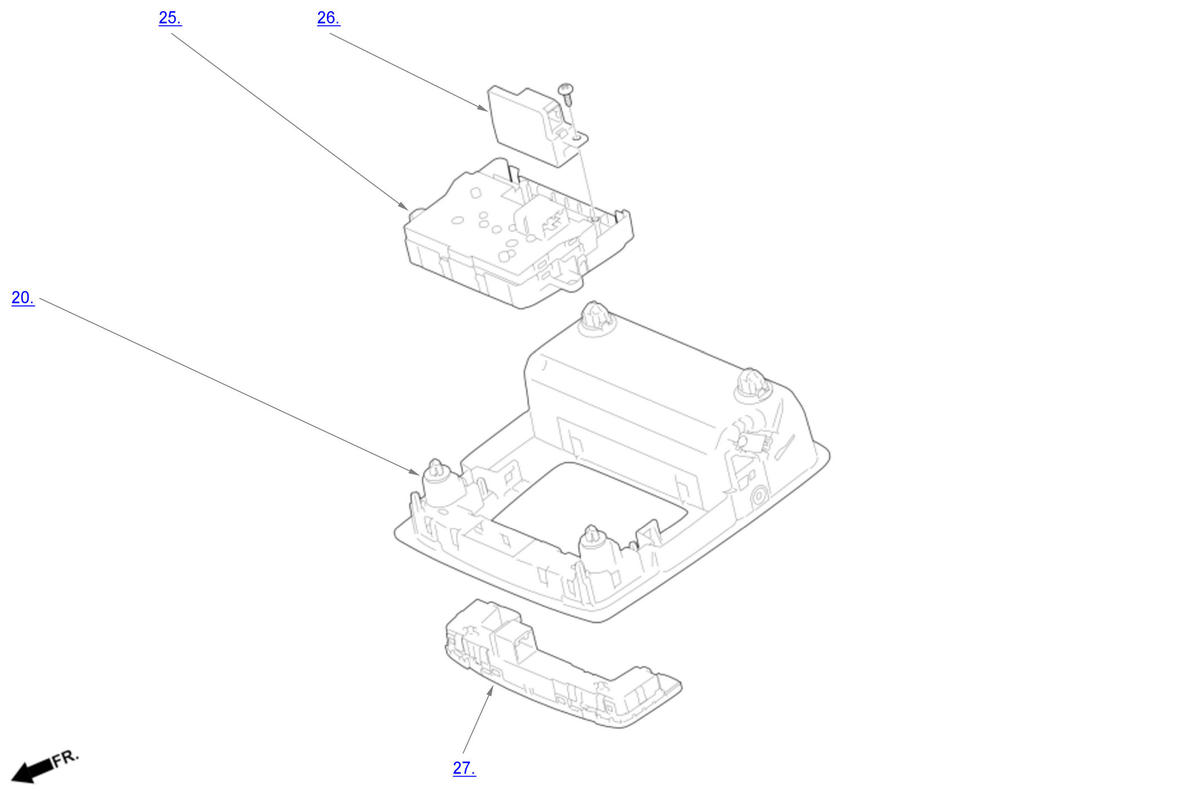

| Roof Console | 20 |
| Sunvisor | 21 |
| Bulb | 22 |
| Vanity Mirror Light Lens | 23 |
| Sunvisor Holder | 24 |
| Roof Module | 25 |
| Front HFL-ANC/Active Sound Control Microphone | 26 |
| Front Individual Map Light | 27 |
