Radiator Area
For Replacement of components listed below, see Repair Procedure

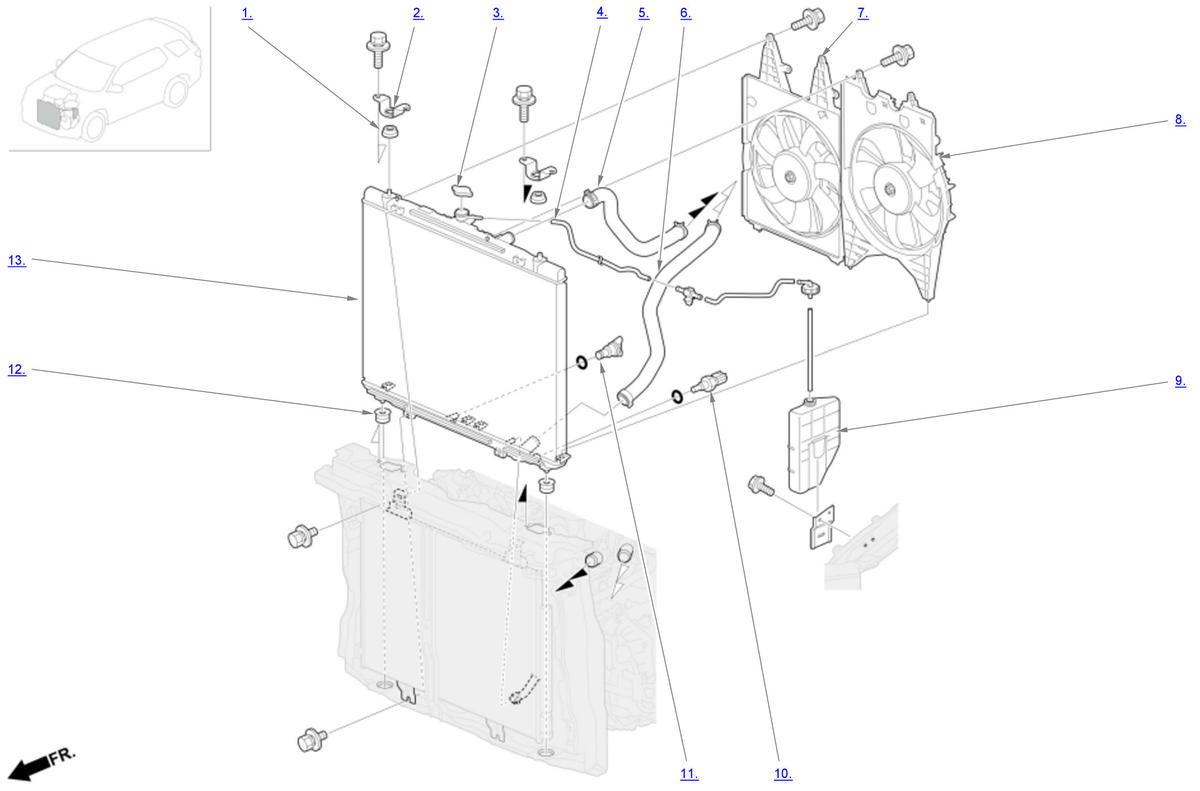

Exploded View Of Radiator Area (Items 1 thru 13)

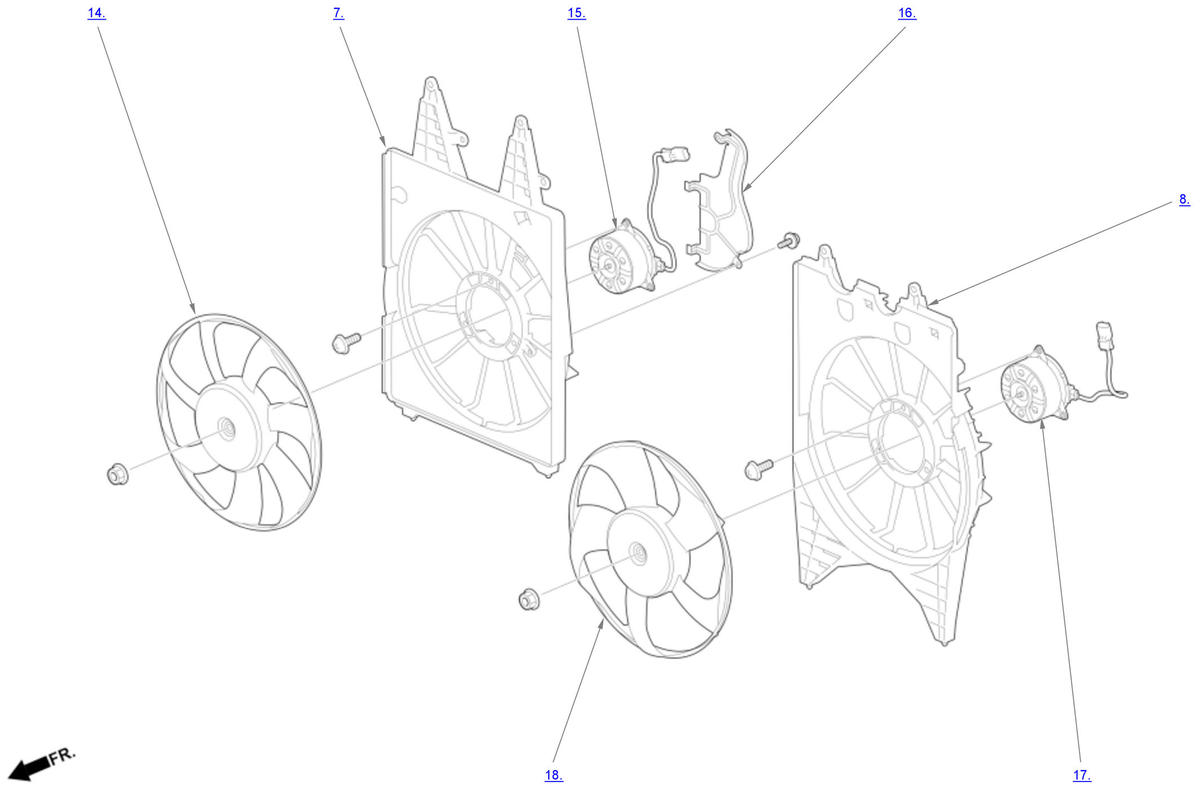

Exploded View Of Radiator Area (Items 14 thru 18)
Radiator Area
| Component Name | Callout |
|---|---|
| Upper Cushion | 1 |
| Radiator Upper Bracket | 2 |
| Radiator Cap | 3 |
| Coolant Reservoir Hose | 4 |
| Upper Radiator Hose | 5 |
| Lower Radiator Hose | 6 |
| A/C Condenser Fan Shroud | 7 |
| Radiator Fan Shroud | 8 |
| Coolant Reservoir | 9 |
| Engine Coolant Temperature (ECT) Sensor 2 | 10 |
| Drain Plug | 11 |
| Lower Cushion | 12 |
| Radiator | 13 |
| A/C Condenser Fan | 14 |
| A/C Condenser Fan Motor | 15 |
| Fan Motor Cover | 16 |
| Radiator Fan Motor | 17 |
| Radiator Fan | 18 |
