DTC Troubleshooting: B1080 (Relay Control Module)
>>
Inspection Outline
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Inspection Outline

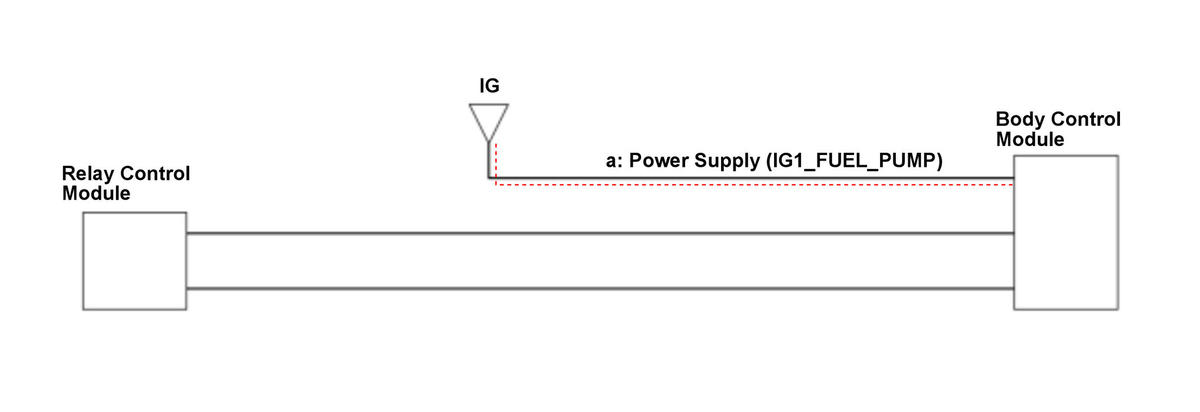

The components to be tested are indicated by a dotted line.
Courtesy of HONDA, U.S.A., INC.
Inspection Items
Work Items
a
External Circuit
IG1_FUEL_PUMP Circuit Inspection
