Intermediate Shaft Components - Service Information
>>
Exploded View
>>
Intermediate Shaft Components
>>
Exploded View
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Exploded View: Notes

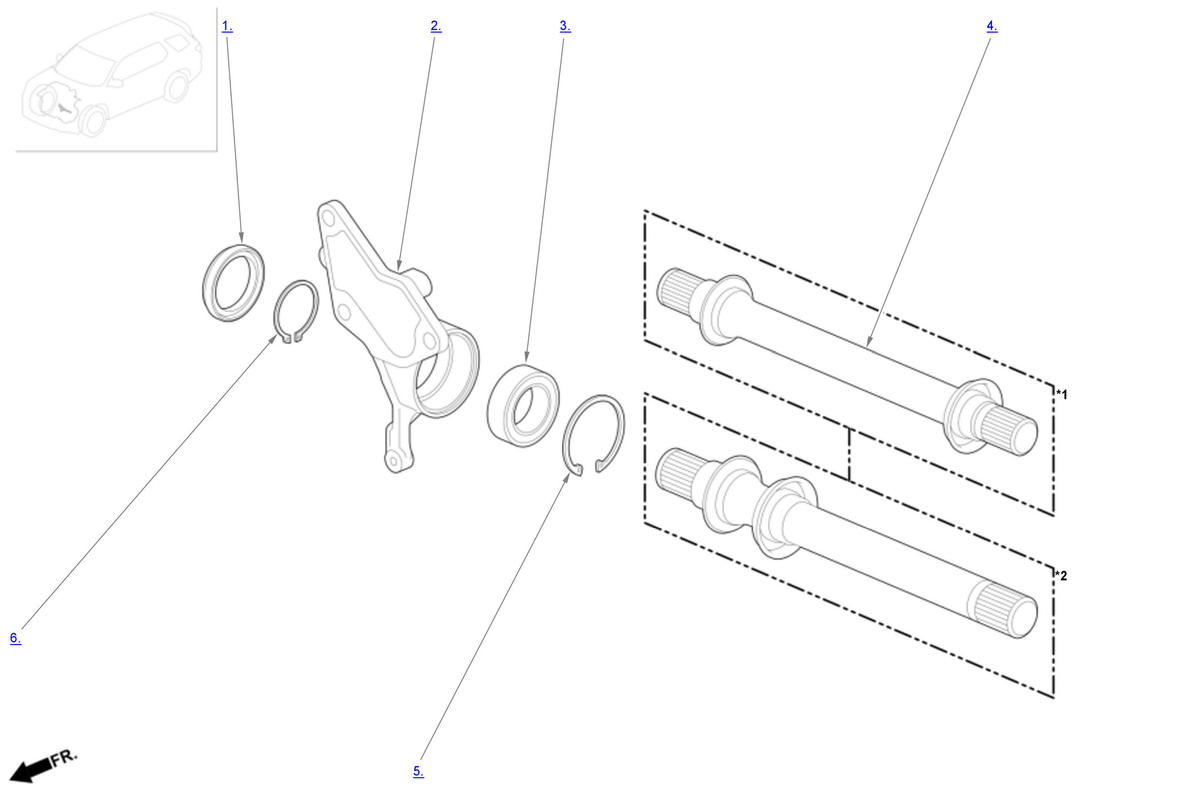

Fig 1: Exploded View Of Intermediate Shaft Components (1 thru 6)
Courtesy of HONDA, U.S.A., INC.
*1: 2WD
*2: AWD
Courtesy of HONDA, U.S.A., INC.
