Exploded View
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: Driver's side *3: Passenger's side |

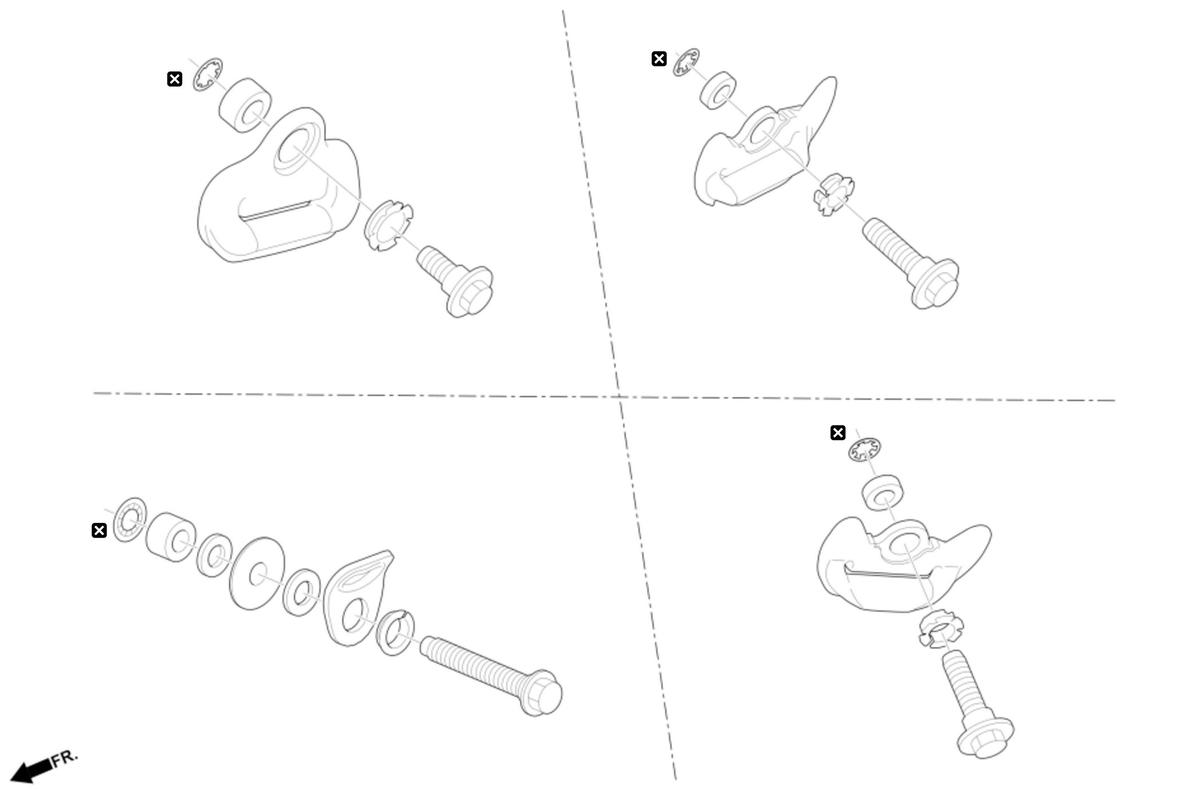

| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: Without cargo area accessory power socket *3: With cargo area accessory power socket *4: With walk away close power tailgate *5: Without walk away close power tailgate |
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: With display audio type *3: With stereo amplifier *4: AWD *5: With power tailgate *6: Deep type *7: Flat type |
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: With satelite speaker |
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: Without third row USB charger unit *3: With third row USB charger unit |
Interior Trim Area
| Component Name | Callout |
|---|---|

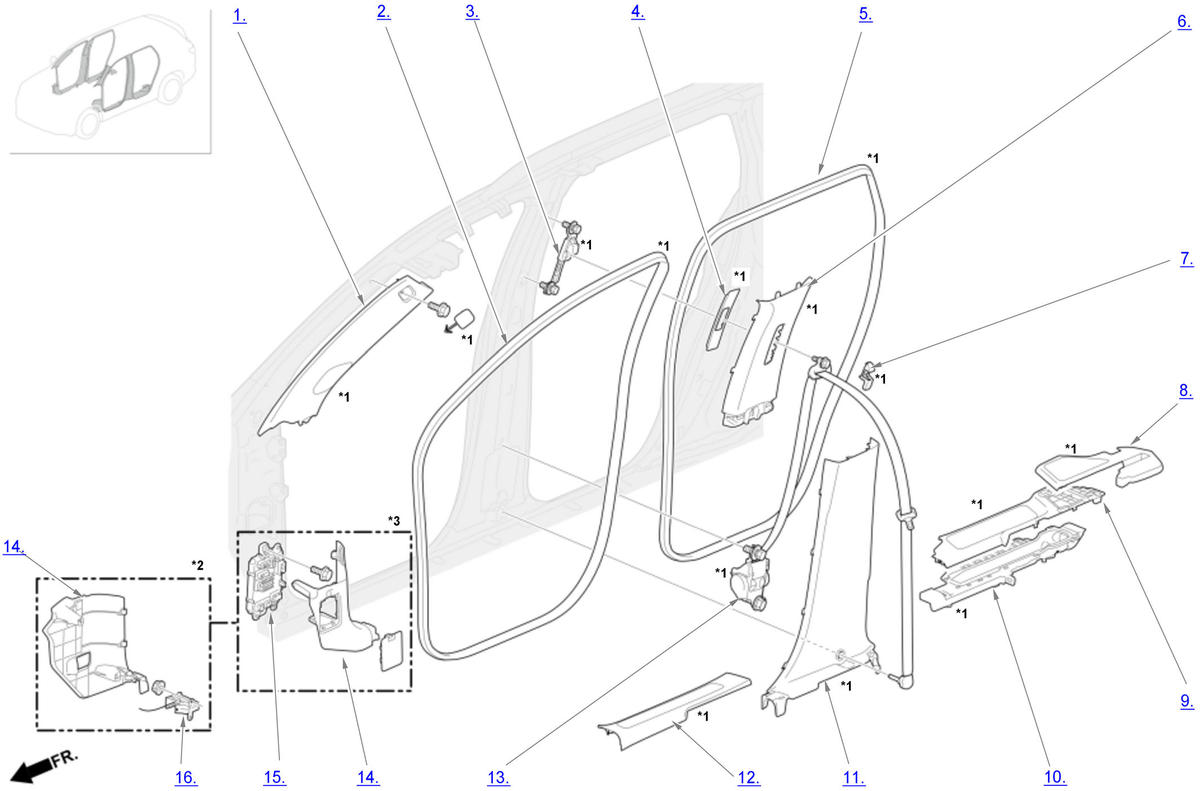

| A-Pillar Trim | 1 |
| Front Door Opening Seal | 2 |
| Seat Belt Shoulder Anchor Adjuster | 3 |
| Seat Belt Shoulder Anchor Adjuster Cover | 4 |
| Rear Door Opening Seal | 5 |
| B-Pillar Upper Trim | 6 |
| Upper Anchor Cap | 7 |
| Rear Side Upper Trim | 8 |
| Rear Side Middle Trim | 9 |
| Rear Side Lower Trim | 10 |
| B-Pillar Lower Trim | 11 |
| Front Door Sill Trim | 12 |
| Front Seat Belt | 13 |
| Kick Panel | 14 |
| Power Distribution Module | 15 |
| Hood Opener | 16 |
| Quarter Pillar Trim | 17 |
| Rear Pillar Trim | 18 |

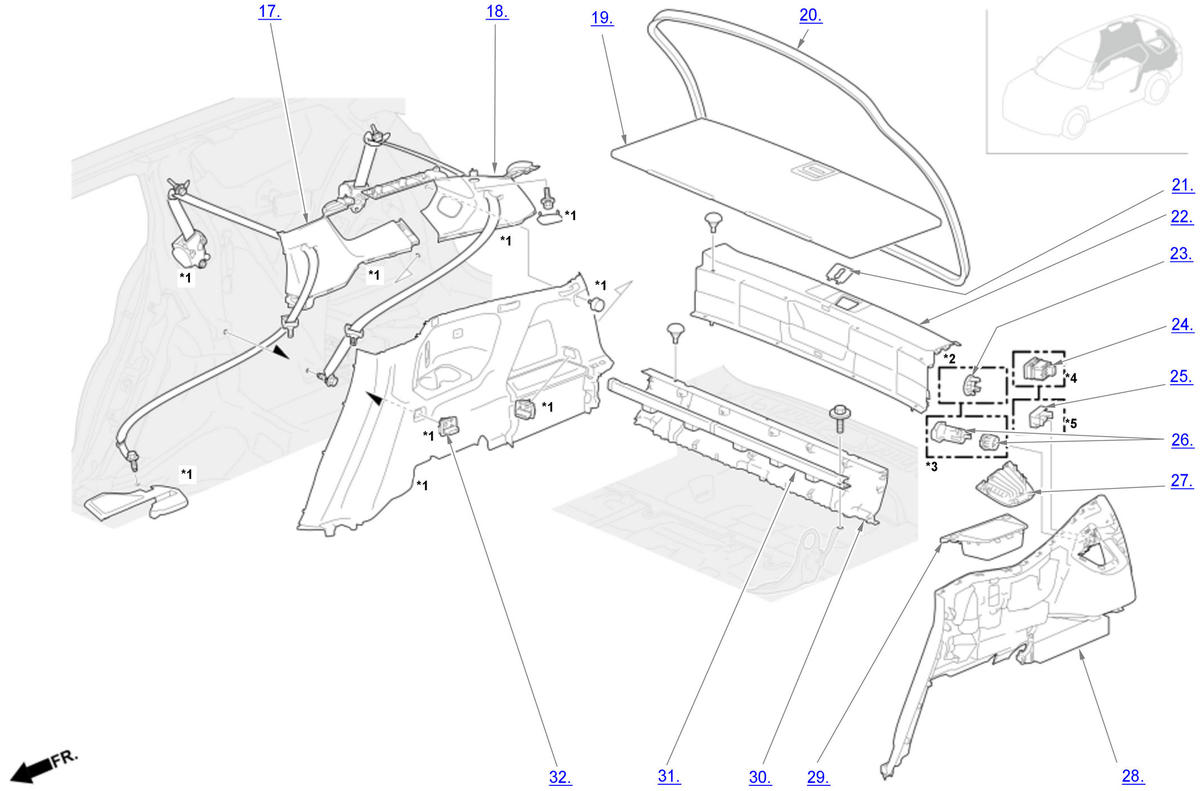

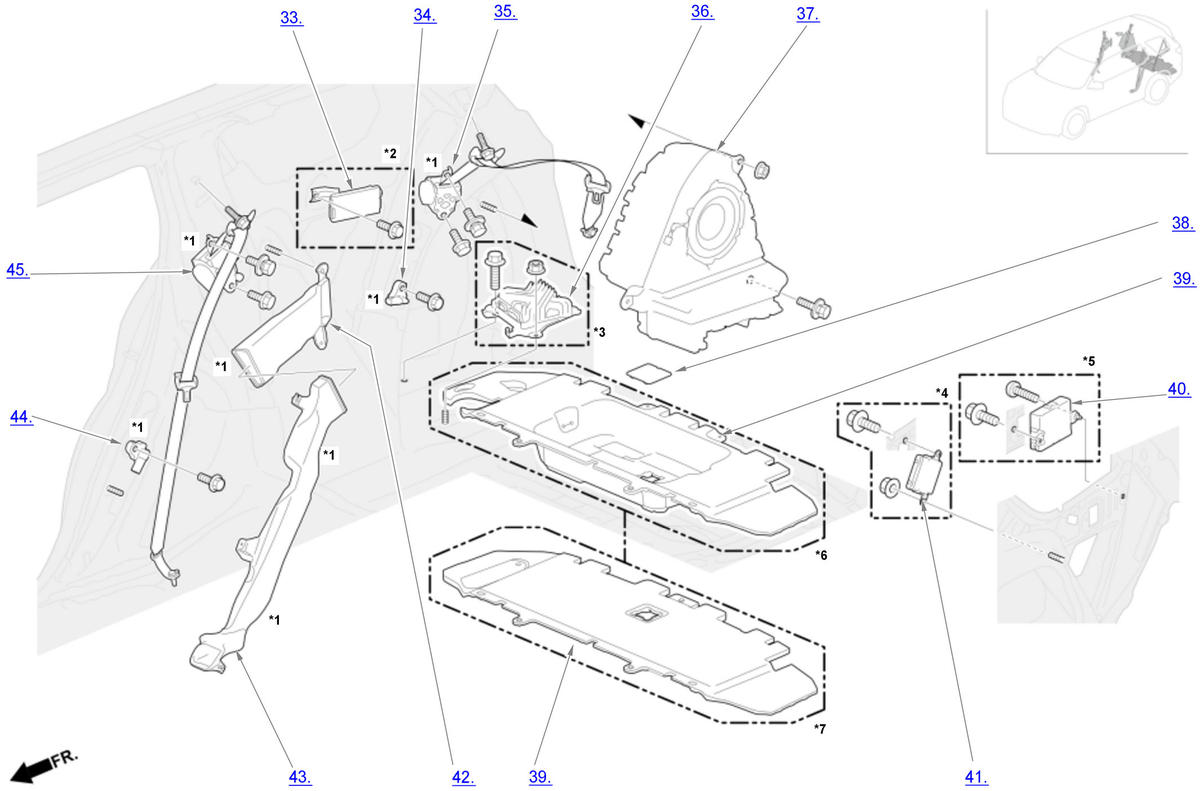

| Cargo Floor Lid | 19 |
| Tailgate Weatherstrip | 20 |
| Striker Cap | 21 |
| Rear Trim Panel | 22 |
| Cap | 23 |
| Hands Free Power Tailgate Close Switch | 24 |
| Cap | 25 |
| Cargo Area Accessory Power Socket | 26 |
| Inlet Trim | 27 |
| Rear Side Trim Panel | 28 |
| Rear Side Trim Panel Pocket | 29 |
| Cargo Lower Support Trim | 30 |
| Cargo Lower Support | 31 |
| Tie Down Hook | 32 |
| Tuner Unit | 33 |
| Side Impact Sensor (third) | 34 |
| Third Row Seat Belt | 35 |
| Stereo Amplifier | 36 |
| Subwoofer | 37 |
| Spare Tire Cap | 38 |
| Rear Cargo Carpet | 39 |
| Power Tailgate Control Unit | 40 |
| i-VTM Control Unit | 41 |
| Rear A/C Joint Duct | 42 |
| Rear A/C Duct | 43 |
| Side Impact Sensor (second) | 44 |
| Second Row Seat Belt | 45 |

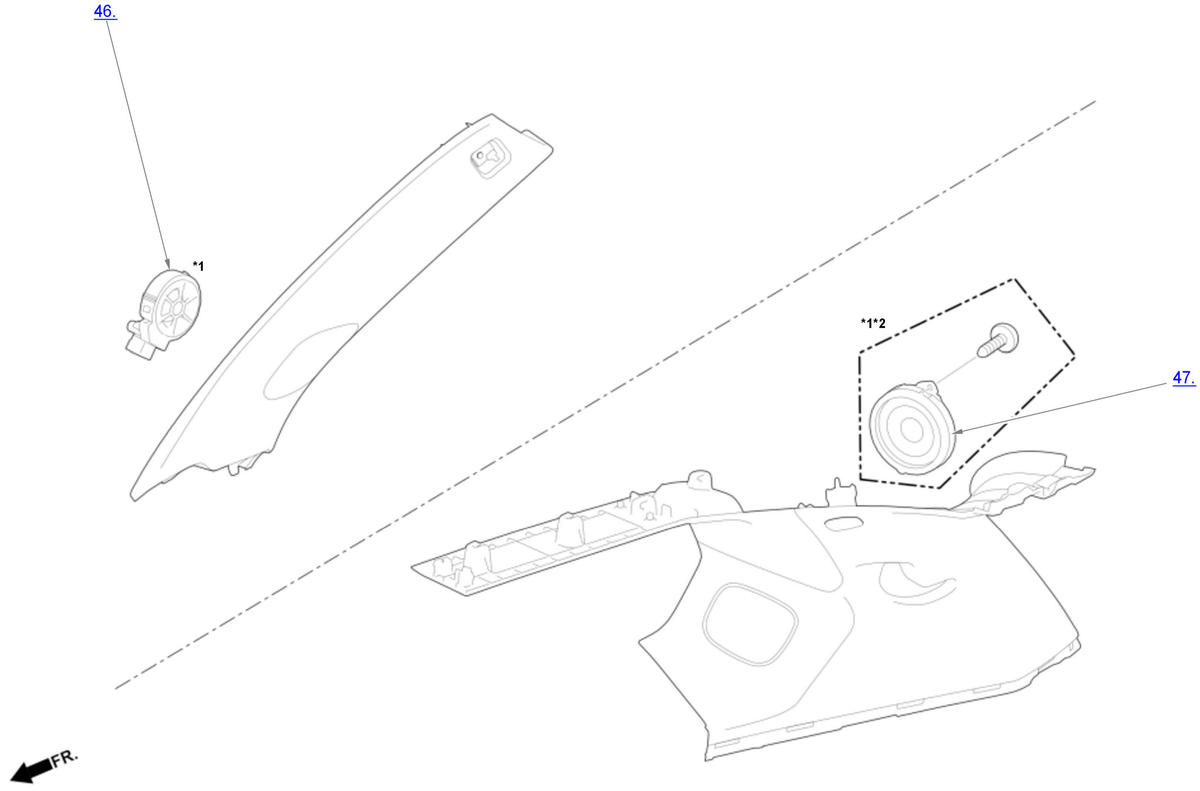

| Front Tweeter | 46 |
| Satellite Speaker | 47 |

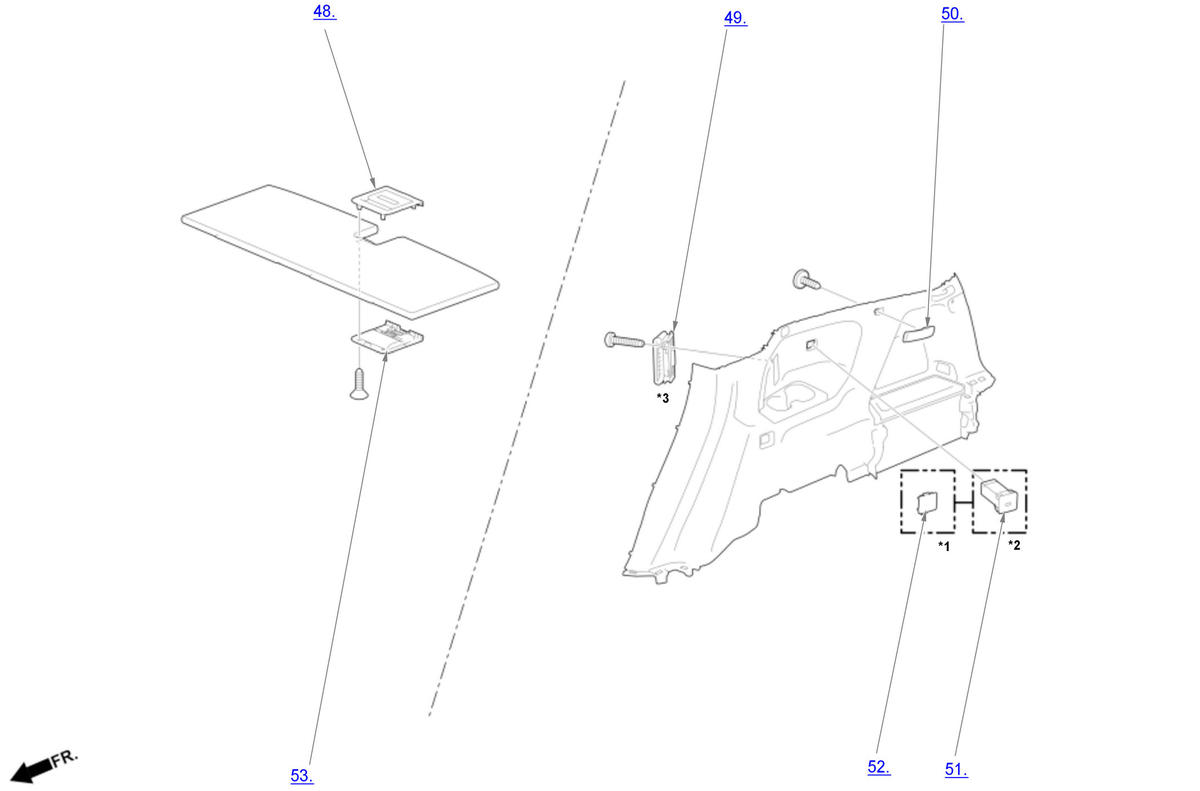

| Cargo Lid Upper Handle | 48 |
| Outlet | 49 |
| Belt Holder | 50 |
| USB Port | 51 |
| Cap | 52 |
| Cargo Lid Lower Handle | 53 |
