Exploded View
| *1: With wireless charger *2: Without wireless charger |
| *: Learning | ■: SPL Tool |
| *1: Without heater control panel *2: With heater control panel *3: With AC power outlet |
Center Console Area
| Component Name | Callout |
|---|---|

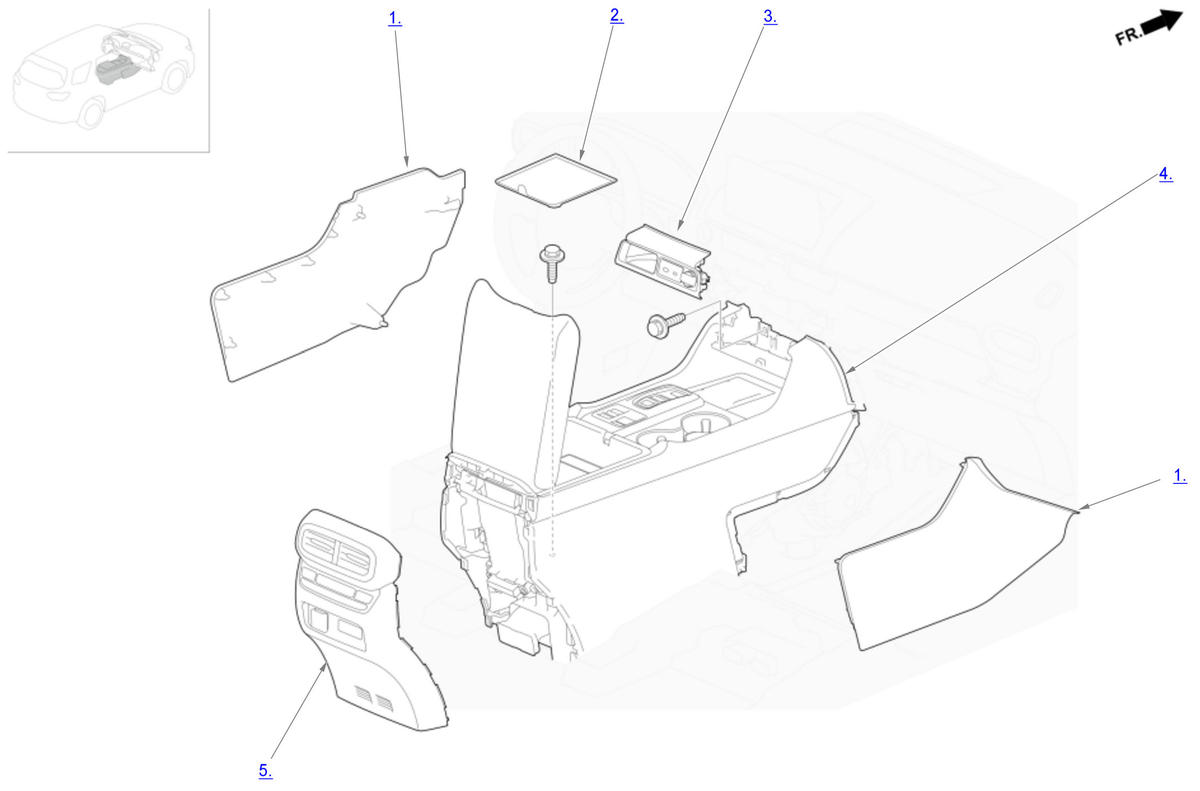

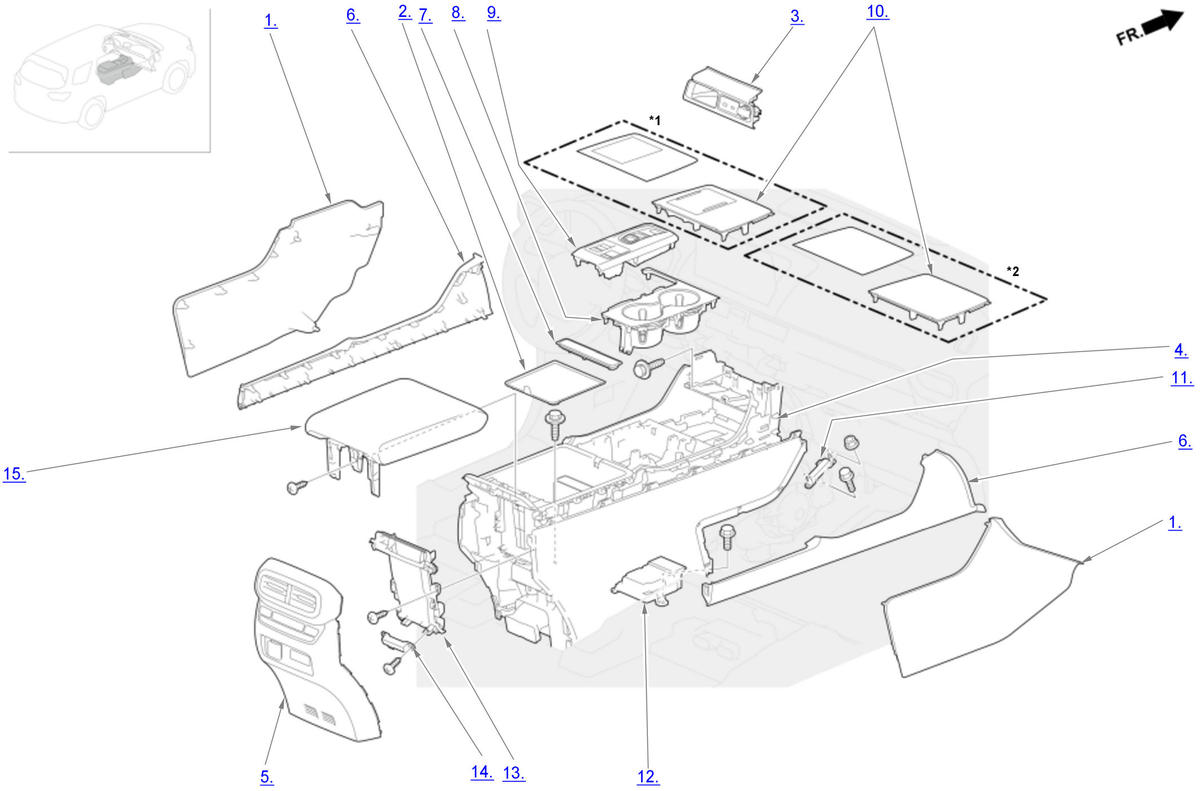

| Center Console Cover | 1 |
| Console Box Mat | 2 |
| Center Console Front Panel | 3 |
| Center Console | 4 |
| Center Console Rear Panel | 5 |
| Console Outer Trim | 6 |
| Coin Holder Mat | 7 |
| Console Top Panel | 8 |
| Switch Panel | 9 |
| Console Front Tray | 10 |
| Front Interior LF Antenna | 11 |
| SRS Unit | 12 |
| Rear Console Upper Duct | 13 |
| Middle Interior LF Antenna | 14 |
| Armrest Assembly | 15 |

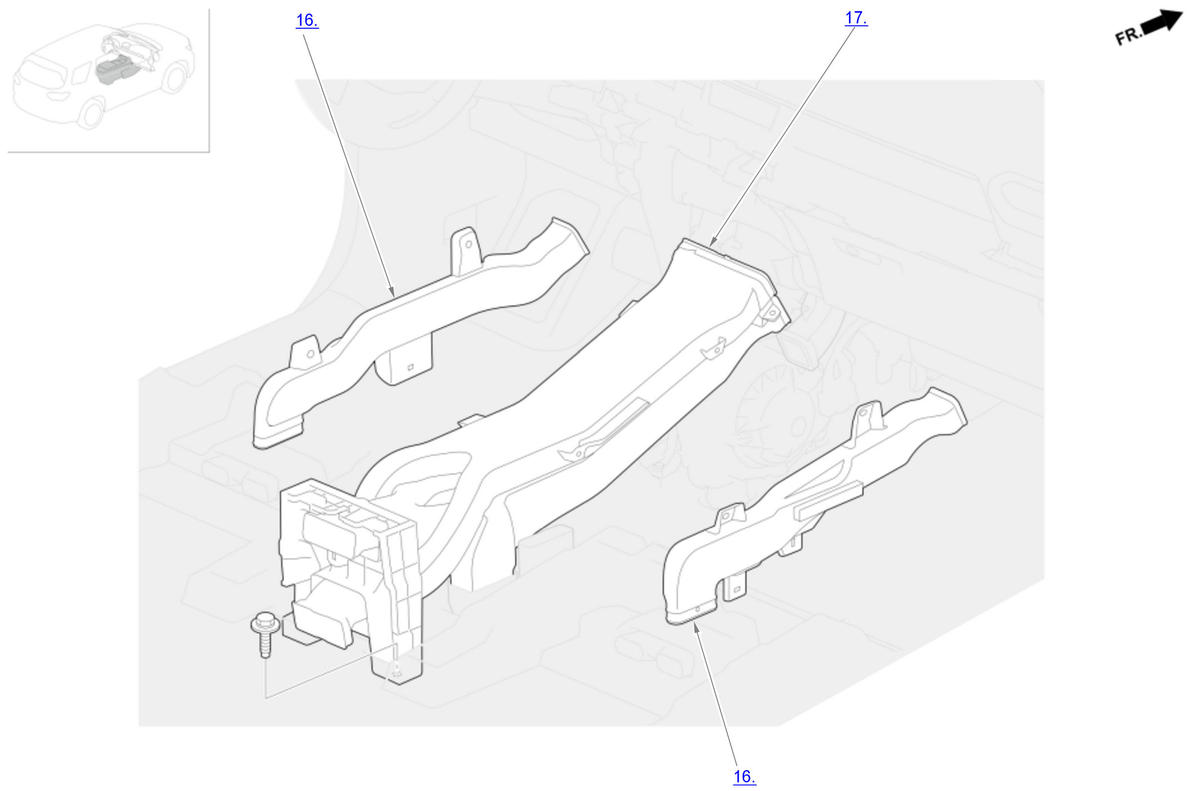

| Rear Heater Joint Duct | 16 |
| Console Duct | 17 |

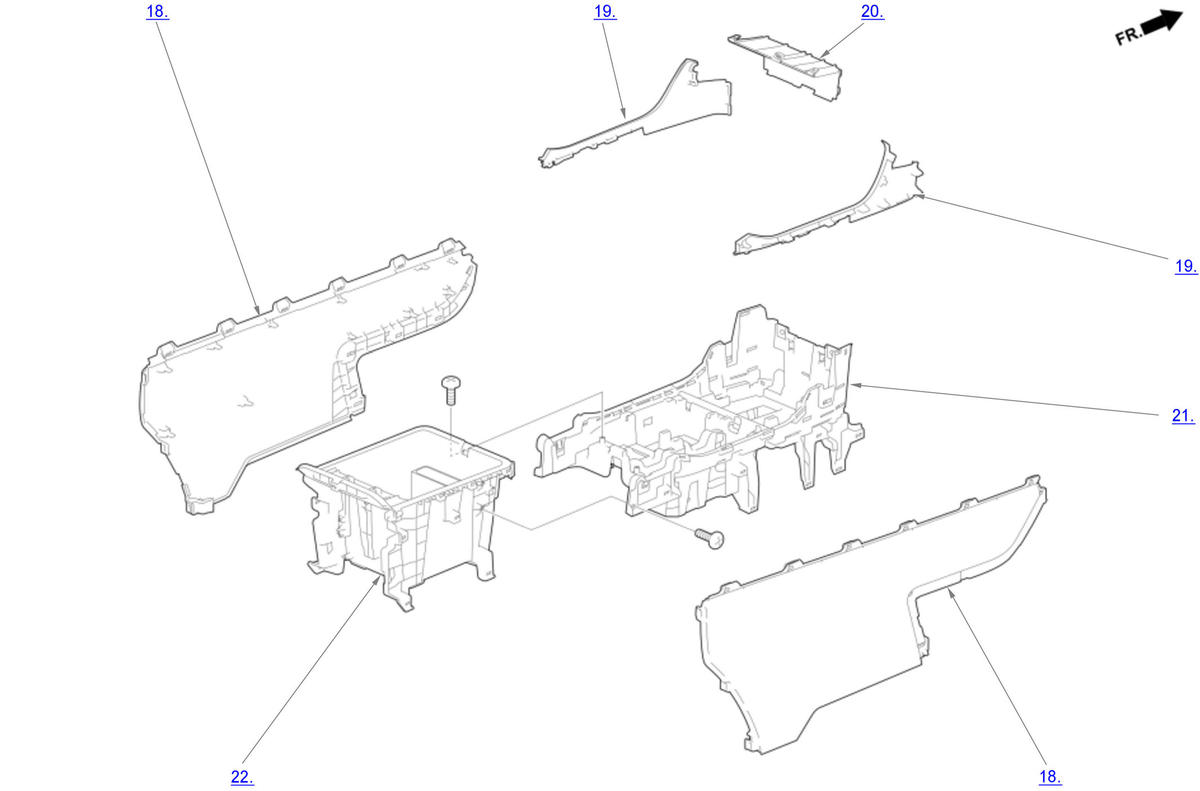

| Center Console Panel | 18 |
| Console Inner Trim | 19 |
| Front Cover Panel | 20 |
| Console Frame | 21 |
| Console Box | 22 |

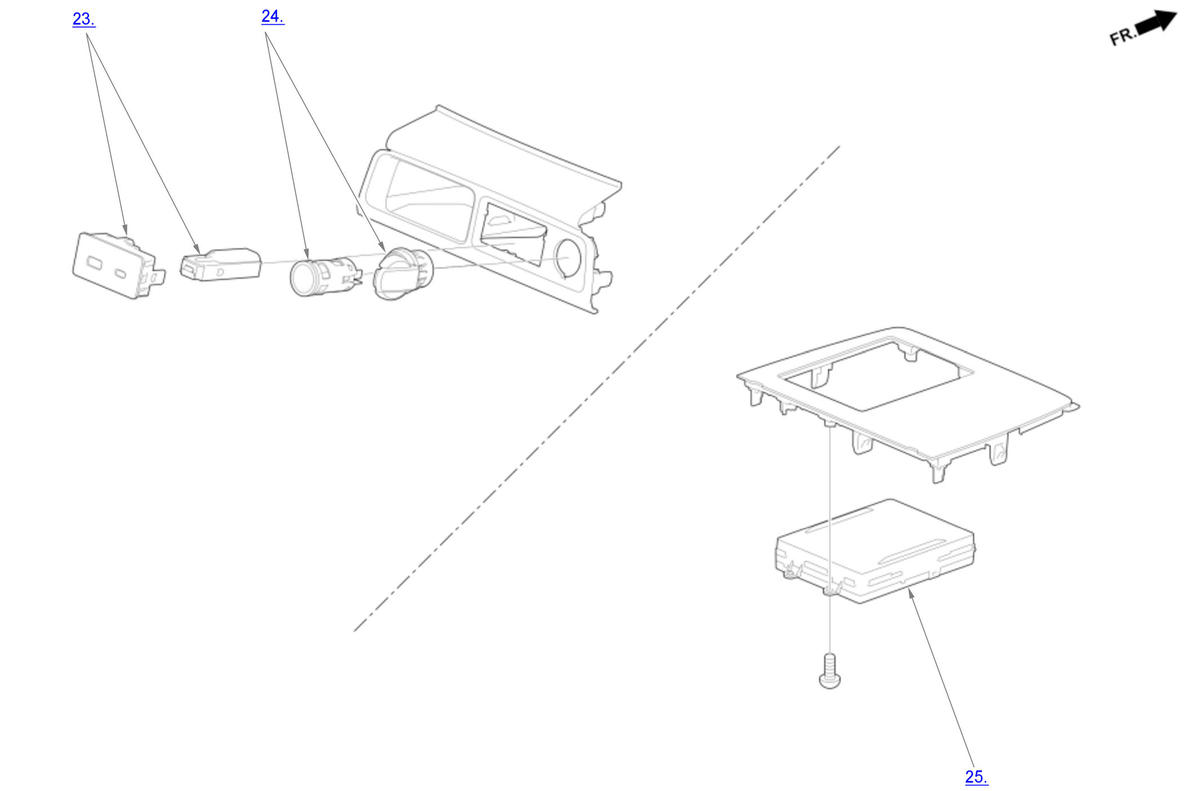

| Front USB Charger Unit | 23 |
| Front Accessory Power Socket | 24 |
| Wireless Charger Unit | 25 |

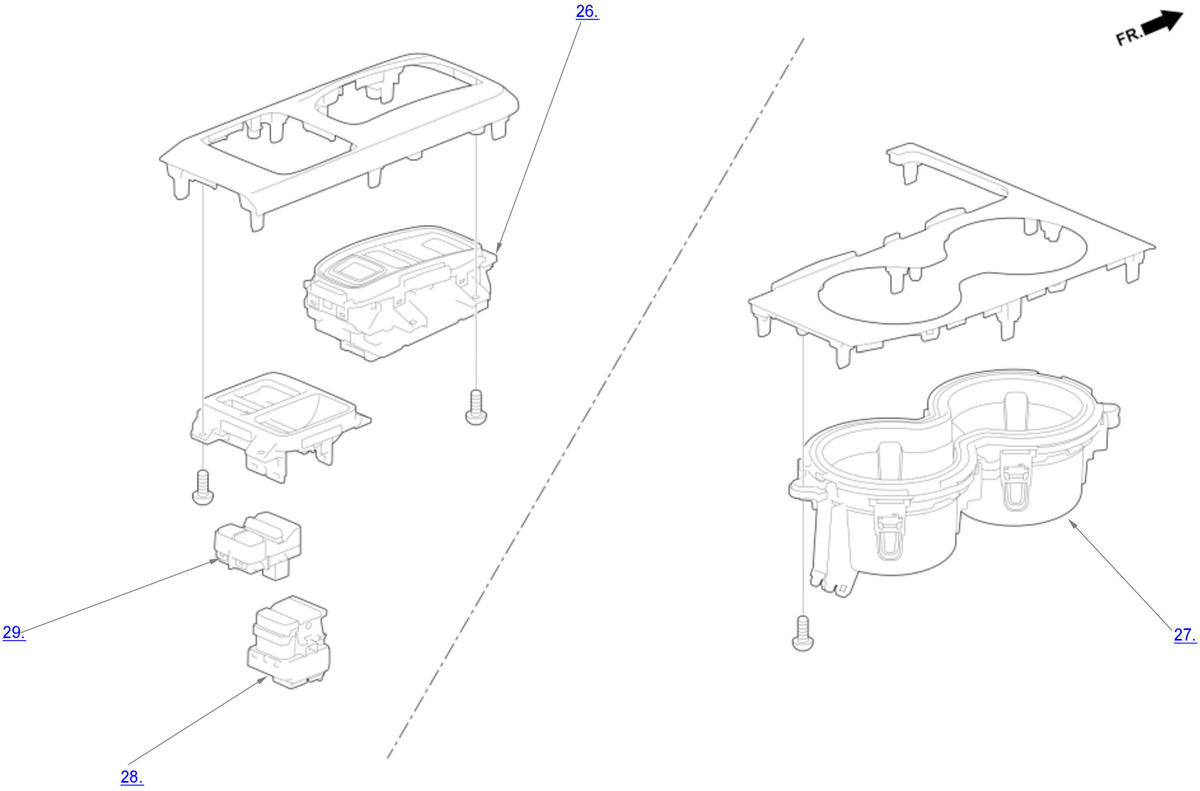

| SBW Shifter Assembly | 26 |
| Cup Holder/Front Beverage Holder Light | 27 |
| Electric Parking Brake Switch/Automatic Brake Hold Switch | 28 |
| Idle Stop OFF Switch/Hill Descent Control Switch/Integrated Drive-mode System Switch | 29 |
| Heater Control Cover | 30 |

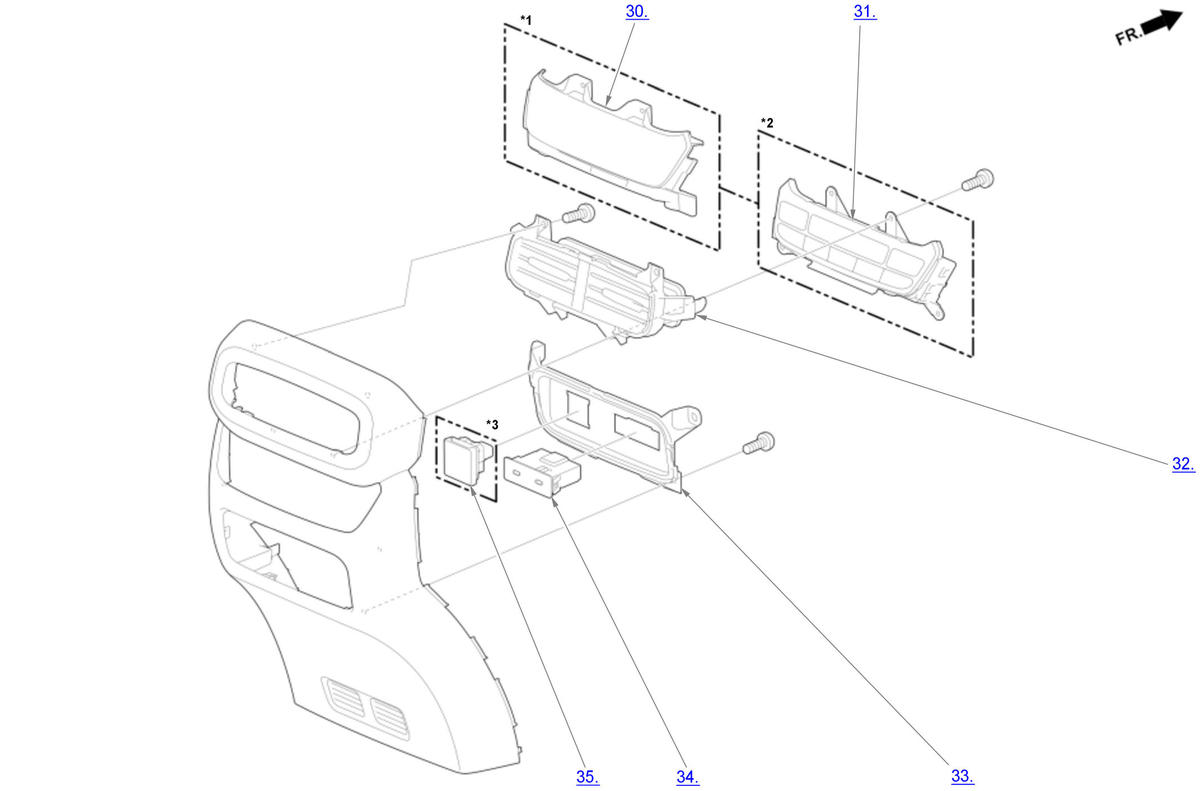

| Rear Climate Control Panel | 31 |
| Rear Console Outlet | 32 |
| Rear Console Cover | 33 |
| Second Row USB Charger Unit | 34 |
| AC Power Outlet | 35 |
