Inspection Outline

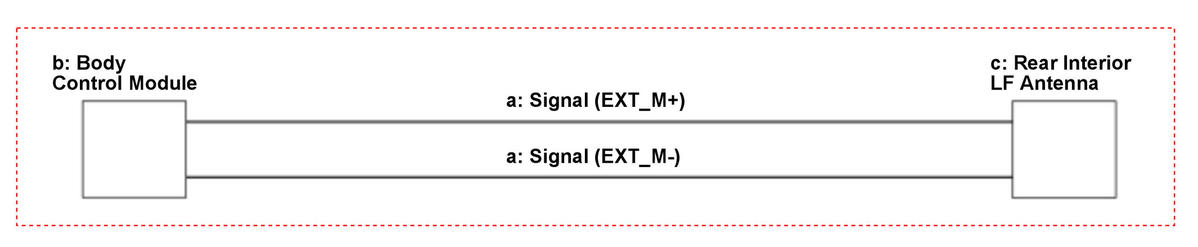

GHH580252Courtesy of HONDA, U.S.A., INC.
Inspection Items Work Items
a External Circuit EXT_M+, EXT_M- Shorted Wire Inspection
b Body Control Module Body Control Module Inspection
c Rear Interior LF Antenna Rear Interior LF Antenna Inspection
