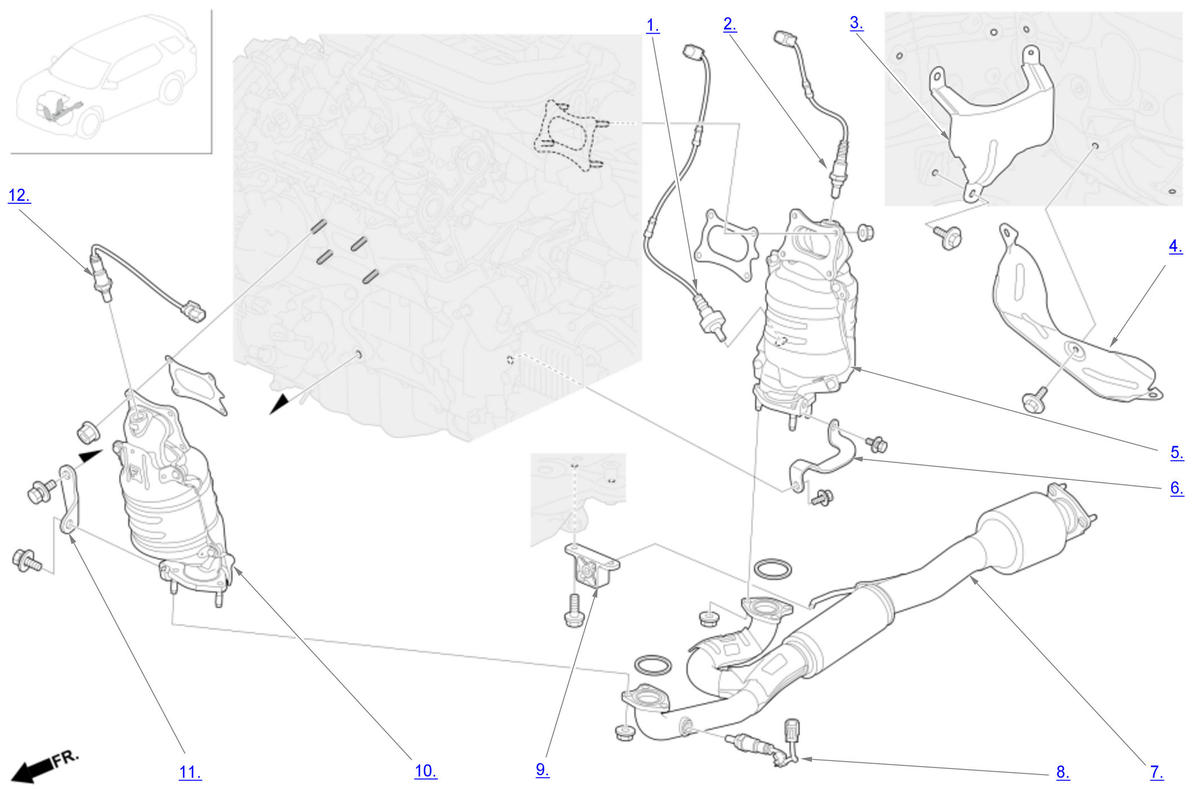

Exploded View
Catalytic Converter Area
| Component Name | Callout |
|---|---|
| Rear Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 1, Sensor 2) | 1 |
| Rear Air Fuel Ratio (A/F) Sensor (Bank 1, Sensor 1) | 2 |
| Right Front Heat Baffle Plate | 3 |
| Dash Lower Heat Baffle Plate | 4 |
| Rear Warm Up Three Way Catalytic Converter (WU-TWC) (Bank 1) | 5 |
| Rear WU-TWC Bracket | 6 |
| Under-Floor Three Way Catalytic Converter (Under-Floor TWC) | 7 |
| Front Secondary Heated Oxygen Sensor (Secondary HO2S) (Bank 2, Sensor 2) | 8 |
| Rubber Mount | 9 |
| Front Warm Up Three Way Catalytic Converter (WU-TWC) (Bank 2) | 10 |
| Front WU-TWC Bracket | 11 |
| Front Air Fuel Ratio (A/F) Sensor (Bank 2, Sensor 1) | 12 |

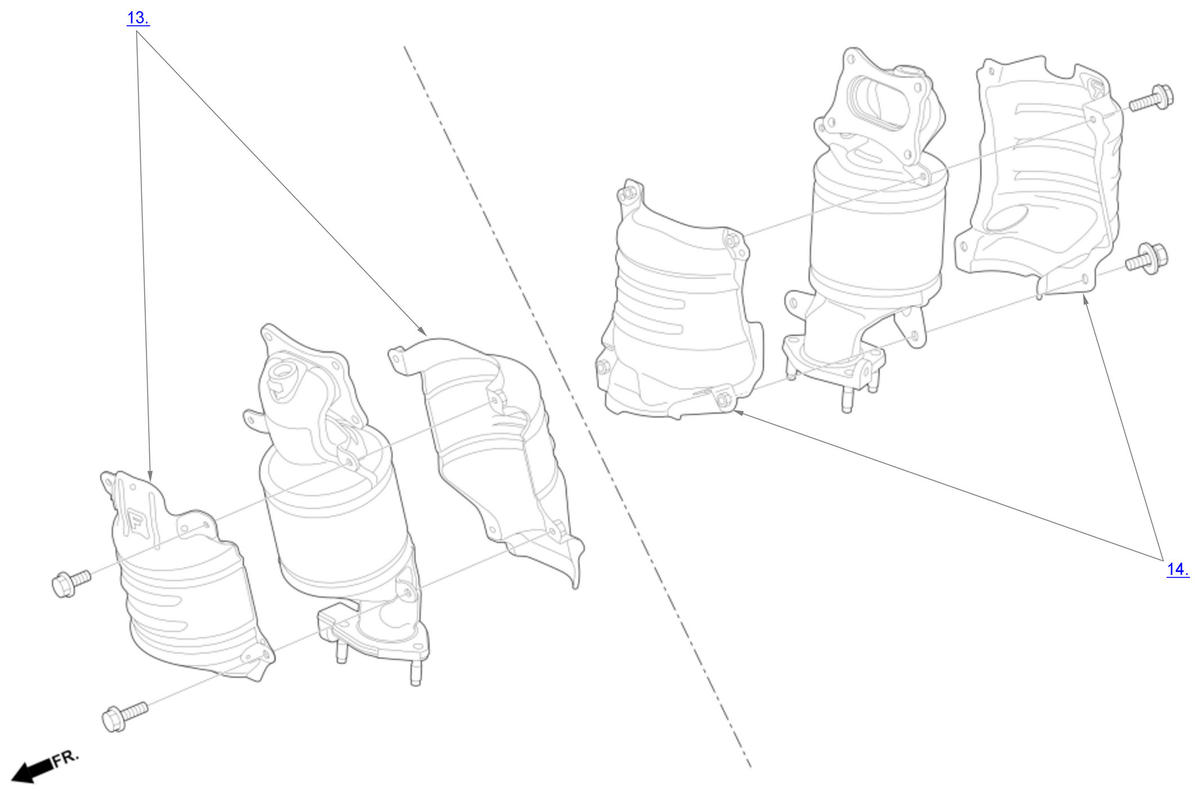

| Front Warm Up Three Way Catalytic Converter (WU-TWC) Cover | 13 |
| Rear Warm Up Three Way Catalytic Converter (WU-TWC) Cover | 14 |
