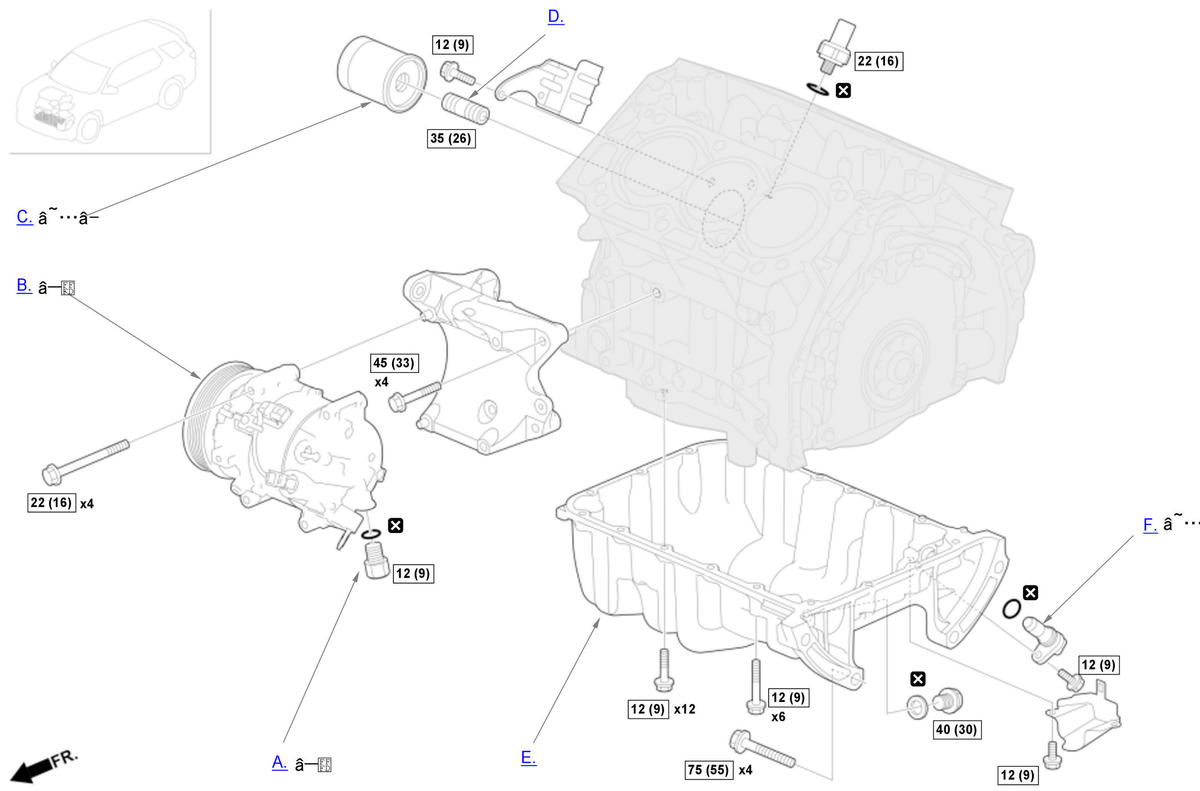

Repair Procedure
| *: Learning | ■: SPL Tool |
- A.-
NOTICE:
Make sure you review the A/C service tips and precautions before doing repaires or servicing.
Preconditions
Key Information
Do the following before starting your work.
Remove:
- Undercover Area Parts
- Engine Undercover (Except TRAILSPORT)
- Front Skid Plate (TRAILSPORT)
- Splash Shield
Sub-Procedure
NOTICE:
- If the A/C compressor relief valve released refrigerant to the atmosphere, determine and correct the cause of the excessive system pressure, then replace the relief valve.
- Plug the opening to keep moisture and foreign material from entering the system, and the A/C compressor oil from running out.
Installation
- A new O-ring should be used at each fitting. Be sure to use the correct O-ring for refrigerant types to avoid leakage.
Lubricant Specifications
Object Type O-Ring Refrigerant Oil - Refer to: A/C Refrigerant Oil Adjustment () or A/C Refrigerant Oil Replacement () After Installation
- A/C Refrigerant Evacuate and Charge
- A/C System Test - Refer to: A/C System Test () or A/C System Contamination Inspection () or A/C System Inspection ()
- Undercover Area Parts
- B.-
NOTICE:
Make sure you review the A/C service tips and precautions before doing repaires or servicing.
Preconditions
Key Information
Do the following before starting your work.
Remove:
Disconnect:
- A/C Condenser Area
- Suction Hose
- Discharge Hose
Sub-Procedure
NOTICE:
- Do not install the A/C compressor into a system unless you are completely sure that the system is free of contamination. Installing the A/C compressor into a contaminated system can result in premature A/C compressor failure. Refer to the A/C System Contamination Inspection - Refer to: A/C System Test () or A/C System Contamination Inspection () or A/C System Inspection () .
- If the A/C compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
- Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.
Removal

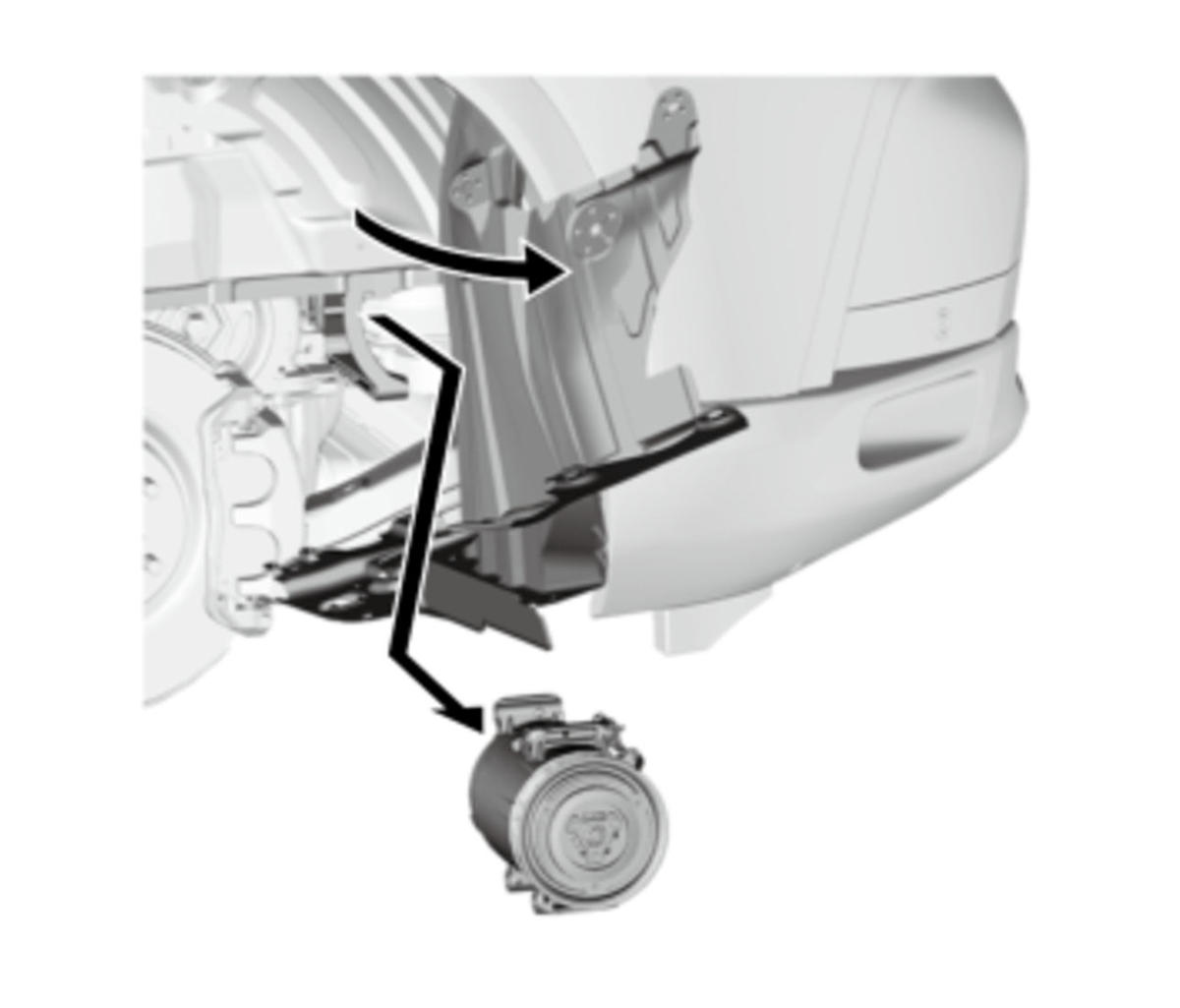

- Refer to the figure.
Installation
NOTICE:
- Inspect the A/C lines for any signs of contamination.
- If you are installing a new A/C compressor, you must calculate the amount of refrigerant oil to be removed from it. A new A/C compressor comes with a full charge of oil. Refer to the the A/C refrigerant oil replacement - Refer to: A/C Refrigerant Oil Adjustment () or A/C Refrigerant Oil Replacement () .
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other kinds of refrigerant oils - Refer to: A/C Refrigerant Oil Adjustment () or A/C Refrigerant Oil Replacement () .
- Use the refrigerant oil immediately after opening the container, and dispose of any unused oil. The oil rapidly absorbs moisture, which damages its electrical insulating properties.
- Do not spill the refrigerant oil on the vehicle, because it may damage painted surfaces. If refrigerant oil contacts the paint, wash it off with water immediately.
After Installation
1. A/C Refrigerant Evacuate and Charge
2. A/C System Test - Refer to: A/C System Test () or A/C System Contamination Inspection () or A/C System Inspection ()
3. Cycle the A/C compressor clutch approximately 20 times by running the engine at under 2, 000 rpm for 1 minute or more and setting the A/C system to ON. This procedure seats the A/C compressor clutch sliding surfaces, and increases clutch torque capacity.
4. Do the Self-Diagnostic Function with the HDS or the climate control unit .
- A/C Condenser Area
- C.-
Key Information
Do the following before starting your work.
Remove:
Sub-Procedure
Figure 1
Removal
- Refer to the figure 1.
Figure 2
Installation

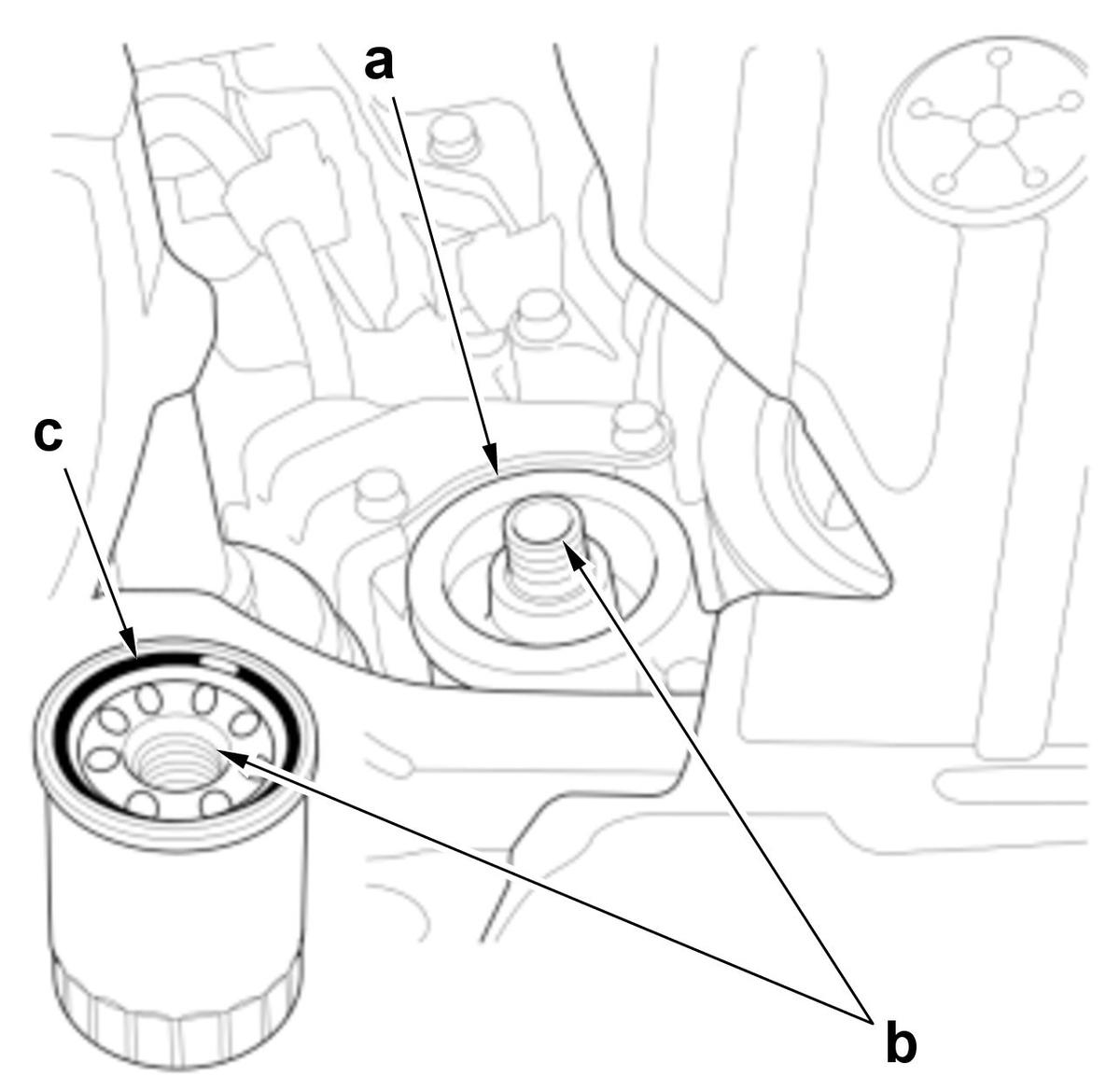

1. Inspect the oil filter to make sure the rubber seal is not stuck to the oil filter seating surface (a). (Figure 2)
2. Inspect the threads (b) and the rubber seal (c). (Figure 2)
3. Clean the oil filter seating surface (a). (Figure 2)
Lubricant Specifications (Figure 2)
Position Type c Engine Oil Figure 3
4. Install the oil filter by hand.

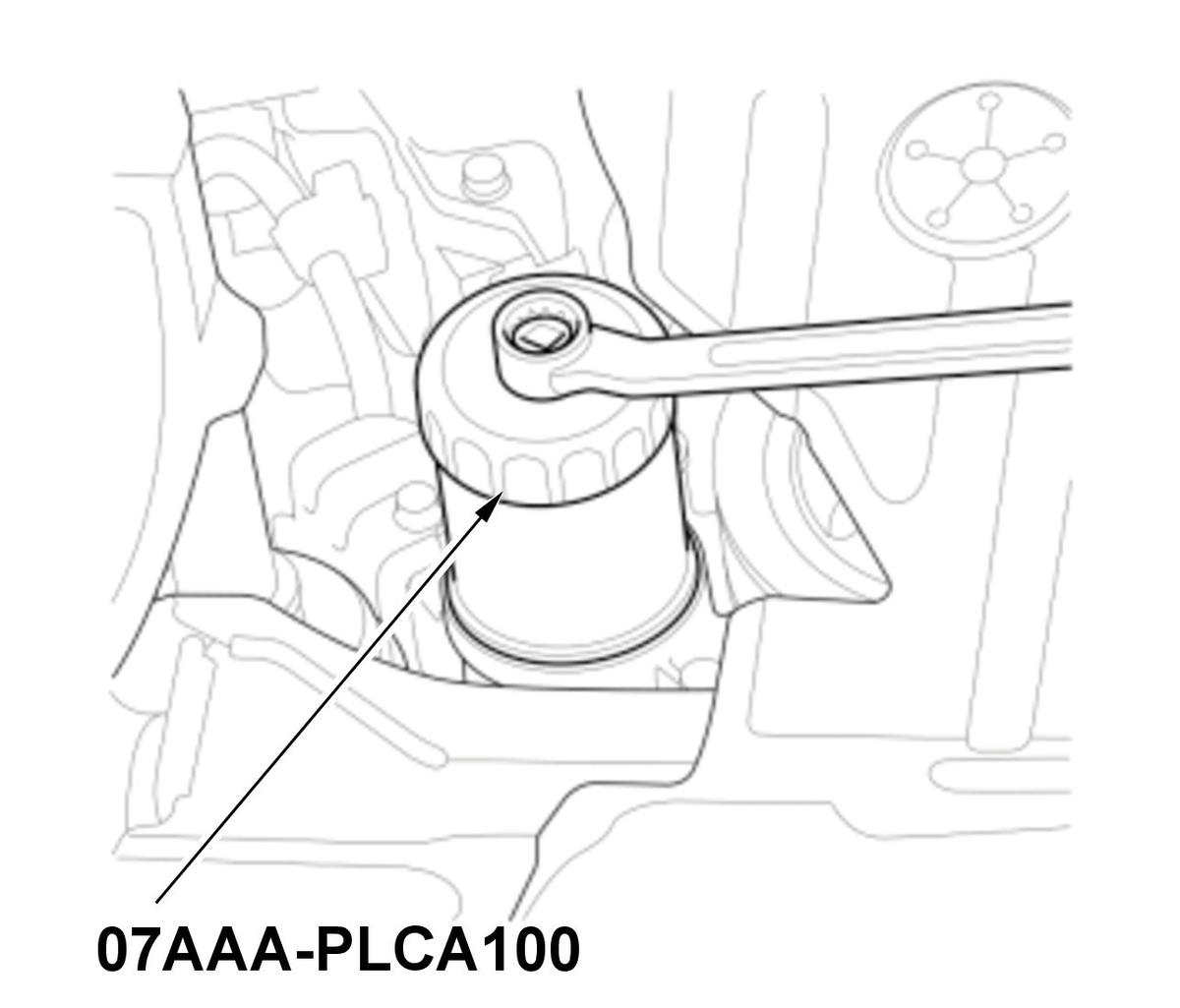

5. After the rubber seal seats, tighten the oil filter clockwise with the oil filter wrench. (Figure 3)
Specifications (Figure 3)
Specification/Standard Value 3/4 Turn Clockwise or 12 Nm (9 lbfft) Figure 4

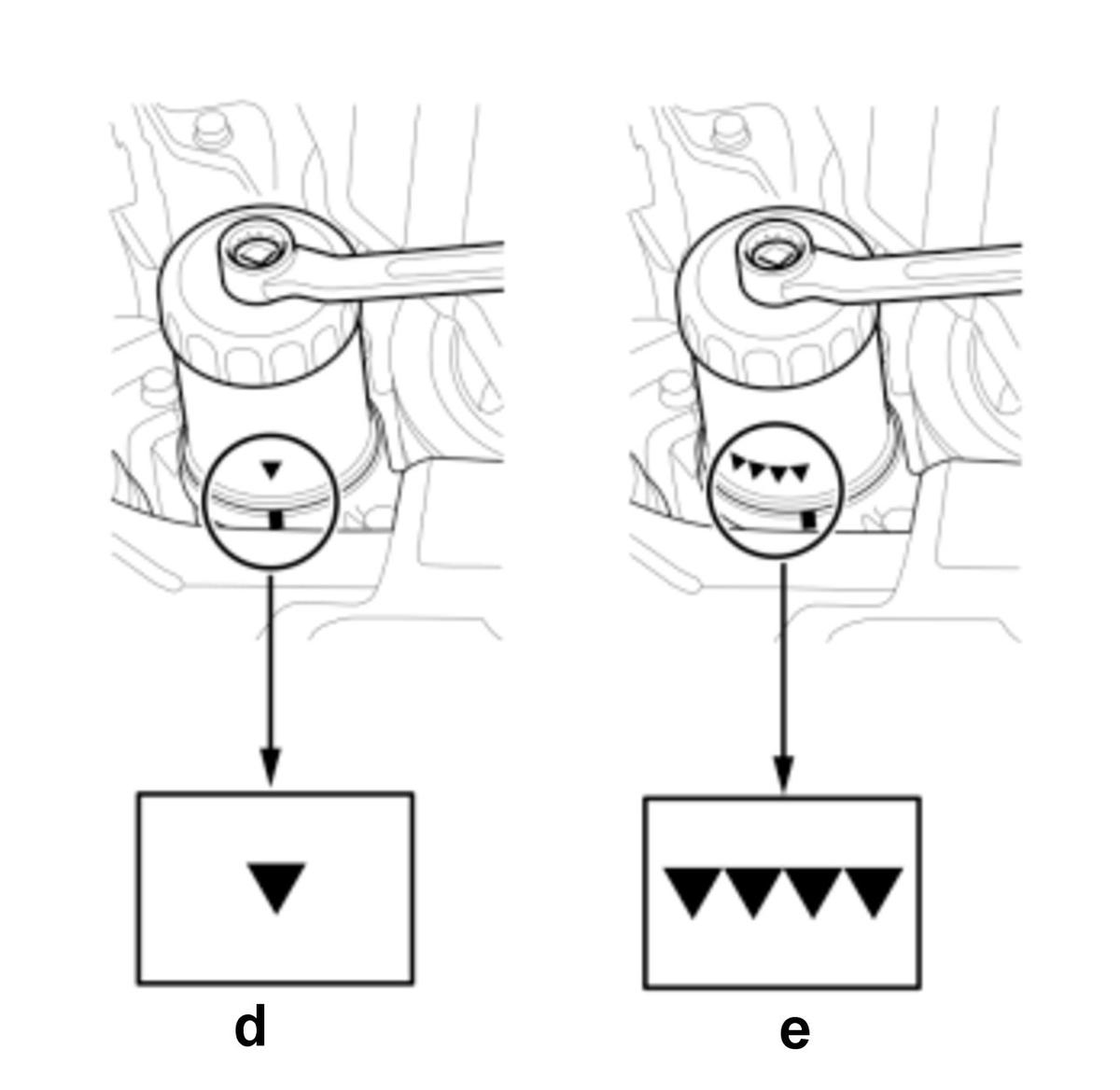

6. If four numbers or marks (1 to 4 or ↓ to ↓↓↓↓) are printed around the outside of the oil filter, use the following procedure to tighten the oil filter. (Figure 4)
- Spin the filter on until its seal lightly seats against the oil pan, and note which number or mark is at the bottom.
- Tighten the filter by turning it clockwise three numbers or marks from the one you noted. For example, if mark ↓ is at the bottom when the seal is lightly seated, tighten the oil filter until the mark ↓↓↓↓ comes around to the bottom.
Tightening Procedure (Figure 4)
Position Specification d Number or Mark when rubber seal is seated 1 or
↓
2 or
↓↓
3 or
↓↓↓
4 or
↓↓↓↓
e Number or Mark after tightening 4 or
↓↓↓↓
1 or
↓
2 or
↓↓
3 or
↓↓↓
After Installation
- Engine Oil Level Check - Refer to: Engine Oil Replacement () or Engine Oil Level Check ()
Maintenance Minder Reset (With Maintenance Minder System)
- If the Maintenance Minder requires the oil filter to be replaced, reset the Maintenance Minder with the gauge (see "Resetting the Maintenance Minder"). If the Maintenance Minder did not require the oil filter to be replaced, reset the Maintenance Minder with the HDS (see "Resetting the Individual Maintenance Items").
- D.-
Sub-Procedure
Figure 1
Installation

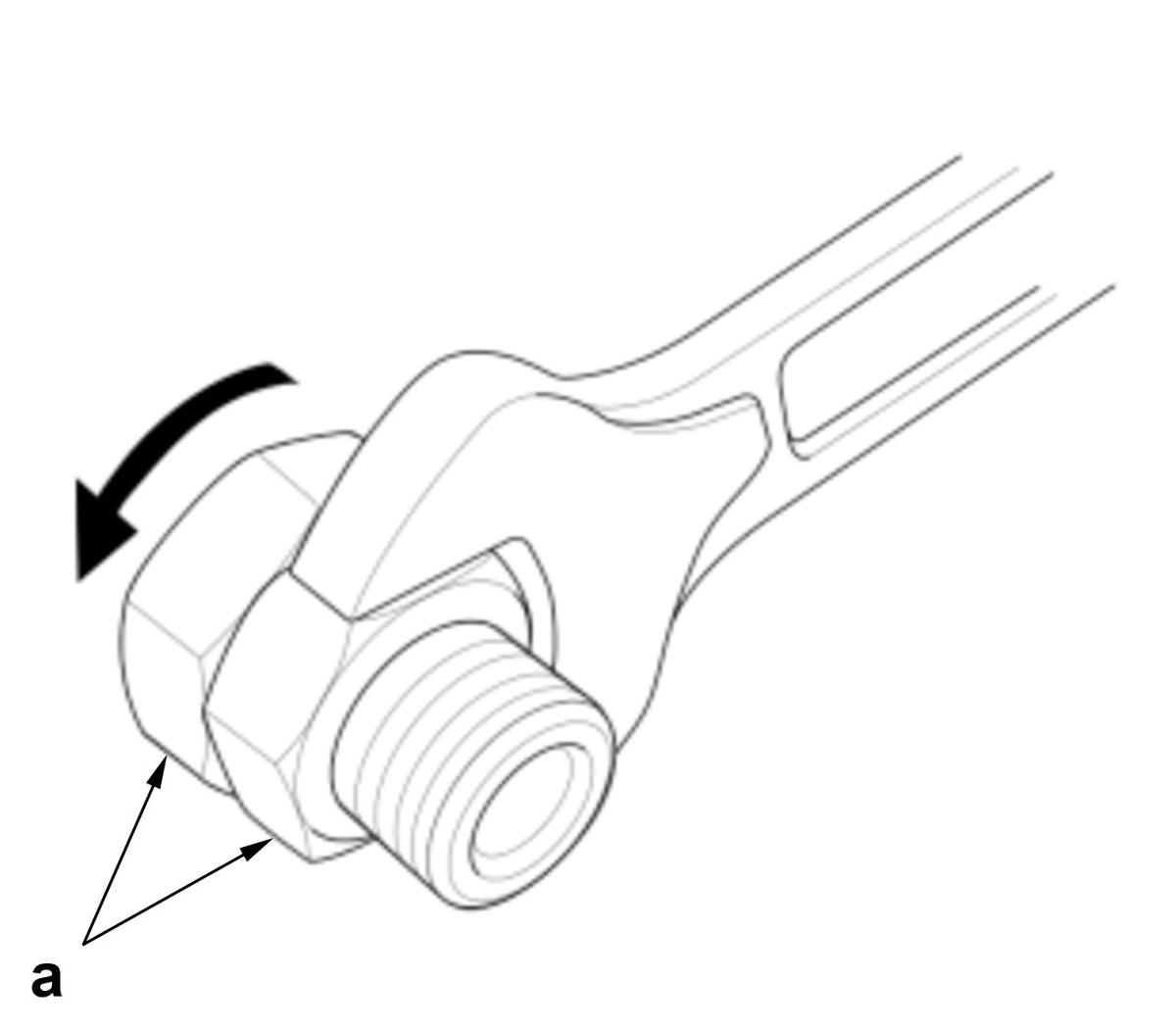

1. Install the two nuts (a). (Figure 1)
Nut Specifications
Type 20 x 1.5 mm Figure 2
2. Torque the oil filter feed pipe.
Lubricant Specifications (Figure 2)
Position Type b Engine Oil - E.-
Preconditions
- Engine Oil Drained - Refer to: Engine Oil Replacement () or Engine Oil Level Check ()
Key Information
Do the following before starting your work.
Remove:
- Right Front Wheel
- Catalytic Converter Area Parts
- Under-Floor TWC
- Rear WU-TWC Bracket
- Torque Converter Cover
Disconnect
- CKP Sensor Connector
Sub-Procedure
NOTICE:
- Do not disconnect and excessively bend the suction hose and the discharge hose.
- Hang the A/C compressor with a zip tie.
Figure 1
Removal

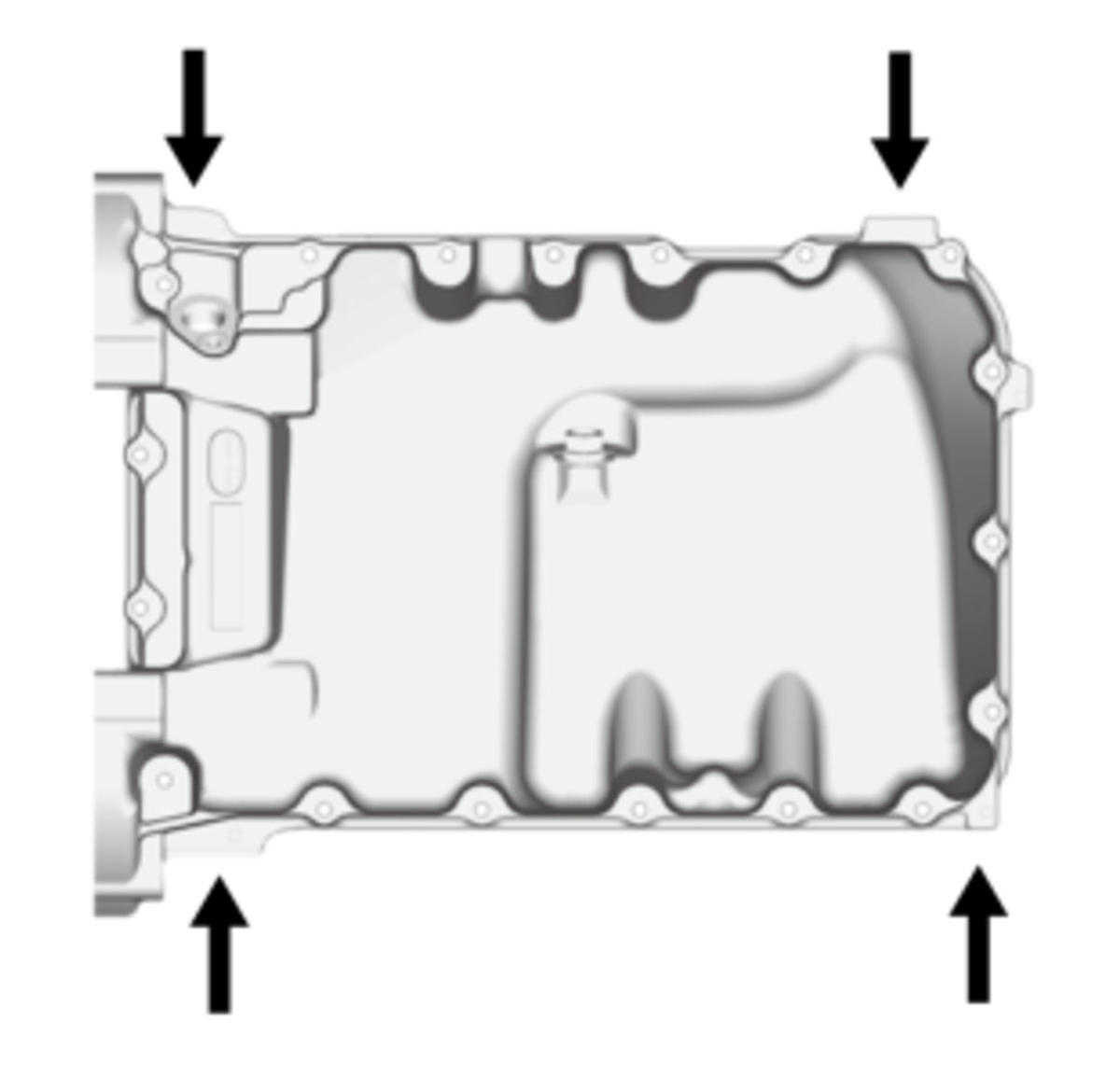

1. Using a flat blade screwdriver, separate the oil pan from the engine block in the areas shown. (Figure 1)
Installation
1. Remove all of the old gasket from the mating surfaces of each part and clean them.
Lubricant Specifications (Figure 2)

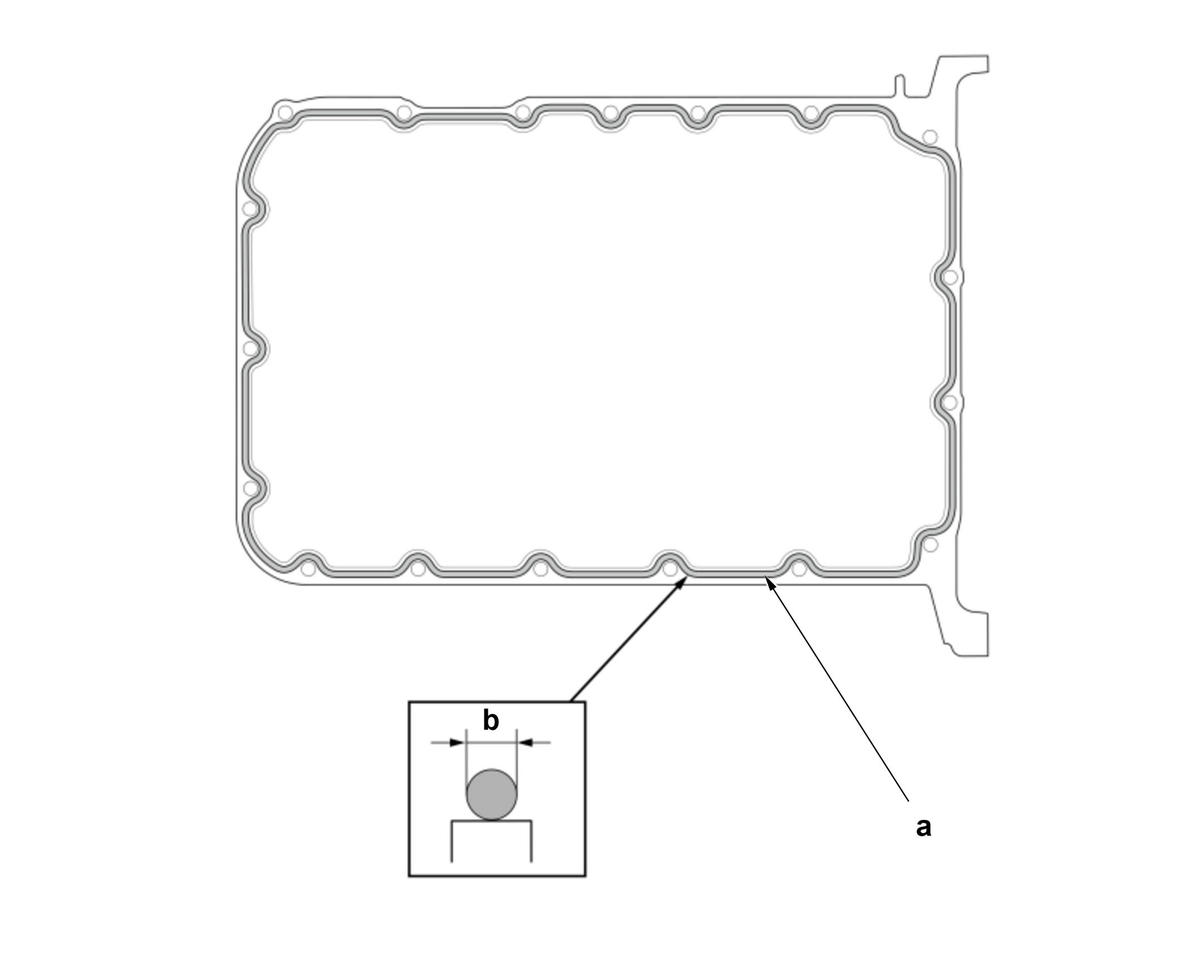

Position Type Detail a Liquid Gasket (P/N 08718-0003, 08718-0004, or 08718- 0009) b 2.5 mm (0.098 in) Figure 2
NOTICE:
- Install the component within 5 minutes of applying the liquid gasket.
- If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply new liquid gasket.
- Wait at least 30 minutes before filling the engine with oil.
- Do not run the engine for at least 3 hours after installing the parts.
Figure 3

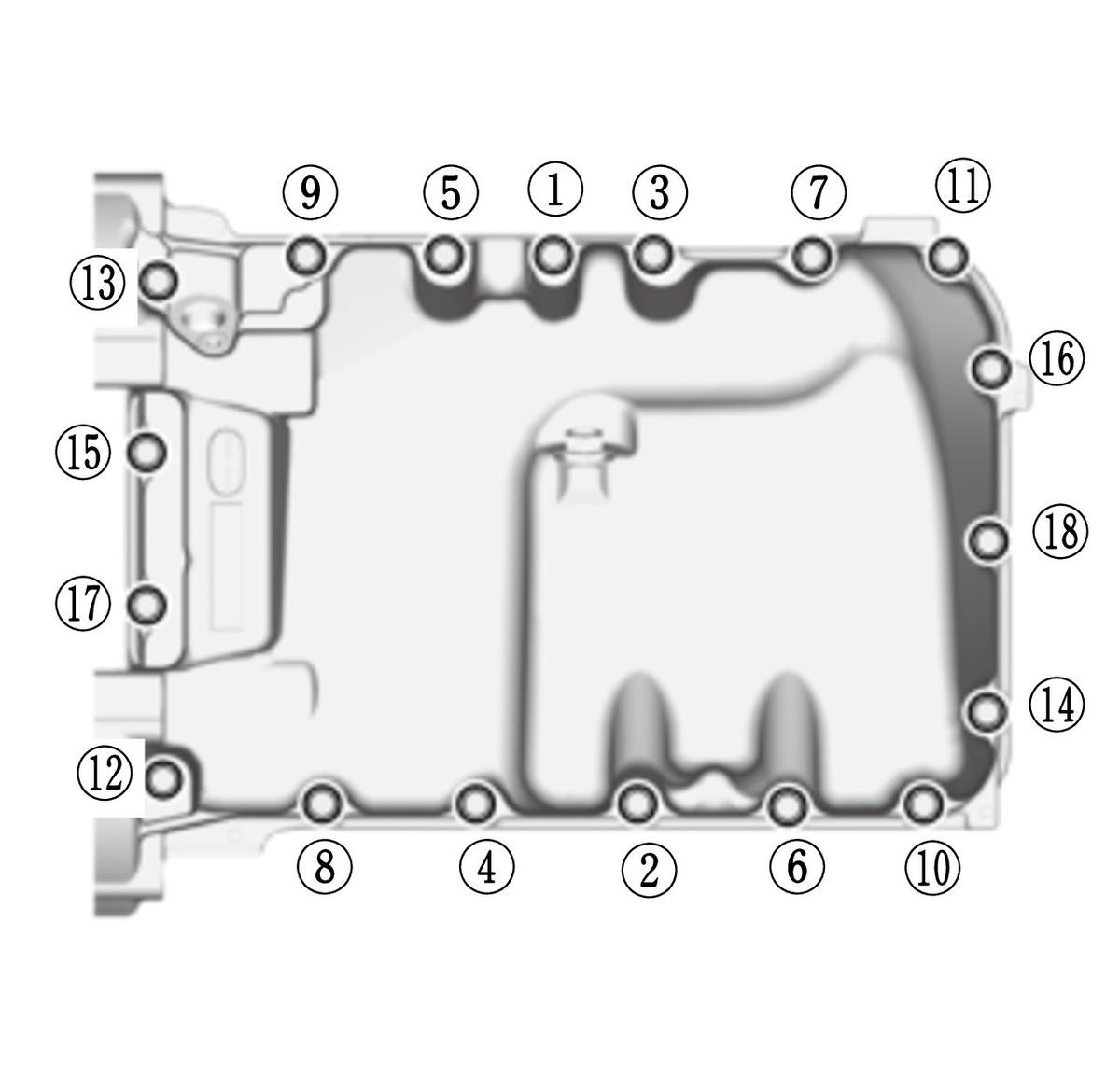

2. Tighten the bolts in three steps. In the final step, torque all bolts in sequence to the specified torque. Wipe off the excess liquid gasket on the each side of crankshaft pulley and drive plate. (Figure 3)
After Installation
- Engine Oil Refill - Refer to: Engine Oil Replacement () or Engine Oil Level Check ()
- F.-
Key Information
Do the following before starting your work.
Remove:
- Undercover Area Parts
- Engine Undercover (Except TRAILSPORT)
- Front Skid Plate (TRAILSPORT)
Sub-Procedure
Installation
Lubricant Specifications
Object Type O-Ring Engine Oil - Undercover Area Parts
