A/C Condenser Area
For Replacement of components listed below, see Repair Procedure

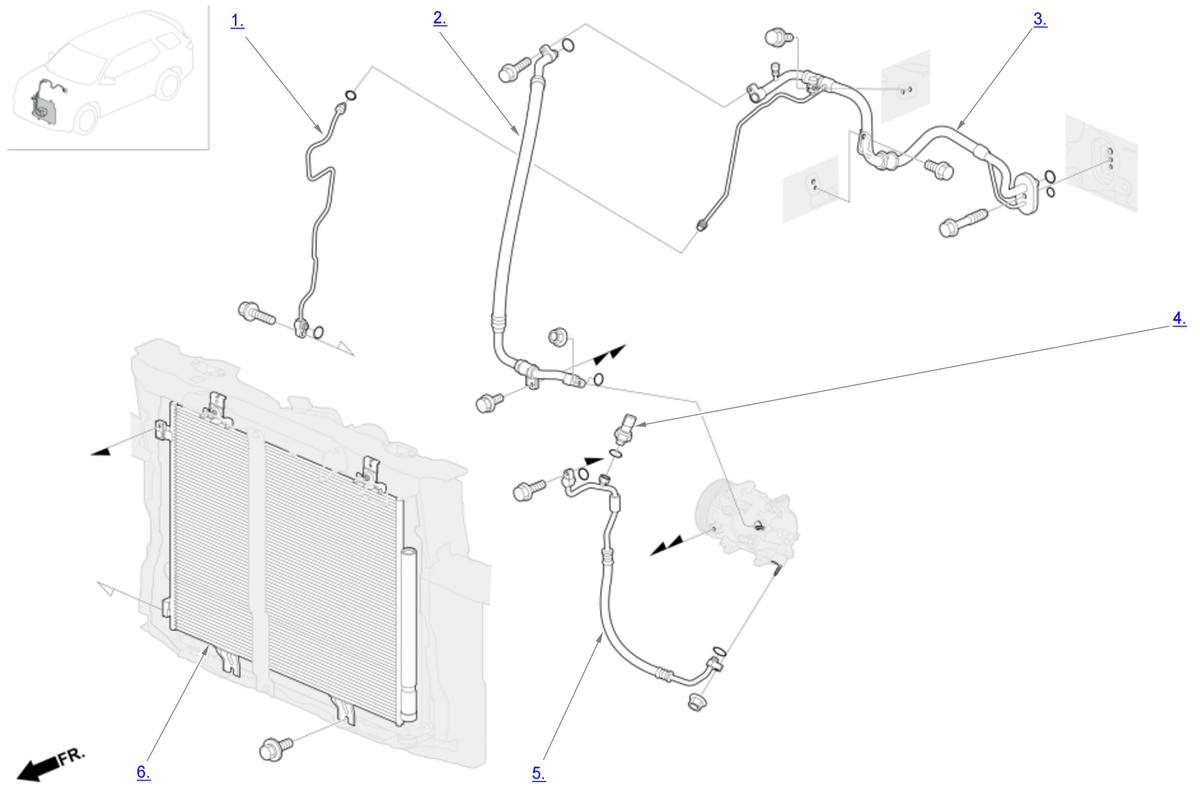

Exploded View Of A/C Condenser Area (Items 1 thru 6) (1 Of 2)

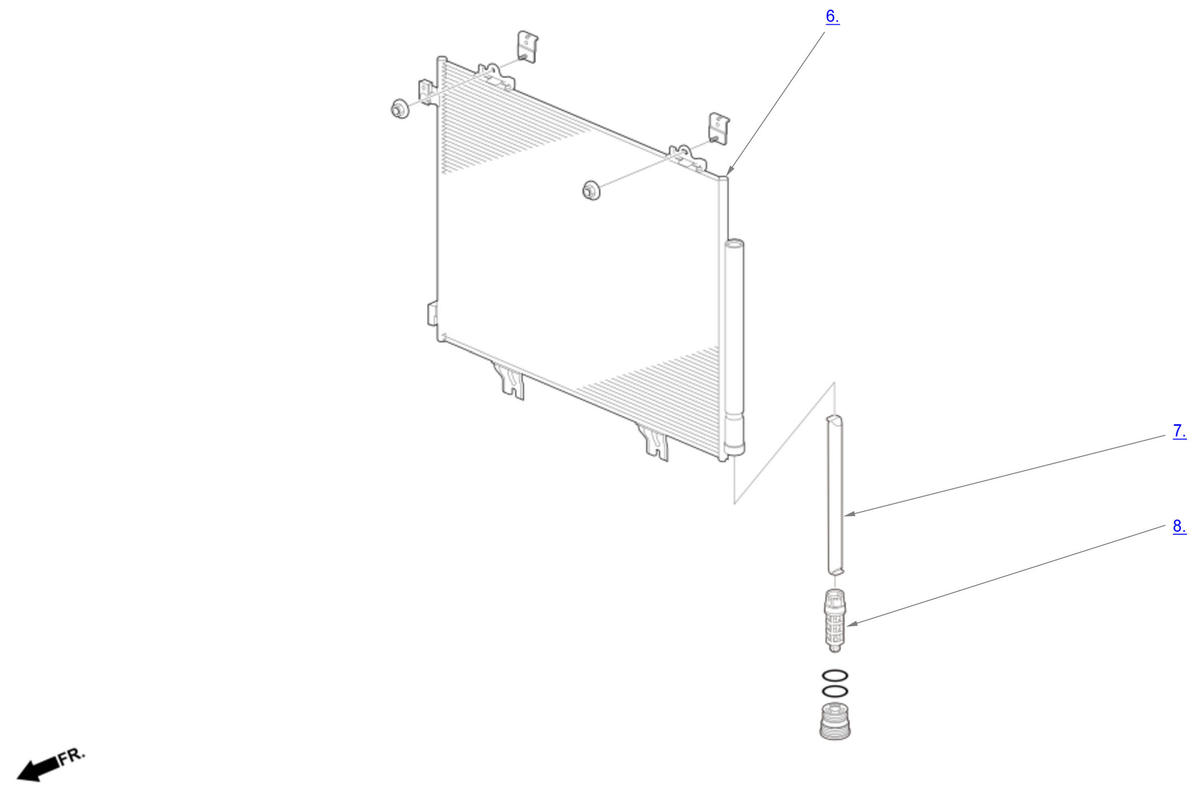

Exploded View Of A/C Condenser Area (Items 7 thru 8) (2 Of 2)
A/C Condenser Area
| Component Name | Callout |
|---|---|
| Receiver Pipe | 1 |
| Suction Hose | 2 |
| A/C Line | 3 |
| A/C Pressure Sensor | 4 |
| Discharge Hose | 5 |
| A/C Condenser | 6 |
| Desiccant | 7 |
| Filter | 8 |
