Exploded View

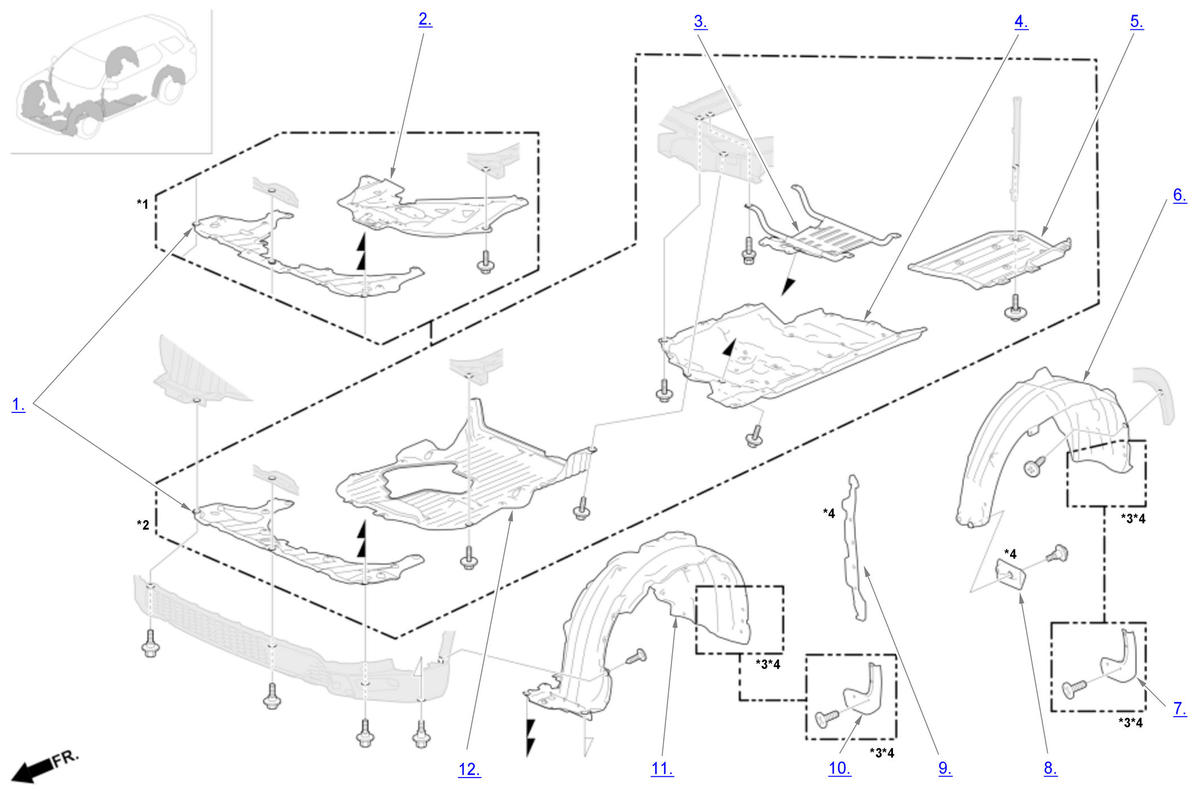

Exploded View Of Undercover Area (Items 1 thru 12)
| *1: TRAILSPORT *2: Except TRAILSPORT *3: For some models *4: Part(s) are shown for one side only as the procedure is the same for both sides. |
Undercover Area
| Component Name | Callout |
|---|---|
| Splash Shield | 1 |
| Front Skid Plate | 2 |
| Front Floor Undercover Support | 3 |
| Front Floor Undercover | 4 |
| Middle Floor Undercover | 5 |
| Rear Inner Fender | 6 |
| Rear Splash Guard | 7 |
| Rear Strake | 8 |
| Front Fender Fairing | 9 |
| Front Splash Guard | 10 |
| Front Inner Fender | 11 |
| Engine Undercover | 12 |
