Repair Procedure

How to use this manual .

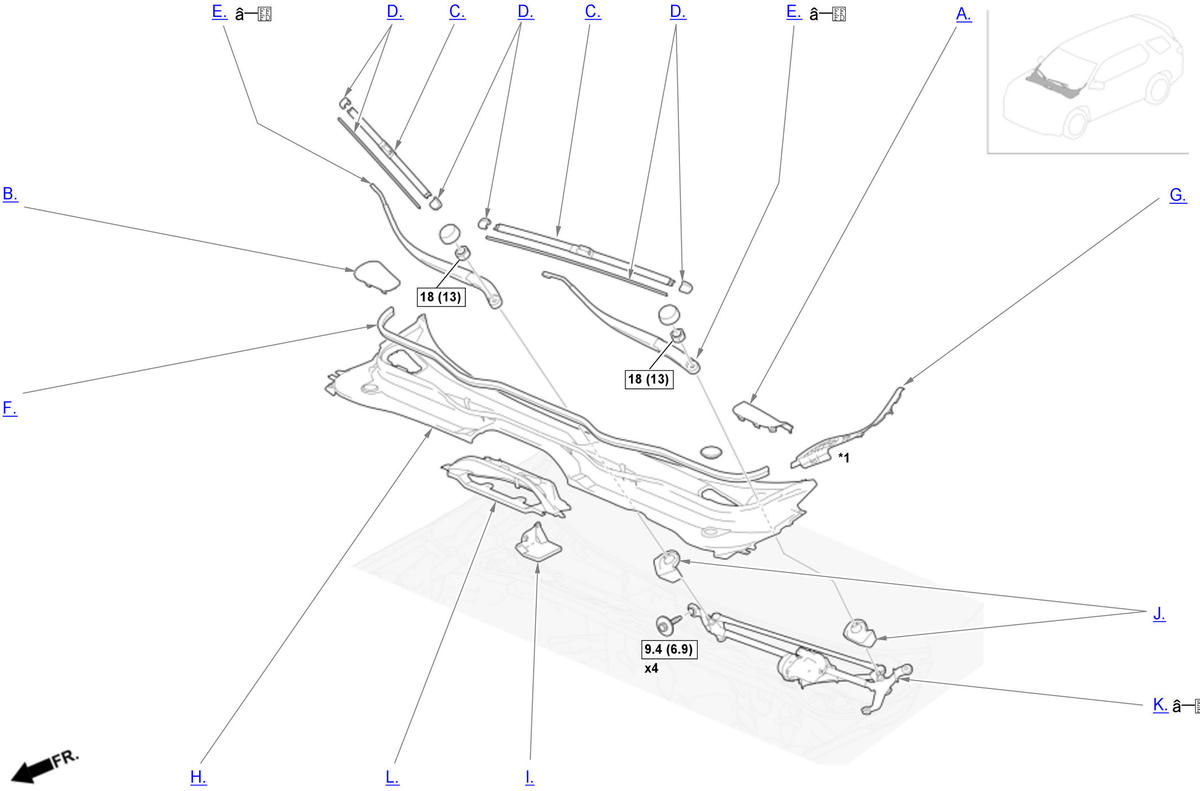

Windshield Wiper Area Replacement Components With Torque Specificaitons (1 Of 2)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

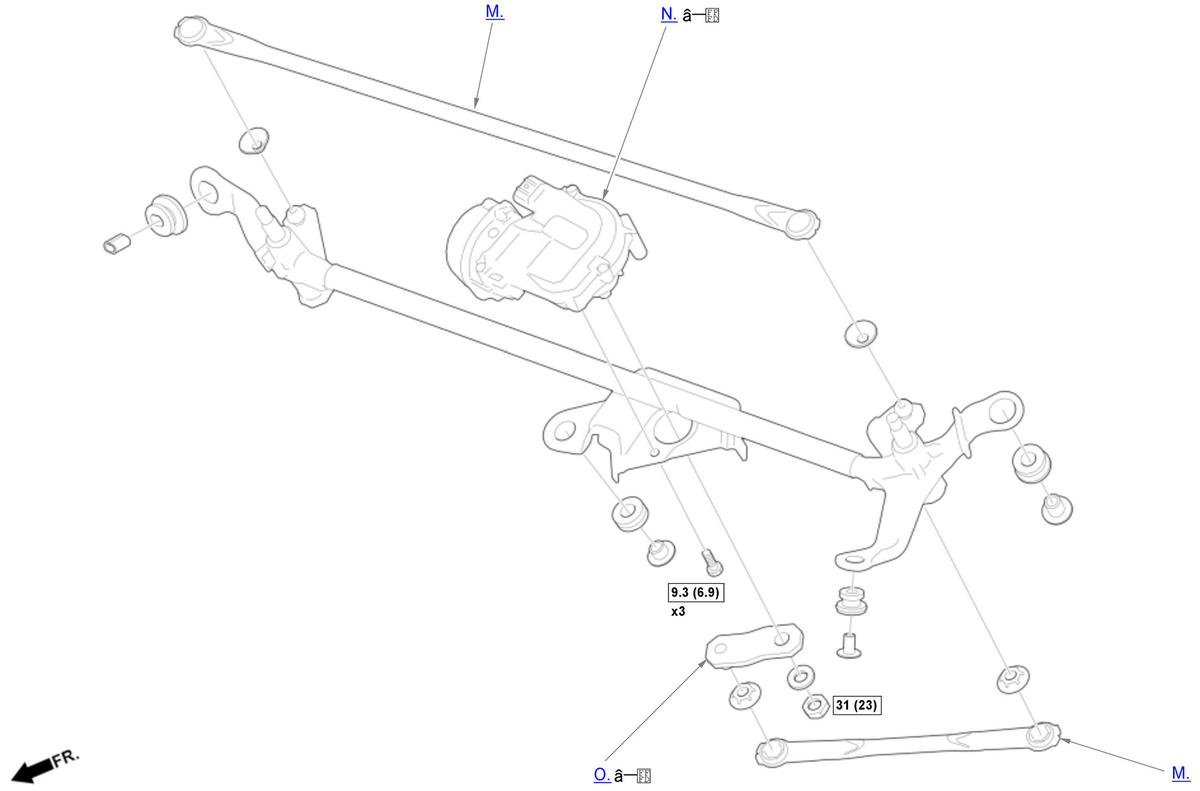

Windshield Wiper Area Replacement Components With Torque Specificaitons (2 Of 2)

Courtesy of HONDA, U.S.A., INC.

: Torque, Nm (lbfft)

: Replace

: Warning/Caution

: Inspection/Adjustment

*: Learning

■: SPL Tool

: Required Removal

1. A.-

   Courtesy of HONDA, U.S.A., INC.

2. B.-

   Courtesy of HONDA, U.S.A., INC.

3. C.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Removal

   1. Turn the vehicle to the ON mode.

   2. Turn and hold the wiper/washer switch to the MIST position, and then turn the vehicle to the OFF (LOCK) mode.

   3. Release the wiper/washer switch.

   NOTE:

   The wiper arm stops at the service position.

   4. Remove the wiper blade holder (a).

   After Installation

   • Wiper Arm Adjustment
4. D.-

   Sub-Procedure

   Figure 1

   Courtesy of HONDA, U.S.A., INC.

   Removal

   1. Turn the vehicle to the ON mode.

   2. Turn and hold the wiper/washer switch to the MIST position, and then turn the vehicle to the OFF (LOCK) mode.

   3. Release the wiper/washer switch.

   NOTE:

   The wiper arm stops at the service position.

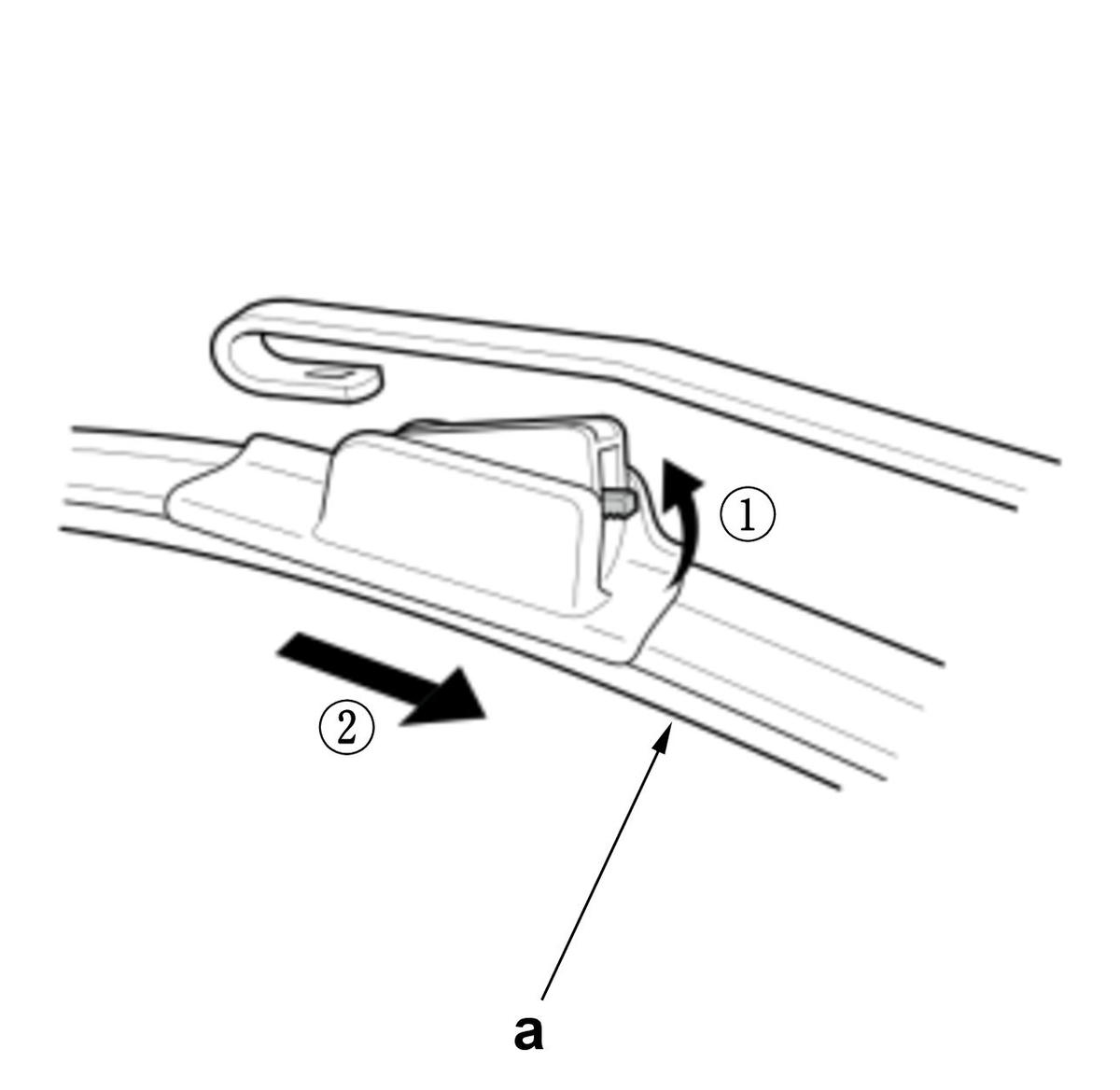

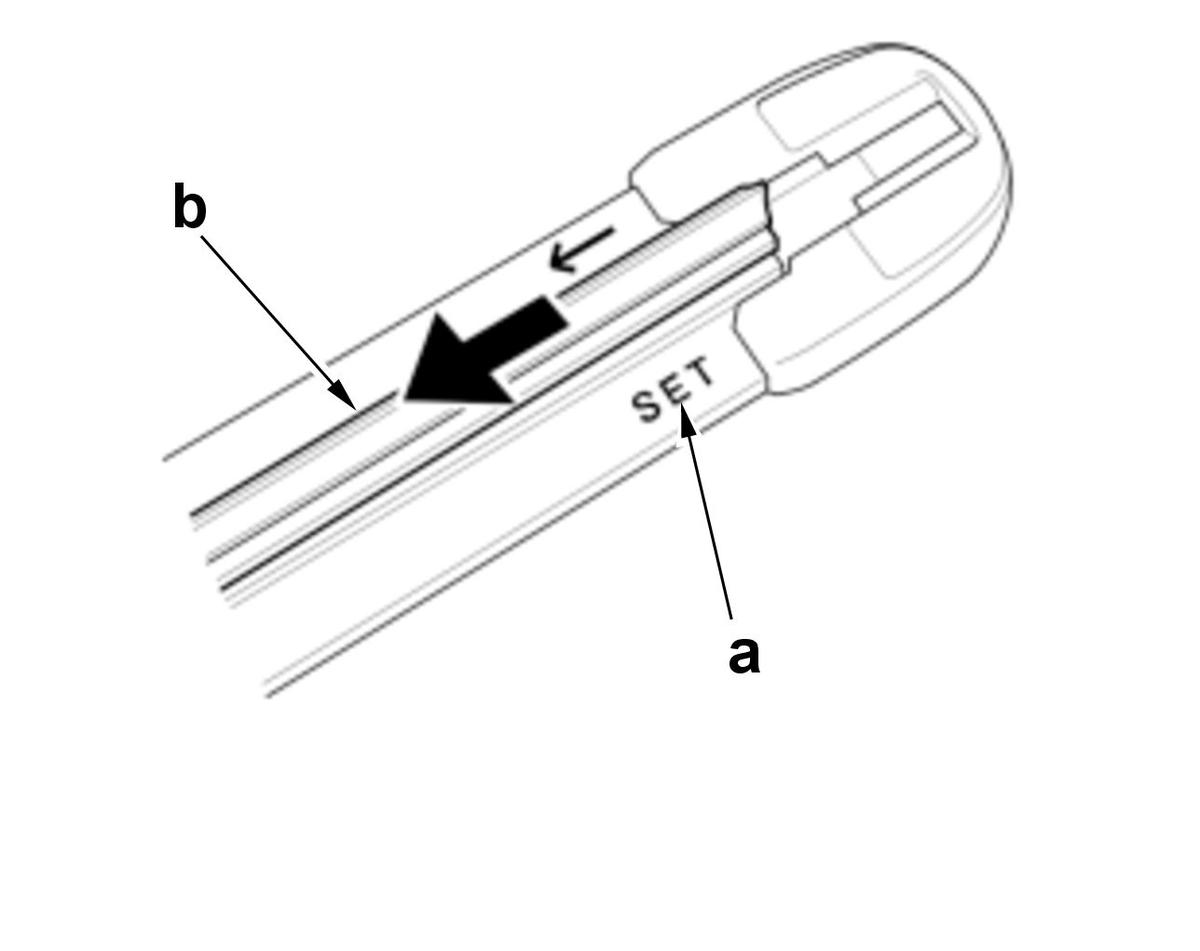

   4. On the "SET" label (a) side, pull back the wiper blade (b). (Figure 1)

   Figure 2

   Courtesy of HONDA, U.S.A., INC.

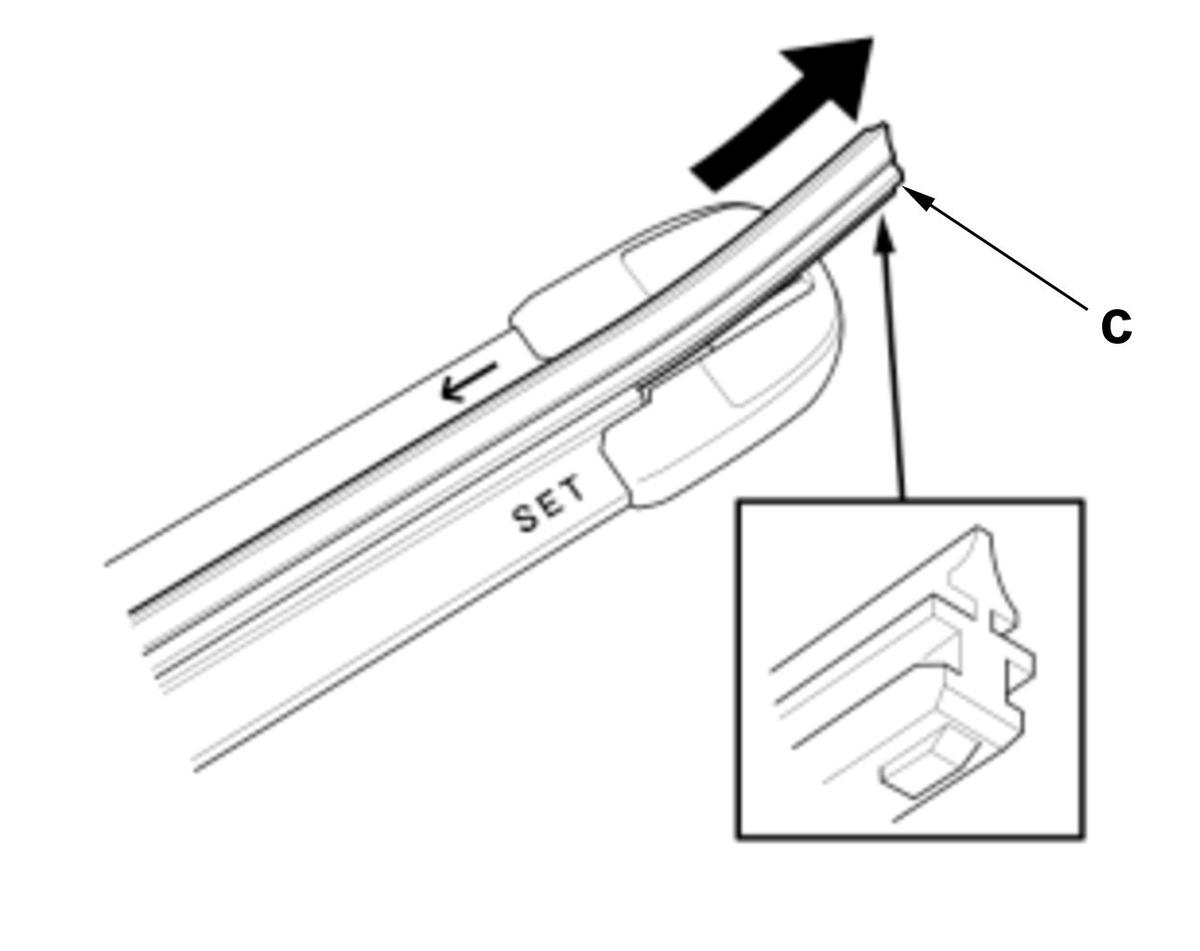

   5. Pull out the wiper blade (c). (Figure 2)

   Figure 3

   Courtesy of HONDA, U.S.A., INC.

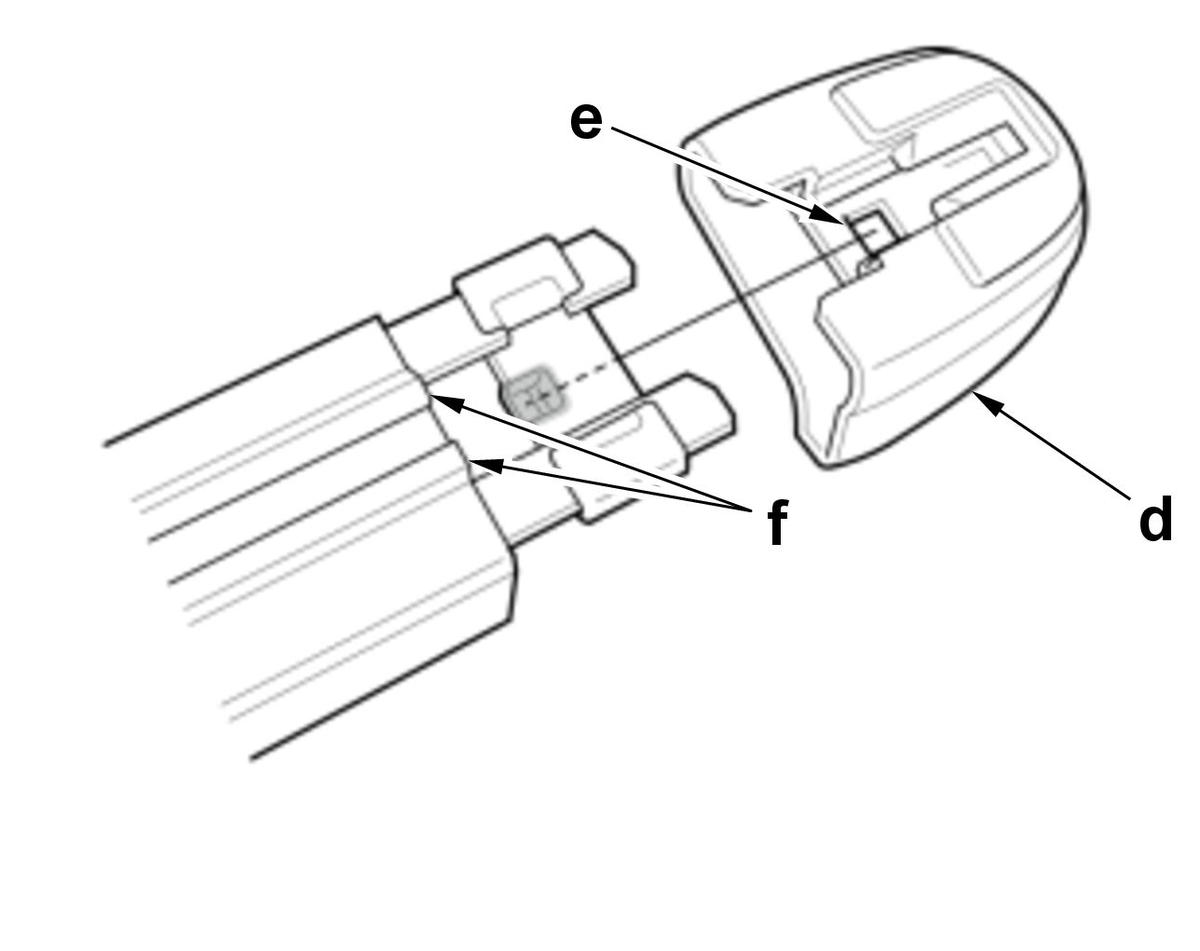

   6. If necessary, remove the end cap (d) by pressing the tab (e). (Figure 3)

   NOTE: When removing it, take care not to damage the rubber holder (f). (Figure 3)
5. E.-

   NOTE:  Before removal, turn the wiper/washer switch ON to the (LO) or (HI) position, then OFF to return the motor shaft to the park position.

   After Installation

   • Wiper Arm Adjustment
6. F.-

   Sub-Procedure

   Courtesy of HONDA, U.S.A., INC.

   Installation

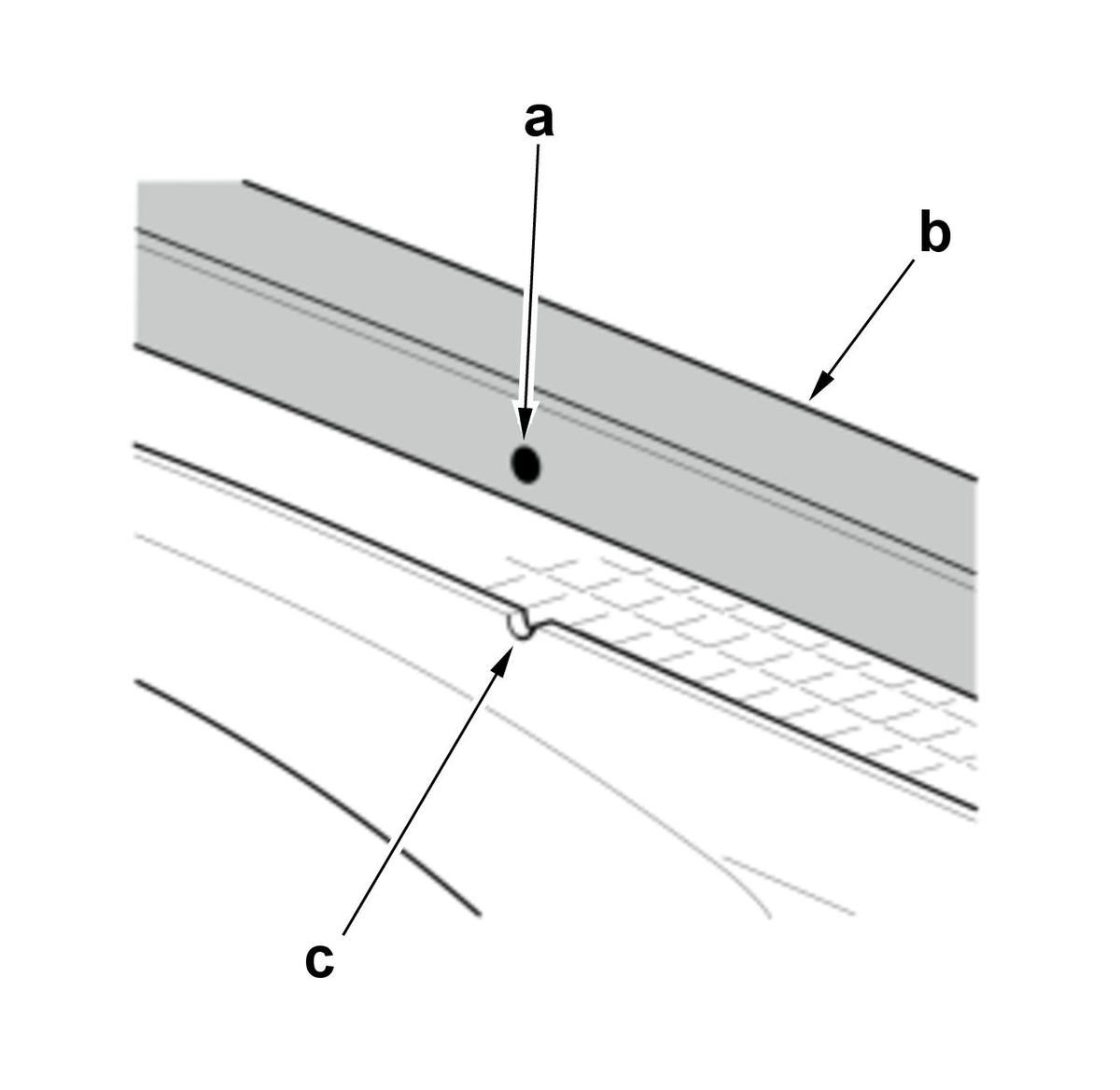

   • Align the painted mark (a) of the seal (b) with the notch (c) on the cowl cover, then push the hood rear seal against the cowl cover.
7. G.-

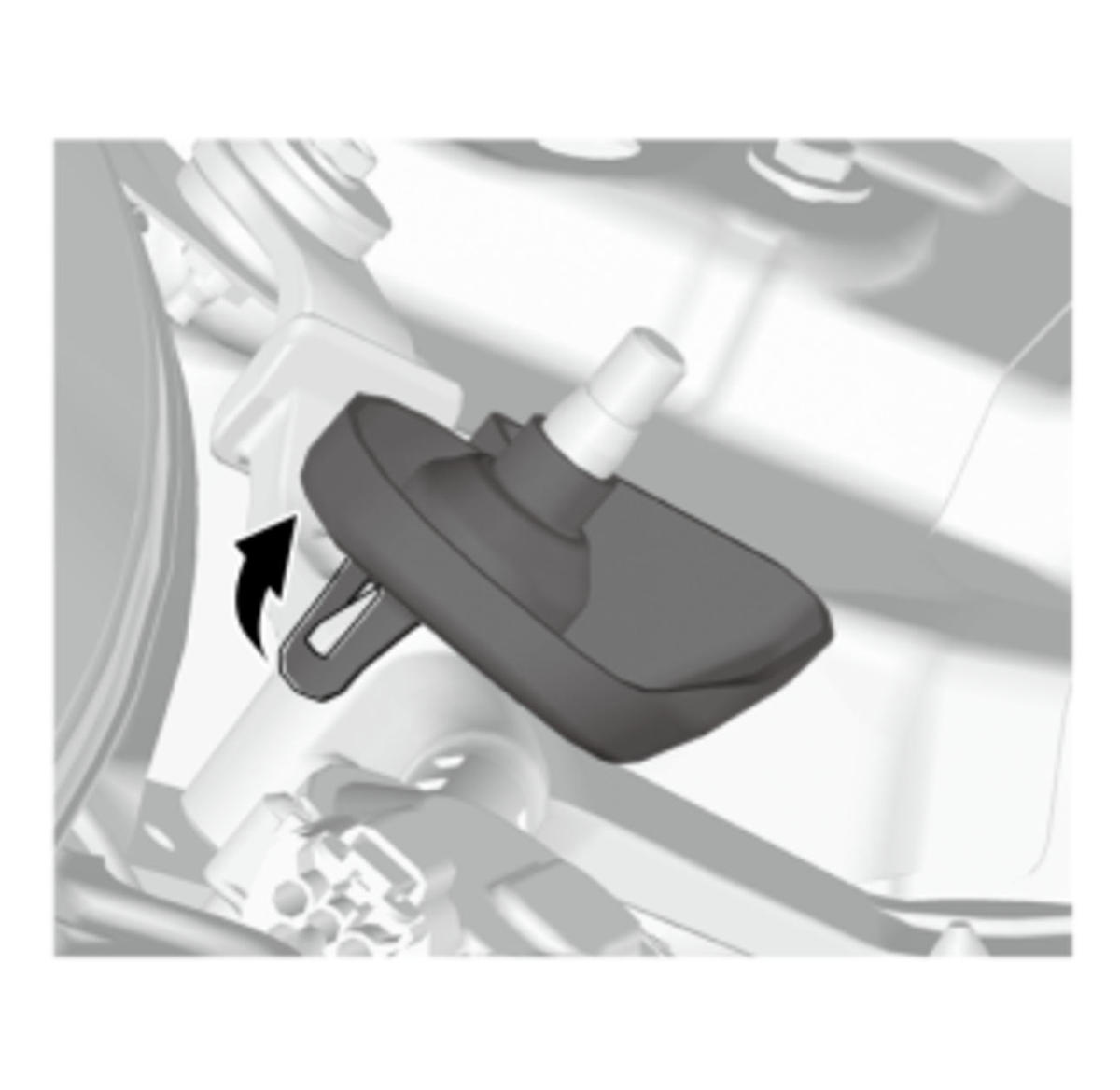

   Sub-Procedure

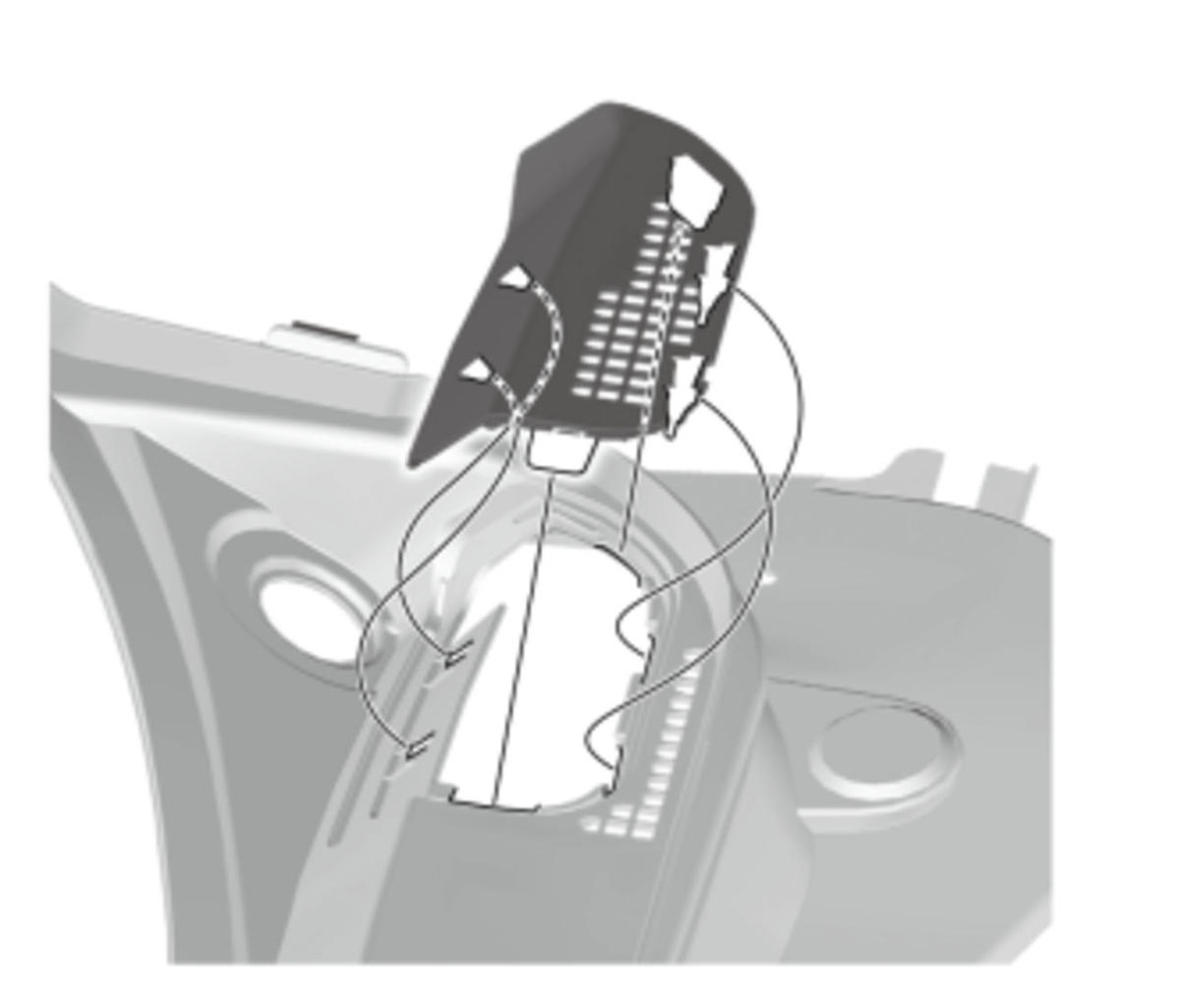

   Removal

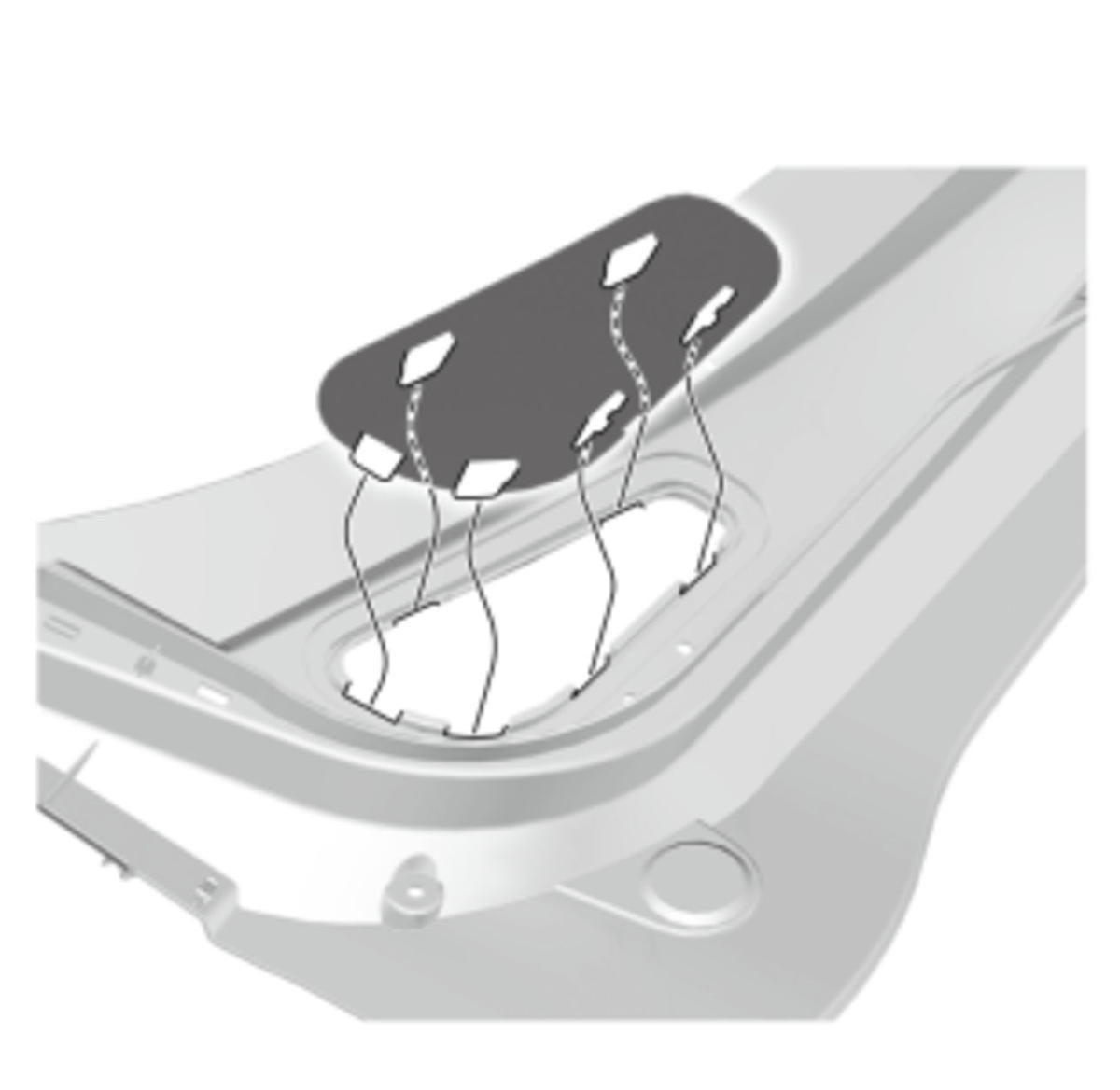

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

8. H.-

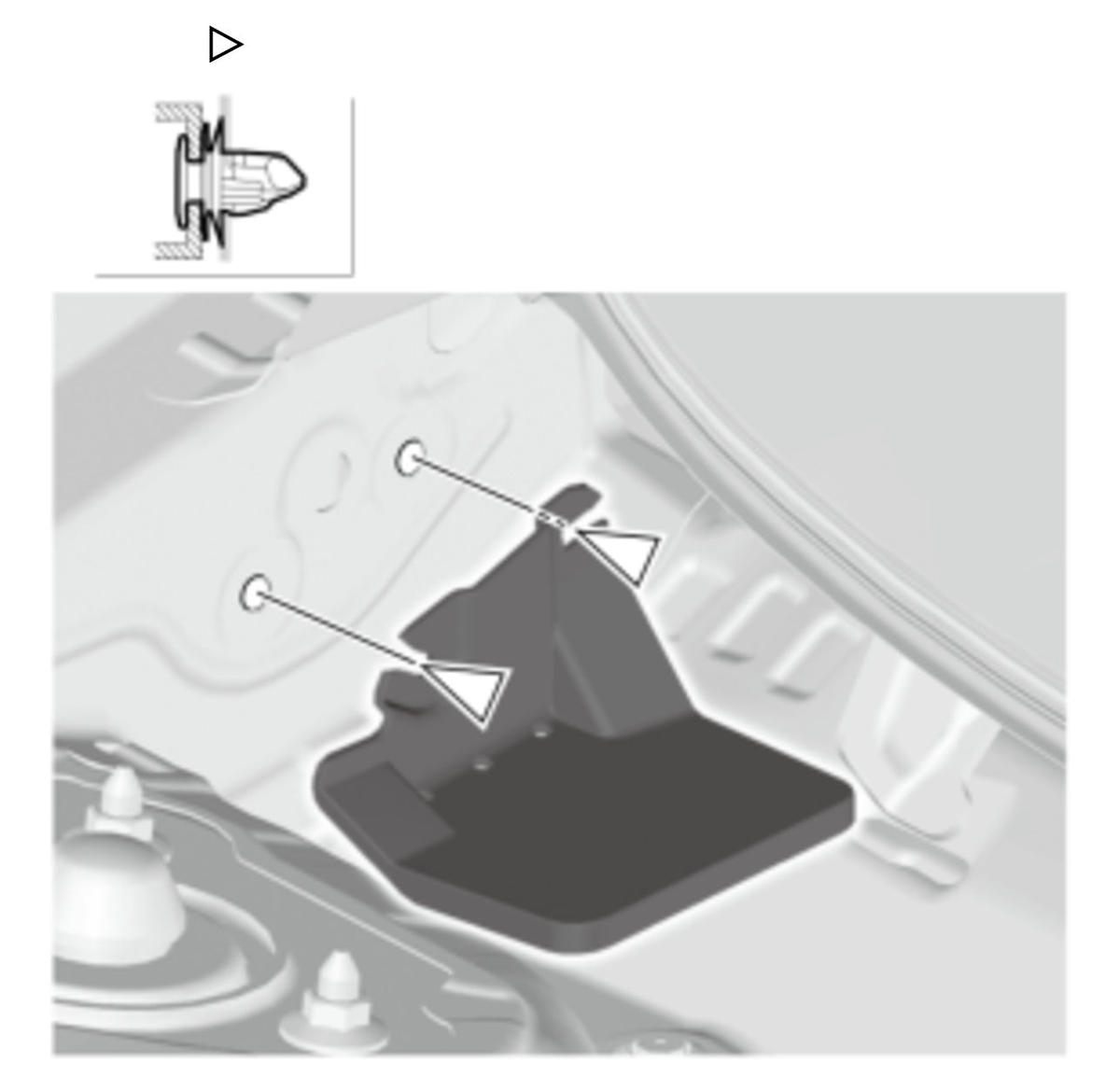

   Sub-Procedure

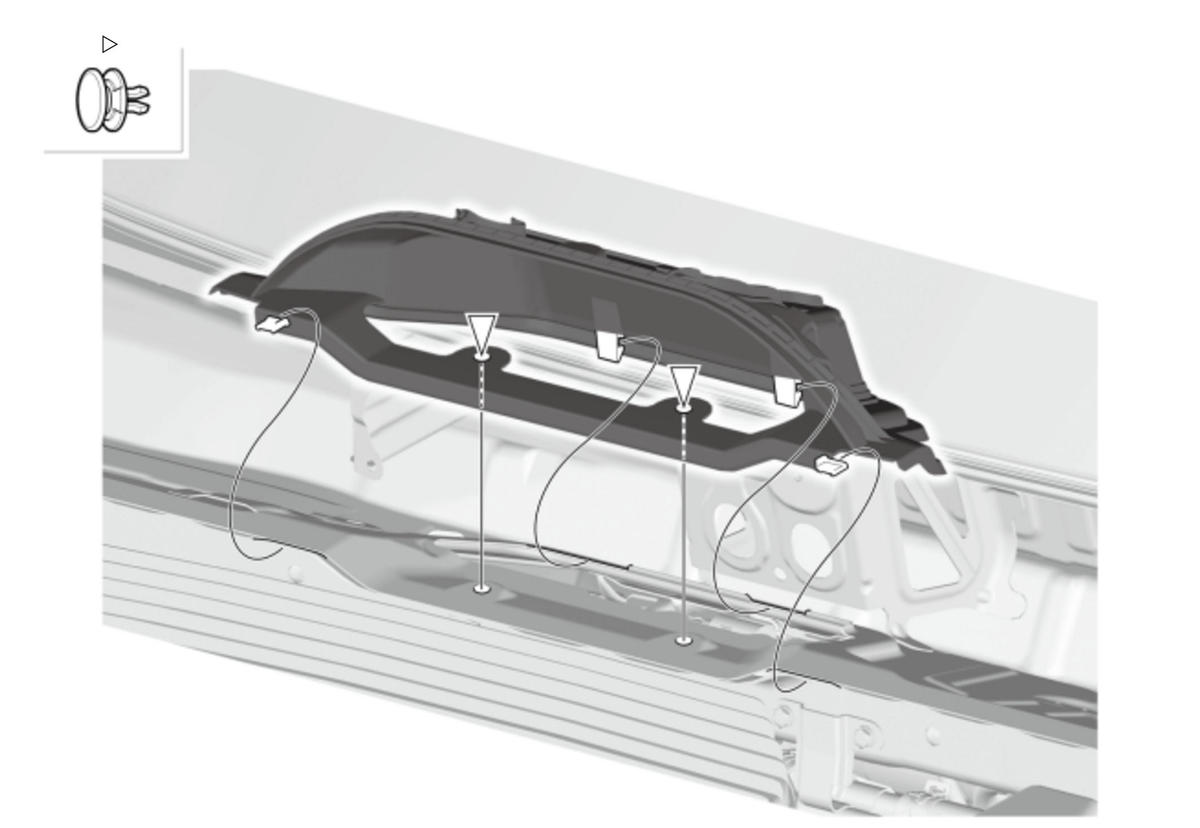

   Removal

   • Refer to the figure.

   Courtesy of HONDA, U.S.A., INC.

9. I.-

   Courtesy of HONDA, U.S.A., INC.

10. J.-

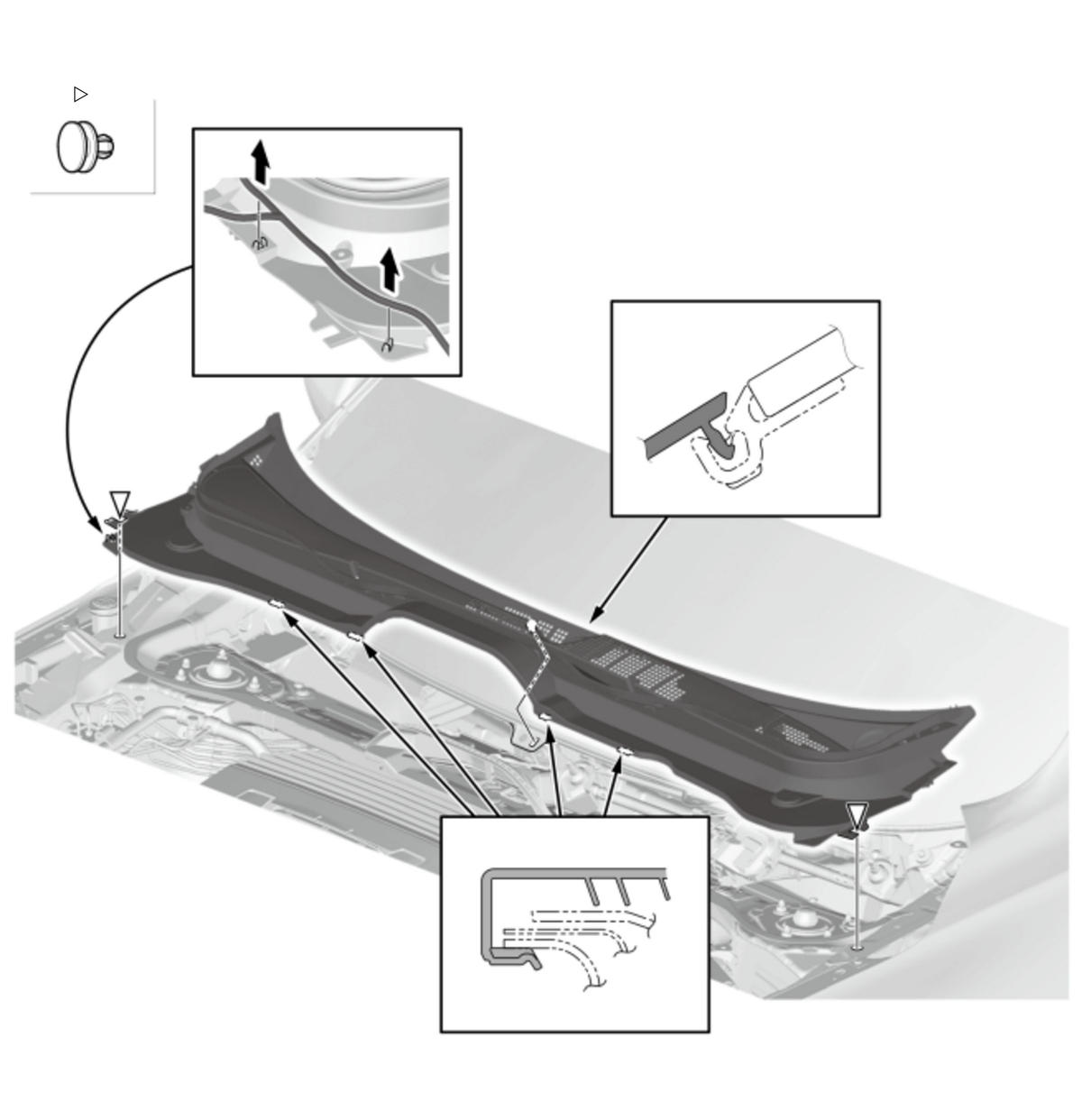

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

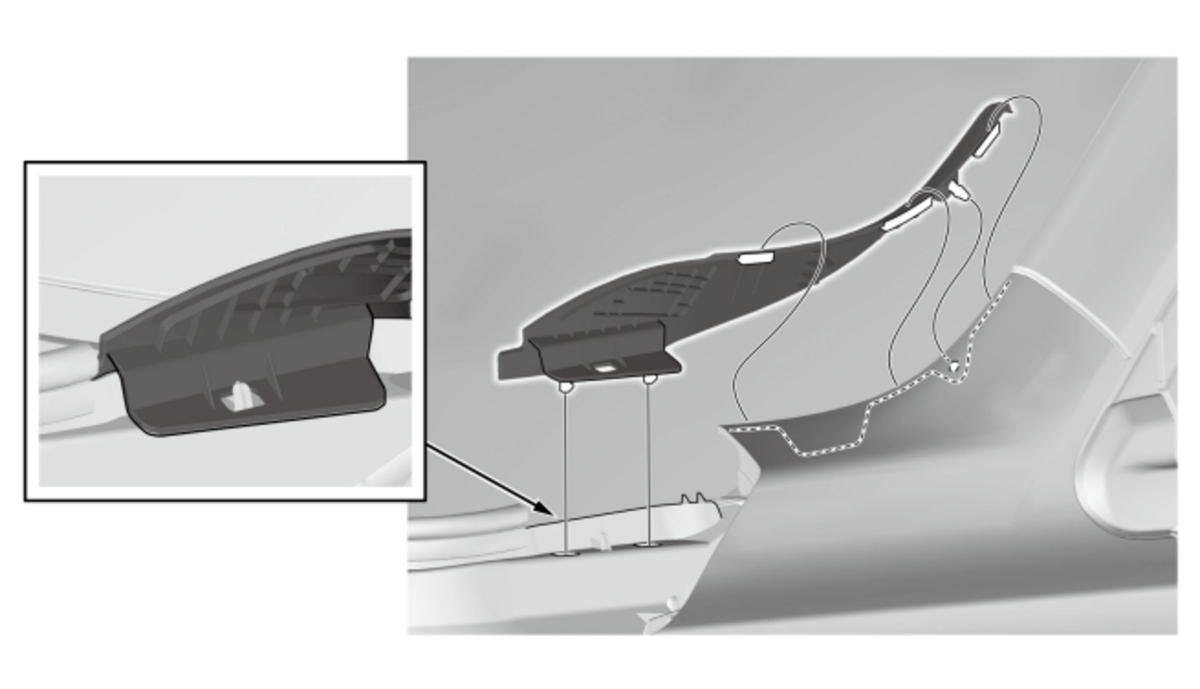

    Removal

    • Refer to the figure.
11. K.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    • Refer to the figure.

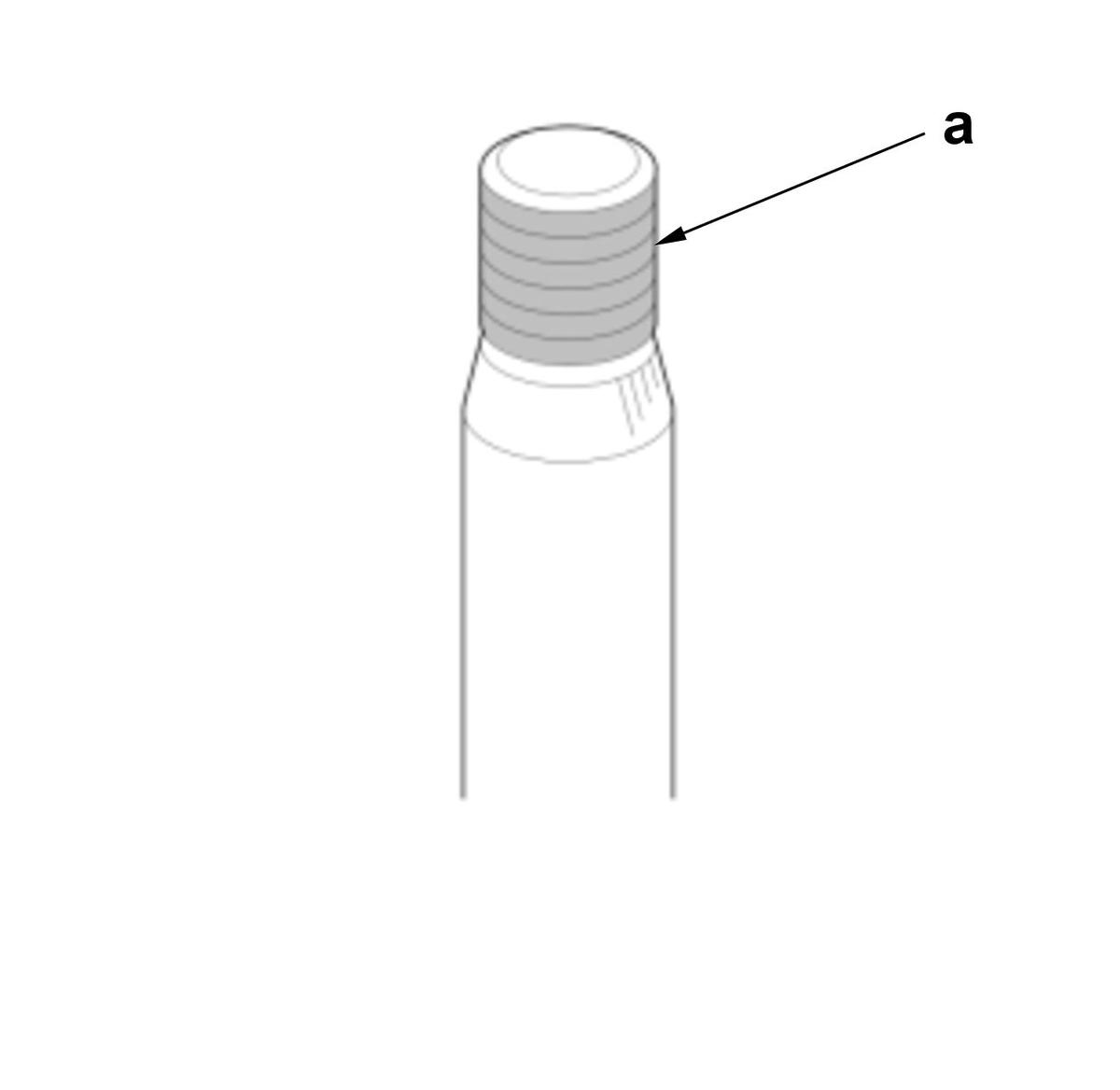

      NOTICE:

      Do not wipe off part (a) because special grease is applied.

    After Installation

    • Wiper Arm Adjustment
12. L.-

    Courtesy of HONDA, U.S.A., INC.

13. M.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

    Lubricant Specifications

    Position	Type
    a	Multipurpose Grease

14. N.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

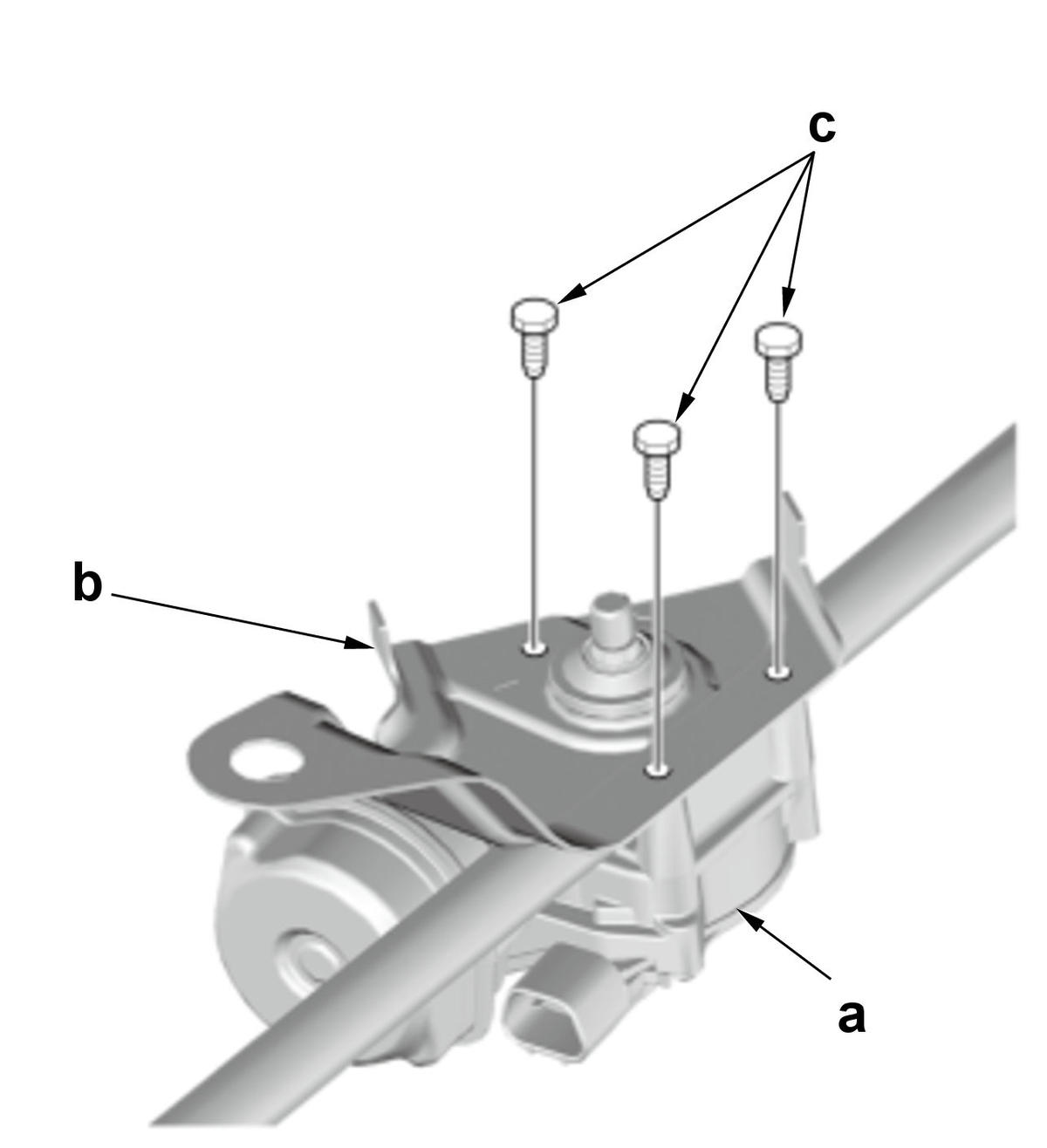

    • Set the motor (a) and the wiper linkage assembly (b).

    NOTICE:

    • Install the provided self-tapping bolts (c).
    • Do not use air tools and impact wrenches.
    • Keep the bolts perfectly straight while bolting them in.

    Tightening Procedure

    Step	Operation	Object	Specification
    1	Tighten (Tapping)	All bolts	The bolts until they sit on the linkage.
    2	Loosen	All bolts	-
    3	Tighten	All bolts	-

    After Installation

    • Wiper Arm Adjustment
15. O.-

    Sub-Procedure

    Courtesy of HONDA, U.S.A., INC.

    Installation

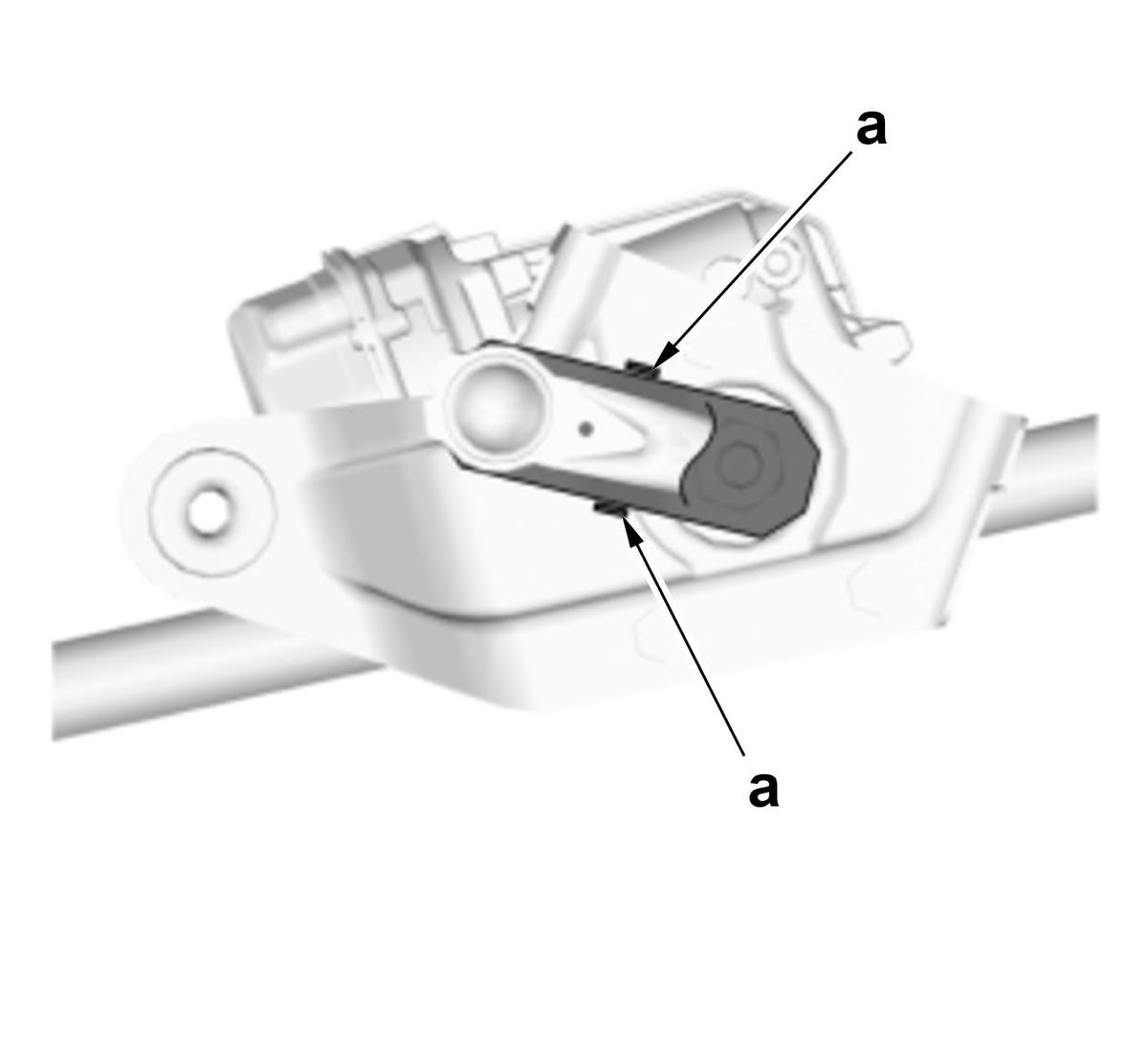

    • Set the windshield wiper motor to the park position.

      NOTE:  Connect the wiper motor connector, and turn the wiper/washer switch ON to (LO) or (HI) position, then OFF to return the wiper motor shaft to the park position.

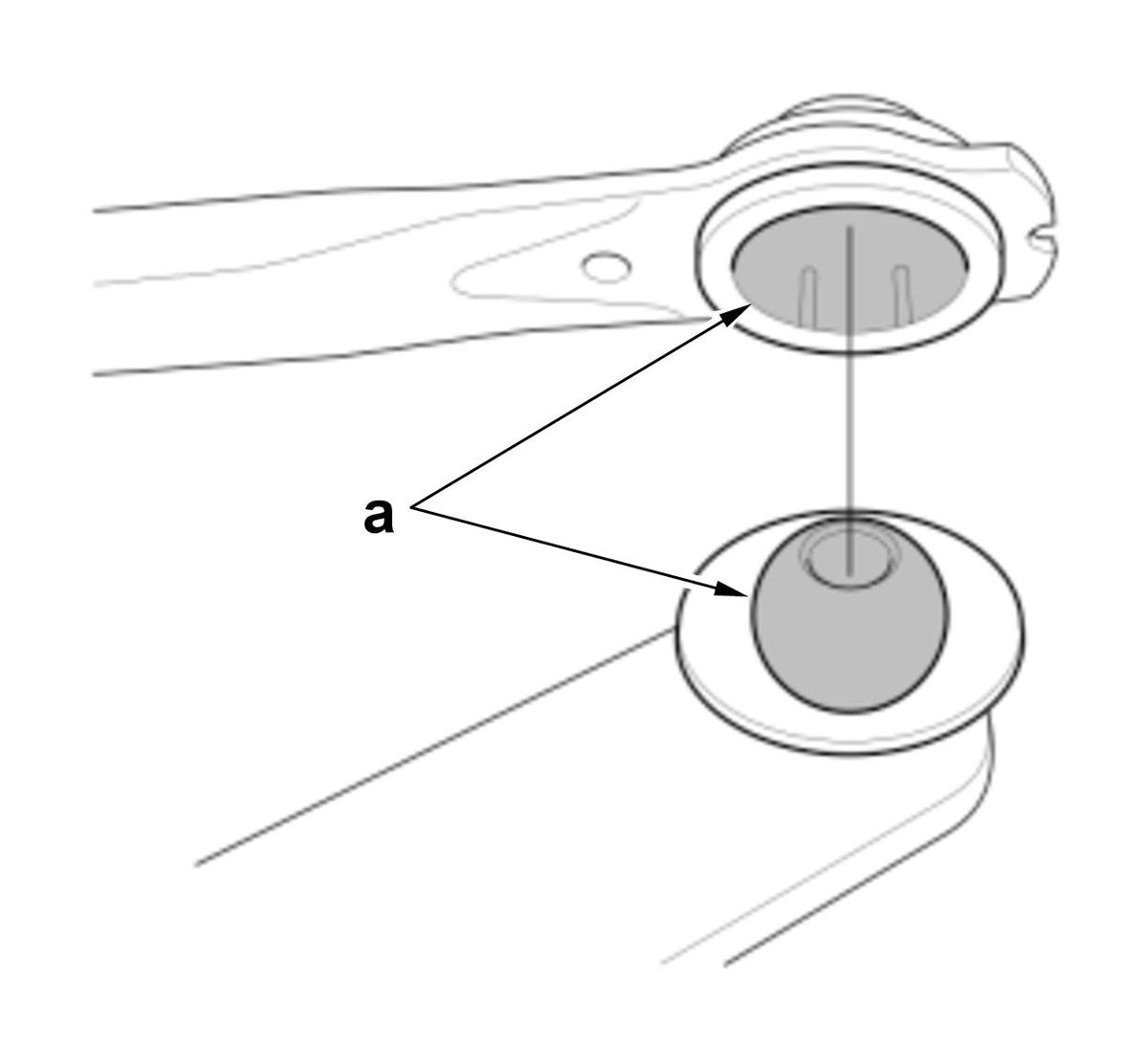

    • Align the marks (a).

    After Installation

    • Wiper Arm Adjustment
