Door Lock Knob Switch Test: Test

How to use this manual .

Front

1. Front Door Lock Knob Switch - Test

   Preconditions

   • Front Door Panel Removed

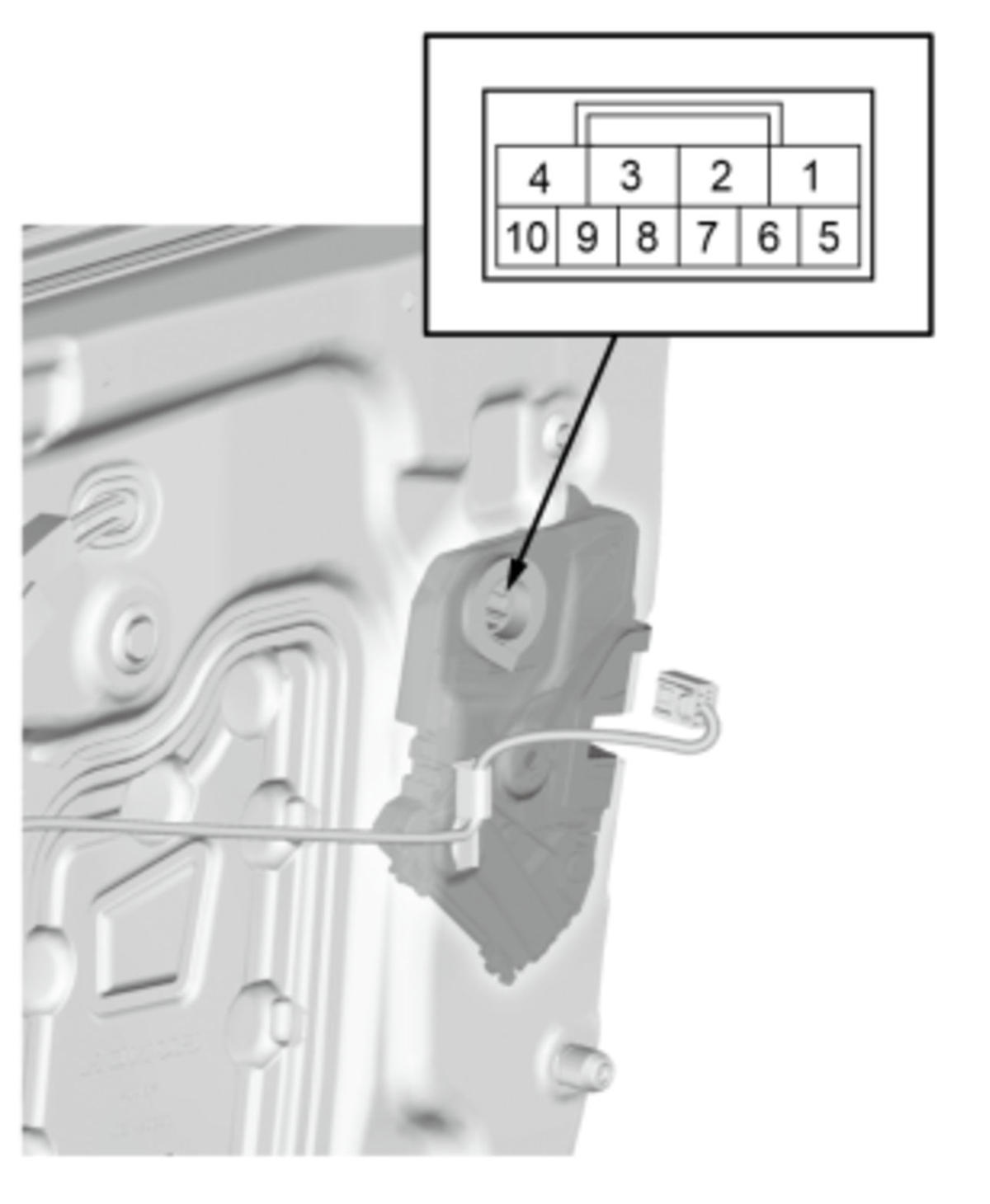

   Driver's (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

   Driver's (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

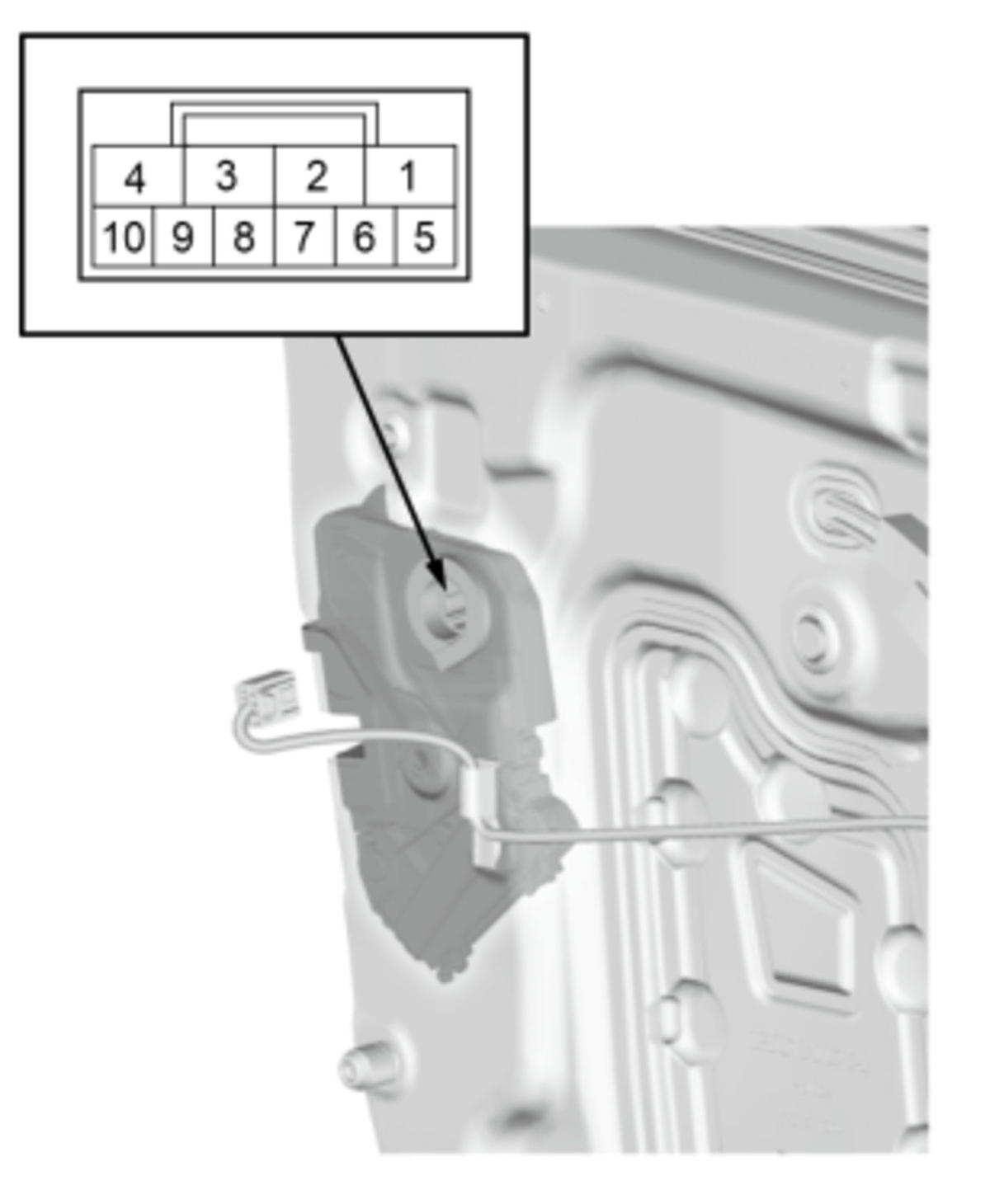

   Front passenger's (Figure 3)

   Courtesy of HONDA, U.S.A., INC.

   Front passenger's (Figure 4)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

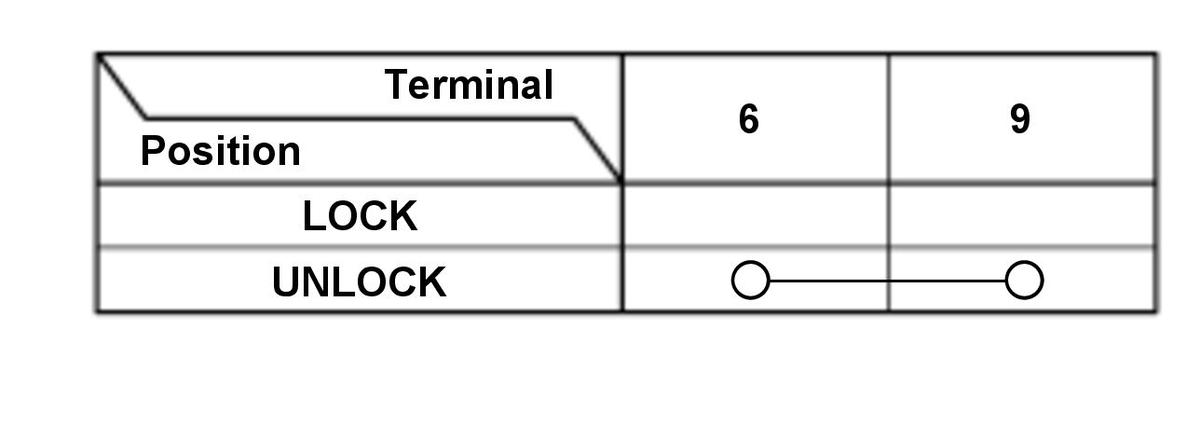

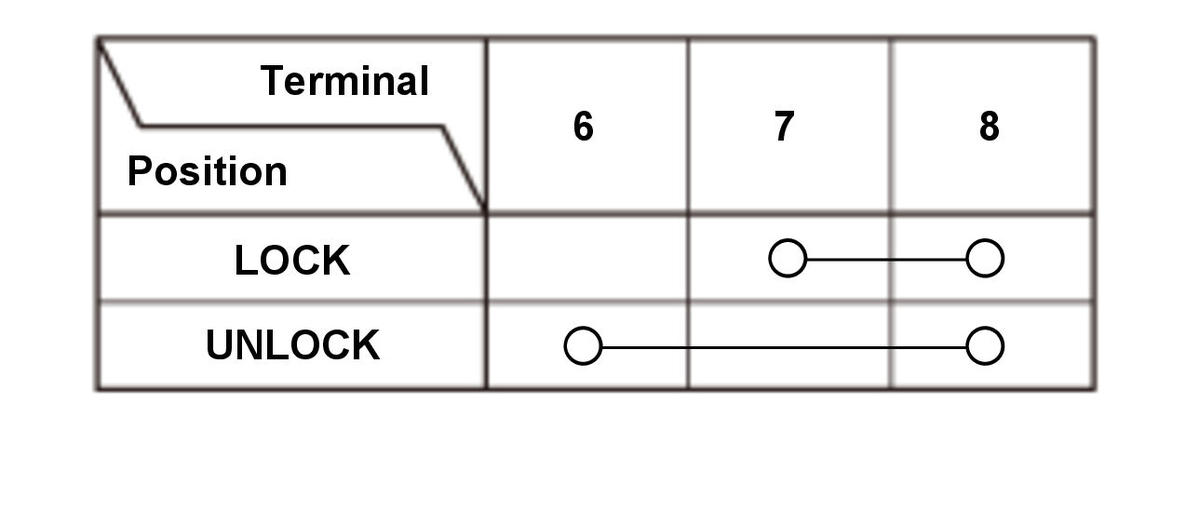

   • Check the switch according to the table. (Figure 1, 2, 3, and 4)

   Result

   • If the result is not as specified, replace the front door latch .

   Rear

2. Rear Door Lock Knob Switch - Test

   Preconditions

   • Rear Door Panel Removed

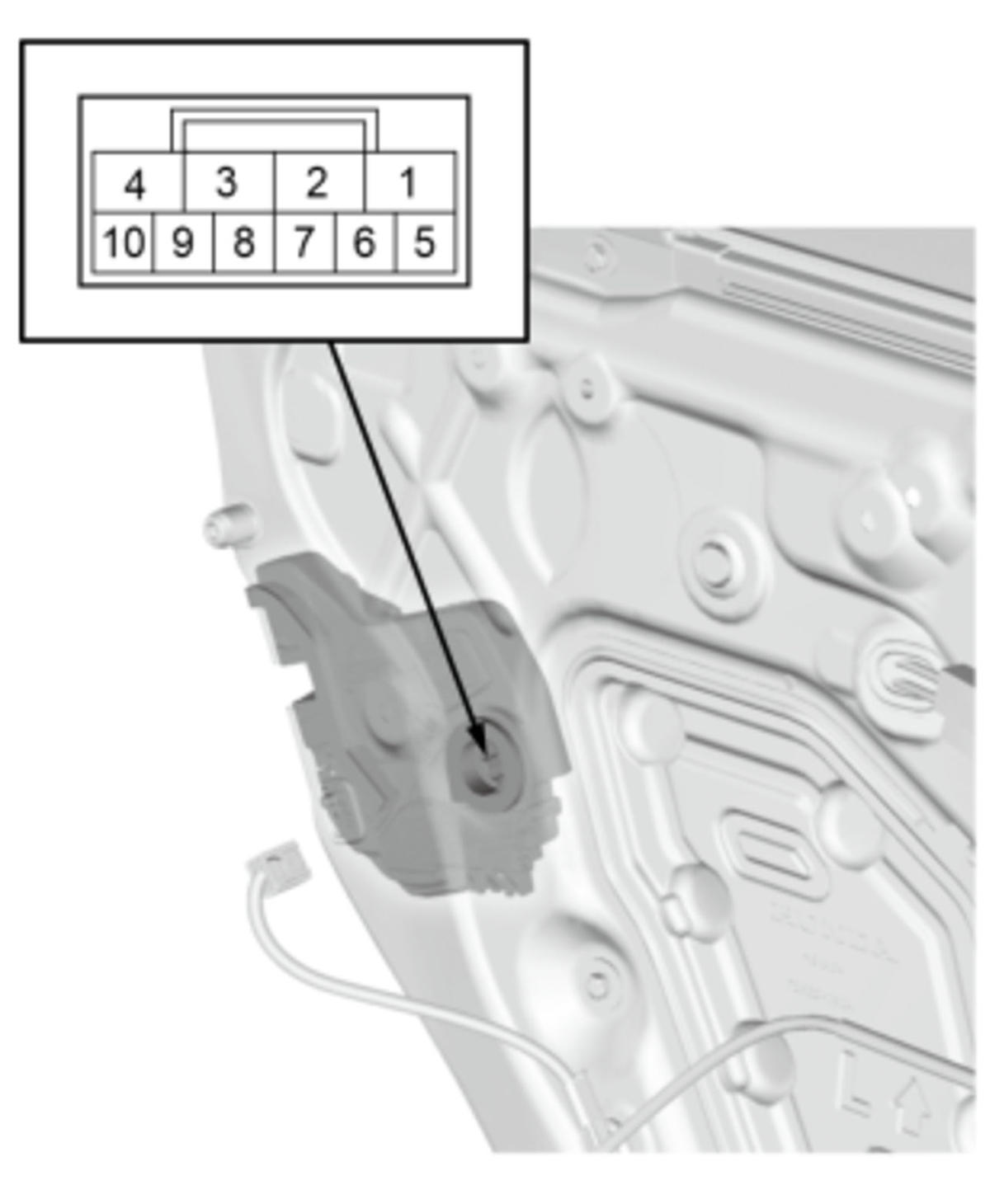

   Rear (Figure 1)

   Courtesy of HONDA, U.S.A., INC.

   Rear (Figure 2)

   Courtesy of HONDA, U.S.A., INC.

   Procedure/Specifications

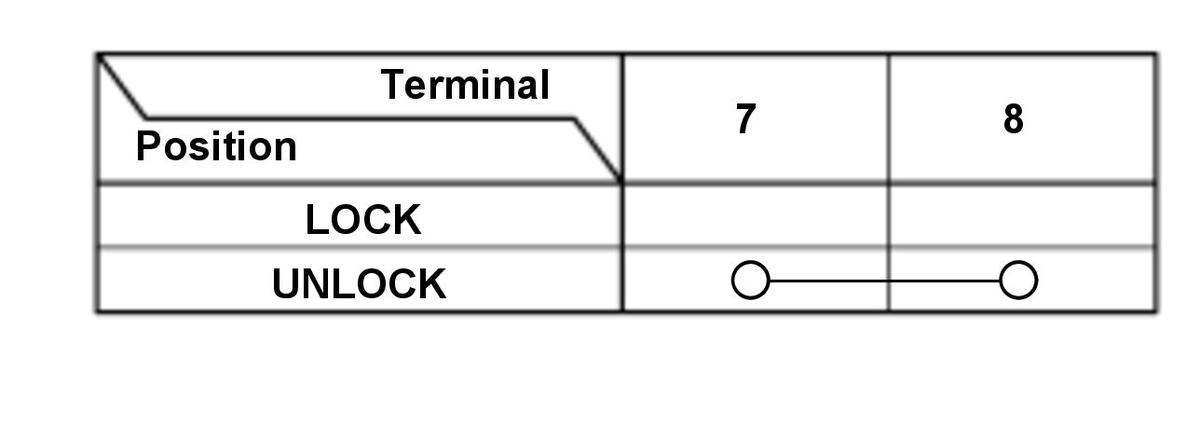

   • Check the switch according to the table. (Figure 1 and 2)

   Result

   • If the result is not as specified, replace the rear door latch .
