DTC Advanced Diagnostics: P0806: General Description

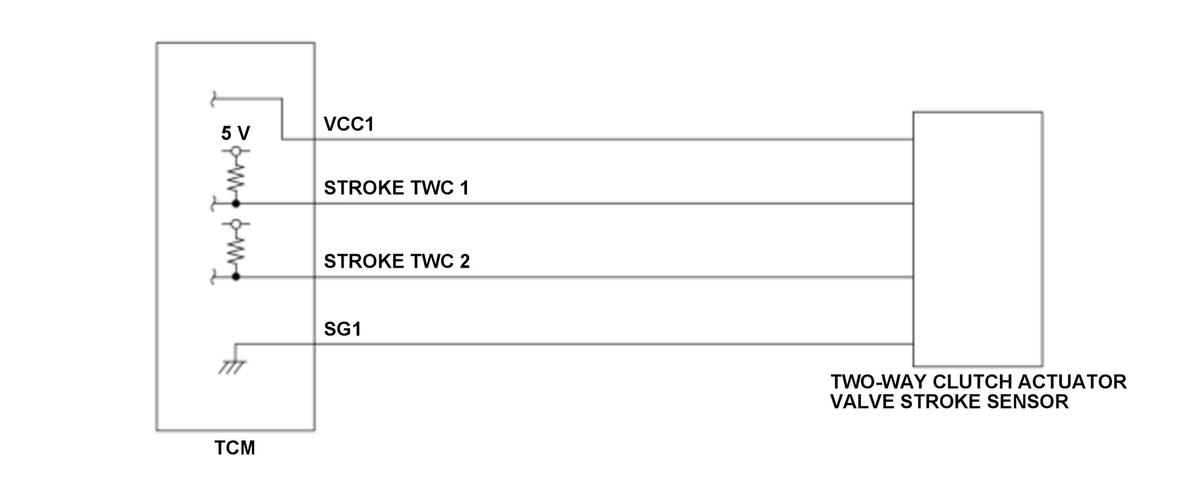

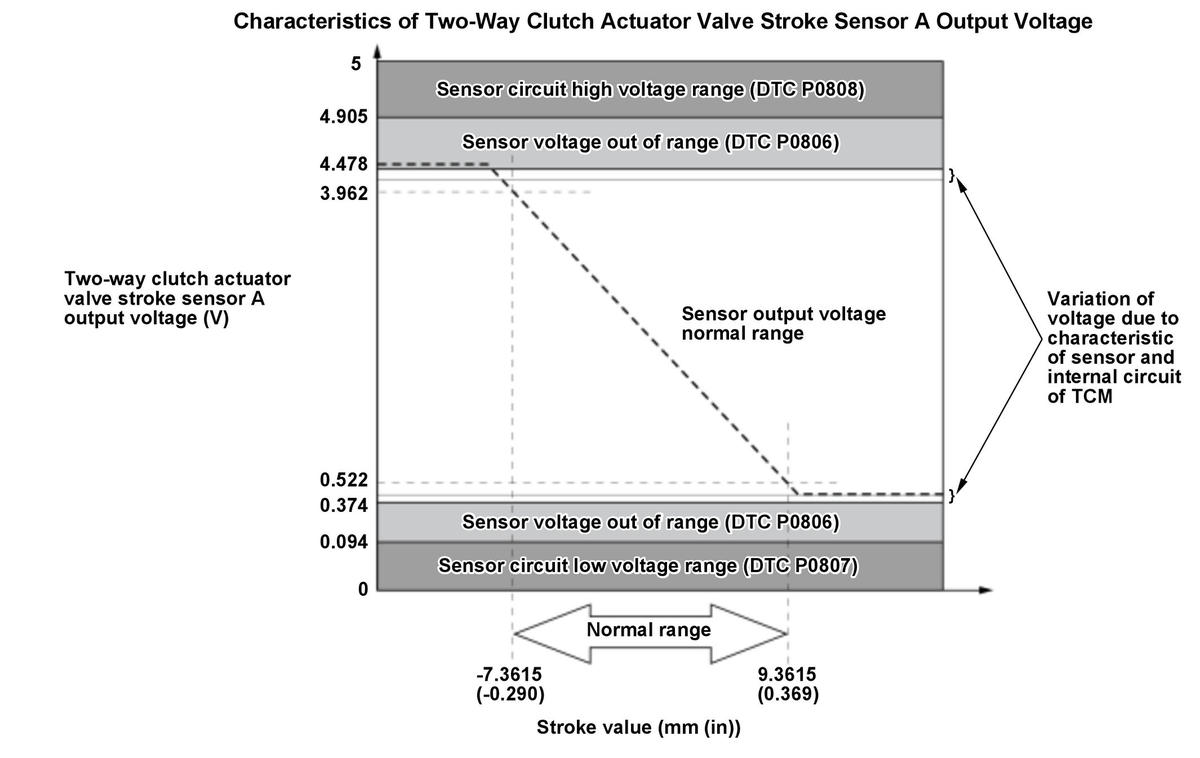

The transmission control module (TCM) determines the forward/reverse switching position of the two-way clutch from the output voltage of the two-way clutch actuator valve stroke sensor. It normally outputs at range of more than 0.374 V to less than 4.478 V depending on the stroke amount. If the two-way clutch actuator valve stroke sensor A output voltage is a specified range for a specified duration, the TCM detects a malfunction and stores a DTC.
Monitor Execution, Sequence, Duration, DTC Type
| Execution | Continuous |
| Sequence | None |
| Duration | 3.0 seconds or more |
| DTC Type | Two drive cycles, MIL on, shift position indicator blinks |
