Exploded View

Manual Seat

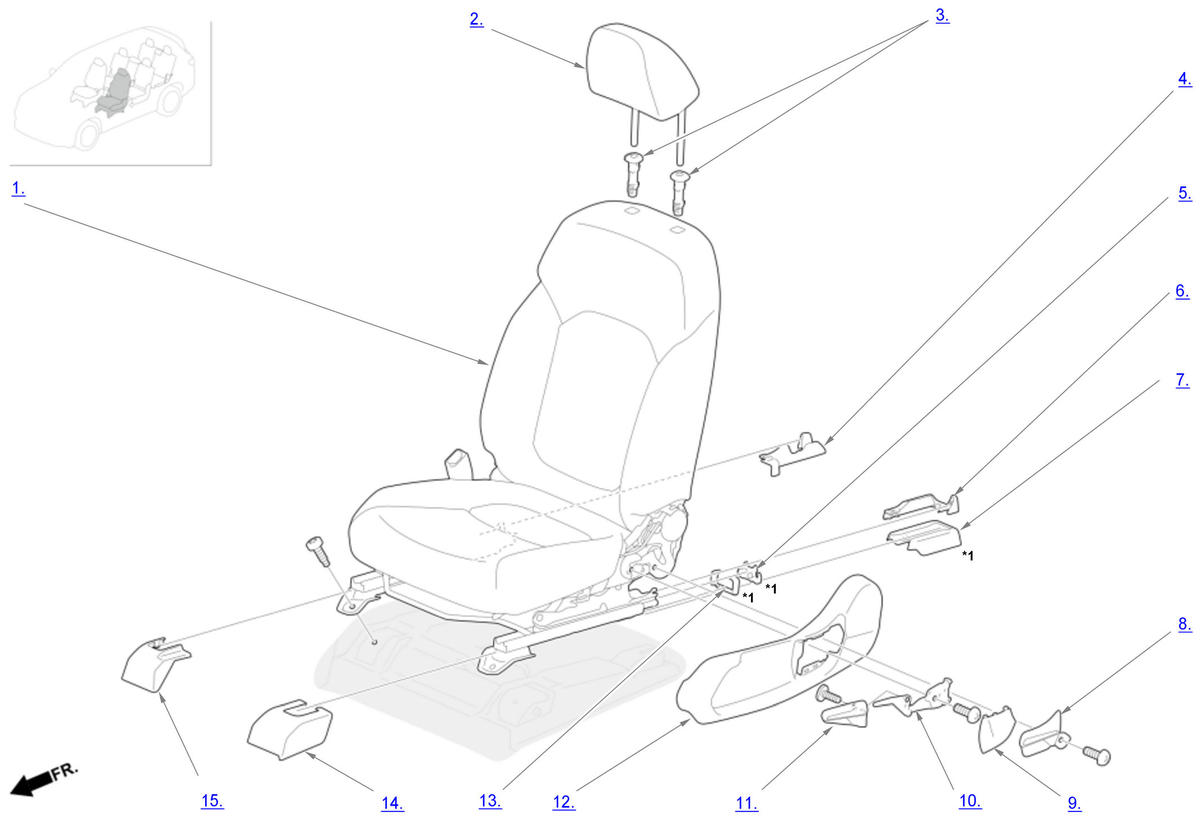

GHH578588Courtesy of HONDA, U.S.A., INC.
*1: Part(s) are shown for one side only as the procedure is the same for both sides.

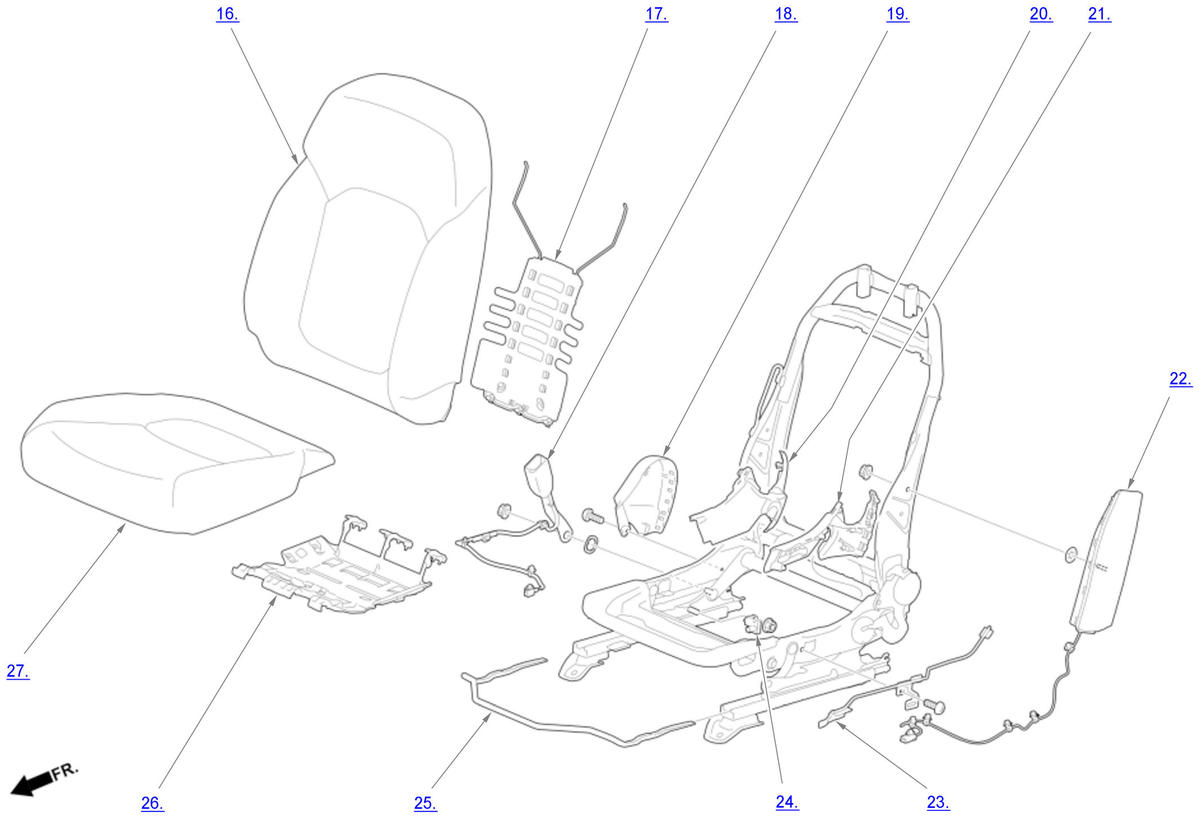

GHH578589Courtesy of HONDA, U.S.A., INC.

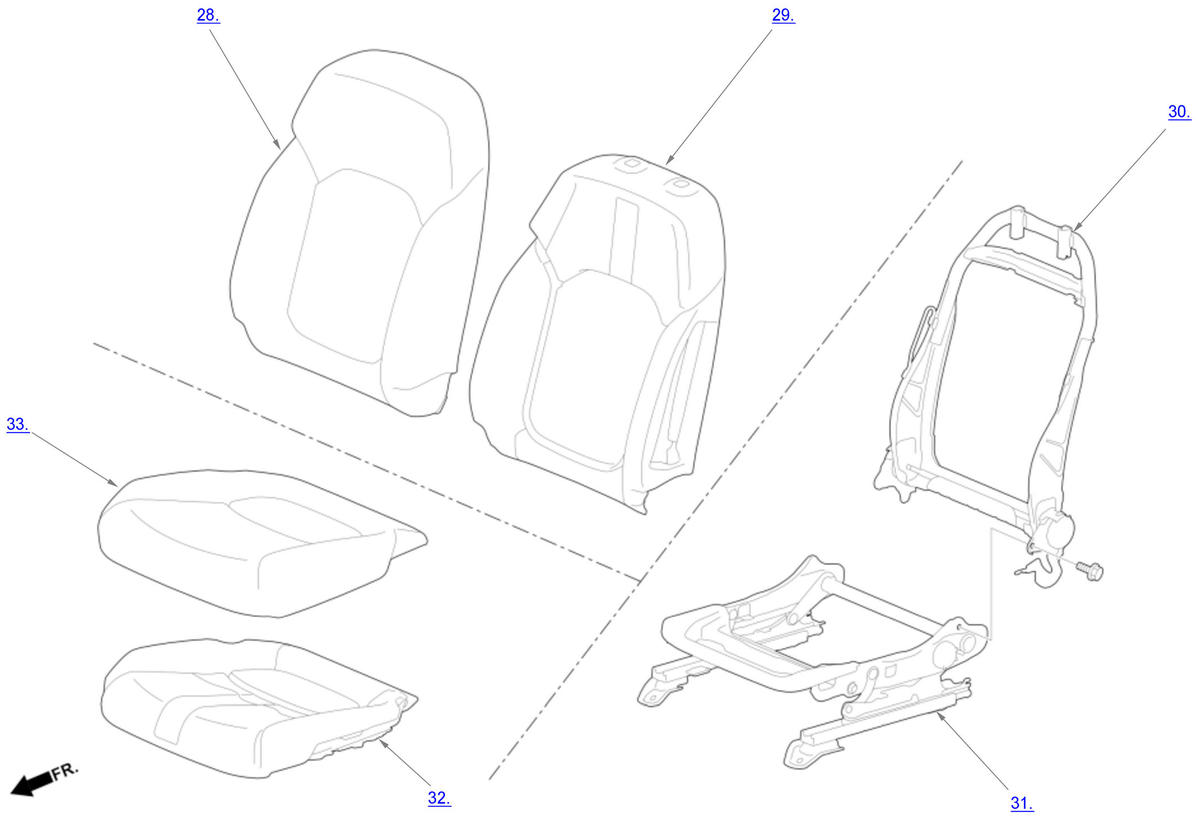

GHH578590Courtesy of HONDA, U.S.A., INC.

Power Seat

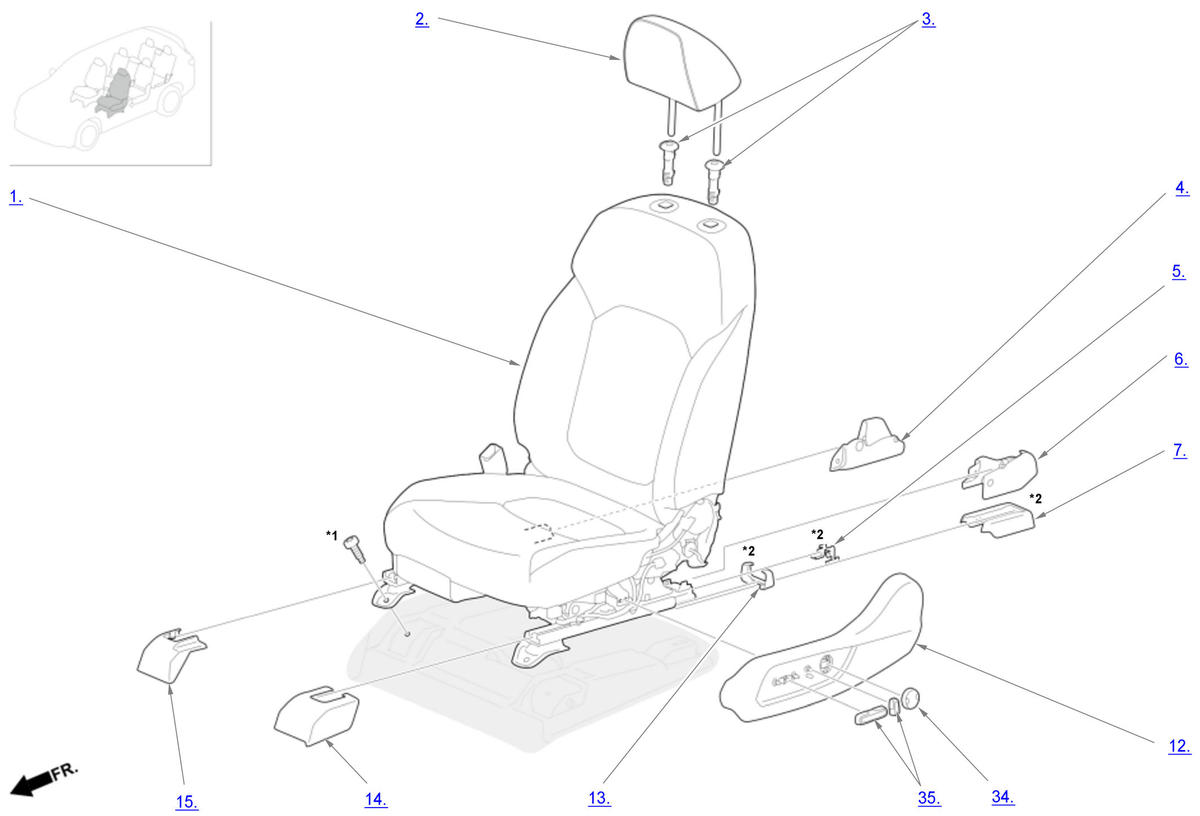

GHH578591Courtesy of HONDA, U.S.A., INC.
*1: Remove the bolt with a TORX Plus socket, 50 IP.
*2: Part(s) are shown for one side only as the procedure is the same for both sides.

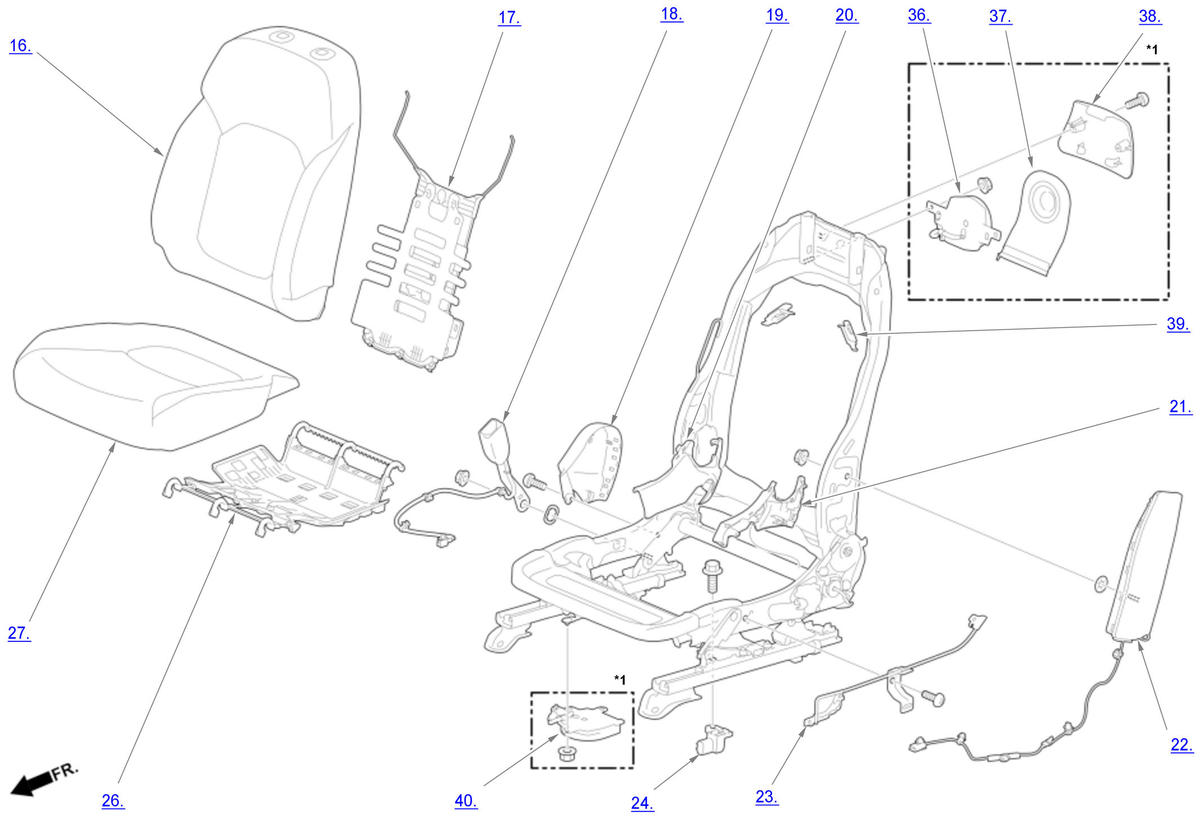

GHH578592Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat

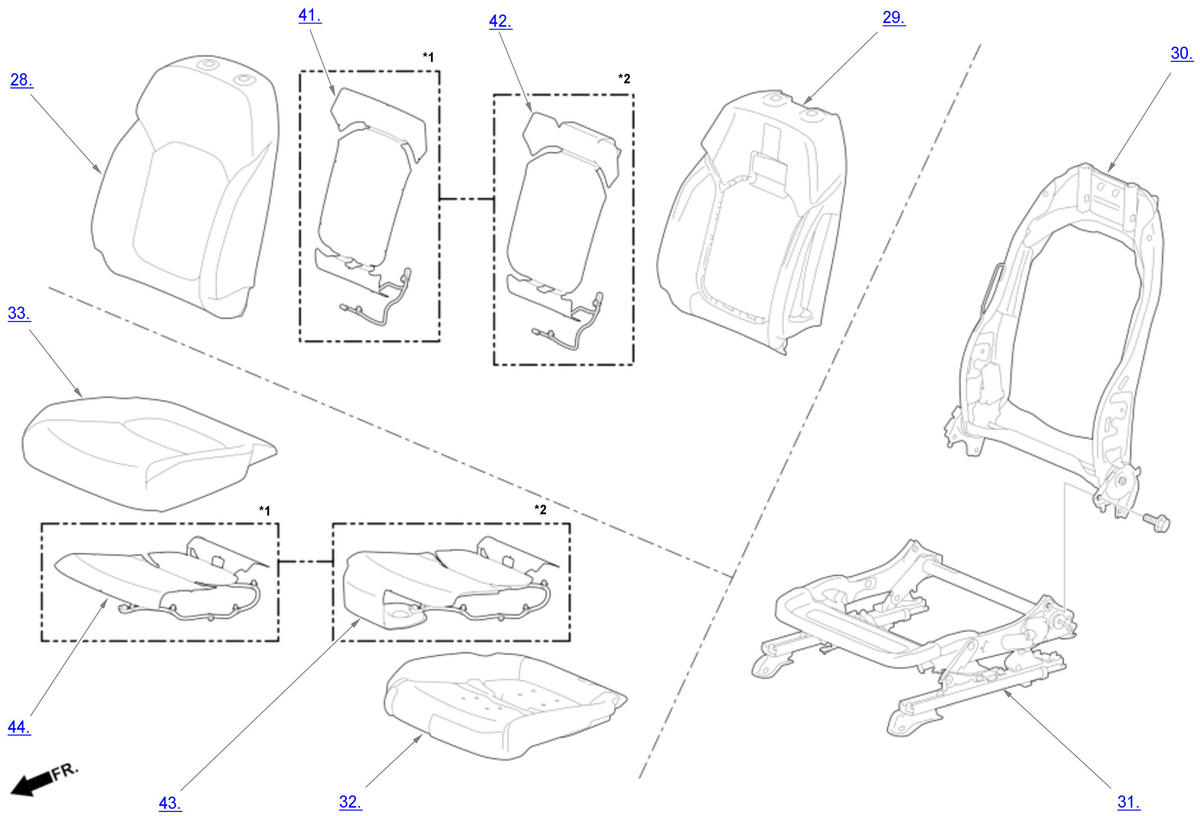

GHH578593Courtesy of HONDA, U.S.A., INC.
*1: With ventilated seat
*2: With seat heater and without ventilated seat

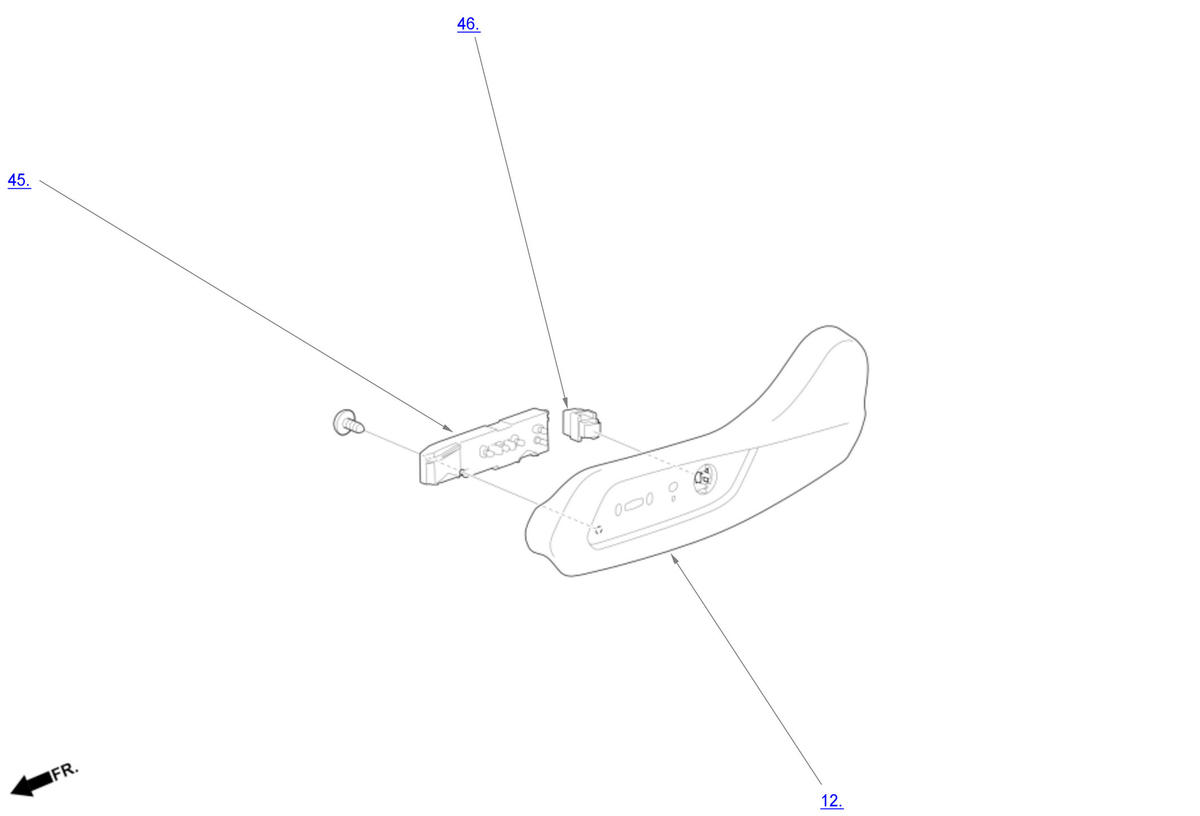

GHH578594Courtesy of HONDA, U.S.A., INC.
: Torque, Nm (lbfft) : Replace : Warning/Caution : Inspection/Adjustment *: Learning ■: SPL Tool : Required Removal
Front Seat Area - Driver's

Component Name Callout
Driver's Seat Assembly 1
Head Restraint 2
Head Restraint Guide/Lock 3
Driver's Seat Rail Inner Cover 4
Upper Seat Rail End Cap 5
Driver's Seat Rail Outer Cover 6
Front Seat Rear Foot Cover 7
Seat Recline Knob 8
Recline Outer Lap Cover 9
Driver's Seat Height Adjuster Handle 10
Seat Height Adjuster Handle Knob 11
Driver's Seat Outer Recline Cover 12
Lower Seat Rail End Cap 13
Driver's Seat Foot Cover Front Outer 14
Driver's Seat Foot Cover Front Inner 15
Driver's Seat-Back Trim Cover/Pad 16
Front Seat Lumbar Support Mat 17
Driver's Seat Belt Buckle 18
Driver's Seat Inner Recline Cover 19
Recline Inner Cover 20
Recline Outer Cover 21
Left Side Airbag 22
Driver's Seat Anchor Wire 23
Seat Position Sensor 24
Driver's Seat Slide Lever 25
Driver's Seat Cushion Spring 26
Driver's Seat Cushion Trim Cover/Pad 27
Driver's Seat-Back Trim Cover 28
Driver's Seat-Back Pad 29
Driver's Seat-Back Frame 30
Driver's Seat Cushion Frame 31
Driver's Seat Cushion Pad 32
Driver's Seat Cushion Trim Cover 33
Lumbar Support Switch Knob 34
Knobs 35
Driver's Seat-Back Blower Motor 36
Driver's Seat-Back Ventilation Duct 37
Driver's Seat-Back Blower Cover 38
Plastic Bushing 39
Driver's Seat Cushion Blower Motor 40
Driver's Seat-Back Heater 41
Driver's Seat-Back Heater/Ventilation Bag 42
Driver's Seat Cushion Heater/Ventilation Bag 43
Driver's Seat Cushion Heater 44
Power Seat Control Unit/Adjustment Switch 45
Lumbar Support Switch 46
