Exploded View

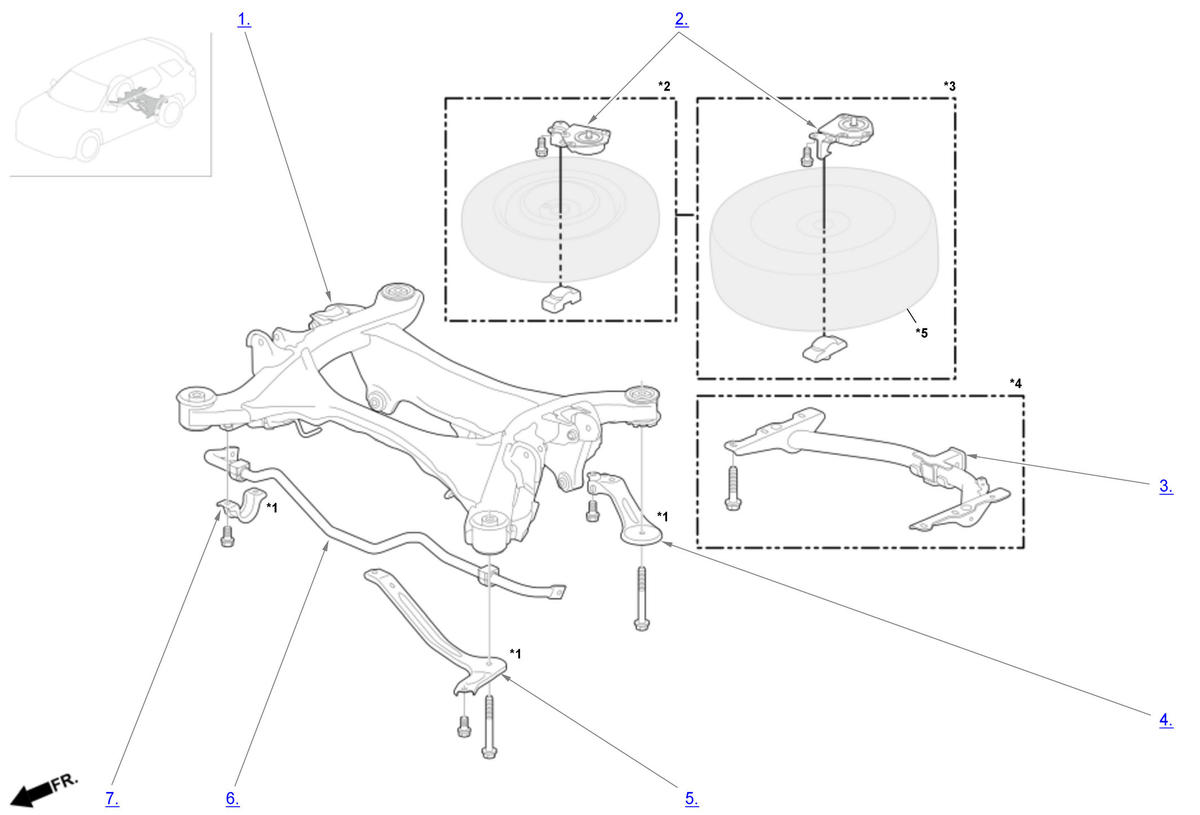

Exploded View Of Rear Subframe Area (Items 1 thru 7)
| *1: Part(s) are shown for one side only as the procedure is the same for both sides. *2: Except FLAT REAR FLOOR *3: FLAT REAR FLOOR *4: TRAILSPORT *5: For some models |
Rear Subframe Area
| Component Name | Callout |
|---|---|
| Rear Subframe | 1 |
| Spare Tire Hoist | 2 |
| Trailer Hitch | 3 |
| Rear Subframe Rear Stay | 4 |
| Rear Subframe Front Stay | 5 |
| Rear Stabilizer Bar | 6 |
| Bushing Holder | 7 |
