Antenna Amplifier
Antenna Preamplifier:

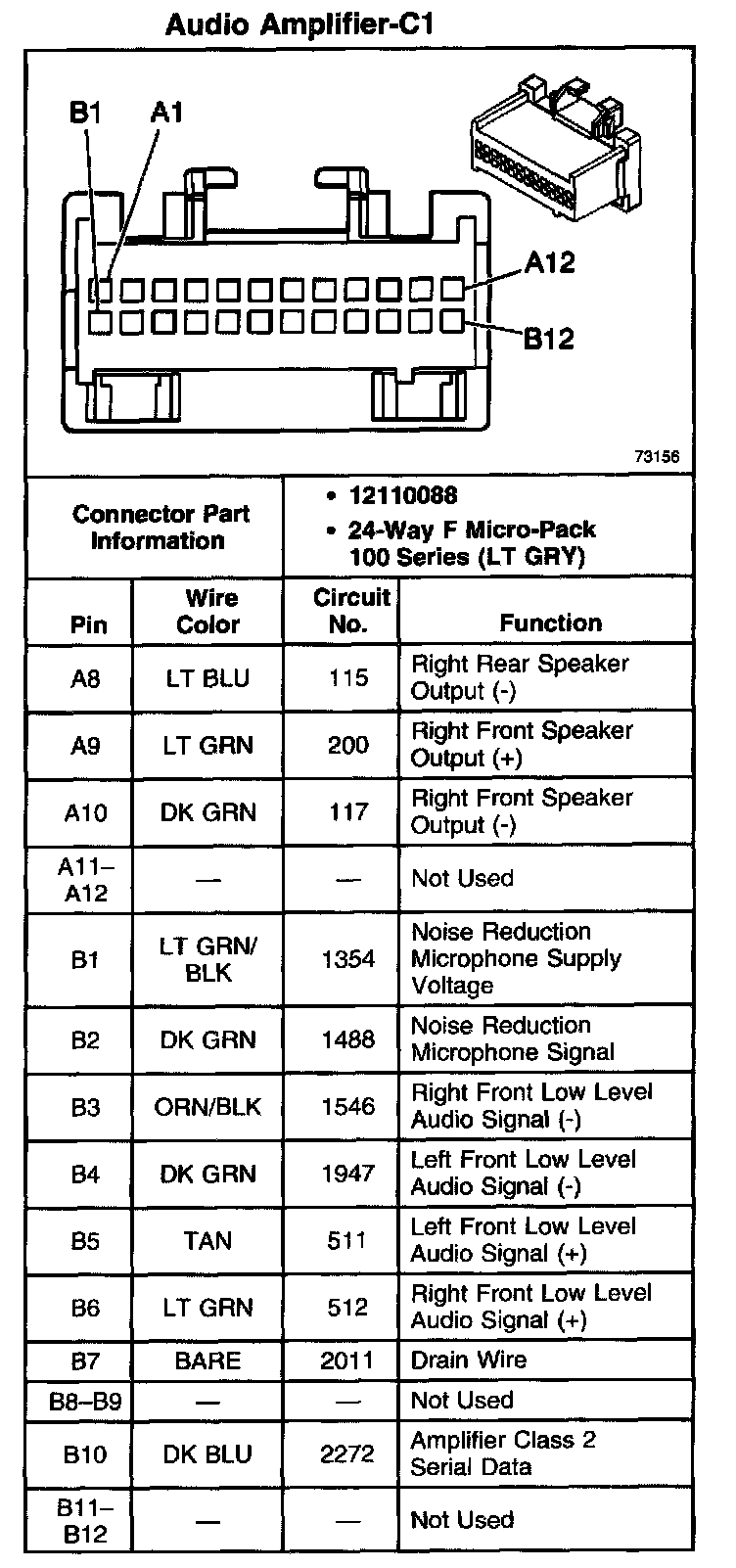

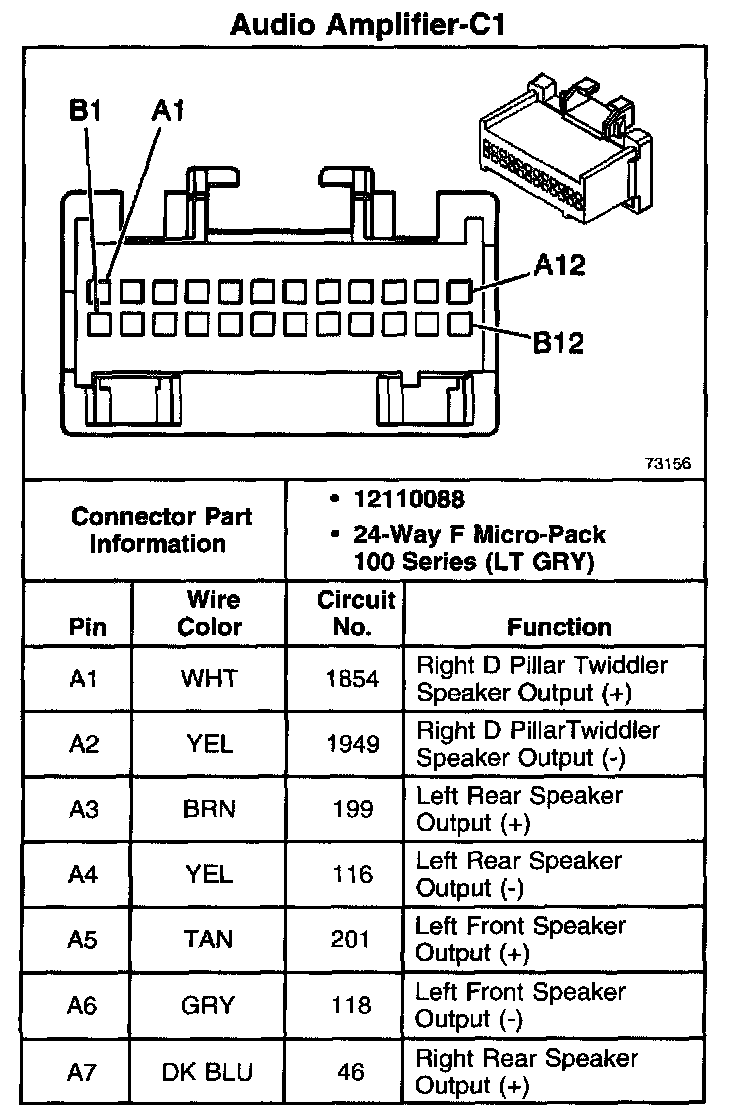

Audio Amplifier - C1 Part 1:
Audio Amplifier - C1 Part 2:

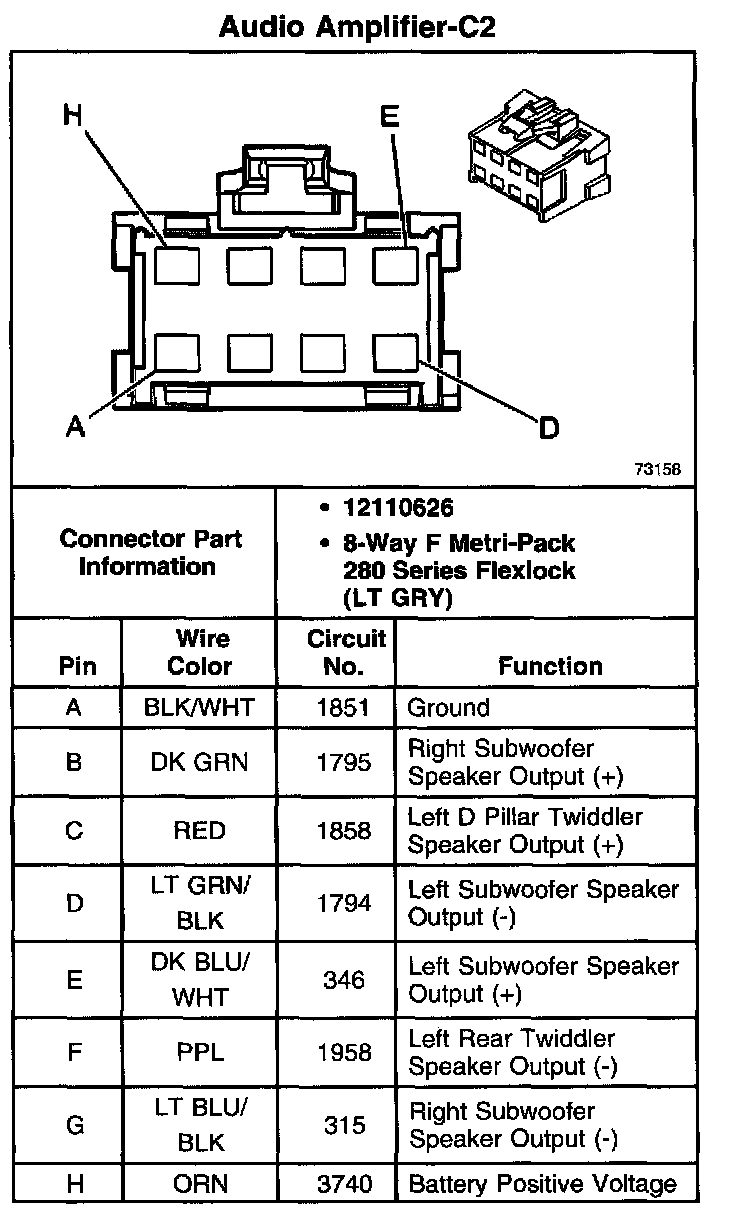

Audio Amplifier - C2:
