Hummer
>>
2003
>>
H2 V8-6.0L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Body Control Module
>>
Body Control Module (BCM) - C4
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

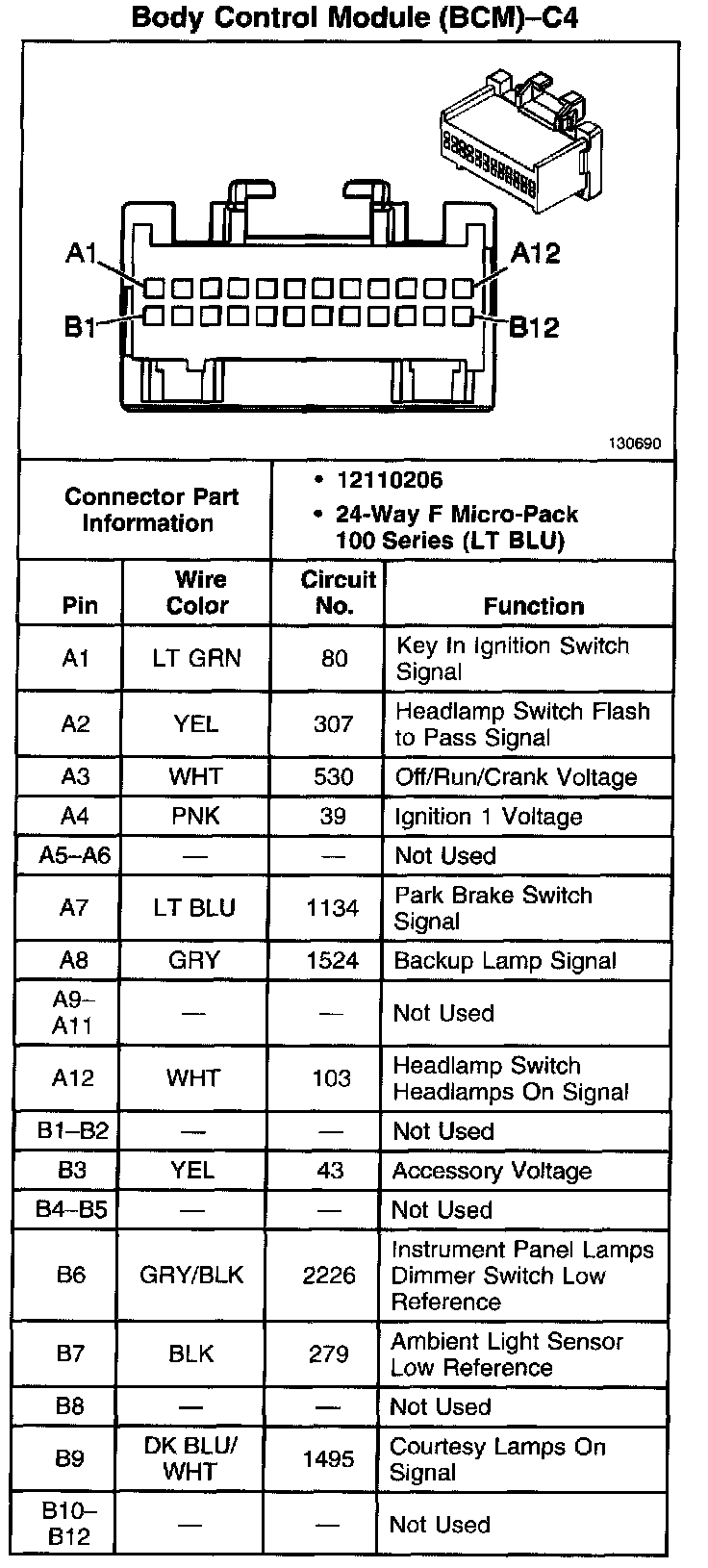

Body Control Module (BCM) - C4
Body Control Module (BCM) - C4:
