Home >> Hummer >> 2003 >> H2 V8-6.0L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Door Module >> Front Passenger Door Module (FPDM) - C3

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

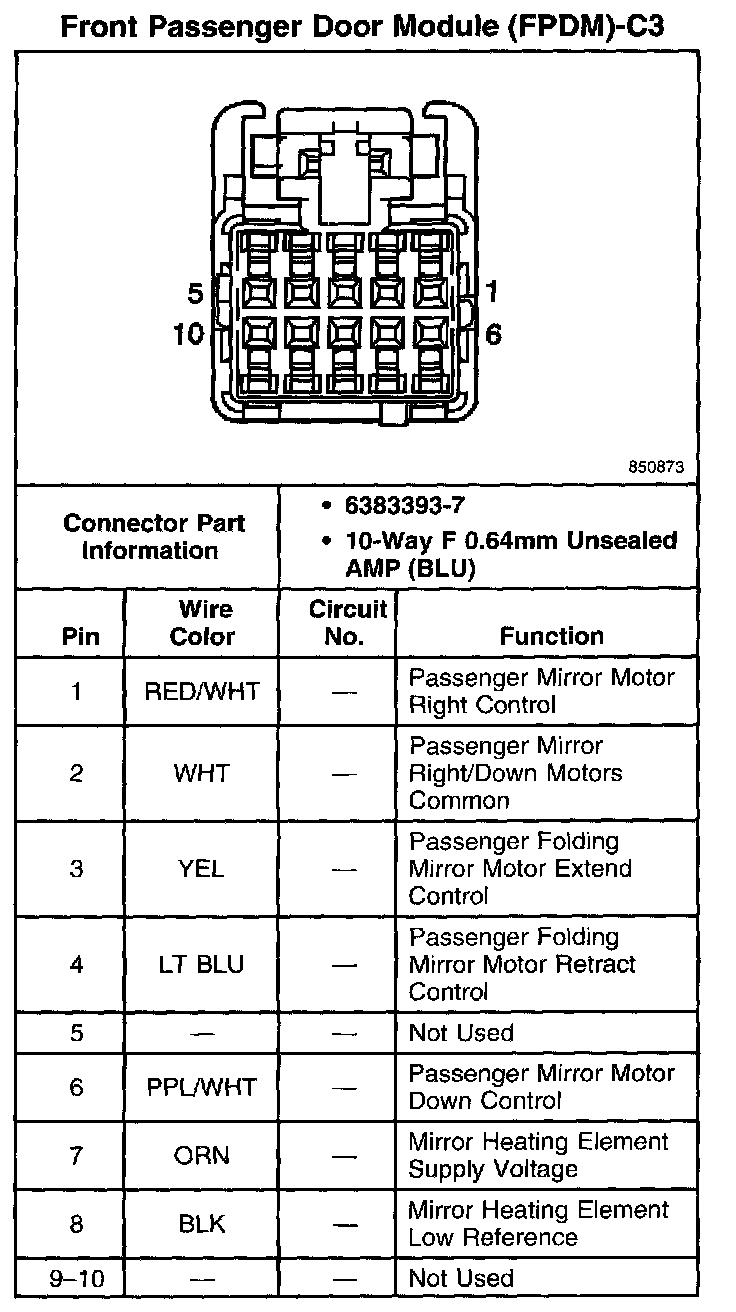

Front Passenger Door Module (FPDM) - C3

Front Passenger Door Module (FPDM) - C3:
