Memory Positioning Switch

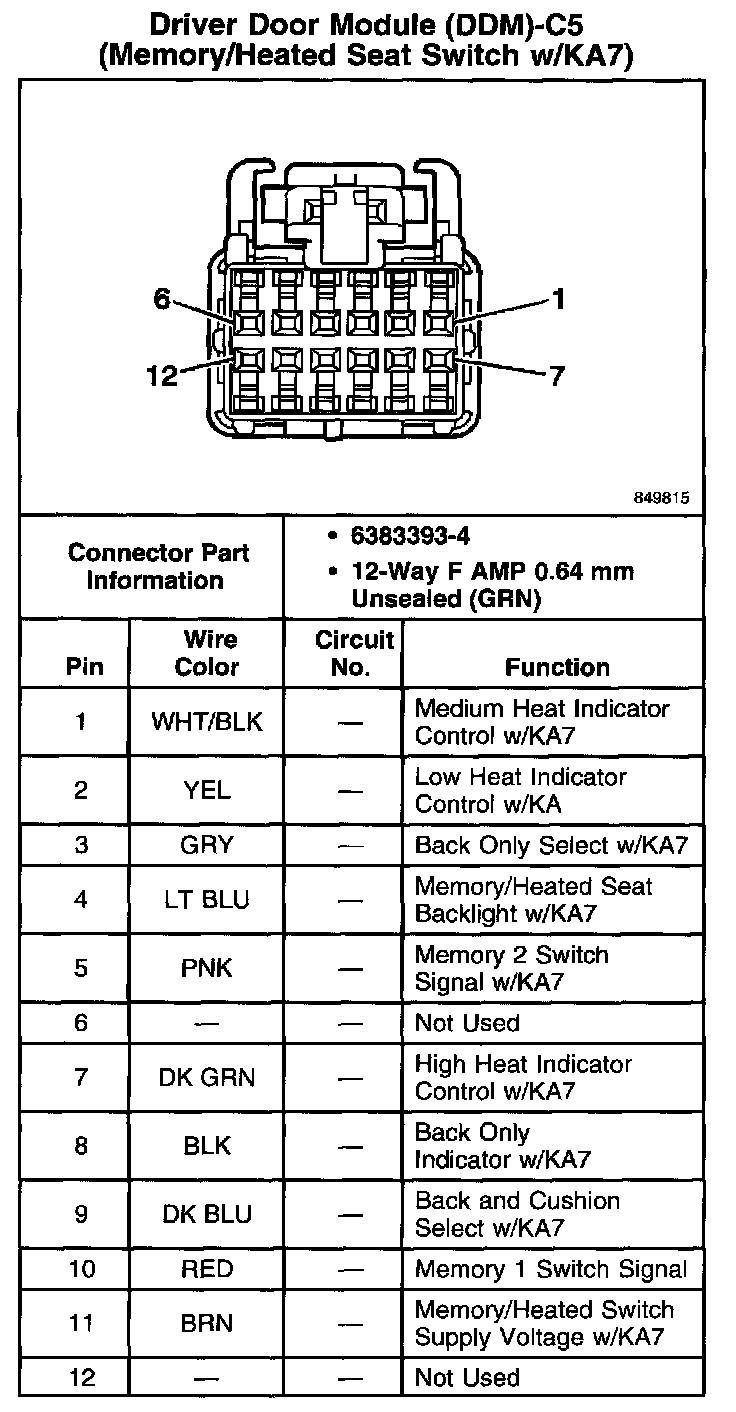

Driver Door Module (DDM) - C5 (Memory/Heated Seat Switch With RPO Code KA7):
