Junction Block - Rear C2

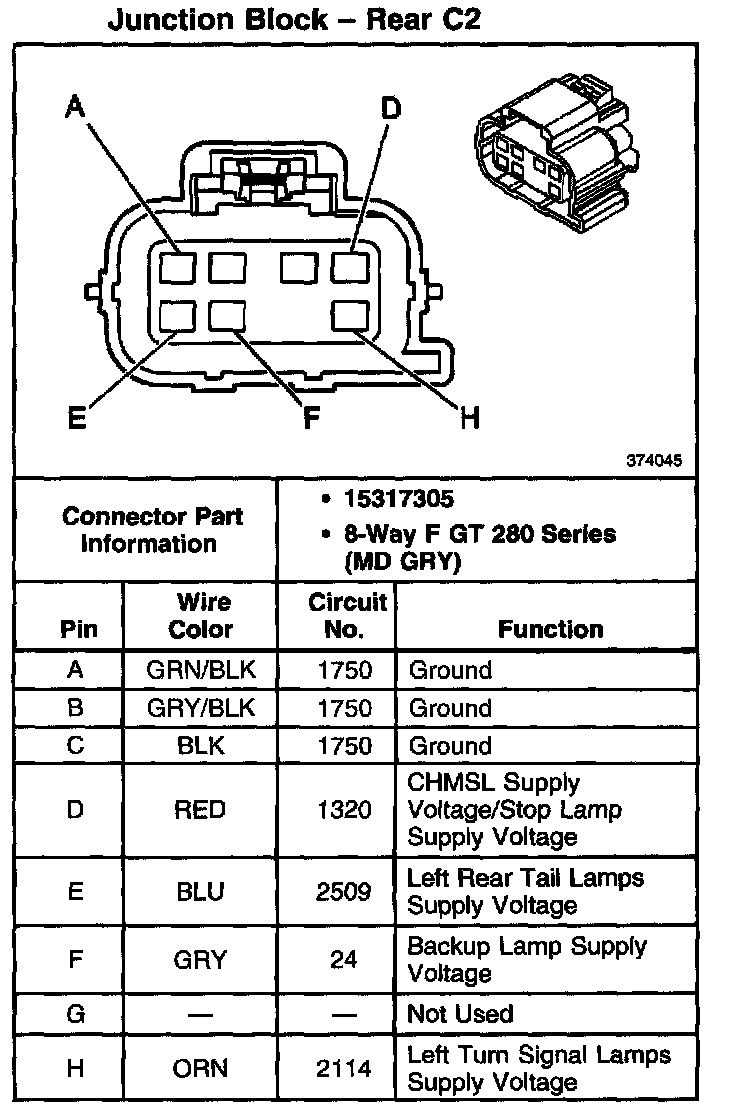

Junction Block - Rear C2:

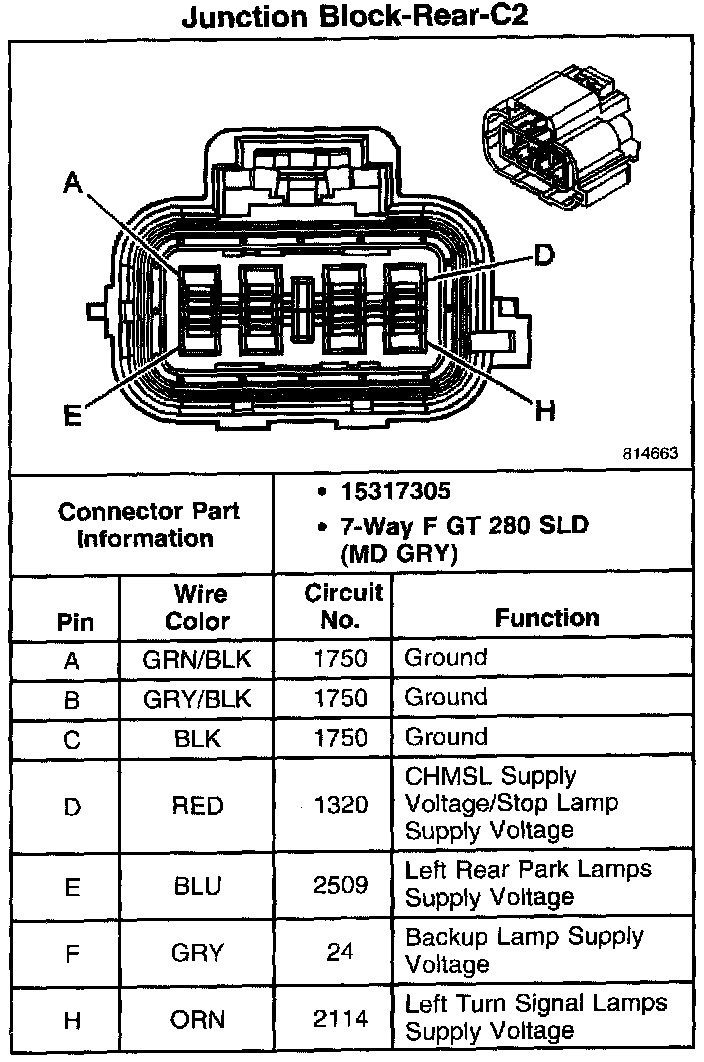

Junction Block - Rear - C2:

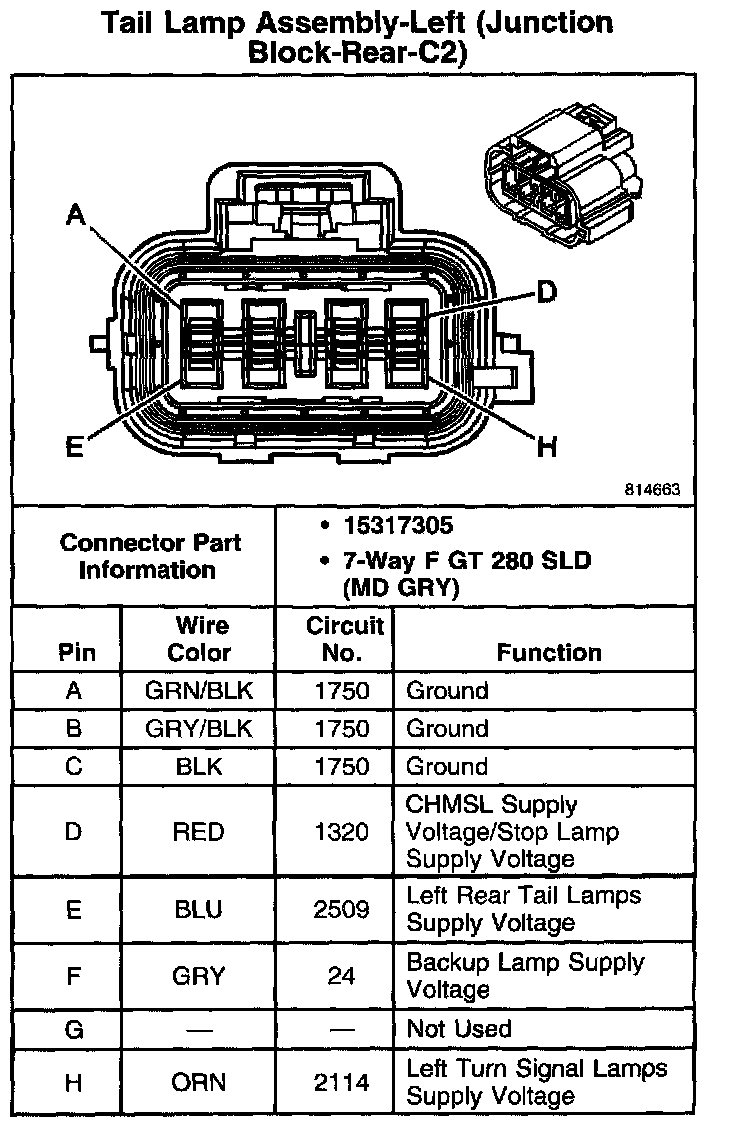

Tail Lamp Assembly - Left (Junction Block - Rear - C2):



Tail Lamp Assembly - Left (Junction Block - Rear - C2) Part 2:
