Radio/Stereo

Noise Cancellation Microphone:

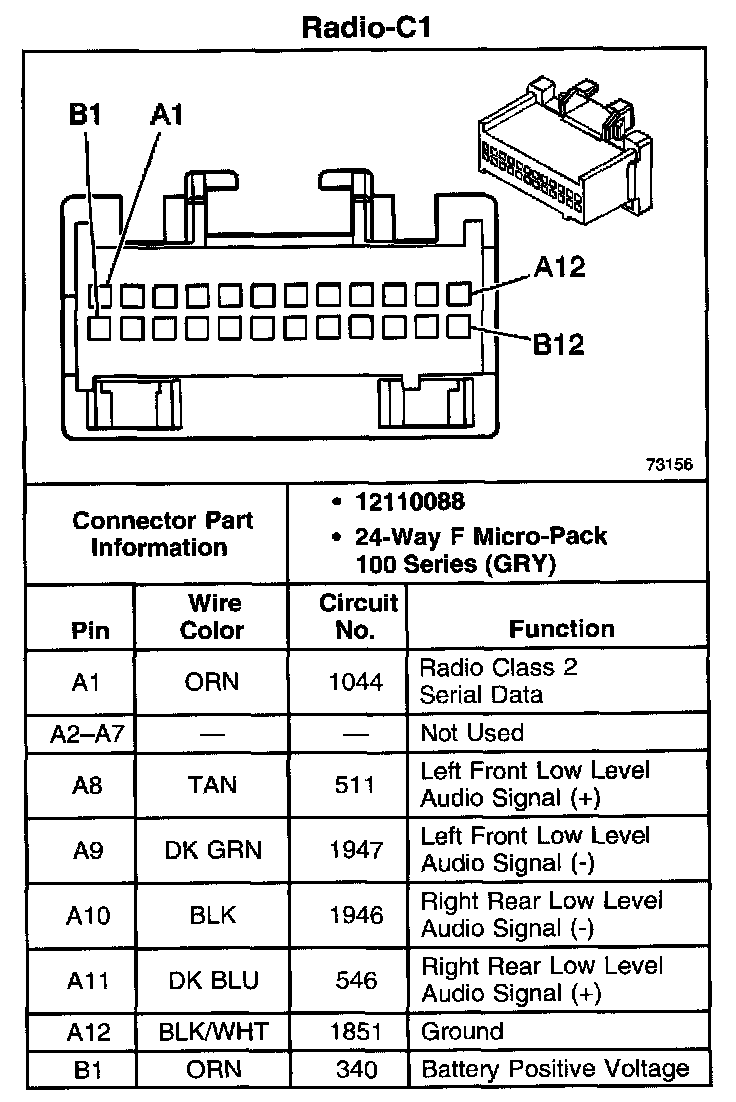

Radio - C1 Part 1:

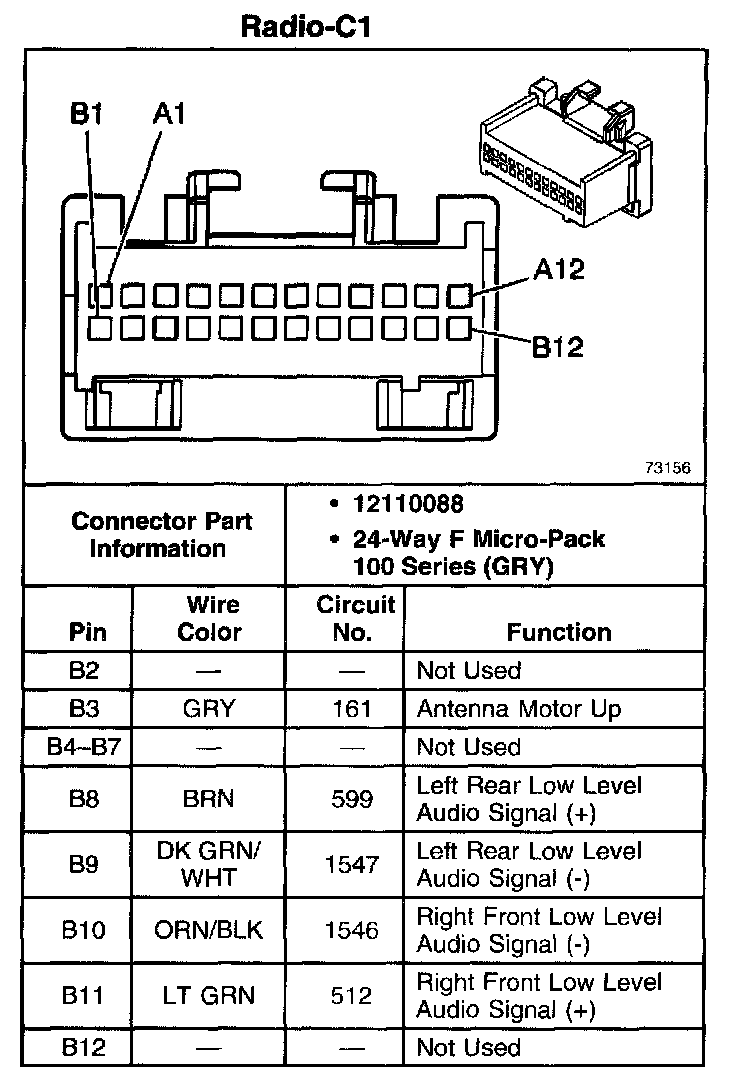

Radio - C1 Part 2:



Radio - C2:

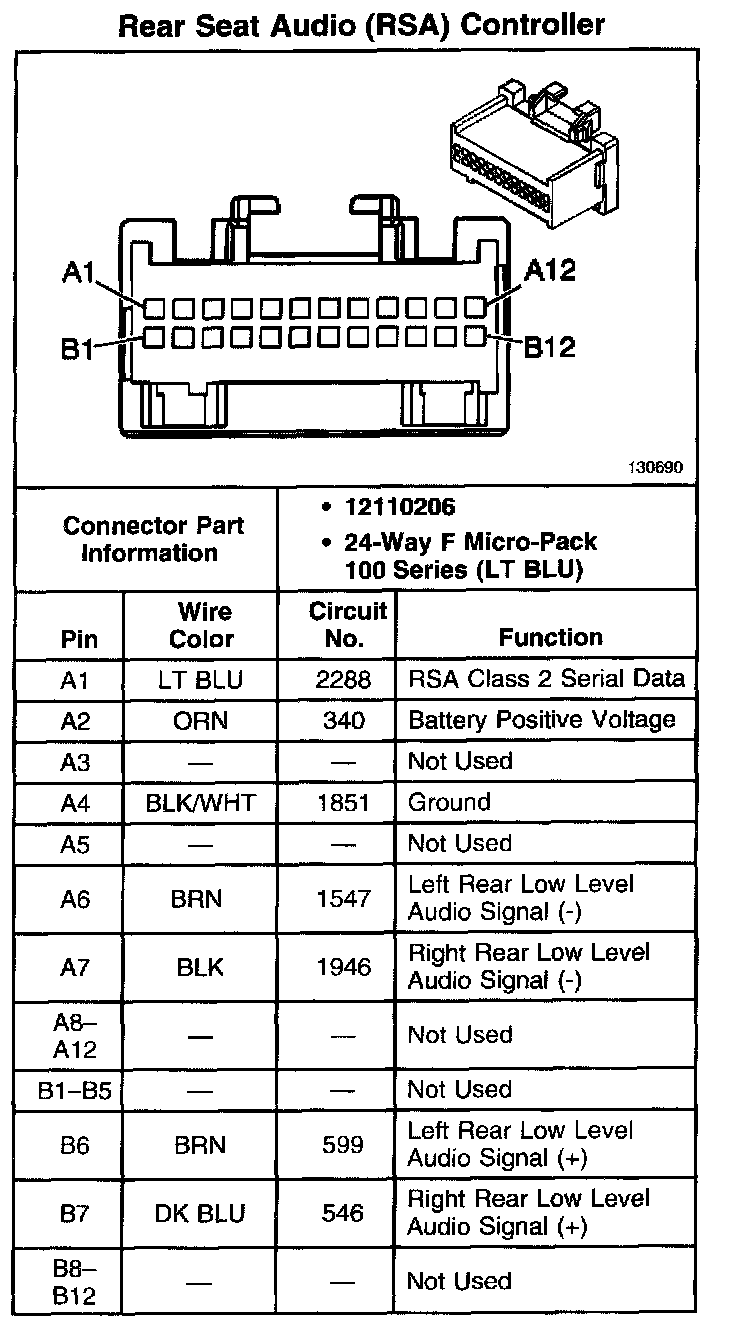

Rear Seat Audio (RSA) Controller:
