Seat Temperature Element

Heated Seat Element - Driver Cushion (With RPO Code KA7):

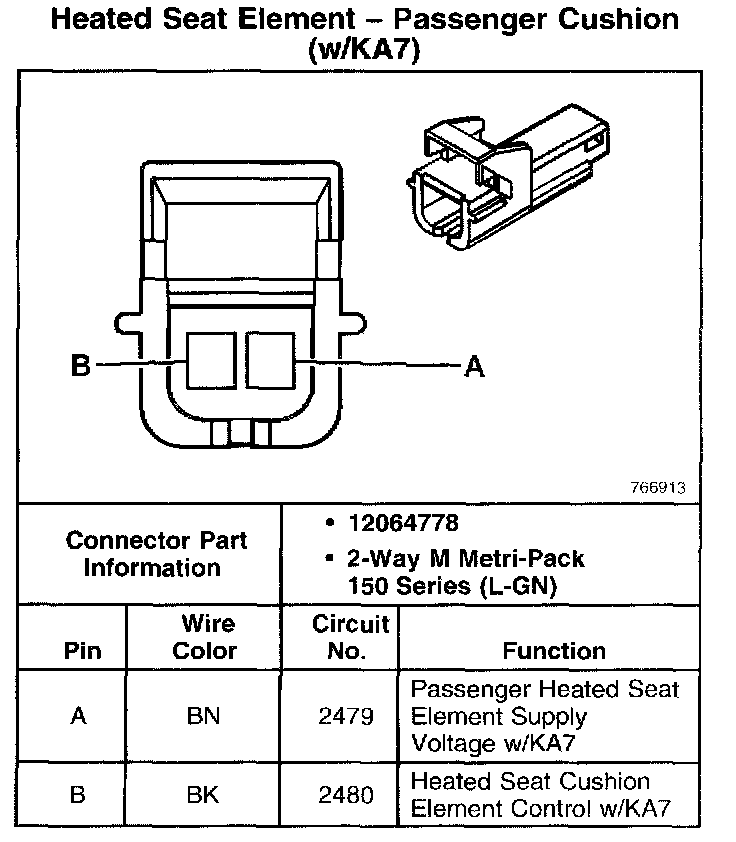

Heated Seat Element - Passenger Cushion (With RPO Code KA7):

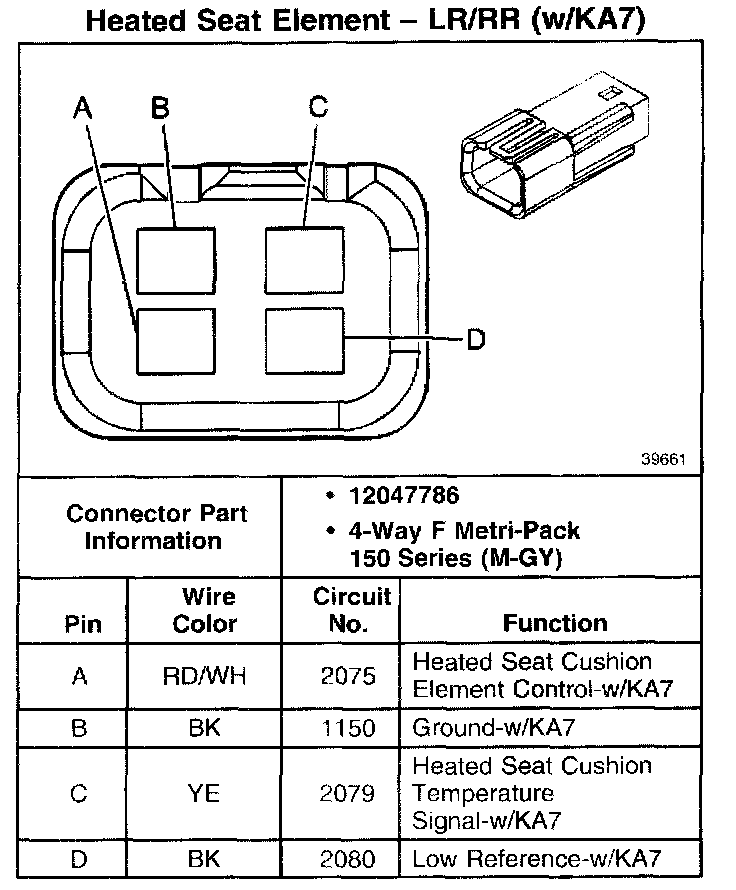

Heated Seat Element - LR/RR (With RPO Code KA7):
