Thread Repair Specifications - Engine Block
>>
Engine Block - Left Side View
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

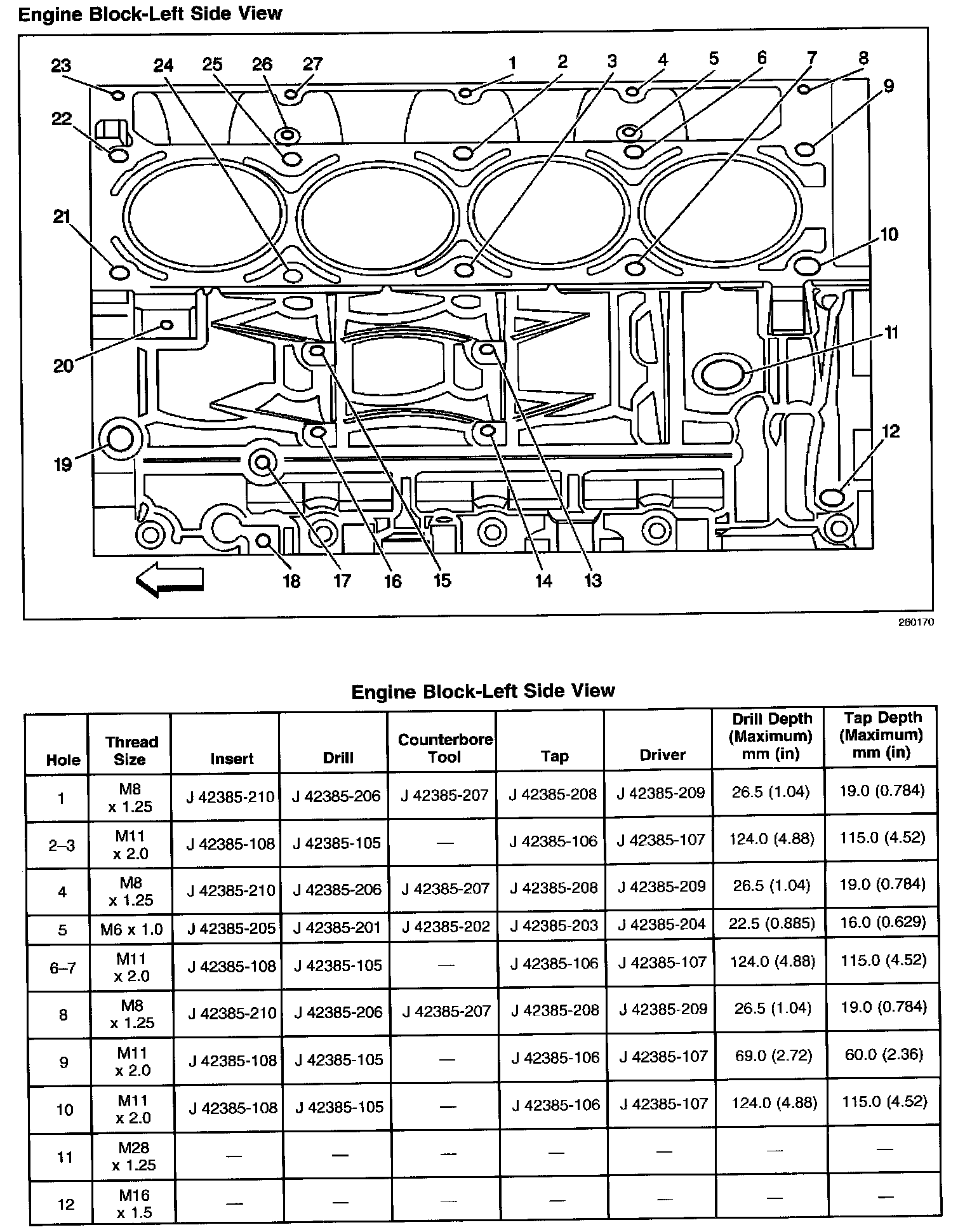

Engine Block - Left Side View

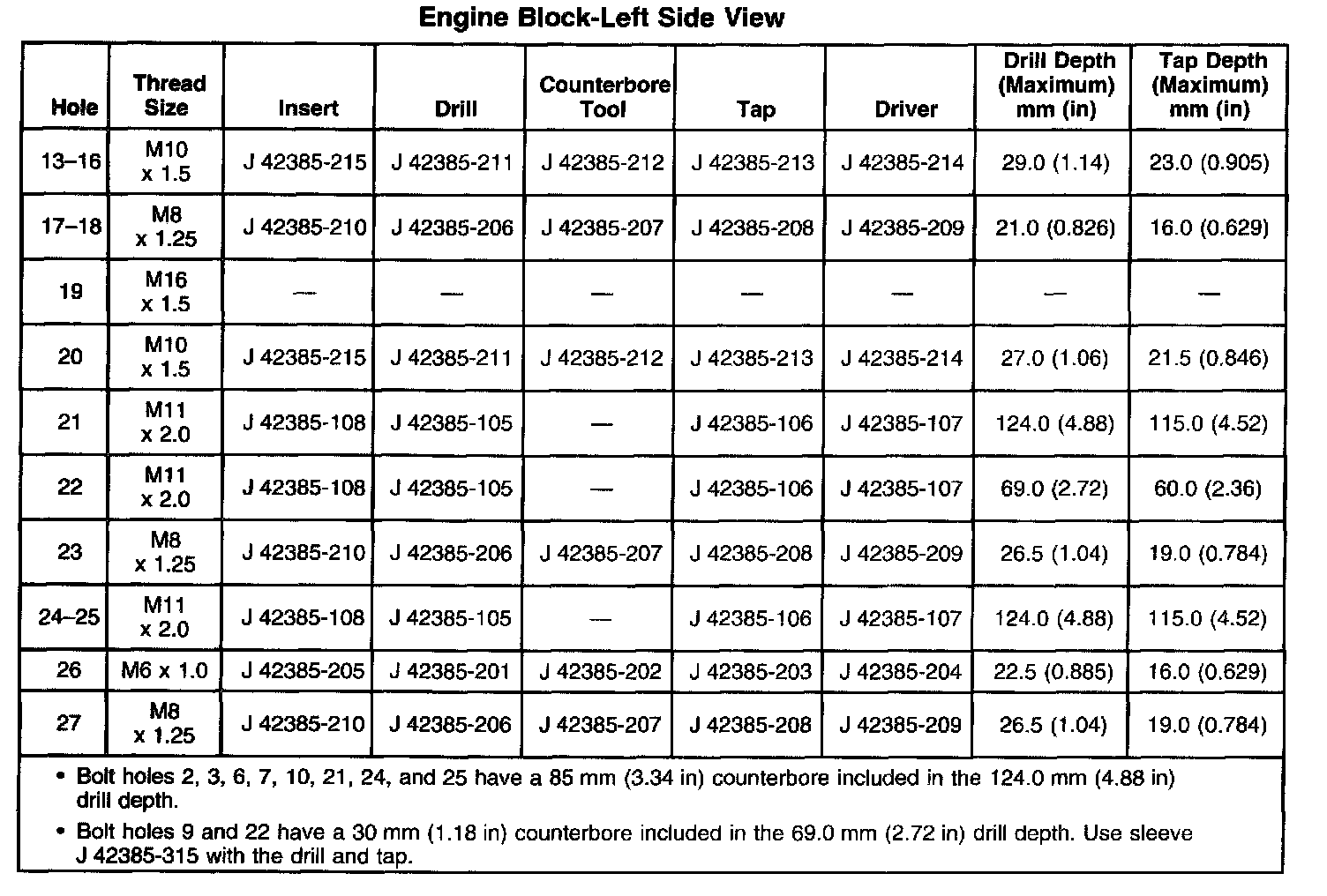

Engine Block - Left Side View Part 1:
Engine Block - Left Side View Part 2:
