A/C System Pressure - Zone Classification

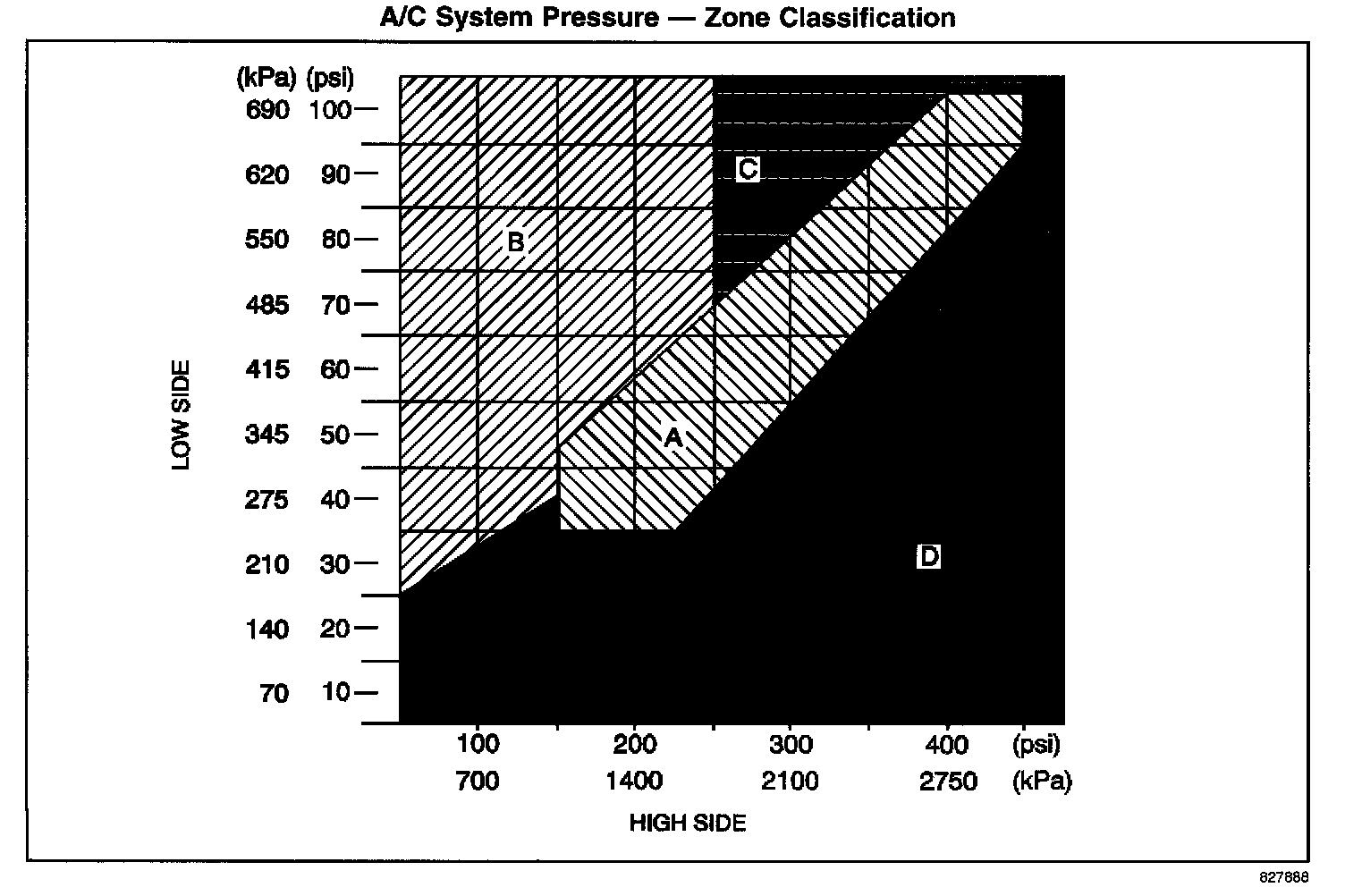

A/C System Pressure - Zone Classification:

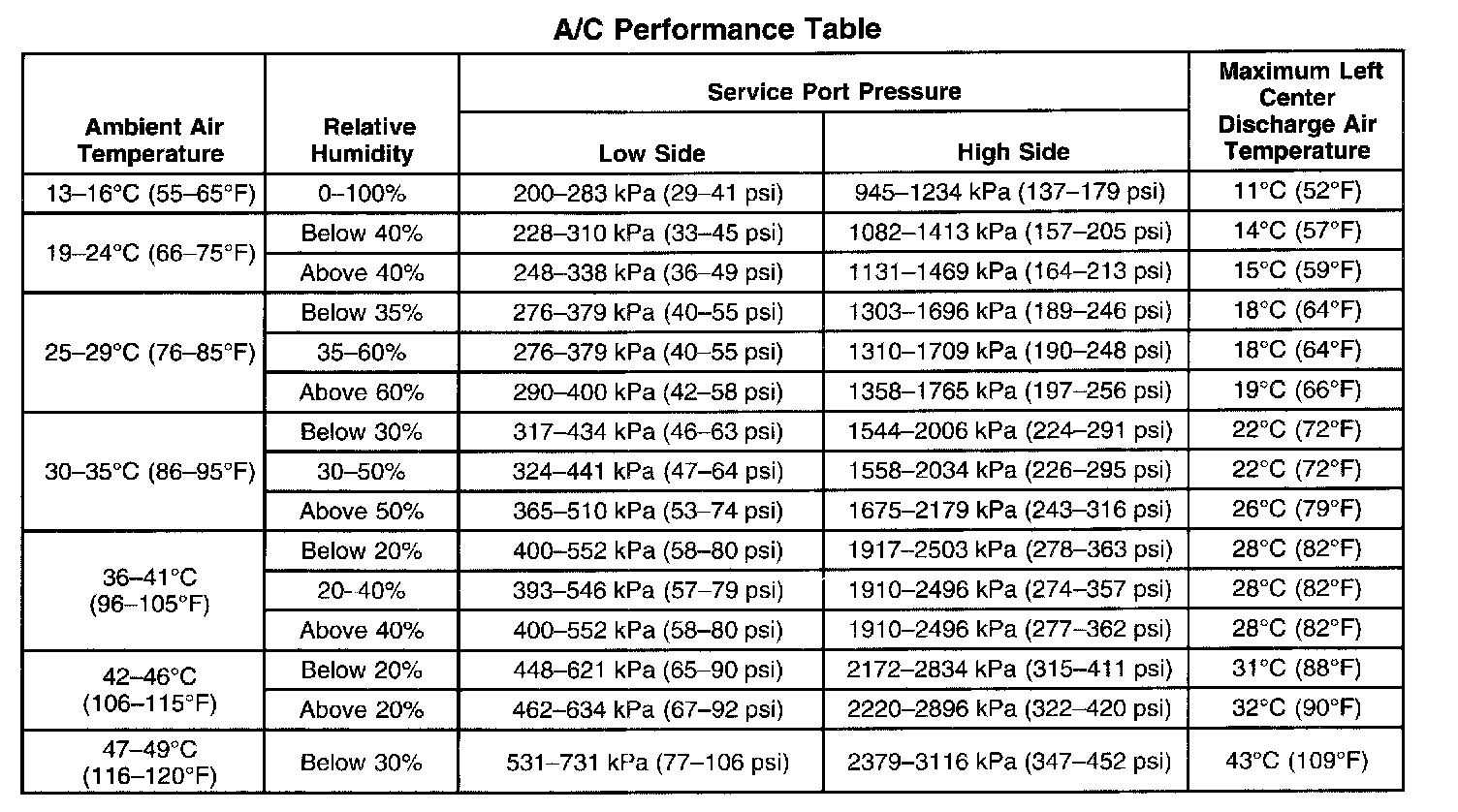

A/C Performance Table:
