Junction Block - Rear C3

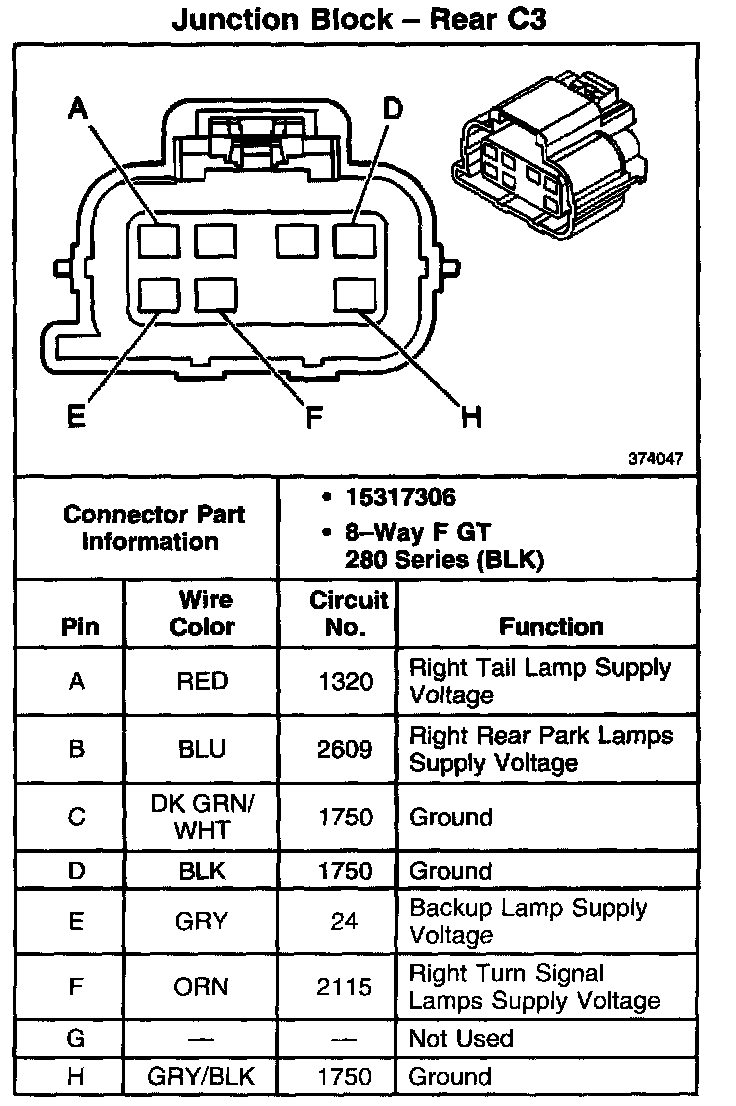

Junction Block - Rear C3:

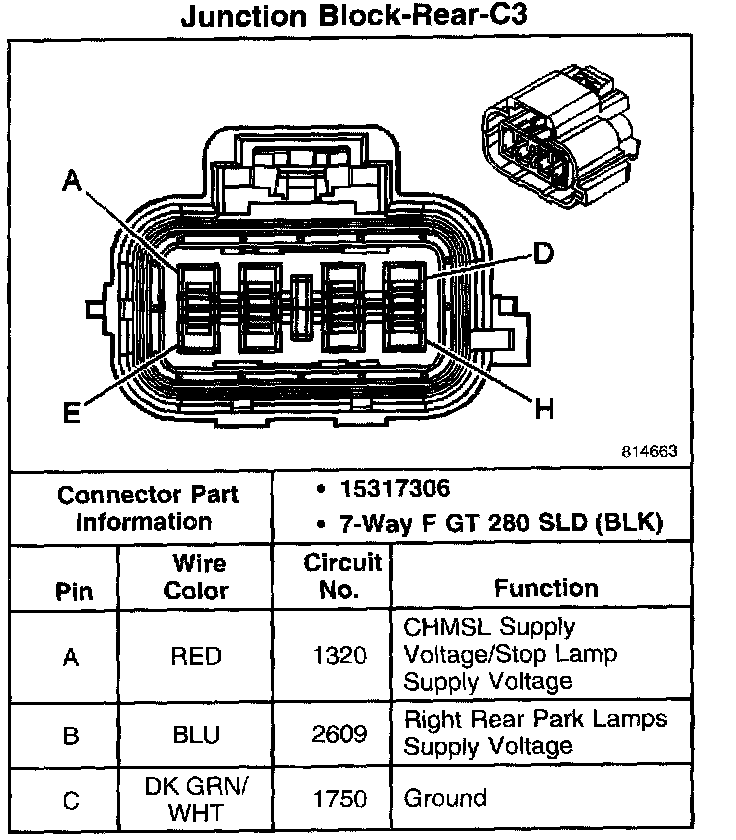

Junction Block - Rear - C3 Part 1:

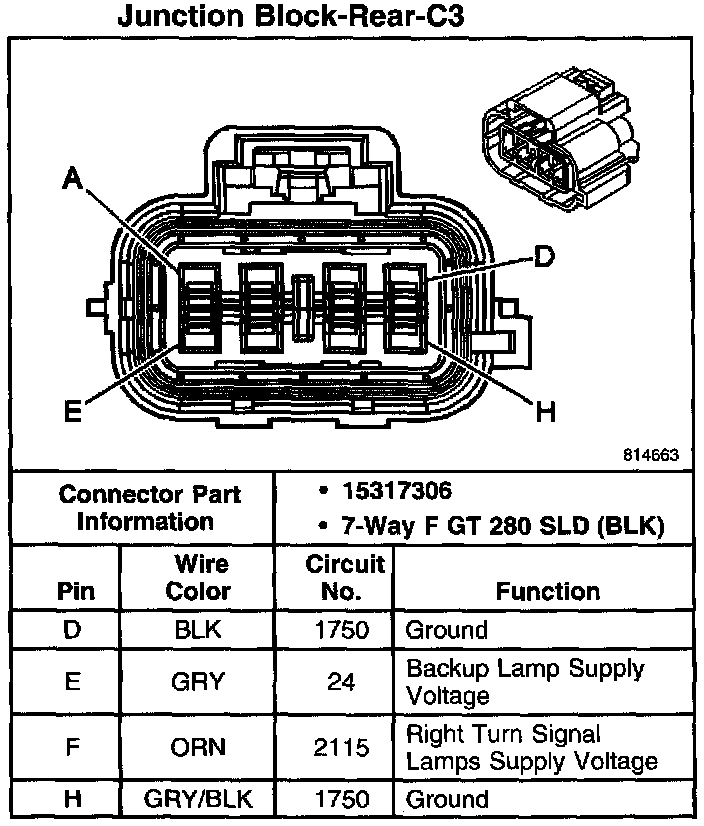

Junction Block - Rear - C3 Part 2:

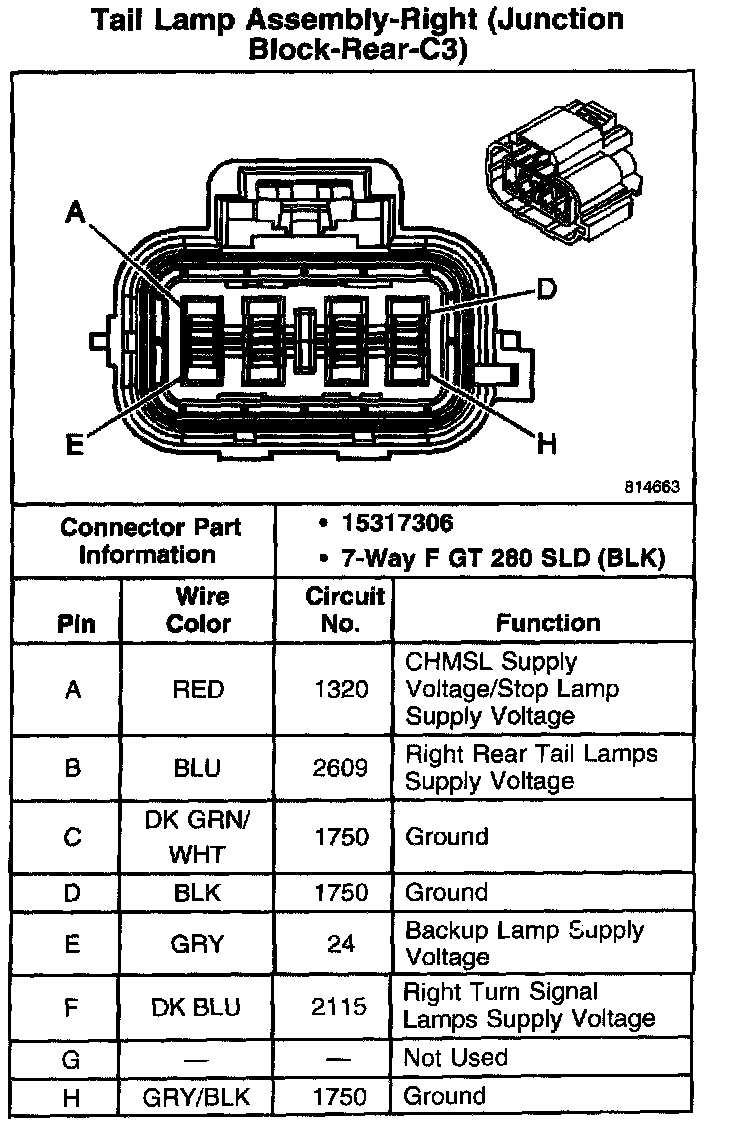

Tail Lamp Assembly - Right (Junction Block - Rear - C3):
Tail Lamp Assembly - Right (Junction Block - Rear - C3) Part 2:
