Electrical Diagrams

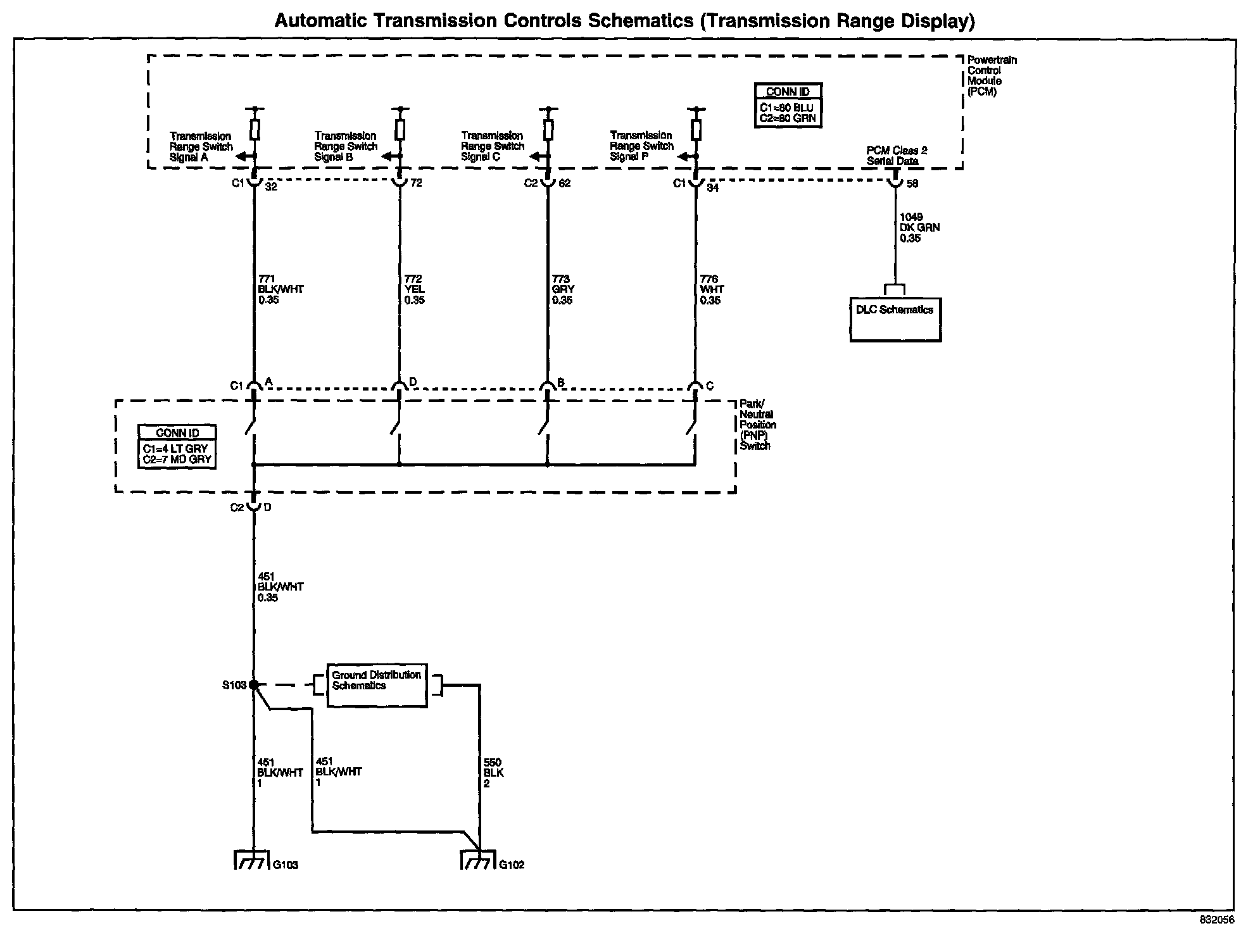

Automatic Transmission Controls Diagram 1:

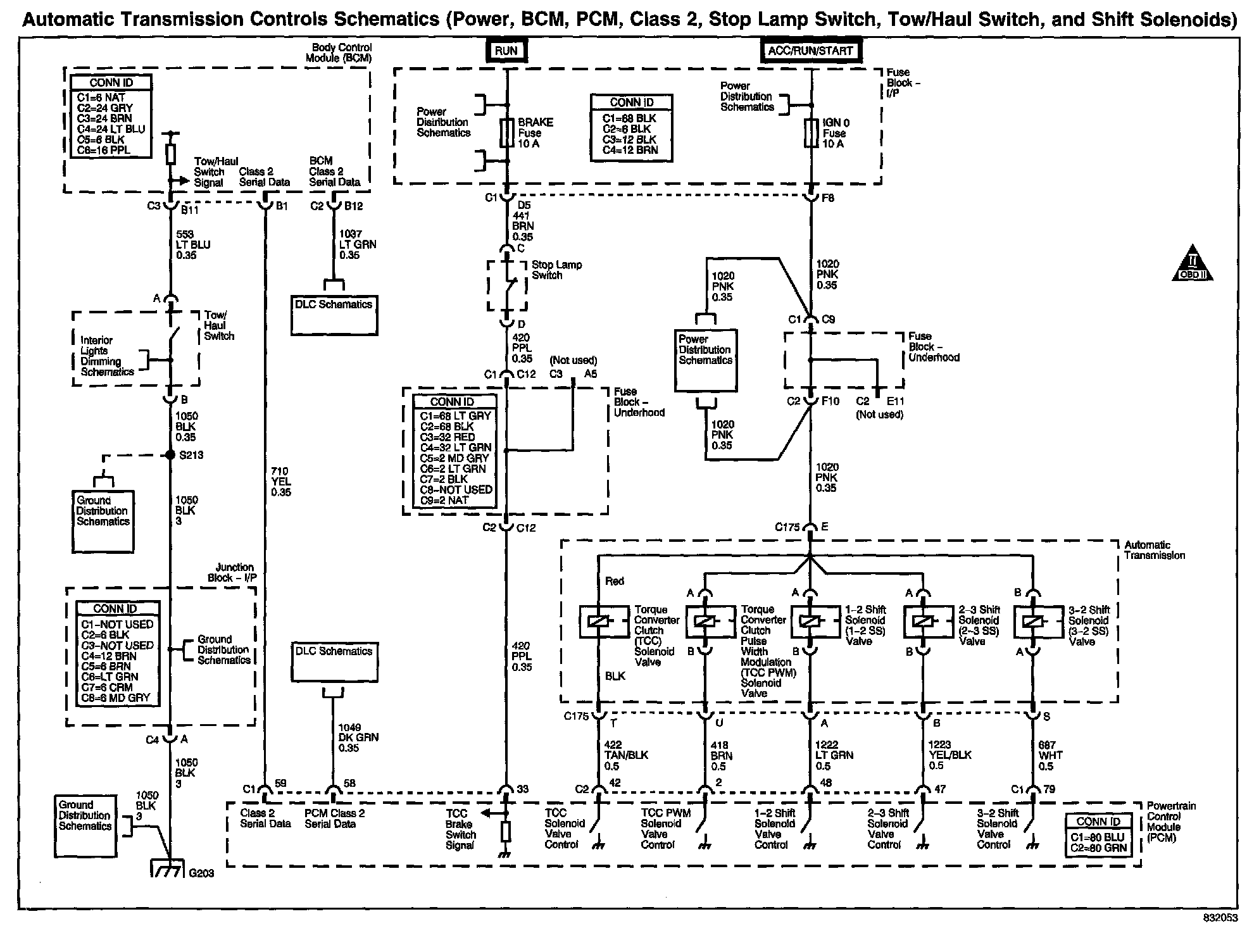

Automatic Transmission Controls Diagram 2:

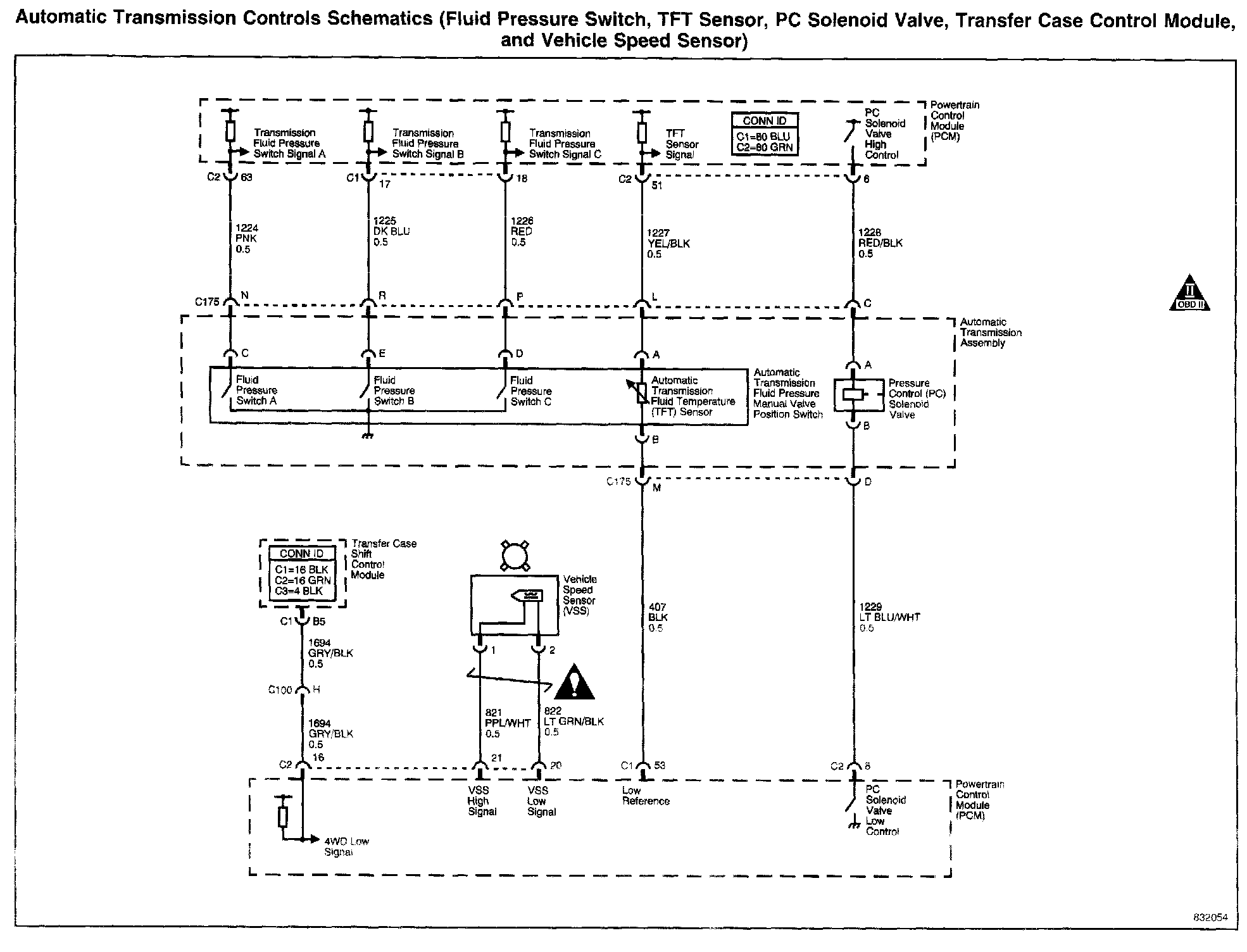

Automatic Transmission Controls Diagram 3:
