Cruise Control Component Views
Courtesy of GENERAL MOTORS CORP.

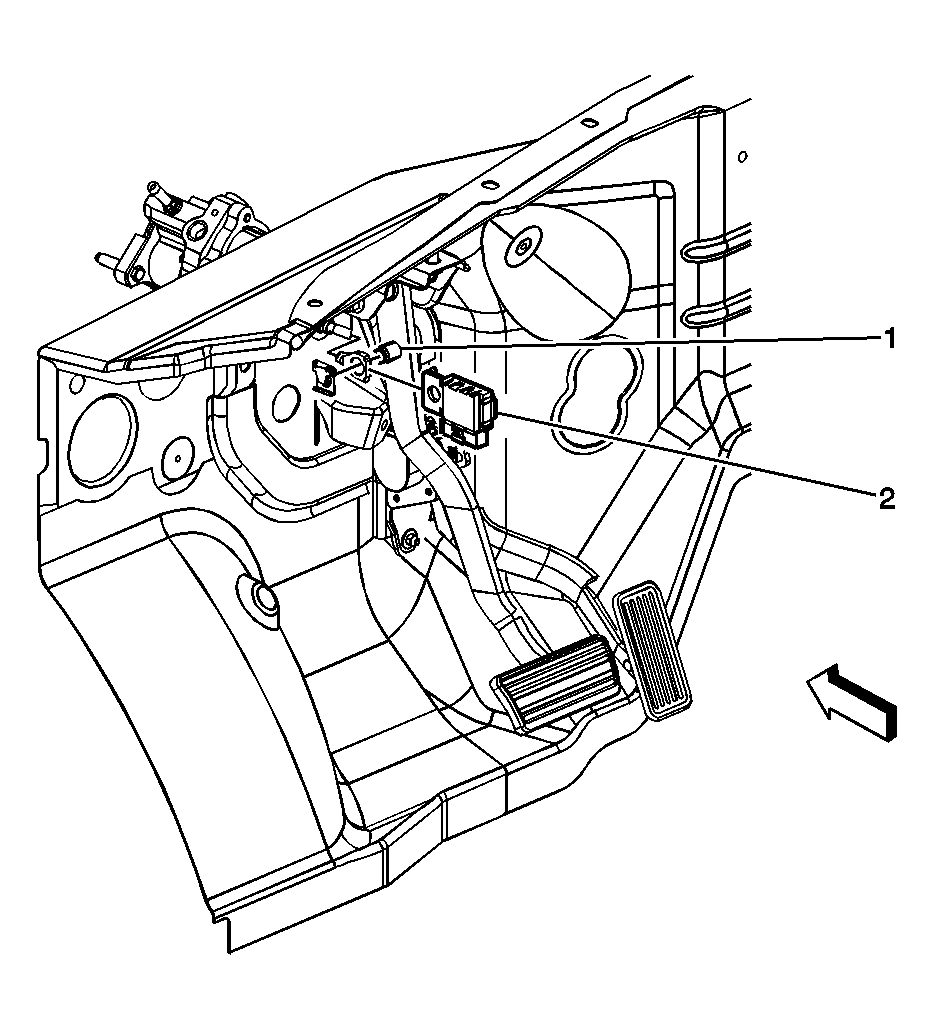

| Callout |
Component Name |
| 1 |
Brake Pedal Assembly |
| 2 |
Stop Lamp Switch |
Courtesy of GENERAL MOTORS CORP.

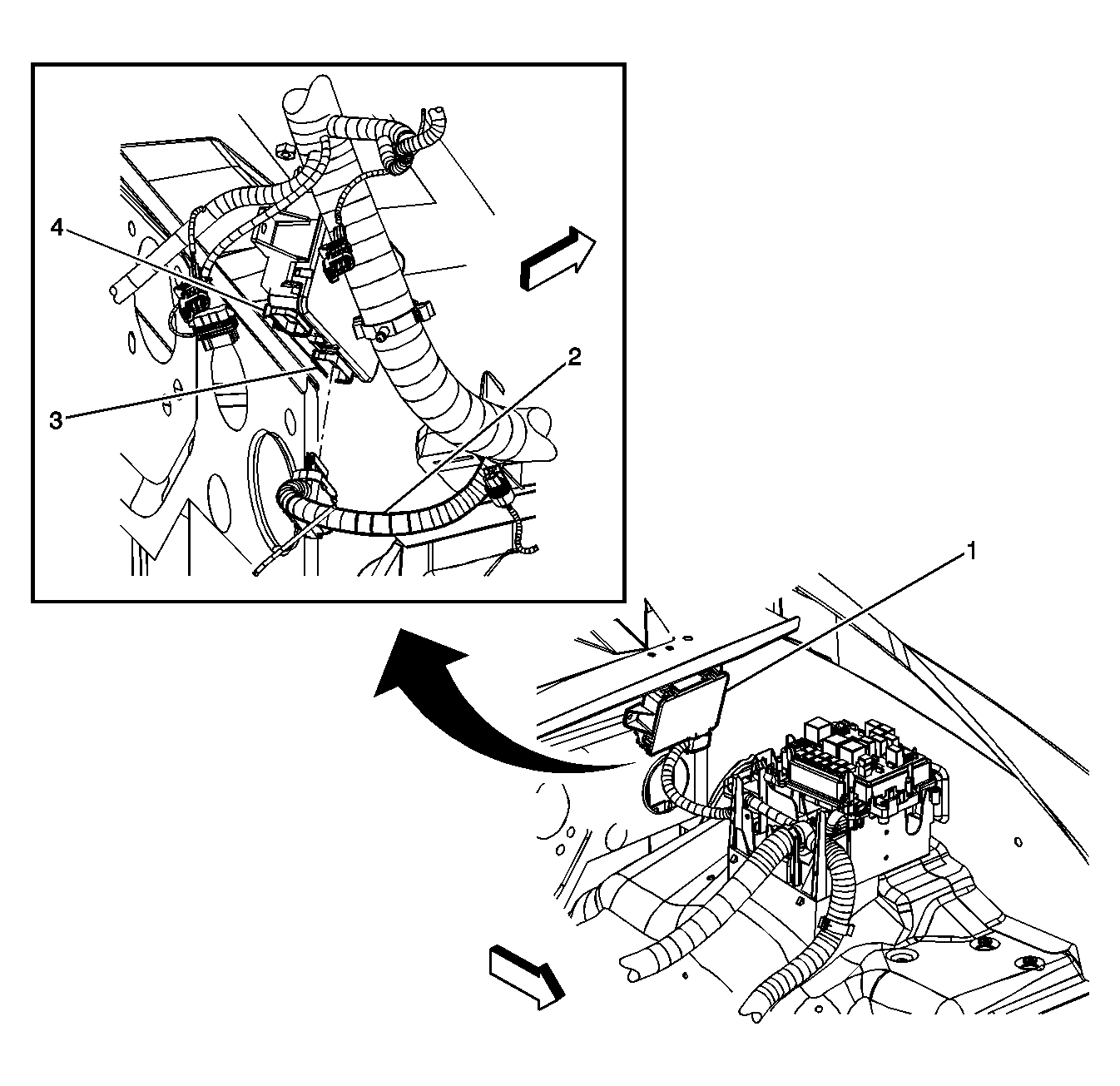

| Callout |
Component Name |
| 1 |
TAC Module |
| 2 |
Engine Harness |
| 3 |
TAC Module-C1 |
| 4 |
TAC Module-C2 |
Courtesy of GENERAL MOTORS CORP.

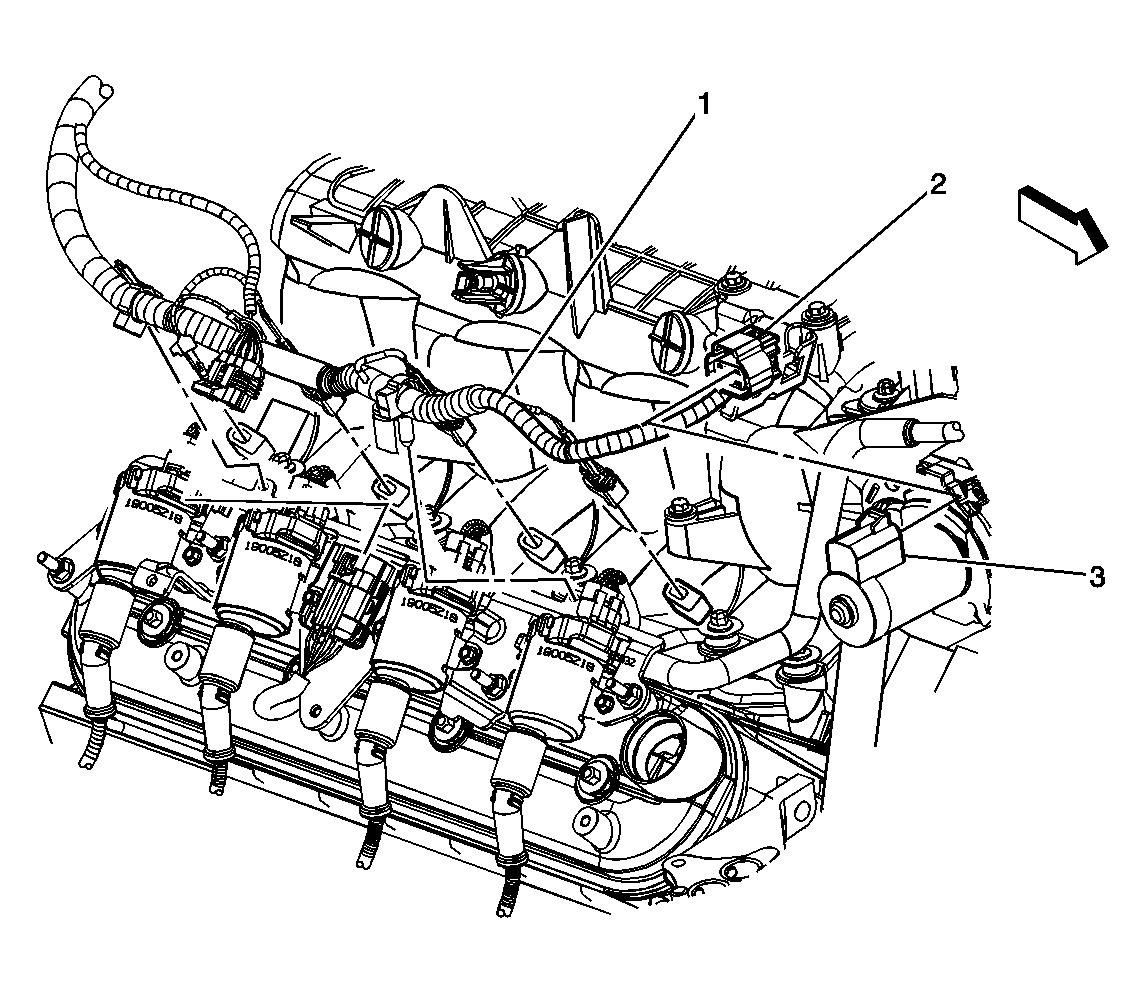

| Callout |
Component Name |
| 1 |
Engine Harness |
| 2 |
Throttle Body Connector |
| 3 |
Throttle Body Assembly |
