Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Schematic & Routing Diagrams
>>
Power Seats Schematics
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Seats Schematics

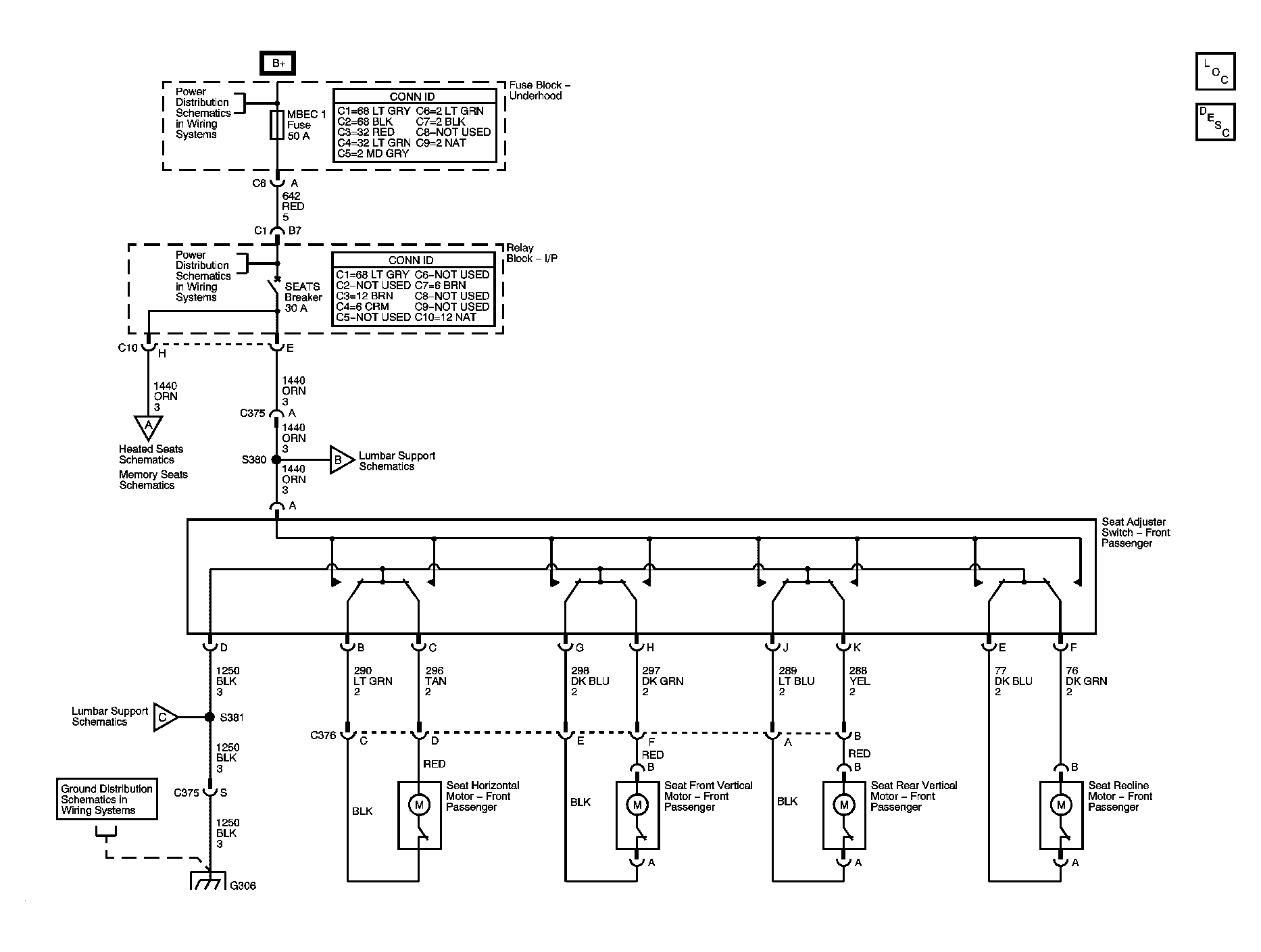

Fig 1: Power Seats Schematic
