Removal Procedure

  1. Remove the left hand catalytic convert.
  2. Remove the engine wiring harness ground bolt. See Fig 1.
  3. Lower the vehicle.
  4. Remove the ground strap nut from the stud at the front of dash. See Fig 2.
  5. Remove the ground strap from the stud.

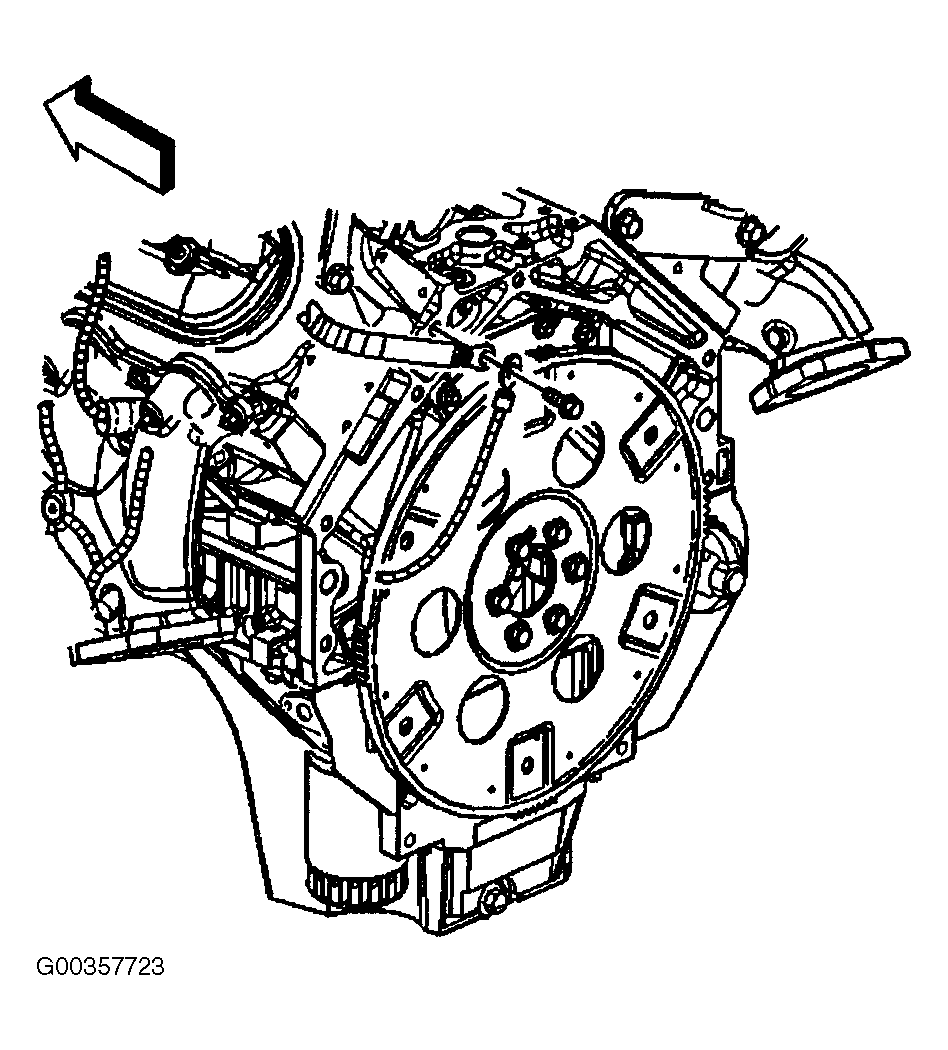

    Fig 1: Locating Engine Wiring Harness Ground Bolt
    G00357723Courtesy of GENERAL MOTORS CORP.

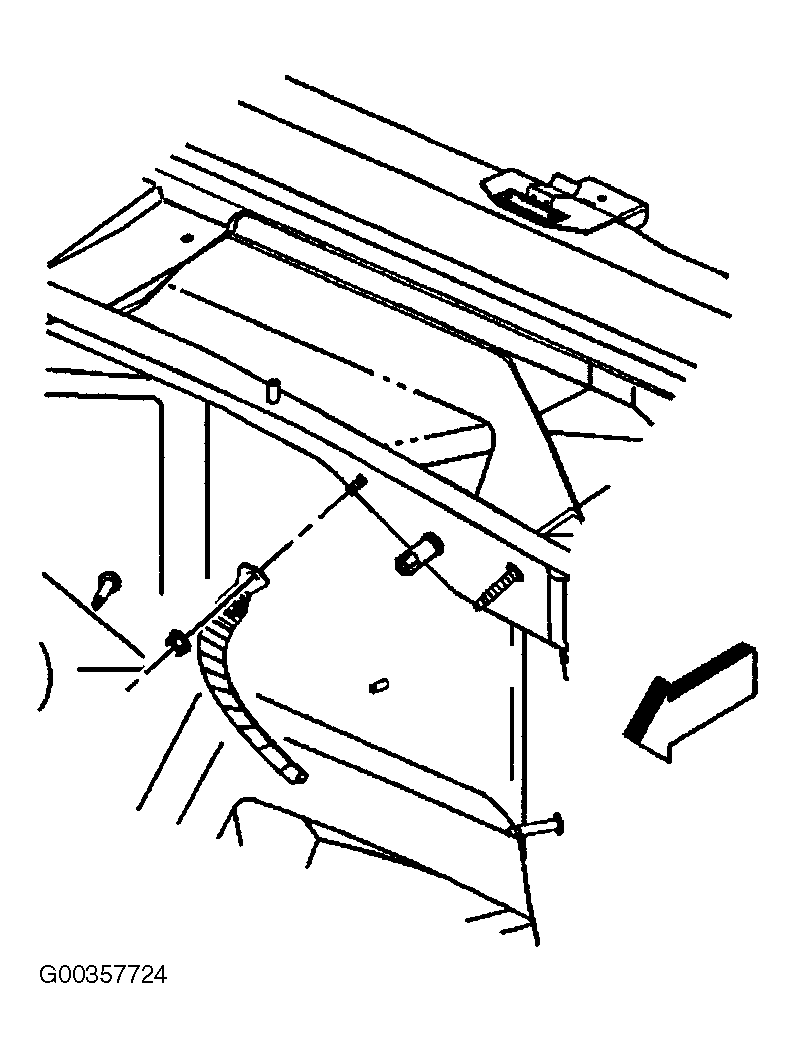

    Fig 2: Locating Ground Strap At Front Of Dash
    G00357724Courtesy of GENERAL MOTORS CORP.
