Installation Procedure

WARNING: This page is about a different car, the 2002 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the washer pump in the washer solvent container.
    Fig 1: Installing Washer Pump
    G01801010Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the washer pump.

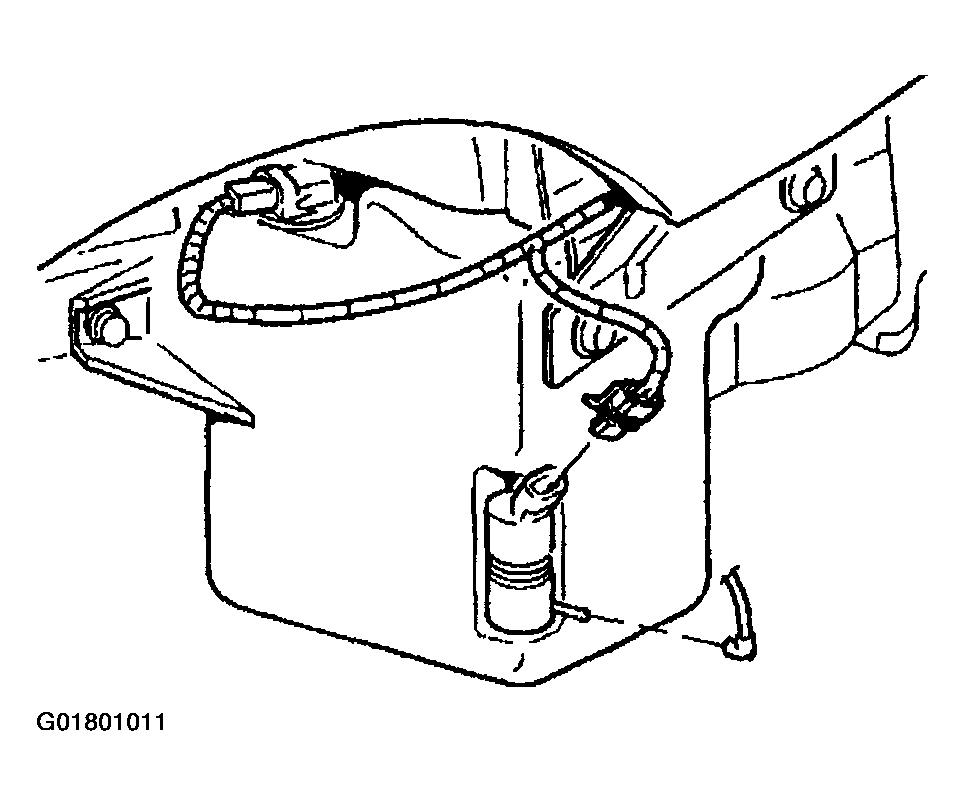

    3. Fig 2: Connecting Electrical Connectors
    G01801011Courtesy of GENERAL MOTORS CORP.
  3. Connect the washer hose to the washer pump.
  4. Install the right front fascia extension. Refer to FASCIA EXTENSION REPLACEMENT -- FRONT .
  5. Fill the washer solvent container.
