Installation Procedure

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Refer to FASTENER NOTICE in GM Vehicles Cautions & Notices.

Install the lateral accelerometer sensor (1).
Install the 2 lateral accelerometer sensor mounting screws (3). Tighten: Tighten the 2 lateral accelerometer sensor mounting screws to 2.4 N.m (21 lb in).
Connect the lateral accelerometer sensor electrical connector (2).
Install the rear seat cushion. Refer to SEAT CUSHION REPLACEMENT - REAR in Seats.
Perform the ABS Diagnostic System Check. Refer to DIAGNOSTIC SYSTEM CHECK - ABS .

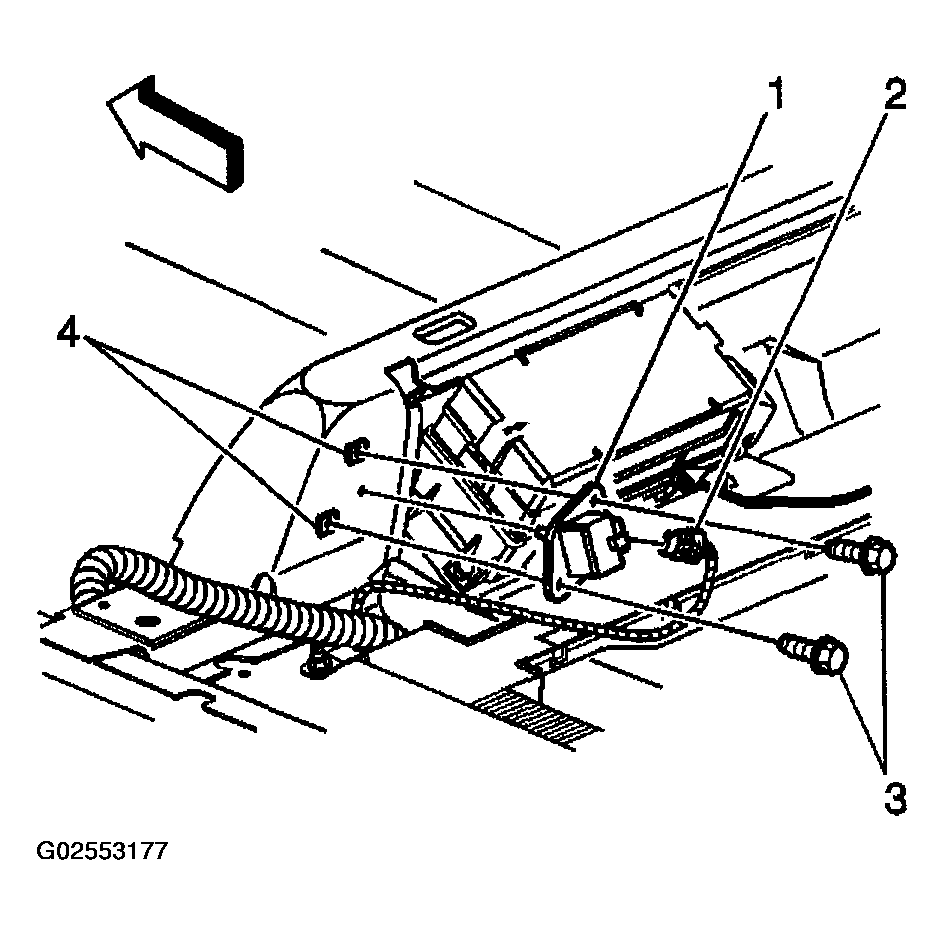

Fig 1: Removing & Installing Lateral Accelerometer

Courtesy of GENERAL MOTORS CORP.
