Front Caster Adjustment

WARNING: This page is about a different car, the 2003 Oldsmobile Aurora. However, it is still accessible from the selected car via links, so may be relevant.

Use the following procedure in order to prepare the top strut mounting holes:

Remove the top 3 fasteners from the strut tower.

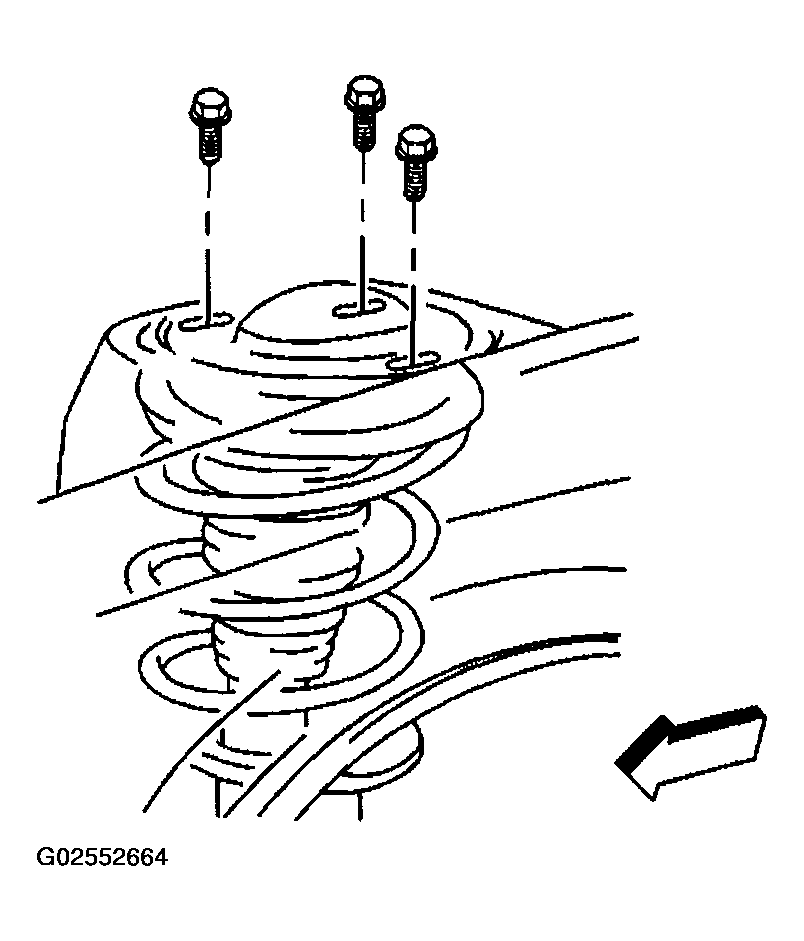

Fig 1: Removing Top Fasteners From The Strut Tower
Courtesy of GENERAL MOTORS CORP.
Lift the front of the vehicle by the body in order to separate the strut from the inner wheelhouse. Refer to LIFTING AND JACKING THE VEHICLE .
Pop out the 2 guide pins.
Hand file the excess metal in order to make slotted holes.

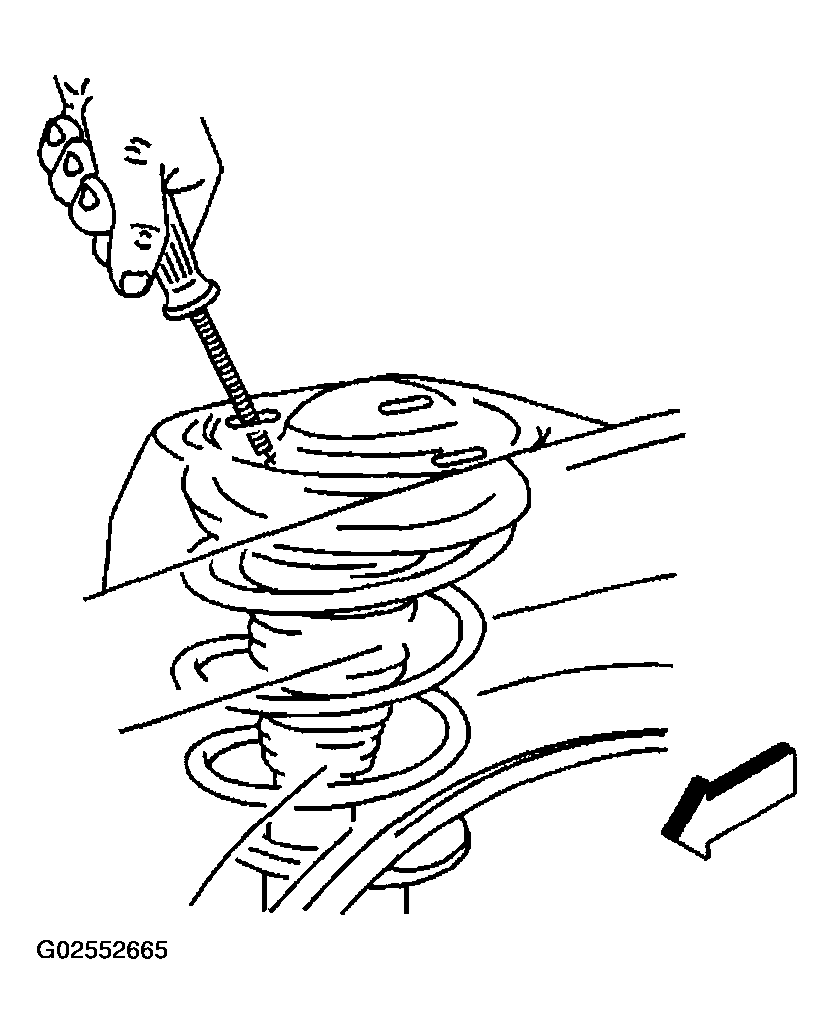

Fig 2: Filing Excess Metal
Courtesy of GENERAL MOTORS CORP.
Paint the exposed metal using rust preventative paint or primer.
Lower the front of the vehicle.
Install the strut attaching fasteners.
Do not tighten the fasteners at this time.

NOTE: Refer to FASTENER NOTICE .
Move the top of the strut forward or rearward in order to adjust the caster. A 1 mm (0.040 in) position change at the tower is about equal to a 0.1 degree change in the caster. Refer to WHEEL ALIGNMENT SPECIFICATIONS .
Tighten

Tighten the strut fasteners to 47 N.m (35 lb ft).
Perform a complete wheel alignment.
